LD-DI-SML-30 Ultrapure water system filter cartridge
LD-DI-SML-30 Ultrapure water system filter cartridgeProduct Features1.Korean appearance, exquisite and slim, small
LD-DI-SML-10 Ultrapure water system filter cartridge
Product Features
1.Korean appearance, exquisite and slim, small size, can be inside lab cabinet.
2.Quick-insert filters make replacement easy and convenient.
3.Design of exposed filter cartridges make consumables replaced easily.
4.Microcomputer automatically control, backlight LED large LCD screen.
5.Visualized operating status, real-time display flushing, water making, water full&lack and maintenance status, with sound and light alarm function,
6.Transparent window, simple&graceful, detachable panel, convenient maintenance.
7.Newest environmentally friendly materials. With a portable test pen.
Application
Preposition of ultra pure water system, supply water for biochemical analyzer, electroplating painting, battery charging, chips washing, microbial culture media, chemical&biochemical regent preparation, buffer making, photographic film processing, stability test chamber, meteorological test equipment, hydrogen generator, salt spray test chamber. It can completely replace the traditional single/double/triple distilled water machine.
Product parameter
Feed water request | Urban tap water, inlet water pressure: 0.15-0.5MPa, water temperature 5-40°C |
Capacity | 30L/H |
Flow rate | 1.5-2L/min ( with pressure barrel) |
Output water quality | RO pure water: desalination rate as high as 95-99%，TDS<10ppm |
Deionized water: resistivity 15-18MΩ.cm@25°C, conductivity: ≦0.1 μs/cm, ammonia: 0.3μg/ml, nitrate: 0.06 μg/ml | |
Power supply | 110-240V, 50/60Hz，48W |
Dimension（mm） | L*W*H：41*27*50cm |
Standard configuration： | Machine (including 1 set of consumable filters) + accessory package |
Remarks:*The value will be influenced by temperature and feed water’s qualit

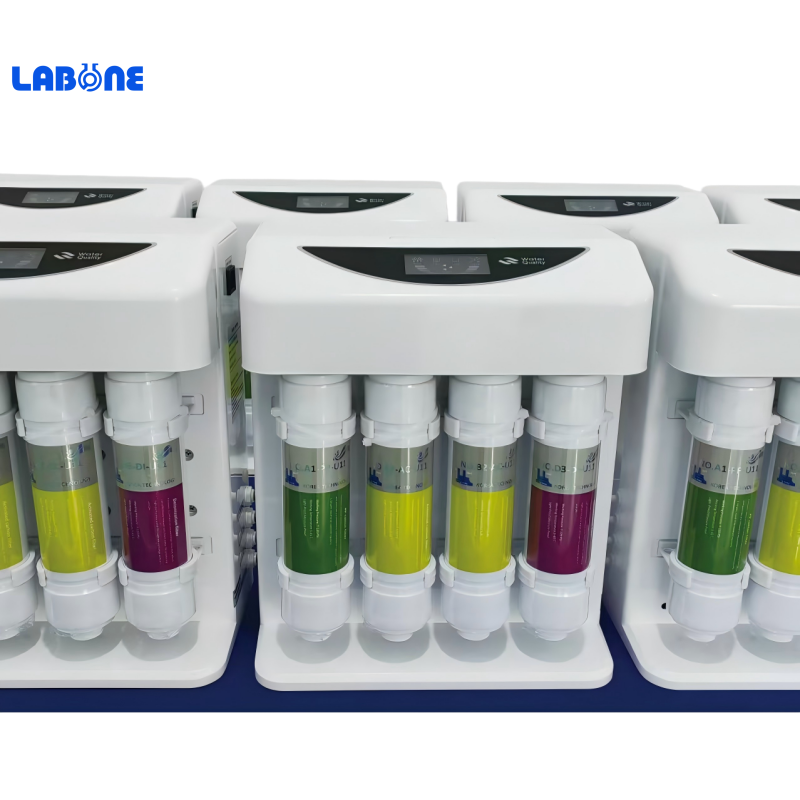

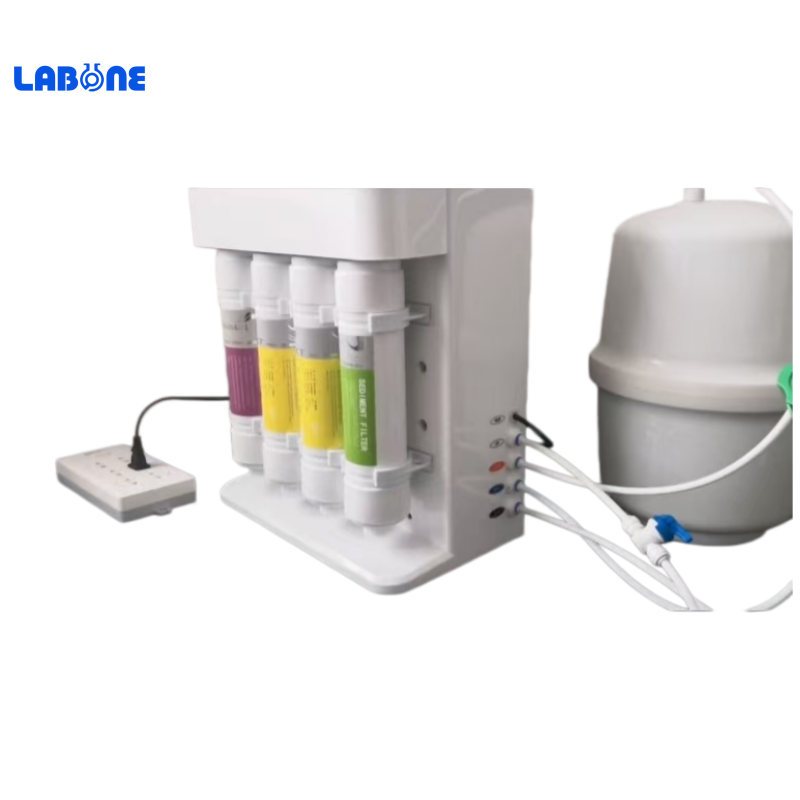

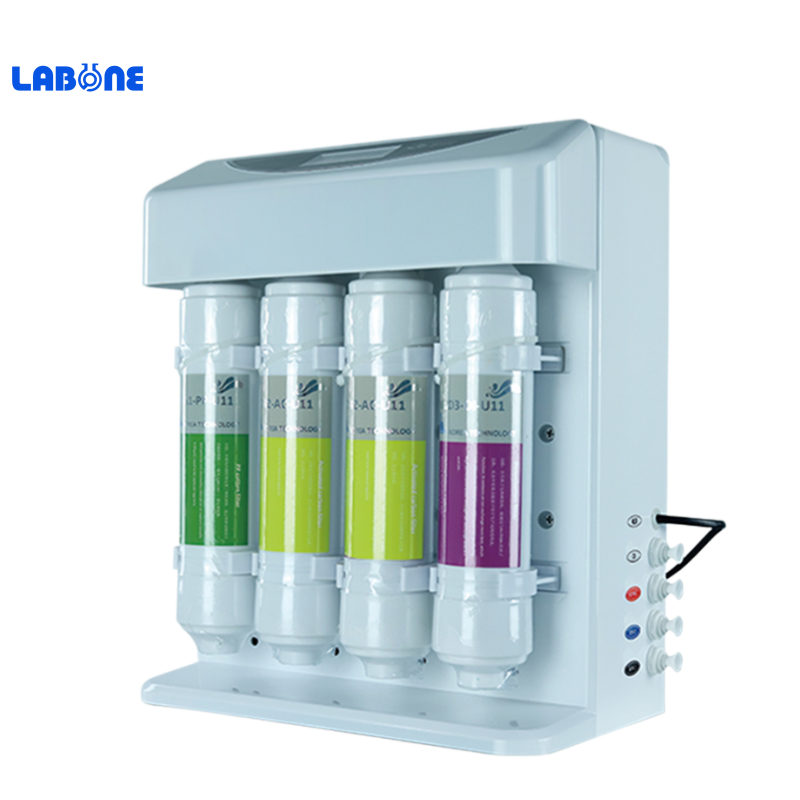

Product Image
Process
Filter function
PP: PP cotton filter, except for sediment, rust, sludge, colloid, etc.
AC: Granular activated carbon filter: except for color, odor, residual chlorine and heavy metals
AC: Precision activated carbon filter: further removal, extending the life of the purification column
RO: Reverse osmosis membrane filter: filter out <1nm pollutants, ions, particles
DI: Deionization purification column: remove most of the heavy metals and trace elements in the water
Product consumables list
No | Filter element | Replace cycle | Quantity | Remark |
1 | 11’’ PP cotton | About 3-6 month | 1 pc | |
2 | 11’’ activated carbon | About 3-6 month | 2 pcs | |
3 | 75 GPD RO membrane | About1- 2 years | 1 pc | |
4 | 11’’Deionization purification column | About 1000 liters | 2 pcs |
Note: The filter replacement cycle in the table is estimated based on previous customer experience. It is only a suggestion. The specific period is determined by the water quality.
