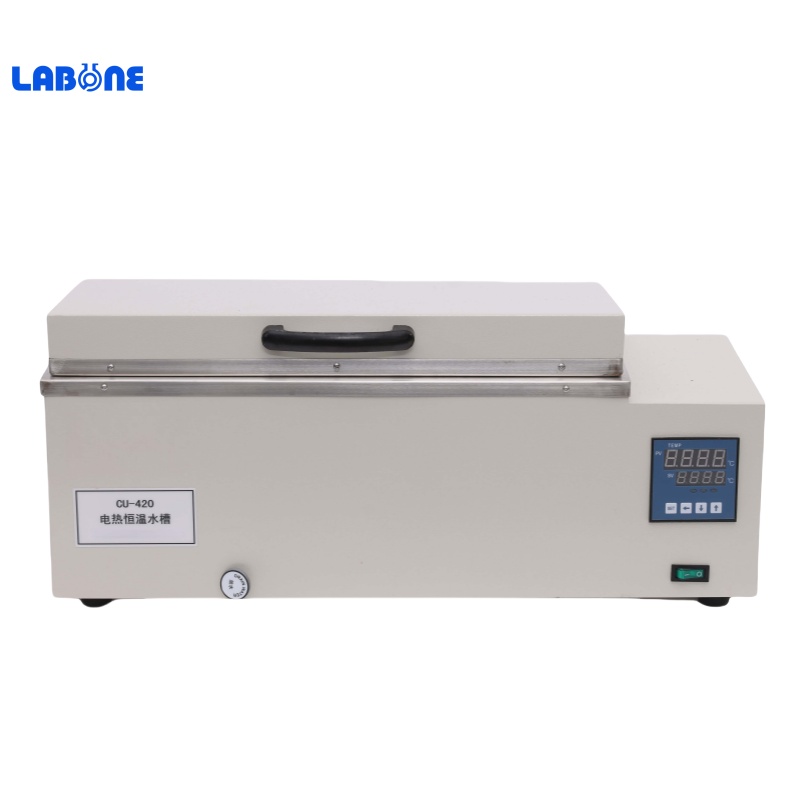

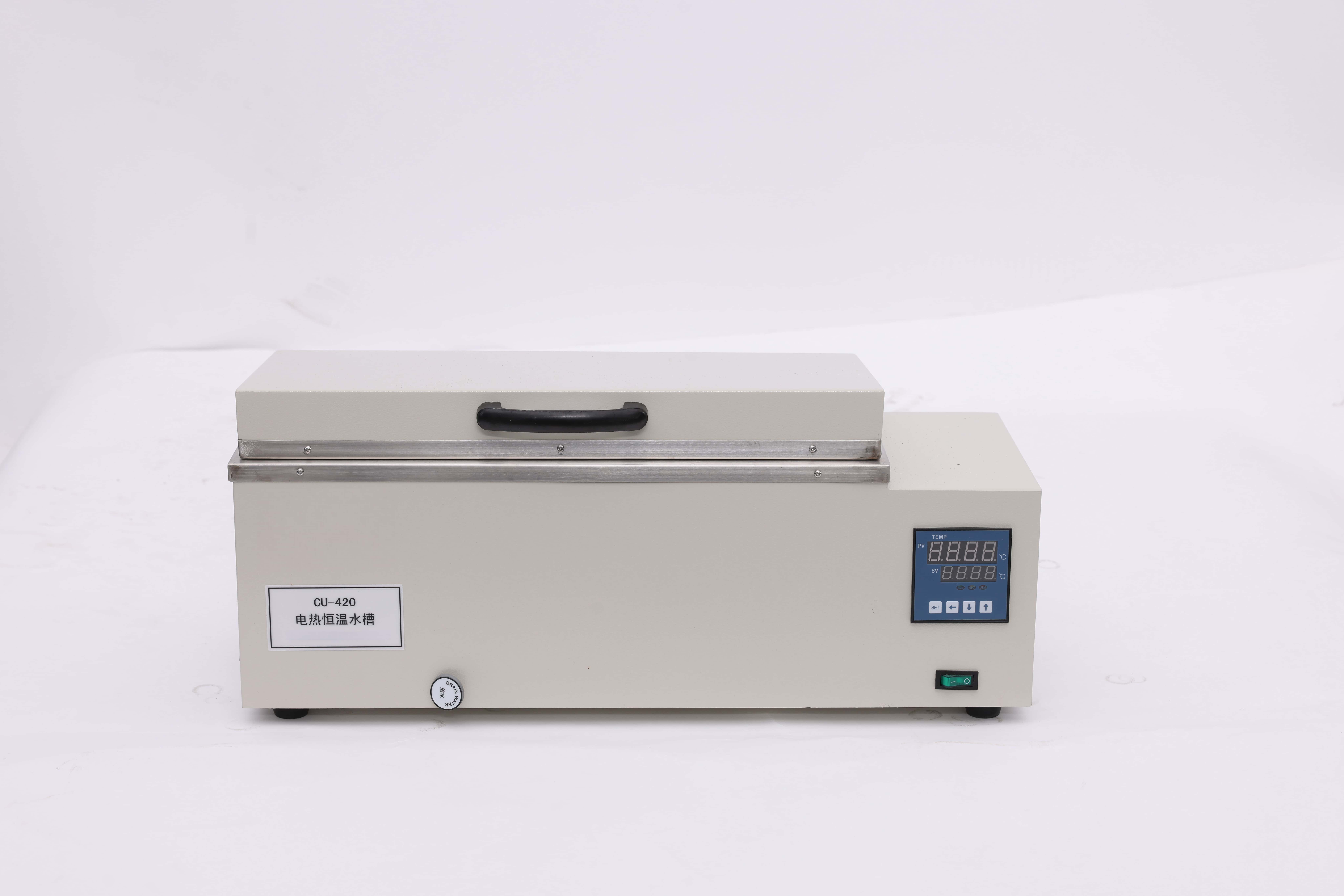

CU-420 Electrothermal Thermostatic Water Tank
Precision thermostatic and auxiliary heating equipment for colleges and universities, industrial and mining enterprises,laboratories and RD institutes.
CU-420 Electrothermal Thermostatic Water Tank
Purposes
Precision thermostatic and auxiliary heating equipment for colleges and universities, industrial and mining enterprises,laboratories and R&D institutes.
Features
1.Digital-display microcomputer controller with timing function.
2.With high precision temperature controller, temperature can be accurately and reliablycontrolled.
Specifications
Model | Electrothermal Thermostatic Water Tank | Three-Hole Electrothermal Thermostatic Water Tank | |
CU-420 | CU-600 DK-600A | DK-8D | |
Power voltage | 220V 50HZ | ||
Input power | 550W | 1050W | 800W |
Temperature controlling range | RT+5℃~99℃ | RT+5℃~99℃ | |
Temperature resolution | 0.1℃ | ||
Temperature fluctuation | ±0.5℃ | ±0.3℃ | |
Ambient temperature for operations | 5℃~ 40℃ | ||
Inner dimension(mm) | 420x180x150 | 600x300x190 | 150x125x110 |
Outline dimension(mm) | 570x270x260 | 750x400x300 | 490x250x330 |
Volume(L) | 11 | 32 | 2.1x3 |
Timing range | 1-9999 minutes | ||
Note | Stainless steel tank | 3 hole independent temperature control | |
