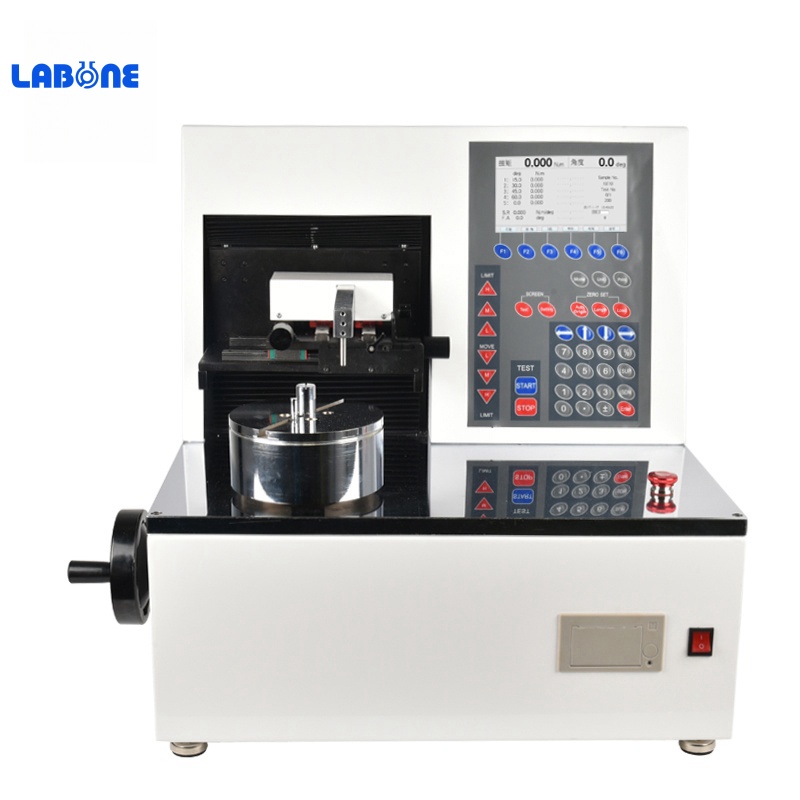

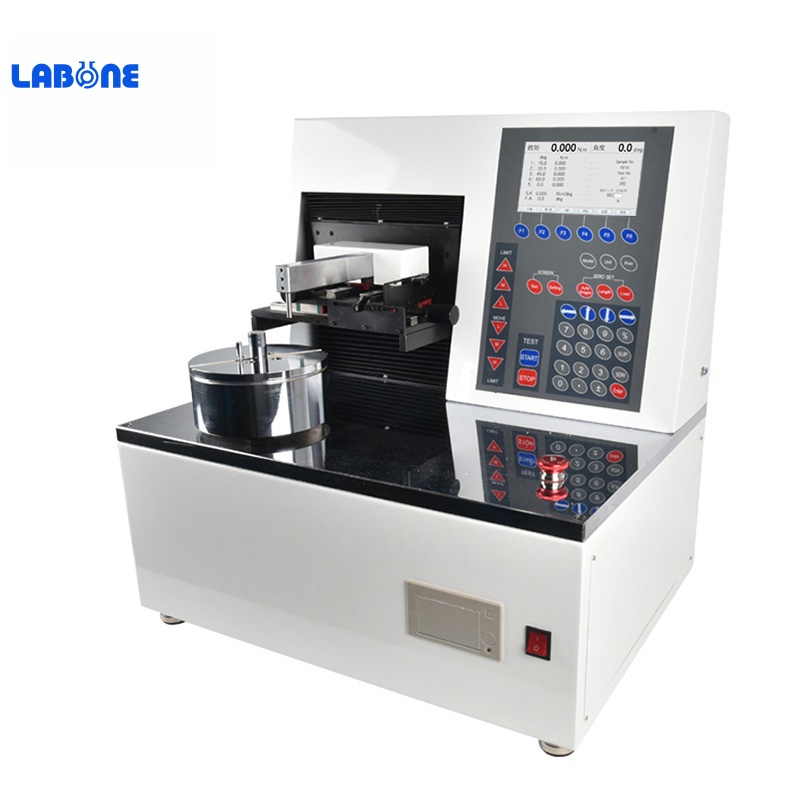

ANSM automatic torsion spring testing machine

ANSM automatic torsion spring testing machine

Overview

The ANSM automatic torsion spring testing machine is made according to the technical requirements specified in the national standard JB/T7796-2005. This instrument is mainly used for torque testing of various springs - angle and angle - torque. It is a high performance testing machine that can exert high efficiency and labor saving spring detection function. It is widely used in spring manufacturing companies and various scientific research. place.

Product Features

1.1, 2, 3, 4, 5 section load (angle) spring fixed number automatic test, free angle measurement can be easily completed.

2.Automatic origin correction function Completes the calculation and compensation of the rigid structure deformation of the load cell and the machine material to ensure high-precision measurement.

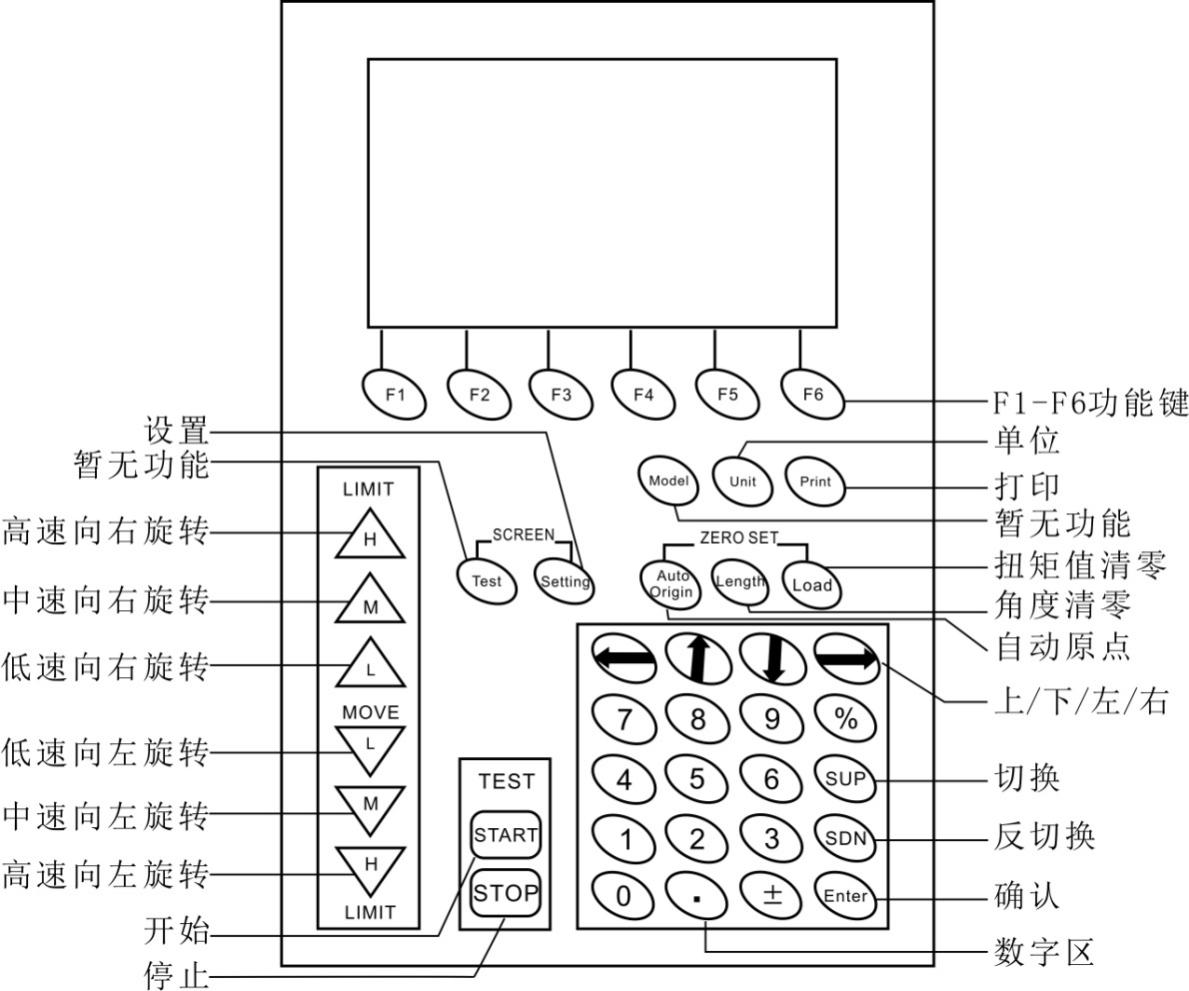

3.Touch screen man-machine dialogue test condition setting input is more convenient and faster.

4.To facilitate the calculation and input of tolerances, the system will automatically calculate the upper and lower limits when the tolerance percentage is entered.

5.Up to a dozen test types that not only meet production measurements, but also meet spring engineering design requirements.

6.Test load units are N.m, Kg.cm, Lb.in.

7.For ease of operation, the measurement range can be freely converted to the 5-segment test range.

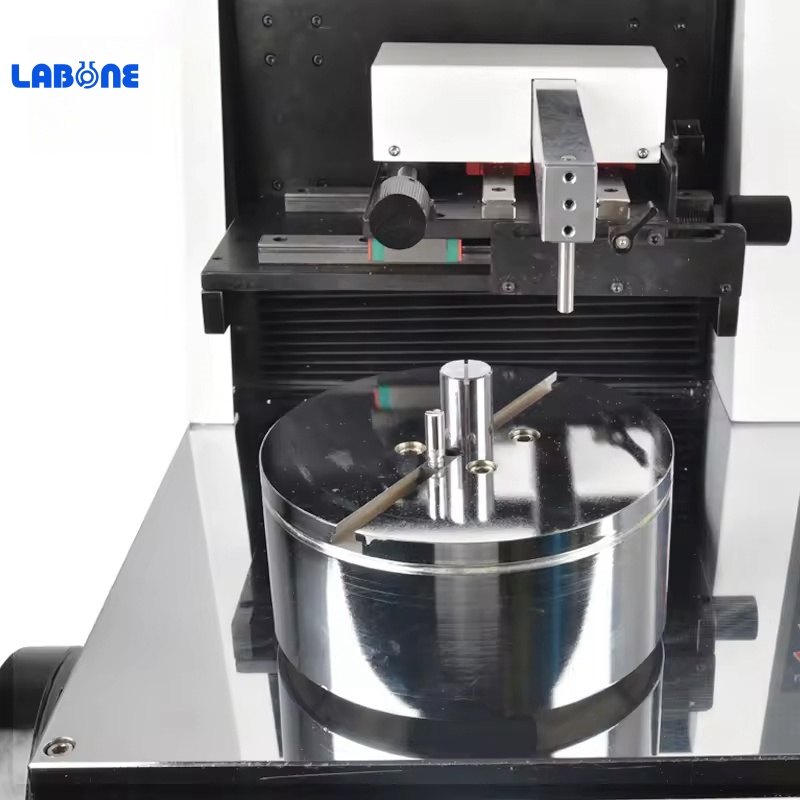

8.Automatically correct the position of the load test plug gauge and rotary plug gauge through the turntable to get an accurate zero position.

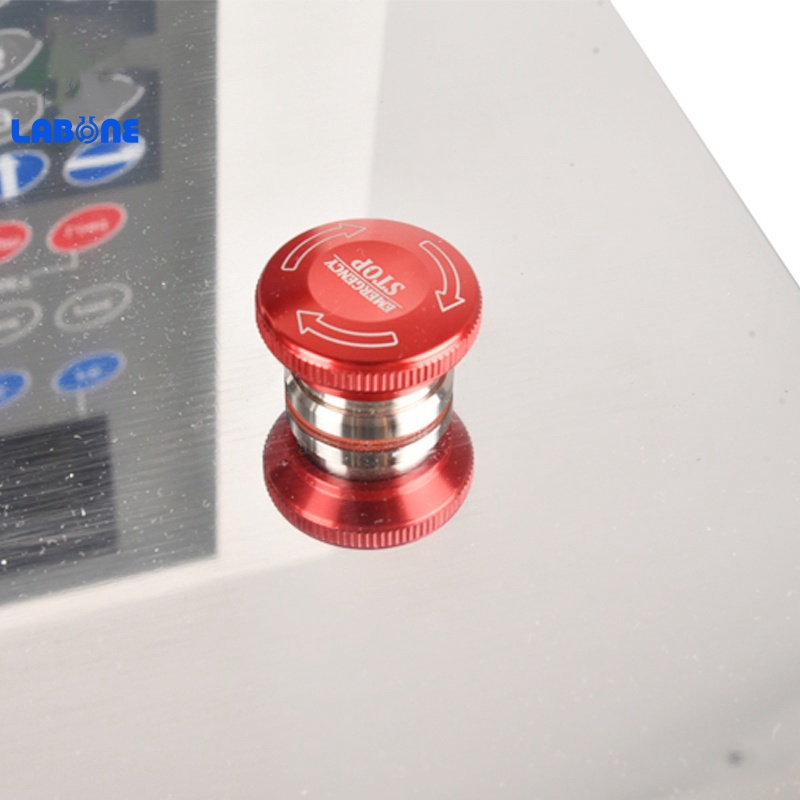

9.The system is equipped with overload protection and emergency stop function.

10.The system can be automatically tested by setting the number of repeated cycles with a simple operation.

11.has a data printing function.

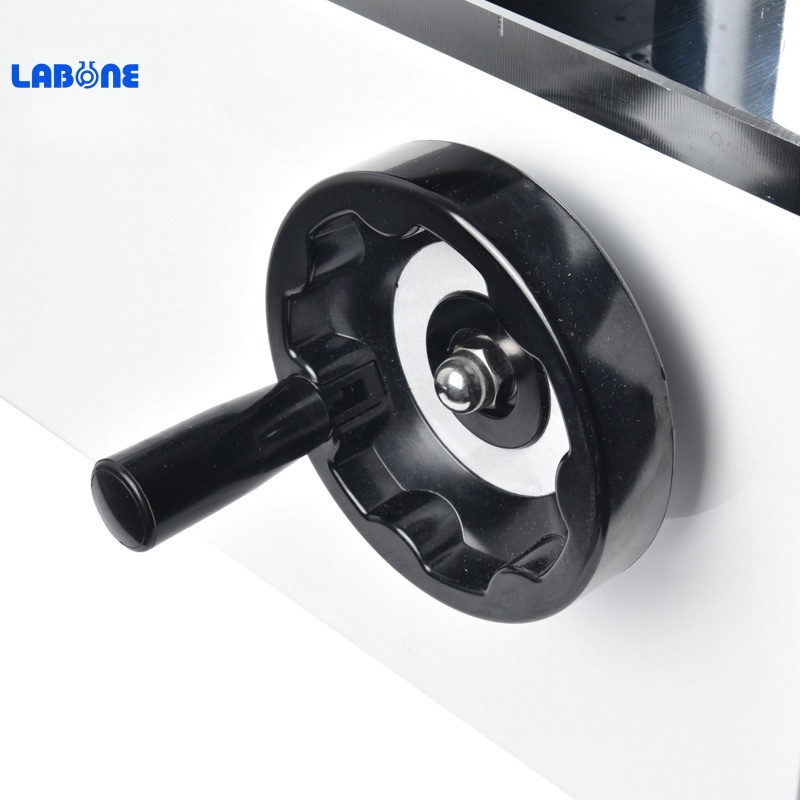

12.Rotary displacement control button, with 10 degree, 1 degree, 0.1 degree slow rotation level, can accurately control the angle.

Specifications Table
