Ultrapure Water System---LD-UPW-15
Ultrapure Water System---LD-UPW-15Product FeaturesØ Applicable to various water quality, the case is with powder coating
Ultrapure Water System---LD-UPW-15
Product Features
Ø Applicable to various water quality, the case is with powder coating.
Ø The filter element adopts open mold injection technology and inside the machine
Ø Korean quick-insert filter column is easy to replace and maintain.
Ø The electrical appliance and waterways are completely separated to avoid circuit
failure caused by moisture and water leakage.
Ø Online water quality monitoring system, immediately measure the output water quality.
Ø Automatic RO membrane anti-scaling flushing program, automatic stop when tap water break, automatic water breaking when machine stop, storage tank automatically fill water, automatic stopping when water is full.
Ø NSF certified pipeline has function of upgrading water quality and quantity.
Ø Equipped with a portable TDS pen, you can test TDS content, conductance, water temperature anytime, anywhere.
Ø Double electric water intakes, two kinds water quality, ready to use. Pressure online monitoring.
Ø Open door at front and back, this make filters replacement easy&convenient, the replacement can be easily completed without using any tools.

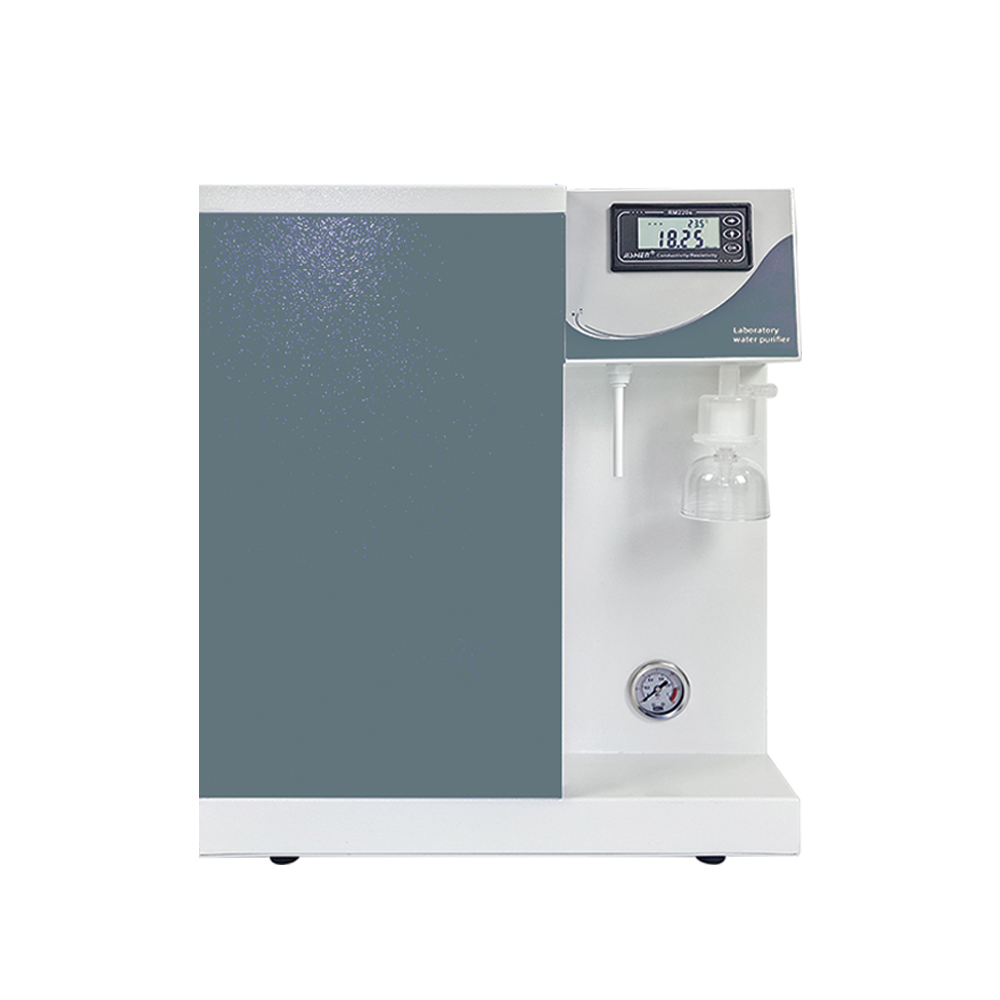

Product Image
Product parameter
Water rate | 15 liter per hour |
Production speed | 1.5-2 L/min（with pressure barrel） |
The water requirements | Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃,TDS<200ppm |
RO water Parameter | |
Ion rejection rate | 97%-99% (when using a new RO membrane) |
Organic matter rejection rate | >99% when MW>200 Dalton |
Particle and bacterial rejection | > 99% |
Application | Clean glassware |
UP water Parameter(ASTM TYPE I grade water) | |
Resistivity (25℃) | 18.25 M Ω. Cm @ 25 ℃ |
Heavy metal ion | < 0.01 ppb |
Total organic carbon (TOC) * | <10 ppb |
bacteria | < 1 cfu/ml (with terminal filter) |
Particulate matter (> 0.1 microns) | <1/ml |
Application | All kinds of physical and chemical testing, biochemical analysis, blood examination, microanalysis, flushing special, HPLC, IC, GC, analysis experiment |
Electrical requirements | 110-240V/50-60Hz, 48-72W |
The system configuration | Host machine (including 1 set of purification column)+12 L pressure water storage tank +TDS pen + accessory bag |

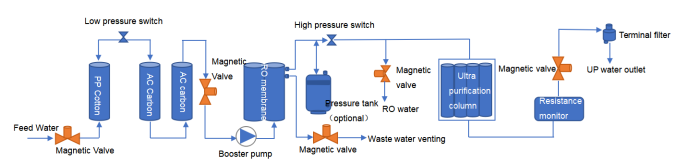

Process

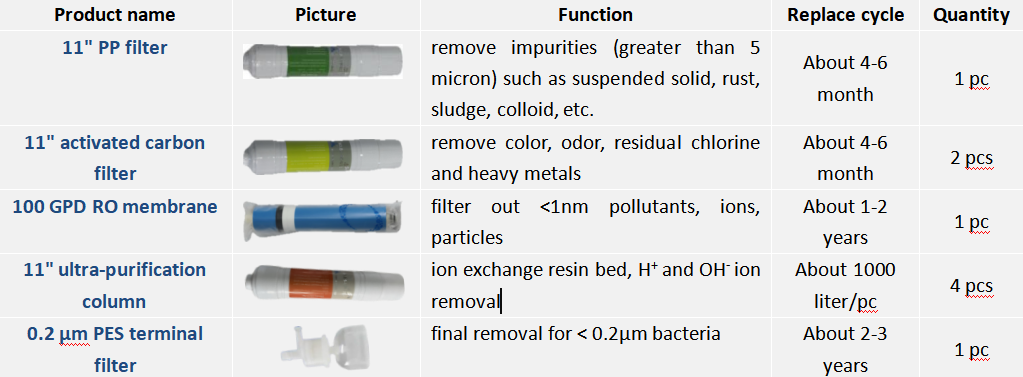

Filter consumables list
User cases
