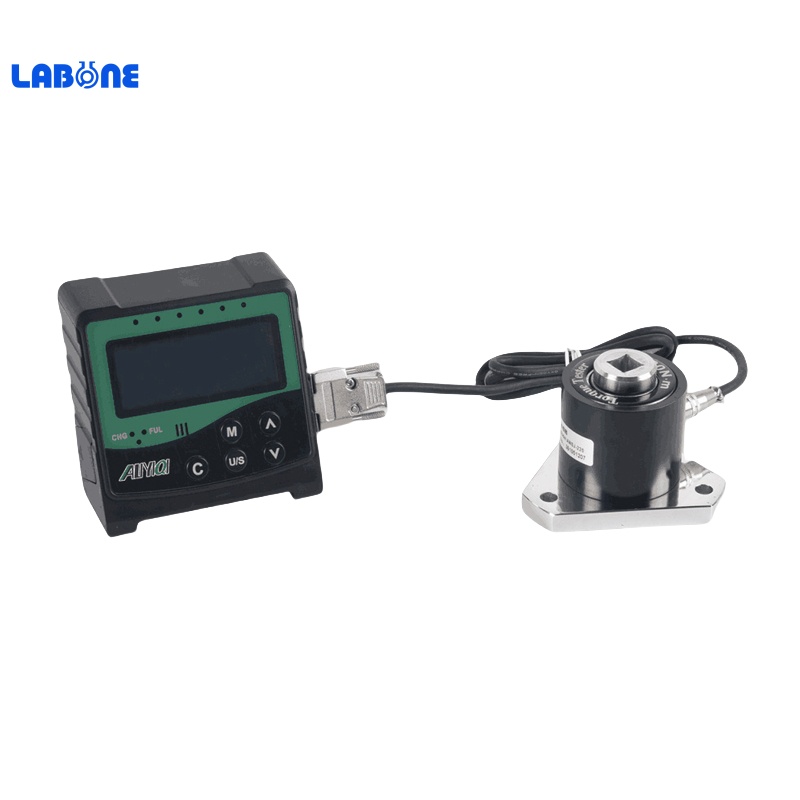

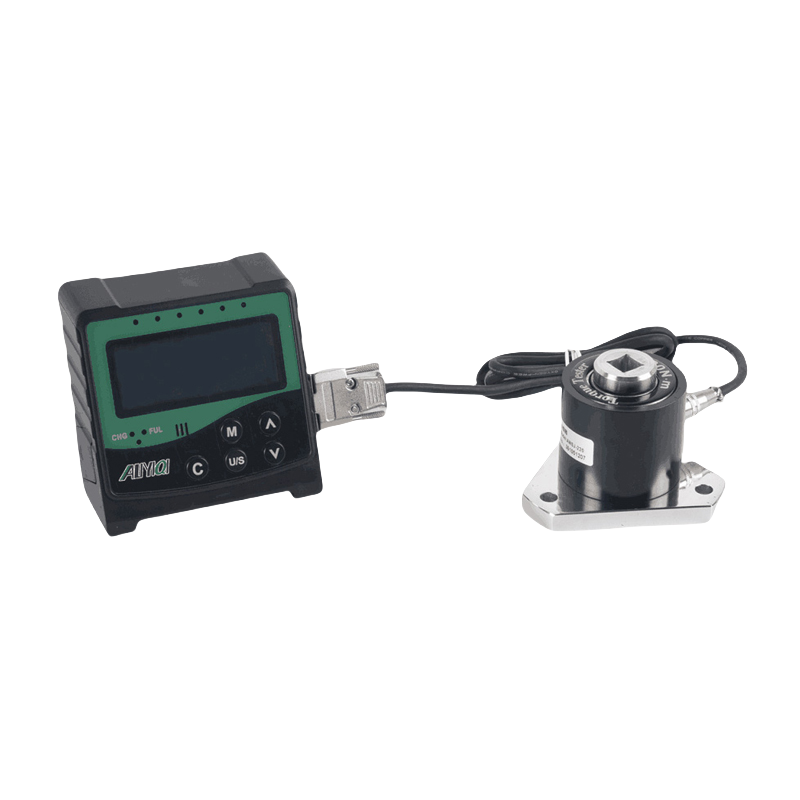

ANSJ portable torque tester

Overview

This instrument is a quality control device that can be used for the calibration of torque sensors and the tightening torque of fasteners such as drive torque and bolts of power systems. It has the characteristics of simple operation, high precision and convenient carrying, and is widely used in various industries such as electric, light industry, machinery manufacturing and scientific research institutions.

Product Features

1.Accuracy: ±1%.

2.It can be operated both clockwise and counterclockwise.

3.Peak Hold, Maximum (MAX) and Follow (Track) modes.

4.Buzzer and LED light warning.

5.Three units: N.m, Kgf.cm, lbf.in.

6.The 2000 group stores the values.

7.Communication transmission function.

8.It can preset the sleep time to automatically shut down.

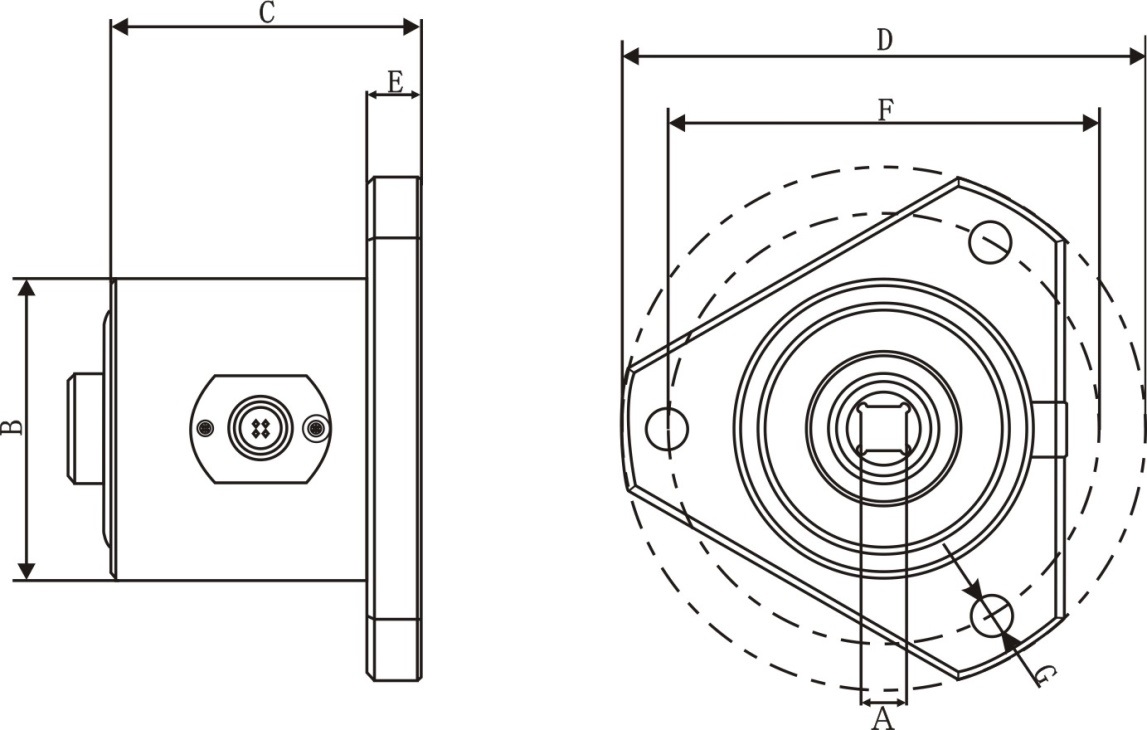

Torque sensor size

del part	ANSJ-5	ANSJ-50	ANSJ-220	ANSJ-550	ANSJ-2200
A	6.35sp (1/4)	9.5sp (3/8)	12.7sp (1/2)	19sp(3/4)	25.4sp(1)
B	Φ38	Φ62	Φ62	Φ94	Φ94
C	46	73	73	116	116
D	Φ60	Φ109	Φ109	Φ160	Φ160
E	6	11	11	26	26
F	Φ50	Φ90	Φ90	Φ132	Φ132
G	Φ4.5	Φ8.5	Φ8.5	Φ12.5	Φ12.5

variety specifications

model	ANSJ-5	ANSJ-50	ANSJ-220	ANSJ-550	ANSJ-2200
Torque measurement range (N.m)	0.500~5.00	5.00~50.00	22.0~220.0	55.0~550.0	220~2200
Precision	±1%
Data storage capacity	2000 group
Connector size	1/4	3/8	1/2	3/4	1
Transmission function	Support USB cable
Operating mode	Peak hold (PEAK) / real time mode / maximum peak
Unit selection	N.m, lbf.in, kgf.cm
Operating temperature	5°C~40°C
Storage temperature	-20 ° C ~ 70 ° C
humidity	No condensation can reach 90%
power supply	7.2V nickel metal hydride battery
Weight (Kg)	0.7	1.4	1.48	4.7	5.0
