Overview

The automatic cap torque tester ANPM is a new patented product that automatically tests the torque value. It adopts the principle of combining advanced electronic technology and precision mechanical transmission to replace the previous torque value that is manually tested by opening or locking the cap The error meets the technical requirements stipulated in the national standard GB / T 17876. Equipped with high-precision torque sensor to achieve precise loading and positioning. It is suitable for detecting the torque value of locking and opening of various bottle, nozzle, hose and other packaging products, such as: medicinal glass bottles, medicinal plastic bottles, child safety caps, beverage bottles, mineral water bottles , Milk bottles, oil barrels, etc. It is the first choice for beverage and bottle production manufacturers and research institutions, quality inspection institutions, large and medium-sized enterprises to test product quality.

Test principle

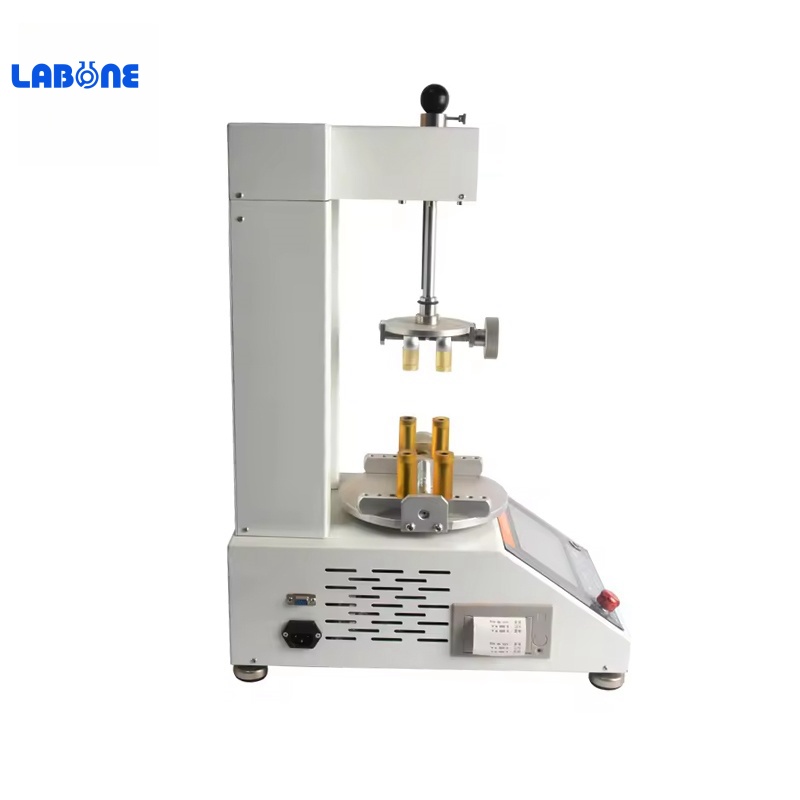

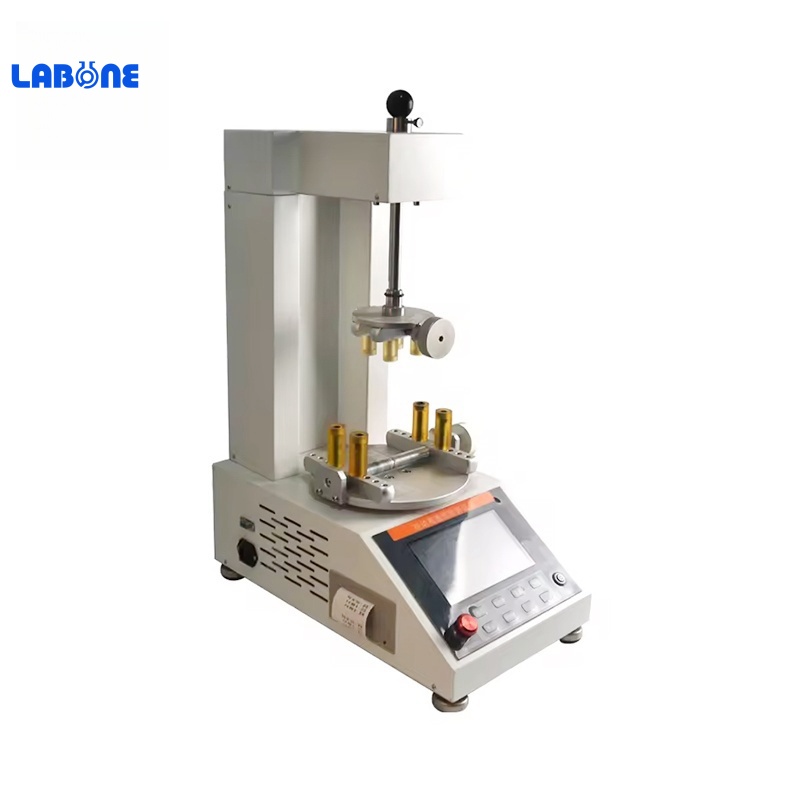

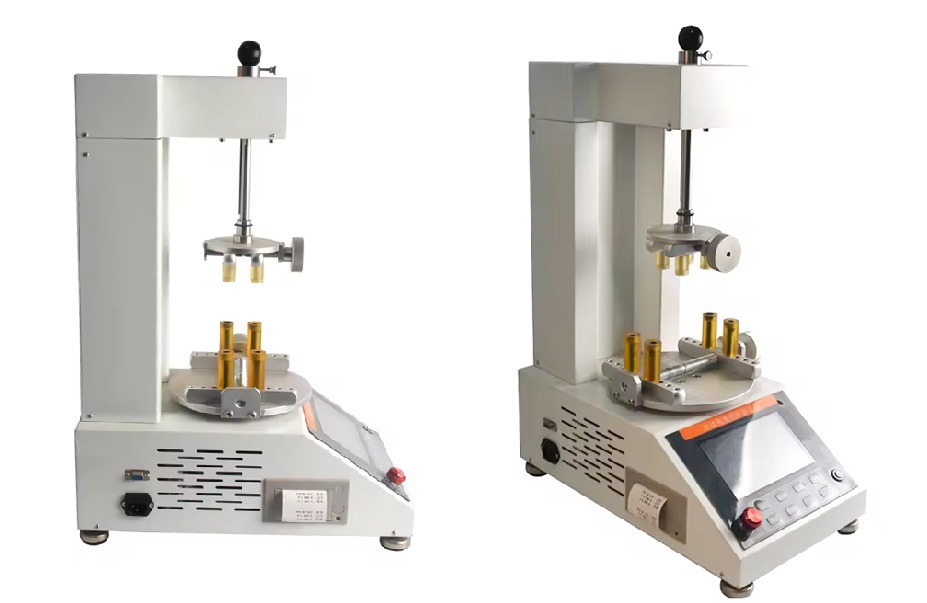

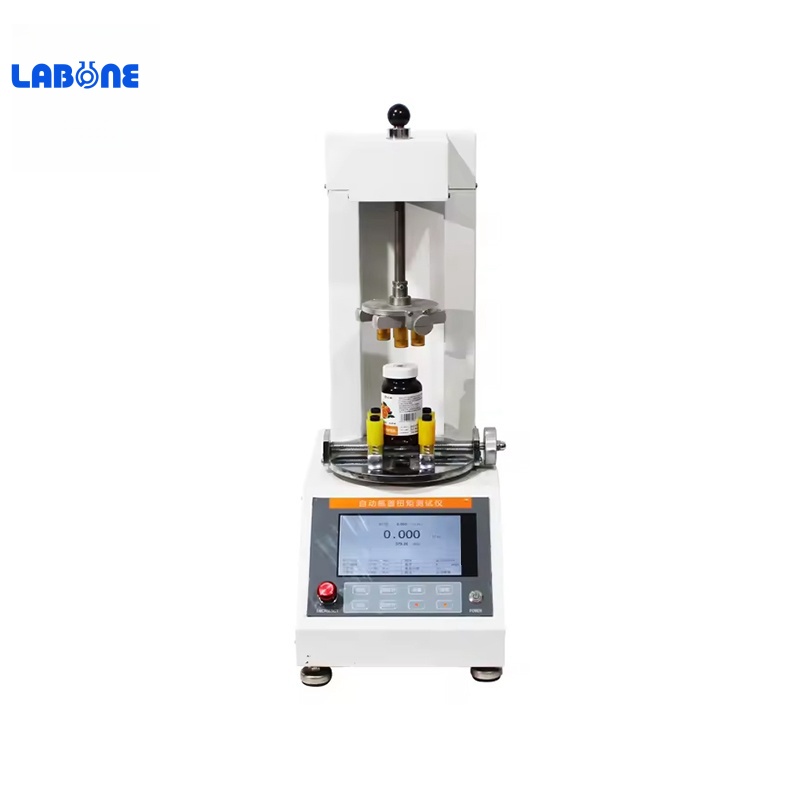

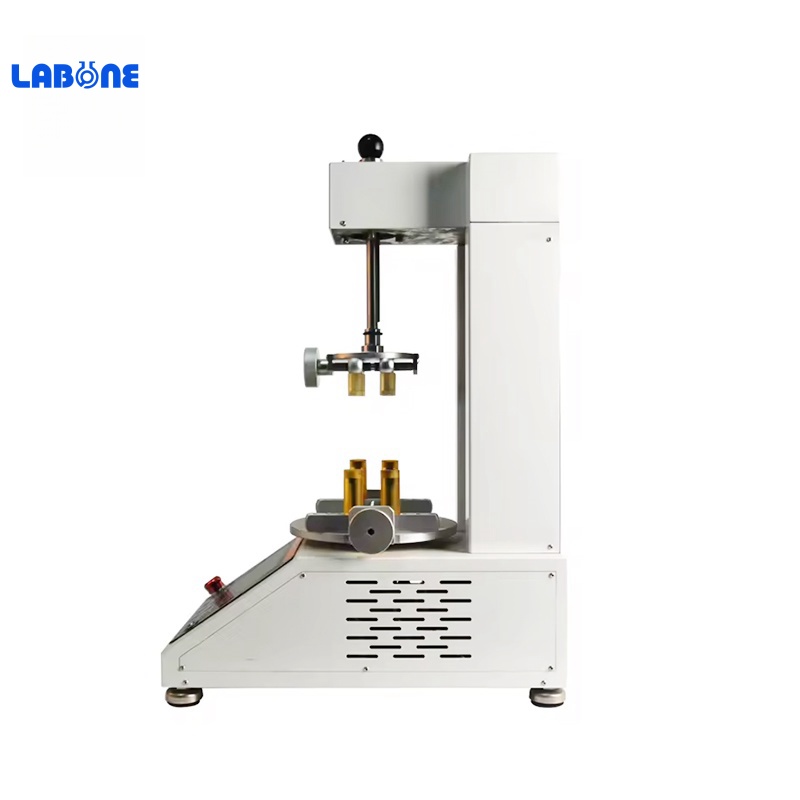

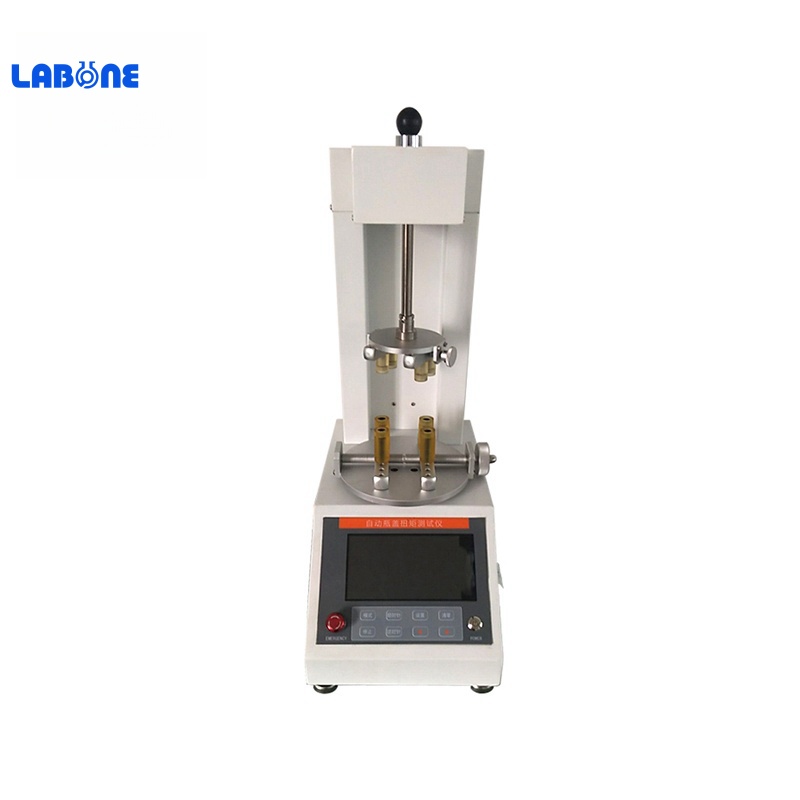

Fix the bottle body and bottle cap of the measured object on the fixture equipped with the tester, and clamp them. The bottom clamp is connected to the torque sensor in the tester box. After starting the instrument, the upper clamp clamps the bottle cap and starts to rotate, driving the bottle body, which is then transmitted to the torque sensor to test the torque value required for the cap to rotate clockwise or counterclockwise.

Specifications

Product Features

1. Measure the torque value (tightening force value), angle value, bidirectional measurement clockwise and counterclockwise of the bottle cap.

2. Three torque units: N.m, Kgf.cm, Lbf.in.

3. Precision

Angle accuracy: 1 ° / 100 ° (unit: deg)

Torque accuracy: ± 1%

4. Voltage: input AC220V / AC110V.

5. Comes with RS232 interface, can be connected to the computer to use the host computer control and real-time curve.

6. Four measurement modes: manual mode, automatic peak mode, repeat mode, torque angle modulus.

7. Running speed: 3-90deg / s.

8. Overload protection, the protection value is 120% of full scale.

Daily maintenance and maintenance

1. The environment should be kept clean to prevent liquids, iron filings, etc. from intruding into the instrument and damaging electronic components.

2. Please clean the instrument with a soft cloth, immerse the cloth in the water soaked with detergent, wring it out and remove the dust and dirt.

Note: Do not use volatile chemicals to clean the instrument (such as volatile agent, thinner, alcohol, etc.).

3. Do not operate the machine in the following environment

a. Humid environment

b. Dusty environment

c. Where oil or chemicals are used

d. Places with earthquake sources around

4. When not in use for a long time, you should unplug the power plug and deal with dust and moistu
