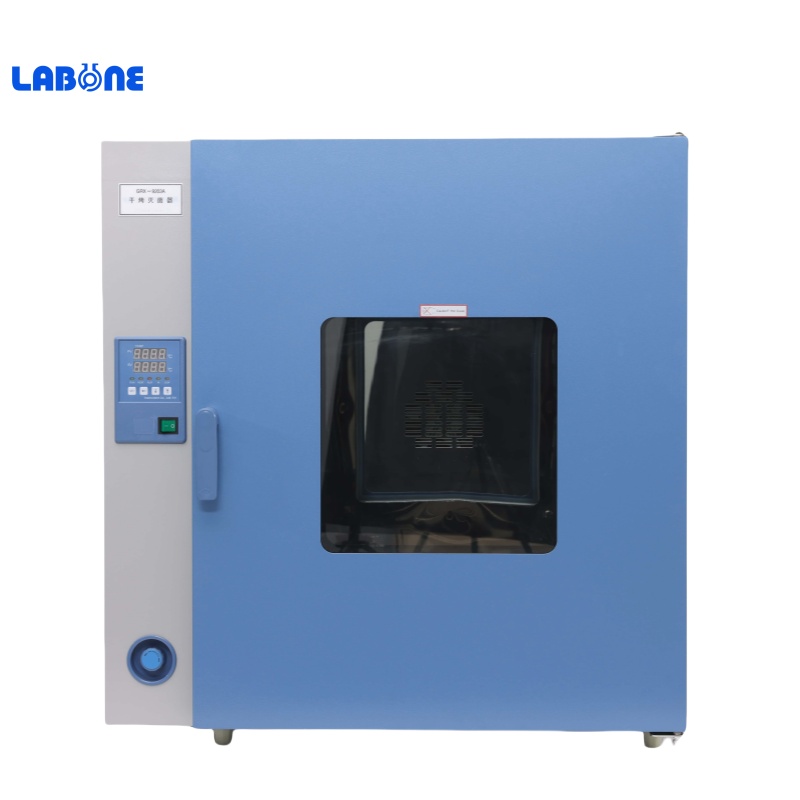

GRX-9203A Dry-Heat Sterilizer (Hot Air Sterilization Box)
By making use of high-temperature and dry-heat technology, the equipment can poison microorganisms by oxidizing them, and causing denaturation of protein and concentration of dielectrics. It damages protoplasm of cells by oxidization to cause microorganis
GRX-9203A Dry-Heat Sterilizer (Hot Air Sterilization Box)
Purposes
By making use of high-temperature and dry-heat technology, the equipment can poison microorganisms by oxidizing them, and causing denaturation of protein and concentration of dielectrics. It damages protoplasm of cells by oxidization to cause microorganisms die. Hence, in certain heating time, all microorganisms can be killed.
Features
1.Digital display microcomputer temperature controller with timing function; precision and reliable temperature control.
2.Quick temperature rise, forced convection; dry and hot air can directly pass through the heated object for dry and sterilization, which apparently shortening the time.
3.The equipment can automatically break off, if limited temperature is exceeded, to ensure safety.
4.Adjustable ventilation door; spacing of shelves can be arbitrarily adjusted.
Specifications
Model | GRX Series of Dry-Heat Sterilizer (Hot Air Sterilization Box) | ||||||
GRX-9023A | GRX-9053A | GRX-9073A | GRX-9123A | GRX-9203A | GRX-9403A | GRX-9603A | |
Power voltage | 220V 50HZ | 380V 50HZ | |||||
Temperature controlling range | RT+10℃~300℃ | ||||||
Temperature resolution | 0.1℃ | ||||||
Temperature fluctuation | ±1℃ | ||||||
Input power | 870w | 1120w | 1570w | 2070w | 2470w | 3300w | 4200w |
Ambient temperature for operations | 5℃~40℃ | ||||||
Inner dimension(mm) | 340x325x320 | 420x395x350 | 400x450x450 | 550x450x550 | 600x600x650 | 600x550x1300 | 800x600x1300 |
Outline dimension(mm) | 620x490x490 | 720x590x520 | 740x590x630 | 840x570x730 | 880x750x825 | 780x760x1800 | 980x800x1800 |
Carrier(standard configuration) | 2 pieces | 3 pieces | 4 pieces | ||||
Timing range | 1-9999 minutes |
Conditions of no-load performance test: ambient temperature: 20℃, and ambient humidity: 50%RH;
Options:
1. Intelligent programming temperature controller.
2. Independent temperature limiter;
3. Printer;
