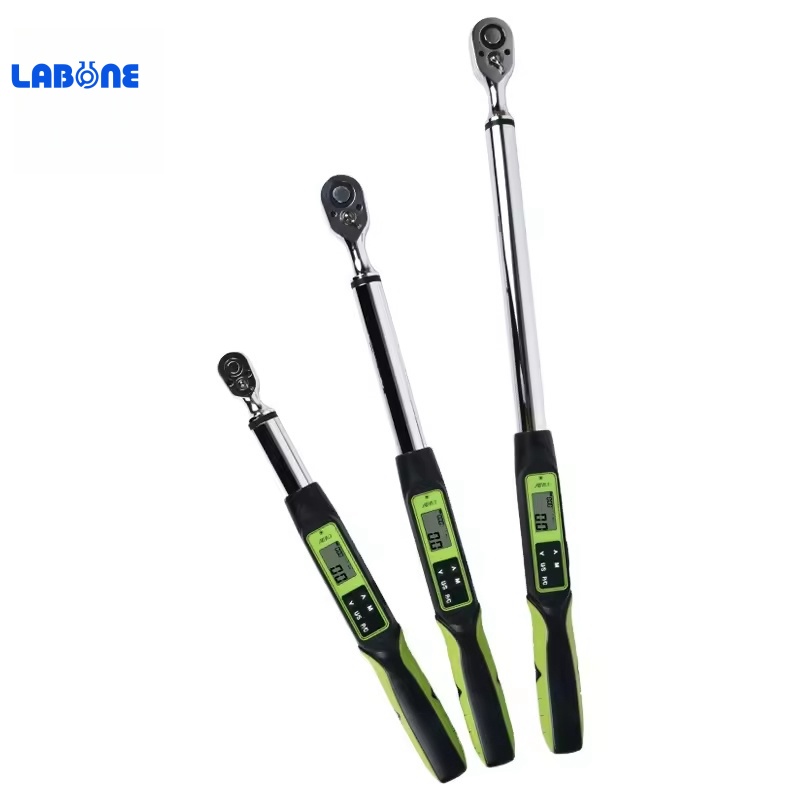

AWE Torque Wrench with Angle Digital Display

System Overview

Main use and scope of application

AWE Torque Wrench with Angle Digital Display is a new type of digital display wrench. Can directly and accurately read the torque-angle value, simple to use,Easy to operate. Suitable for bolt fastening and control in the automotive industry, machinery industry, etc.。

Features

1 The torque-angle value can be read directly;

2 ±1° (rotation 90° speed at 30°/sec);

3 ±1%;

4 can be measured clockwise and counterclockwise;

5 buzzer, LED and vibrator indicate the target value;

6 Four torque units: N.m, kfg.cm, ft.lbf, in.lbf, etc.

7 Angle unit is degree (°)

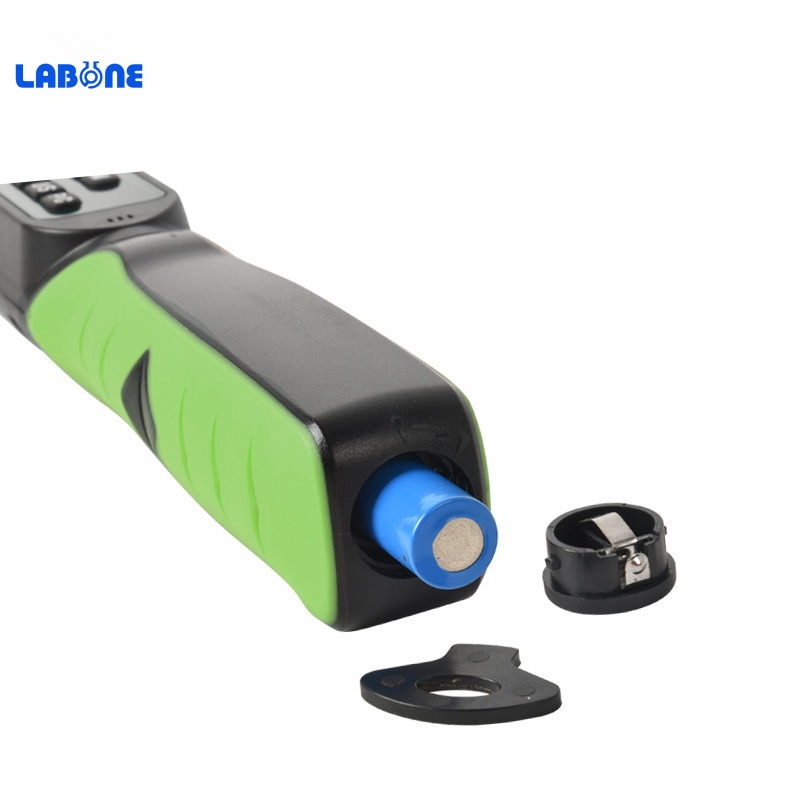

8 Comes with a 3.7V lithium battery, which can directly charge the lithium battery through USB;

9 With the usb interface, you can upload and save data.

10 Measurement mode: three measurement modes: real-time mode, peak mode and preset mode.

11 Automatic backlight function

Specifications

model

Without communication

AWE2 -0010

AWE2 -0030

AWE3-0030

AWE3-0060

AWE3-0085

AWE3 -0135

AWE4 -0135

AWE4 -0200

AWE4 -0340

AWE6-0500

AWE

-0850

With communication

AWE2 -0010R

AWE2 -0030R

AWE3-0030R

AWE3-0060R

AWE3-0085R

AWE3 -0135R

AWE4 -0135RR

AWE4 -0200R

AWE4 -0340R

AWE6-0500R

AWE6-0850R

Minimum division value

0.01

0.1

Maximum operating range

(N.m)

10N.m/7.37ft.lb/88.50in.lb/101.97kgf.cm

30N.m/22.12ft.lb/265.5in.lb/305.91kgf.cm

60N.m/44.25ft.lb/531.04in.lb/611.82kgf.cm

85N.m/62.69ft.lb/752.31in.lb/866.75kgf.cm

135N.m/99.57ft.lb/1195in.lb/1376.61kgf.cm

200N.m/147.5ft.lb/1770in.lb/2039.43kgf.cm

340N.m/250ft.lb/3009in.lb/3467.03kgf.cm

500N.m/4424in.lb/368.7ft.lb/5098.58kgf.cm

850N.m/7521in.lb/626.8ft.ln/8667.58kgf.cm

Connector (inches)

1/4

3/8

1/2

3/4

length

390

420

535

655

Torque Accuracy*1

±1%

Angle accuracy

±1° (Accuracy of angle measurement at 90° per second at 90°)

Data storage capacity

255

Operating mode

Peak mode(P) / real-time mode (T)/Preset mode (Pre)

unit

N.m, kGf.cm, ft.lbf, in.lbf

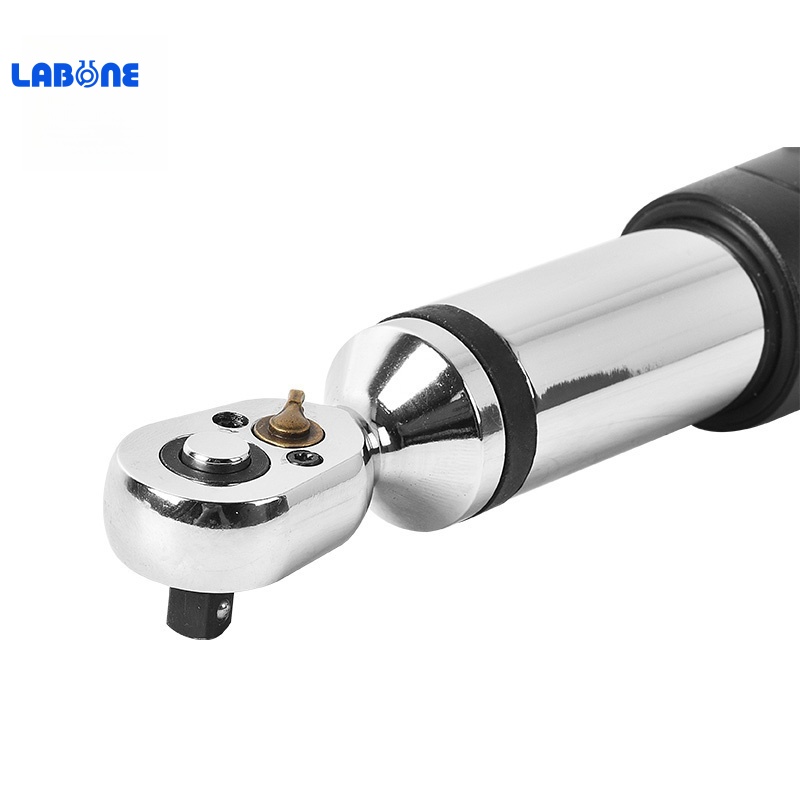

Ratchet head form

Two-way ratchet head

Ratchet head teeth

Number of buttons

battery

3.7V lithium battery

Operating temperature

-10°C~60°C

storage temperature

-20 ° C ~ 70 ° C

humidity

No condensation can reach 90%

Drop test height

1 meter

Vibration test conditions*2

10G

Life test*3

10,000 times

Prompt message	meaning	Solution
ER-2	Abnormal memory	The memory is full, or the memory is damaged. Clear stored data or return to factory for repair.
ER-3	Abnormal sensor or circuit board	The force value is greater than 5% and the zero point is cleared, and the unloading force value is then reset. If the unloading force value cannot clear the error message, return to the factory for repair.
ER-4	Overrange	exceed Range120% will prompt ER-4, after unloading force value, press 【P / C] Key to clear the error.
SUCC	prompt Done	After an operation is completed, it returns automatically.
Fail	Prompt operation failed	An operation fails and returns automatically.
