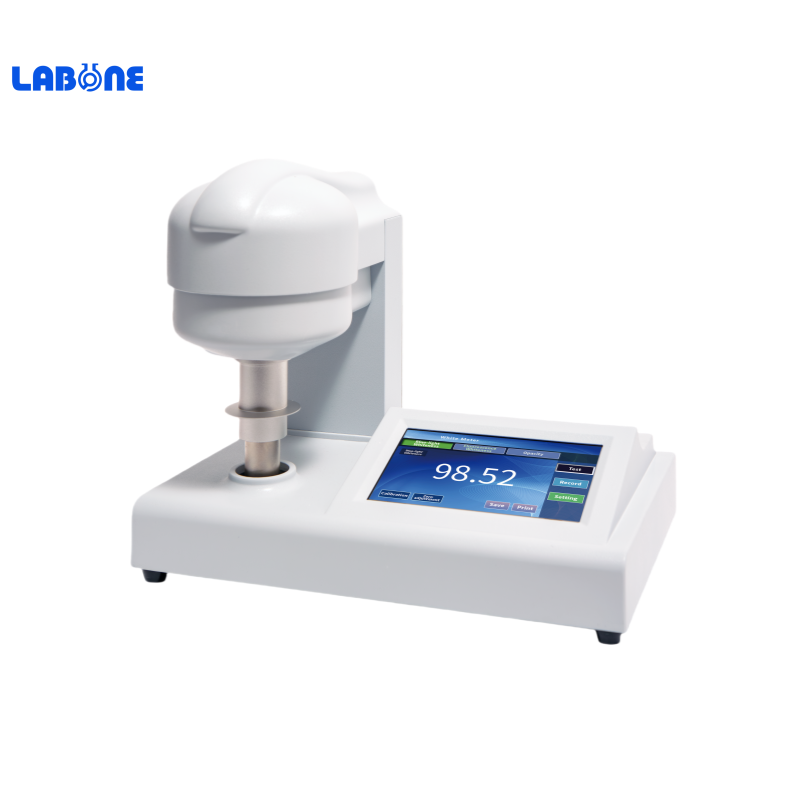

WSB-3 / WSB-2 White Meter
New structural design with built-in blue and fluorescent light sources.Measurement of whiteness of blue light of substances such as paper, building materials, starch, flour, sugar and salt.Color touch screen, stable measurement.Manual zero adjustmen
Characteristics
New structural design with built-in blue and fluorescent light sources.
Measurement of whiteness of blue light of substances such as paper, building materials, starch, flour, sugar and salt.
Color touch screen, stable measurement.
Manual zero adjustment and calibration suitable for small and medium sized enterprises.
Specifications
Parameters/Model | WSB-3 | WSB-2 |
Measurement mode | R457 blue light whiteness / Fluorescence whiteness / Opacity | |
Illuminant | d/0 | 45/0 |
Wavelength | Peak 457nm, FWHM 45nm | |
Receiver | Silicon photovoltaic cells | |
Measurement window | 20mm | 30mm |
Measurement range | 0-150 | |
Minimum reading | 0.01 | |
Accuracy | ≤1 | |
Repeatability | ≤0.2 | |
Stability | ≤0.1 | |
Display | 7 inch color touch screen | |
Interface | USB、U disk | |
Data storage | 200 sets | |
Power supply | 100-240V，50/60Hz, 40W | |
Overall dimensions | 475mmx345mmx430mm | |
Weight (Gross) | 8KG | |
