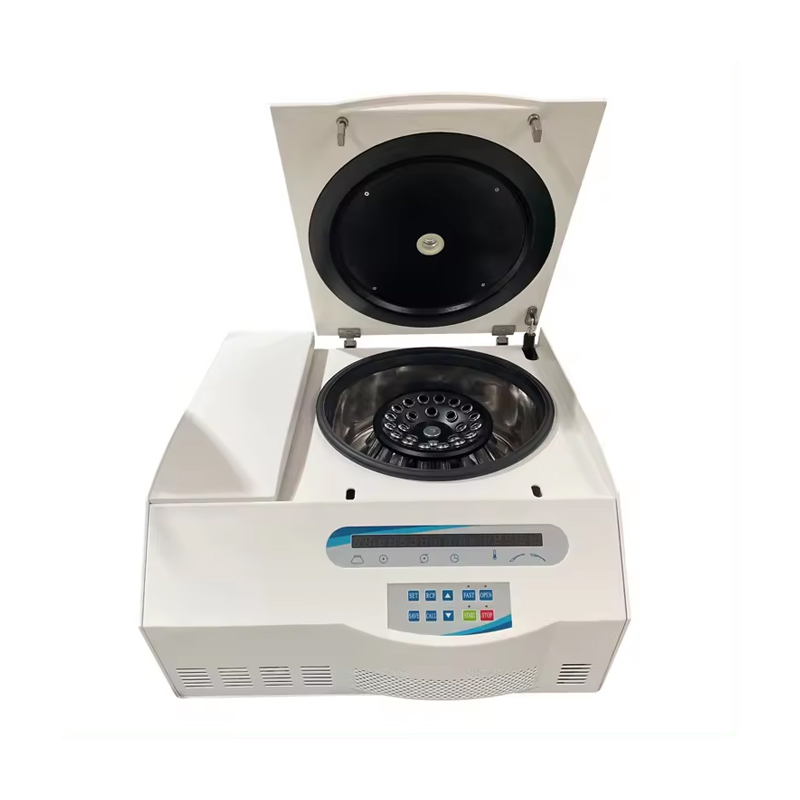

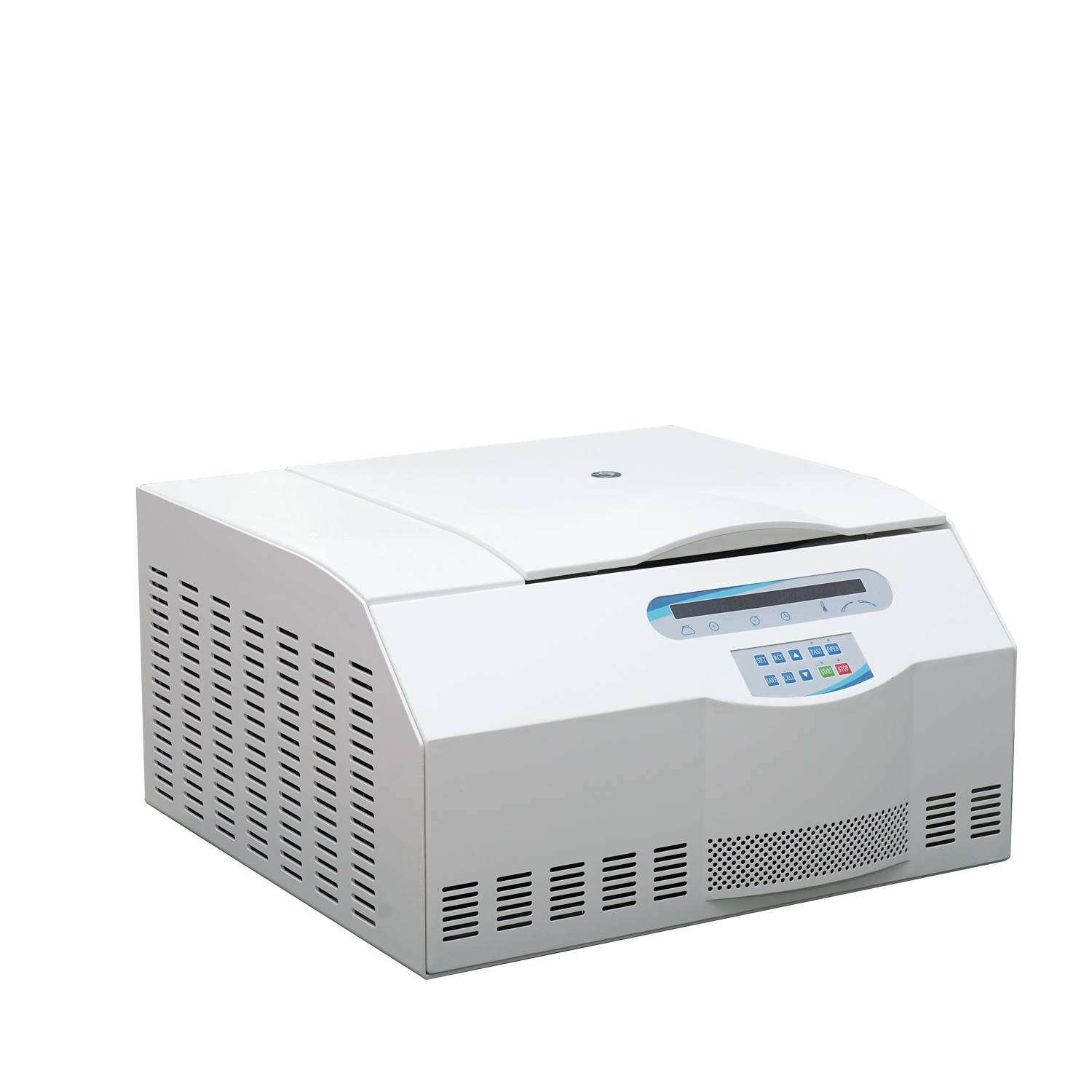

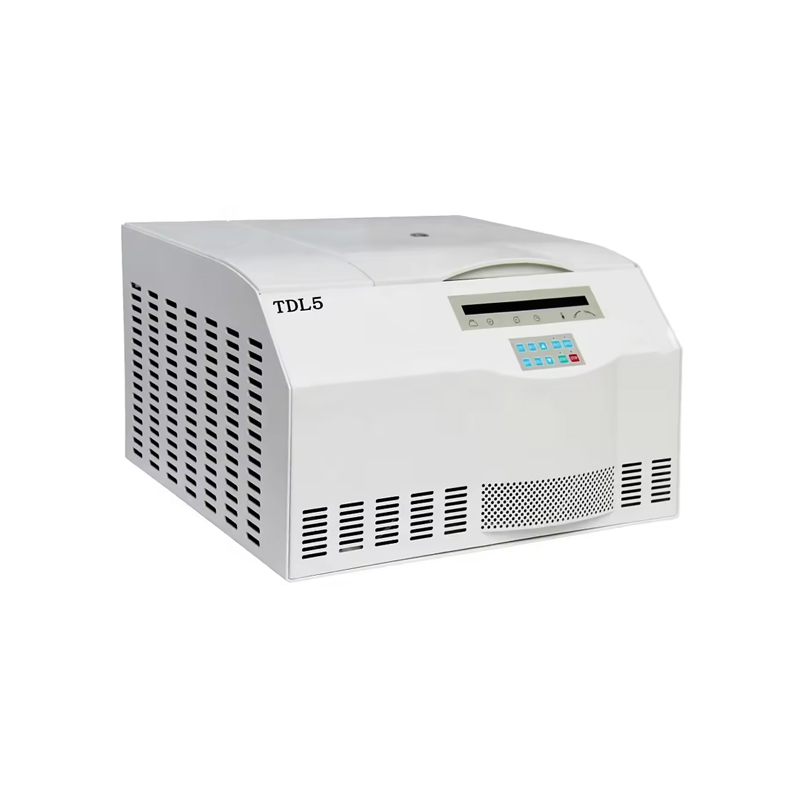

TDL5 Low Speed Refrigerated Centrifuge
Refrigerated centrifuge, widely used in laboratory, blood bank and hospital.
TDL5 Low Speed Refrigerated Centrifuge
Features:
1. Refrigerated centrifuge, widely used in laboratory, blood bank and hospital.
2. Imbalance sensor and over temperature sensor
3. Pre-cooling design, 10 kinds of acceleration and deceleration
4. More than 20 kinds of rotors for your choice
5. Low noise, small vibration and compact design.
6. Import compressors fluorine free, double cycle cooling, free environment pollution
7. The centrifuge body is made of high-quality steel, very safe
8. User-friendly large digital display provides speed, time and temperature parameters
9. Brushless motor which in great torque, no powder pollution, free maintenance, quick in speed up and down
TDL5 Technical Parameter：
Max. Speed | 5000rpm |
Max. RCF | 4730×g |
Max. Capacity | 4×250ml |
Time Range | 0~9h59min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 58 |
Temperature | -20℃-40℃ |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | ±1℃ |
Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
Size (W x D x Hmm) | 650×665×400mm |
Net Weight(Kg) | 83KG |
Certificates | CE,ISO & Calibration report are available |

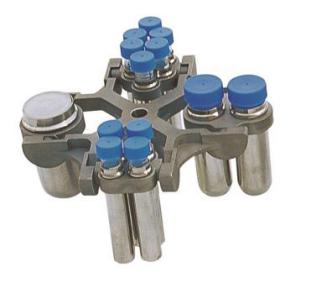

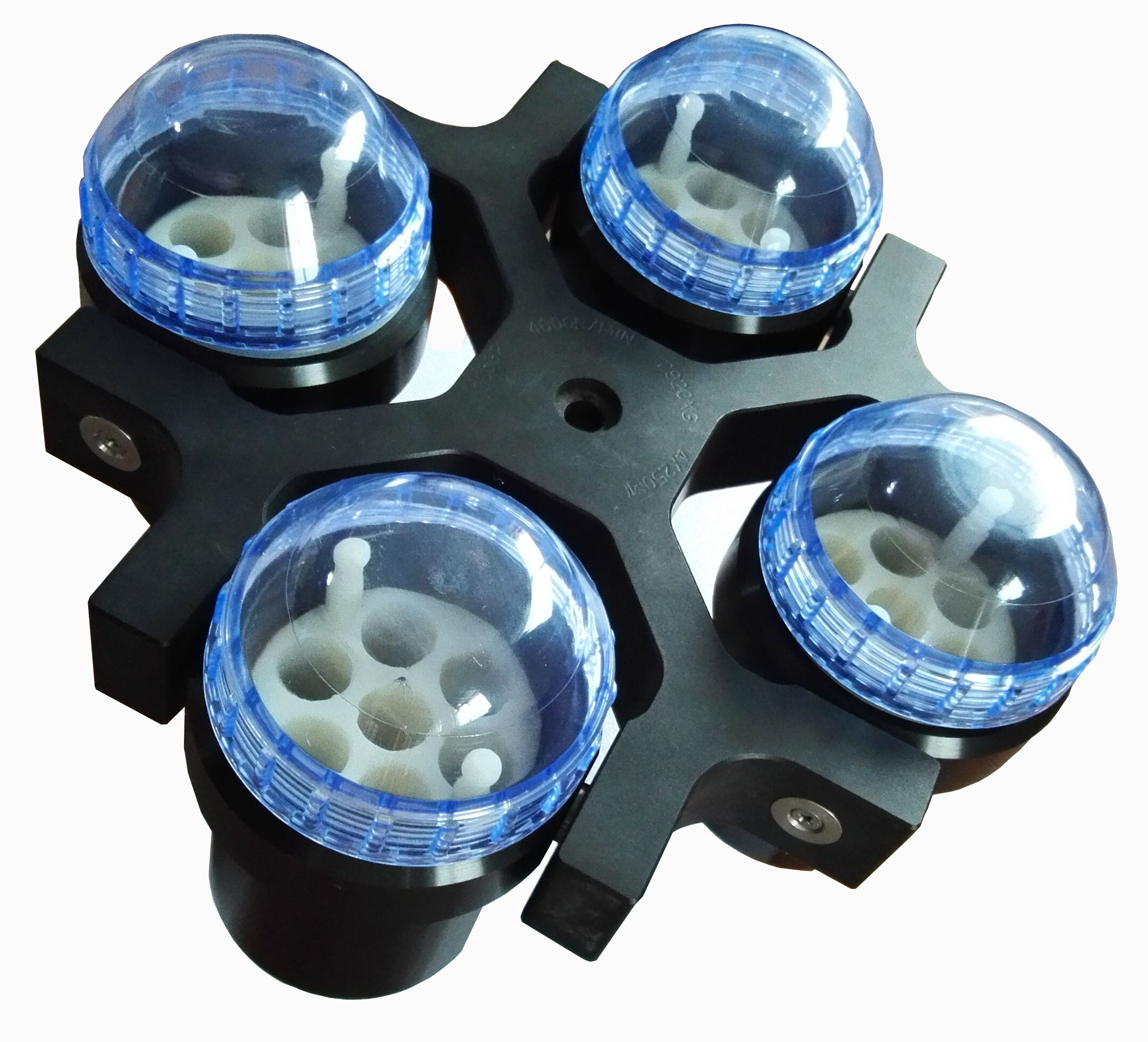

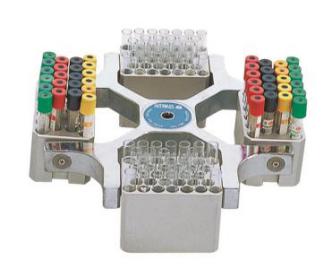

Matched Rotors for TDL5
Order No | Rotor | Max Speed(r/min) | Volume(ml) | Max RCF(×g) |
D5-1 | Swing rotor(round cup) | 4000 | 4×250ml | 2880 |
D5-2 | Swing buckets | 4000 | 4×16×7ml | 2860 |
D5-3 | 4000 | 4×16×5ml | 2470 | |
D5-4 | 4000 | 4×13×10ml | 2830 | |
D5-5 | Swing rotor | 5000
| 4×1×50ml | 4730 |
D5-6 | 4×1×100ml | 4730 | ||
D5-7 |
4000
| 4×2×100ml | 3020 | |
D5-8 | 4×2×50ml | 3020 | ||
D5-9 | 4×4×15ml | 3020 | ||
D5-10 | 4×6×15ml | 3020 | ||
D5-11 | 4×4×10/7 | 2770 | ||
D5-12 | 4×4×5 vacuum tube adapters | 2360 | ||
D5-13 | 4×6×10/7 | 2770 | ||
D5-14 | 4×6×5 vacuum tube adapters | 2360 | ||
D5-15 | 4×8×10/7 | 2770 | ||
D5-16 | 4×8×5 vacuum tube adapters | 2360 | ||
D5-17 | 4×12×5 vacuum tube | 2480 | ||
D5-18 | 4×12×7 vacuum tube | 2760 | ||
D5-19 | 4×10×10 vacuum tube | 2880 | ||
D5-20 | Microplate rotor | 4000 | 2×3×96 well | 2310 |
D5-21 | Fixed rotor | 5000 | 6×15ml | 2540 |
D5-22 | Fixed rotor | 5000 | 12×15ml | 3080 |
D5-23 | 5000 | 24×15ml | 3500 | |
D5-24 | 5000 | 30×15ml | 3830 | |
D5-25 | 5000 | 4×50ml | 2520 | |
D5-26 | 5000 | 6×50ml | 2850 | |
D5-27 | 5000 | 12×50ml | 3860 | |
D5-28 | 5000 | 4×100ml | 2630 | |
D5-29 | 5000 | 6×100ml | 3130 |
Adapter for 250 round cup and square cup
Volume Cup | 5ml | 7ml
| 10ml
| 15ml
| 50ml
|
250ml（Square） | 9pcs/cup | 9 | 9 | 4 | 1 |
250ml（Round） | 7pcs/cup | 7 | 7 | 4 | 1 |
