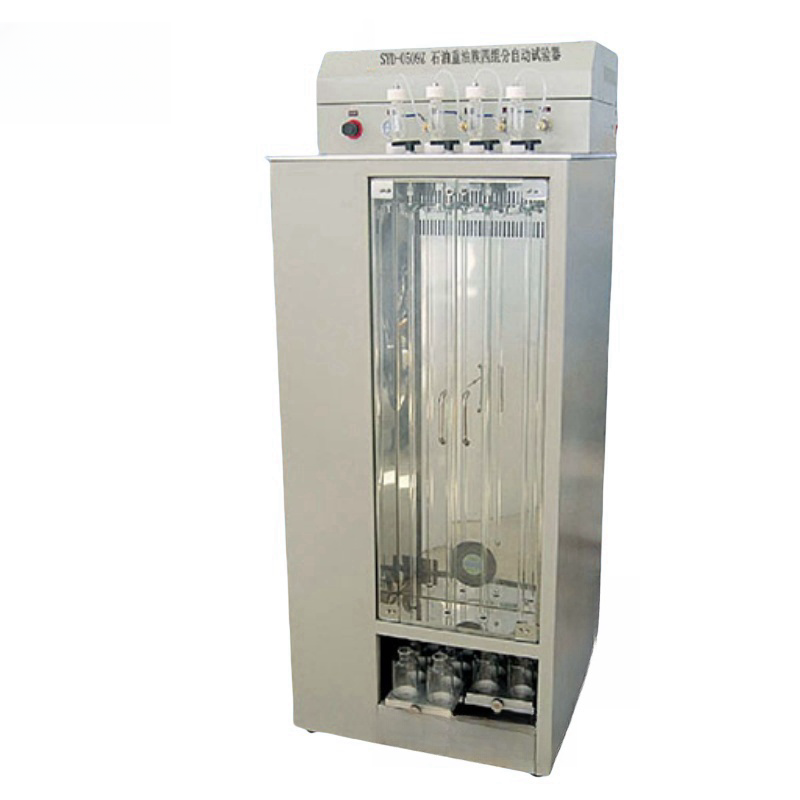

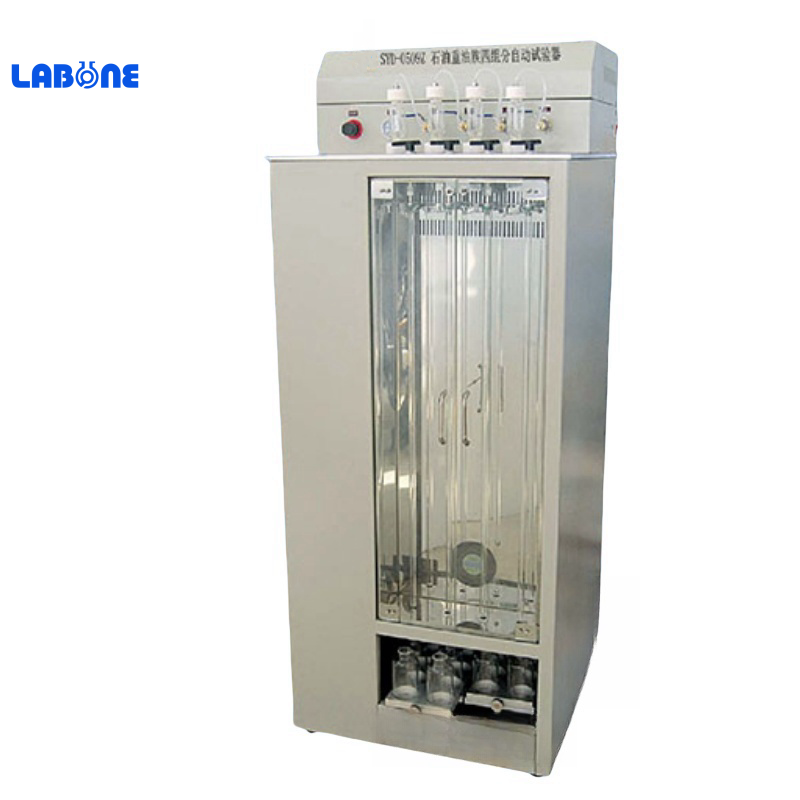

SYD-0509Z Petroleum Heavy Oil Family Four-Component Automatic Tester

SYD-0509Z Petroleum Heavy Oil Family Four-Component Automatic Tester

Summary

 The instrument is a new multi-functional product,it is suitable to use and analyze in heavy oil four-componet,petroleum fraction saturated hydrocarbon and arene separation method(Chromatograph separation method),crude oil wax content,raw petroleum wax,colloid,asphaltene content.

 The instrument includes three parts:SYD-0509Z Petroleum Heavy Oil Family Four-Component Automatic Tester(Main unit),SYD-0509Q Adsorption Column Automatic Loading and Cleaning Tester(Auxiliary machine 1),SYD-0509H Solvent Automatic Evaporation and Recovery Tester(Auxiliary machine 2)The instrument is designed according to automation and environmental concept,it protects the operators from the poisonous solvent at the greatest extent,and recycle the poisonous solvent when evaporating.The following introduction:SYD-0509Z Petroleum Heavy Oil Family Four-Component Automatic Tester.

 The instrument adopts air bath,no need external water bath,It can set the parameters of solvent elution sequence,volume and speed etc,the automatic replacement of receiving flask.

I.Main technical characteristics

1.Standards:NB SH/T 0509 petroleum asphalt four-component determination method,SY/T 0537 The test method of wax content in crude oil,SY/T 7550 Determination of wax, resins and asphaltenes contents in crude oil,JTG E20-T 0618 Asphalt chemical composition test (four-component method),SH/T 0266 Petroleum asphaltene content determination method,and RIPP10-90 Petrochemical analytical method to detect the heavy oil four-component.

2.All english version,full automatic operation in process of elution.

3.It can set many elution program,It can set the parameters of solvent elution sequence,volume and speed etc.It selects the correspond program of elution when each elution,and the instrument will run automatically according to the setting parameters.

4.It can use four type of solvent to elute,and replace the receiving flask automatically after finishing elution.The operator can choose several elution ways according to the requirement.

5.It adopts a peristaltic pump to control the solvent flow rate and volume precisely,each elution channel is matched with a peristaltic pump,and the speed rate of each channel peristaltic pump can be modified.

6.The user can set the inner temperature degree of the column box,PID automatic temperature control.

7.With the imported solvent resistance magnetic valve,the pipeline is the imported fluororesin tube.

8.The column box is made of stainless steel mirror board and anti-corrosion design,the glass adsorption column is easy and convenient to install.

9.It use the exchanging sample six-way valve in the box,it prevents the mixture of each solvent during the elution.

II.Main technical features and index

III,Instrument accessories——Combination to clients’ requirements

1.Main unit+Auxiliary machine 1+Auxiliary machine 2——Full set

2.Main unit+Auxiliary machine 1——Main unit+ SYD-0509Q

3.Main unit+Auxiliary machine 2——Main unit+ SYD-0509H

4.Main unit——SYD-0509Z
