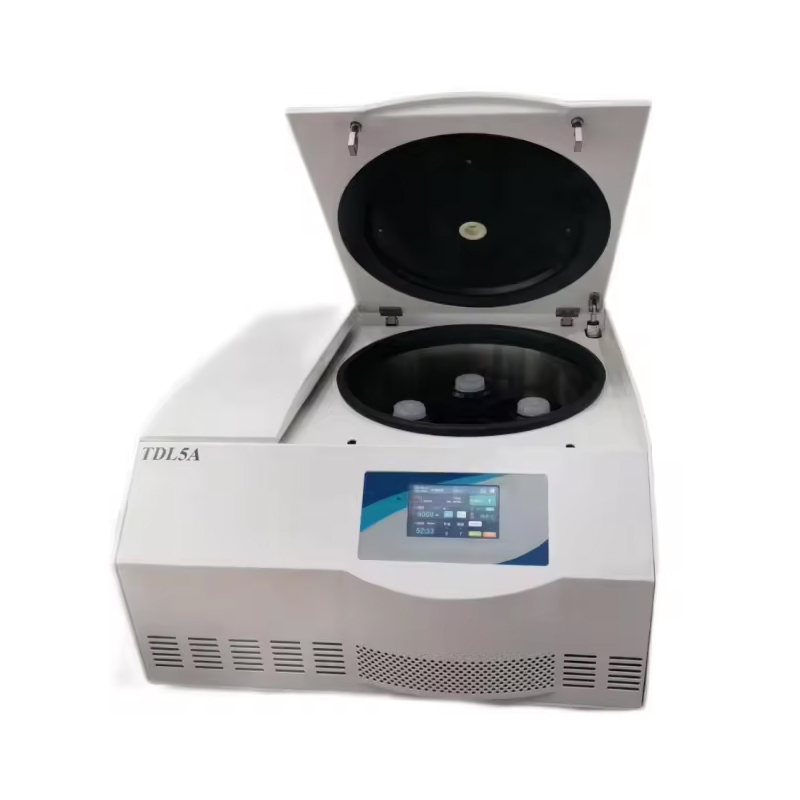

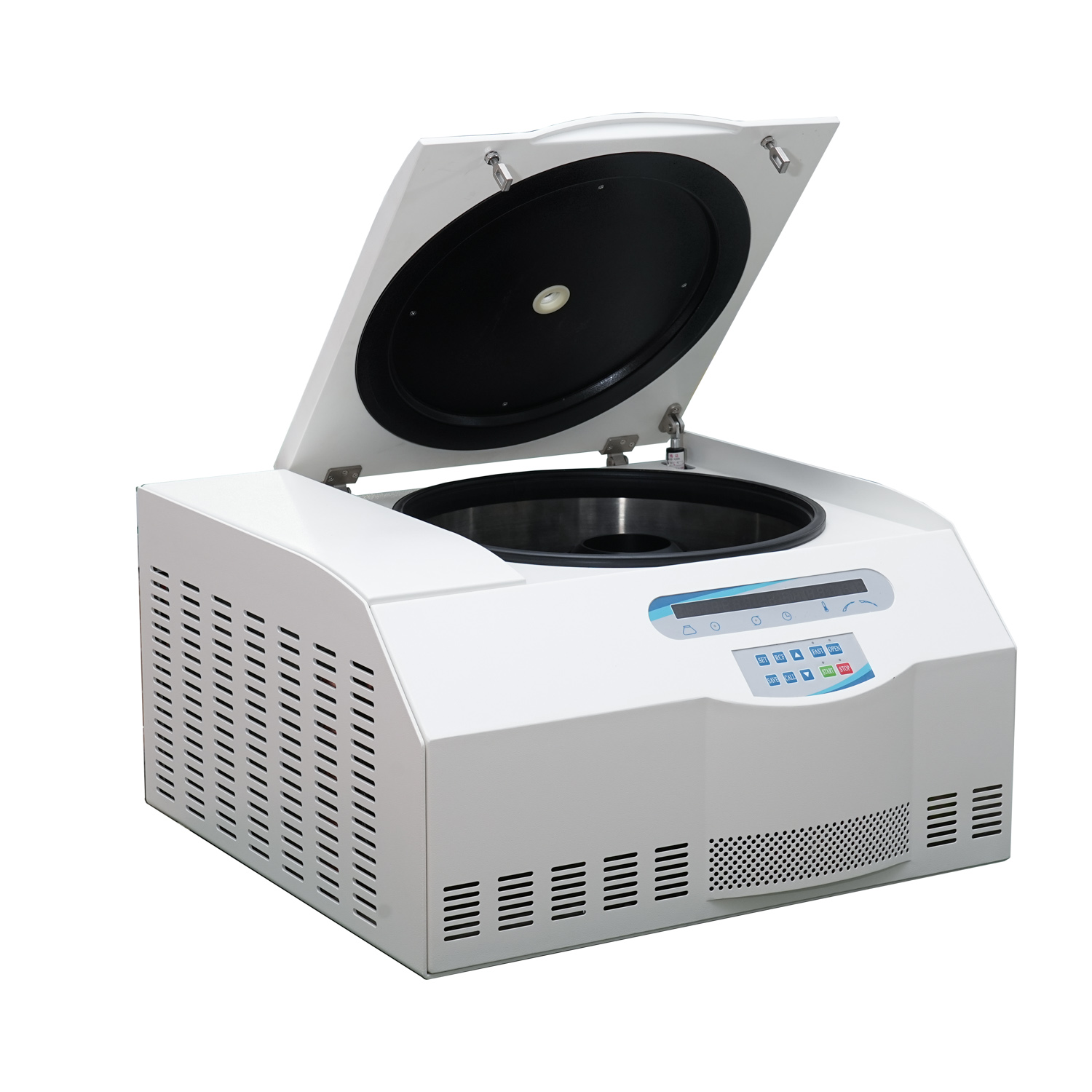

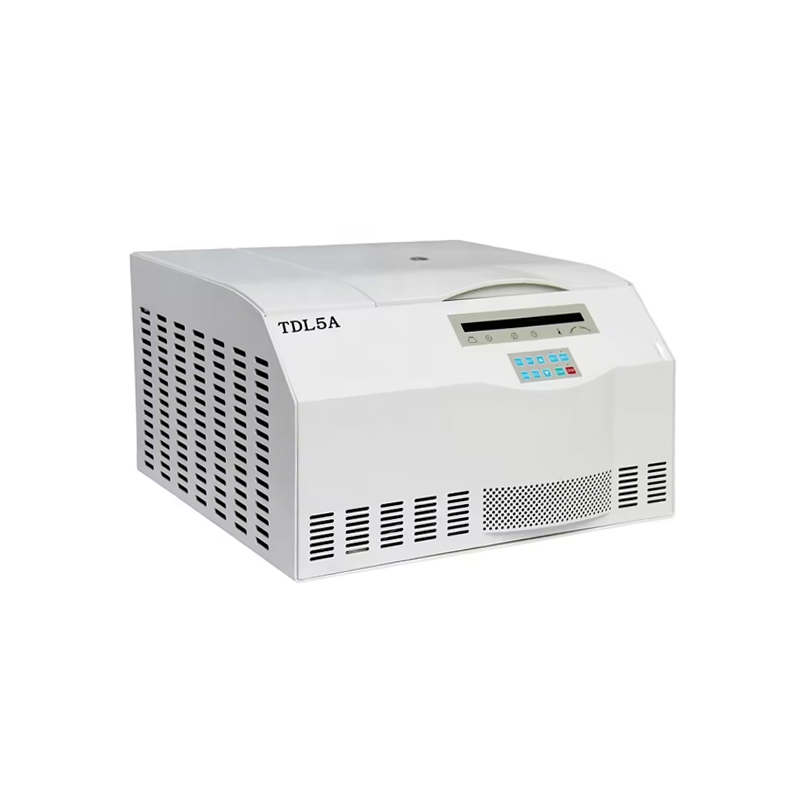

TDL5A Table Top Low Speed Refrigerated Centrifuge
Widely used in field of blood bank. Hospital and laboratory.
TDL5A Table Top Low Speed Refrigerated Centrifuge
Features:
1. Widely used in field of blood bank. Hospital and laboratory.
2. Pre-cooling design for TDL5A, 10 kinds of acceleration and deceleration
3. More than 10 rotors for your choice
4. Low speed, low noise, compact design and small vibration
5. User-friendly LED display provides speed, time and temperature parameters.
6. Brushless frequency motor in great torque, no powder pollution, free maintenance, quick in speed up and down
7. Imbalance sensor and over speed sensor, the centrifuge body is made of high-quality steel, very safe.
8. Electric lid lock,over speed protection,over temperature protection and imbalance protection.
TDL5A Technical Parameter：
Max. Speed | 5000rpm |
Max. RCF | 4730×g |
Max. Capacity | 4×300ml |
Time Range | 1~9h59min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 60 |
Temperature | -20℃~40℃ |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | ±1℃ |
Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
Size (W x D x Hmm) | 640×665×420mm |
Net Weight(Kg) | 118KG |
Certificates | CE,ISO & Calibration report are available |

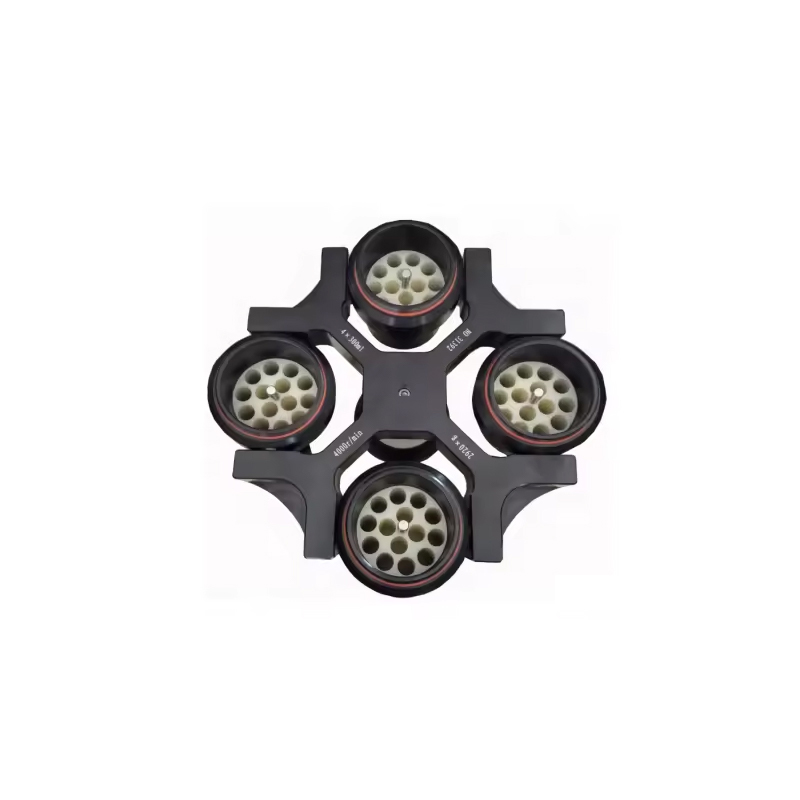

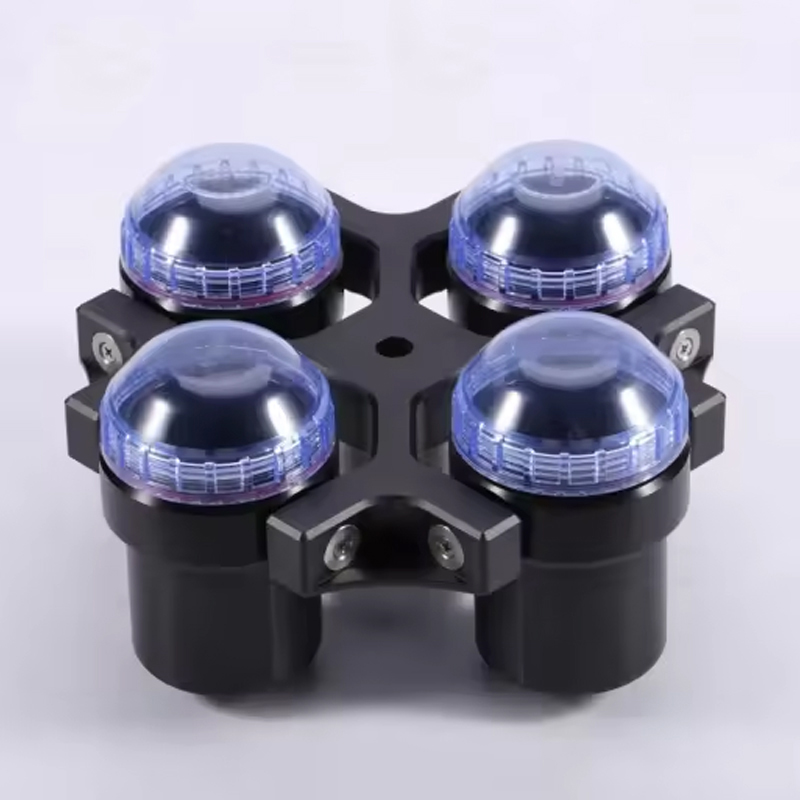

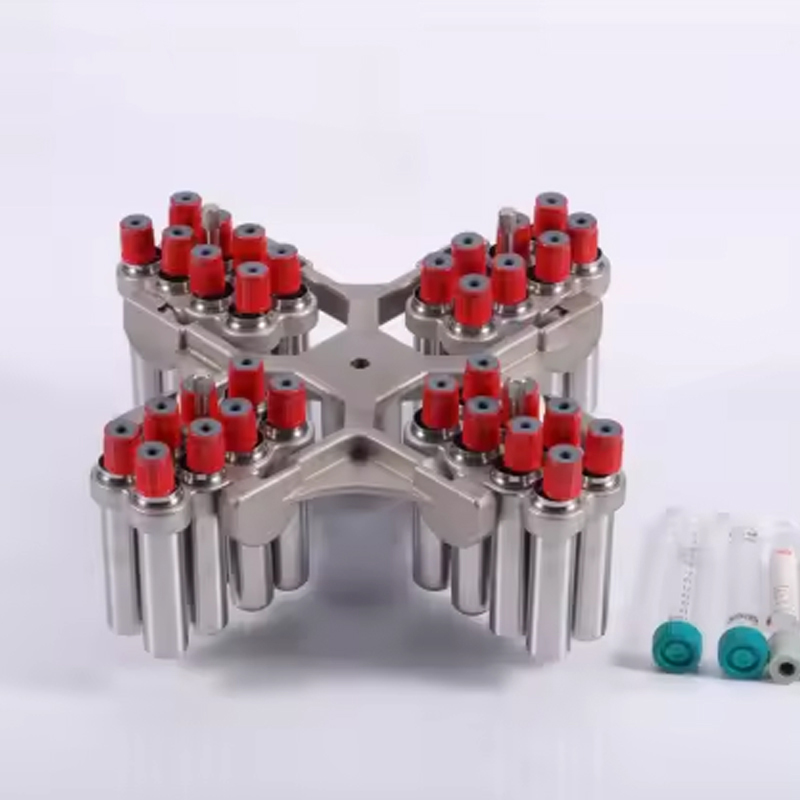

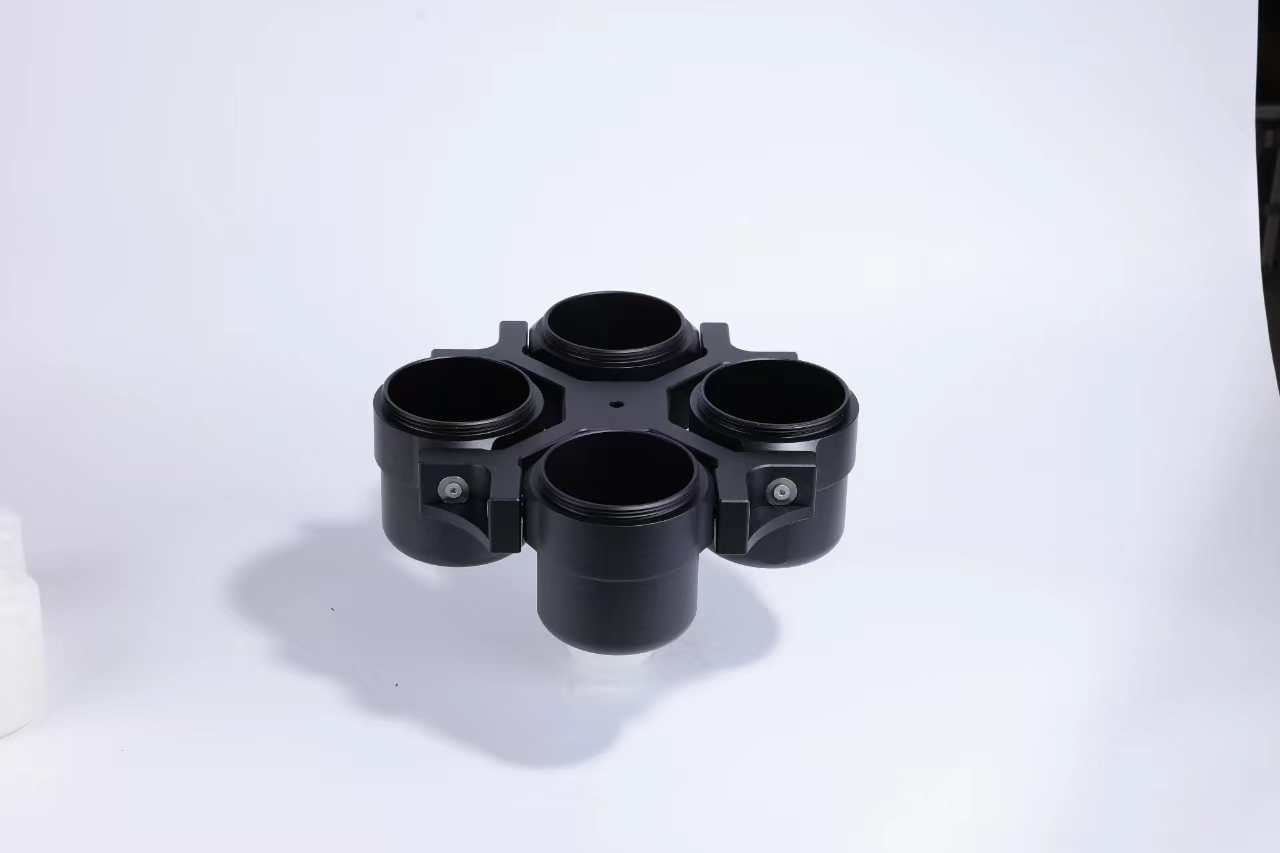

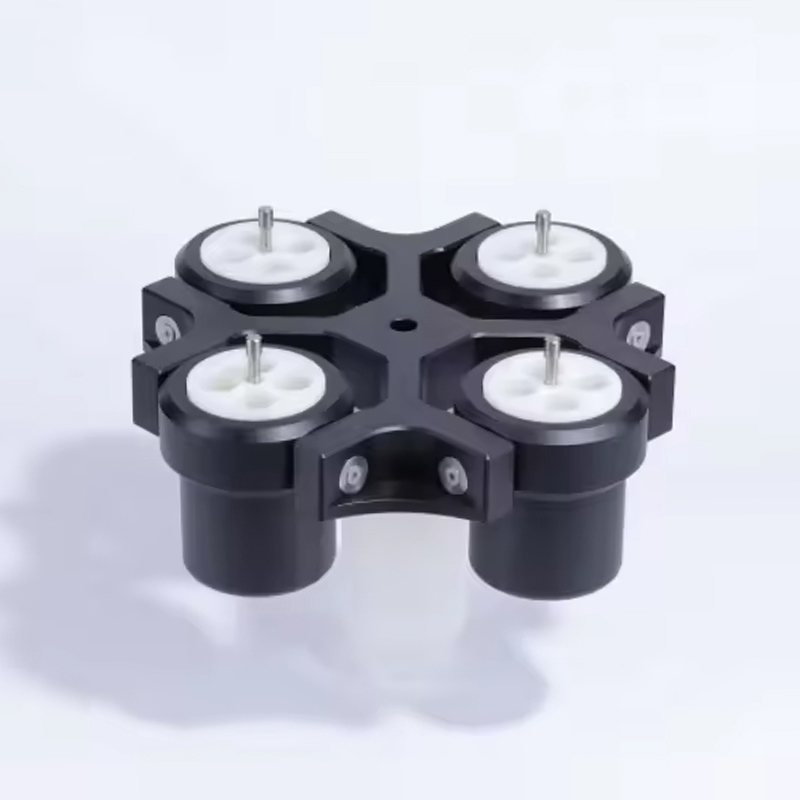

Matched Rotor for TDL5A
Order NO. | Rotor Type | Max speed(r/min) | Volume (ml) | Max RCF(*g) |
5A-1 | Swing rotor (round cup) | 4000 | 4×300ml | 3180 |
5A-2 | Swing rotor (square cup) | 4000 | 4×300ml | 3150 |
5A-3
| Swing rotor | 4000 | 4×24×7ml | 3150 |
4000 | 4×24×5ml | 2750 | ||
4000 | 4×18×10ml | 3140 | ||
5A-4 | Microplate rotor | 4000 | 2×4×96 well | 2910 |
5A-5 | Microplate rotor | 4000 | 2×4×48 well | 2300 |
5A-6 | Swing rotor | 5000 | 4×1×50ml | 4730 |
5000 | 4×1×100ml | 4730 | ||
5A-7
| Swing rotor | 4000 | 4×2×50ml | 3200 |
4000 | 4×2×100ml | 3020 | ||
4000 | 4×4×15ml | 3200 | ||
4000 | 4×6×15ml | 3200 | ||
4000 | 4×8×15ml | 3200 | ||
4000 | 4×12×5ml vacuum tube | 2480 | ||
4000 | 4×12×7ml vacuum tube | 2760 | ||
4000 | 4×12×10ml vacuum tube | 2790 | ||
4000 | 4×8×10/7/5ml vacuum tube | 2790 | ||
4000 | 4×6×10/7/5ml vacuum tube | 2790 | ||
4000 | 4×4×10/7/5ml vacuum tube | 2790 | ||
5A-8 | Fixed Rotor | 5000 | 6×15ml | 2540 |
5A-9 | Fixed Rotor | 5000 | 12×15ml | 3080 |
5A-10 | Fixed Rotor | 5000 | 24×15ml | 3500 |
5A-11 | Fixed Rotor | 5000 | 30×15ml | 3830 |
5A-12 | Fixed Rotor | 5000 | 4×50ml | 2520 |
5A-13 | Fixed Rotor | 5000 | 6×50ml | 2850 |
5A-14 | Fixed Rotor | 5000 | 12×50ml | 3860 |
5A-15 | Fixed Rotor | 4000 | 24×50ml | 2970 |
5A-16 | Fixed Rotor | 5000 | 4×100ml | 2630 |
5A-17 | Fixed Rotor | 5000 | 6×100ml | 3130 |
5A-18 | Fixed Rotor | 4000 | 12×100ml | 2970 |
