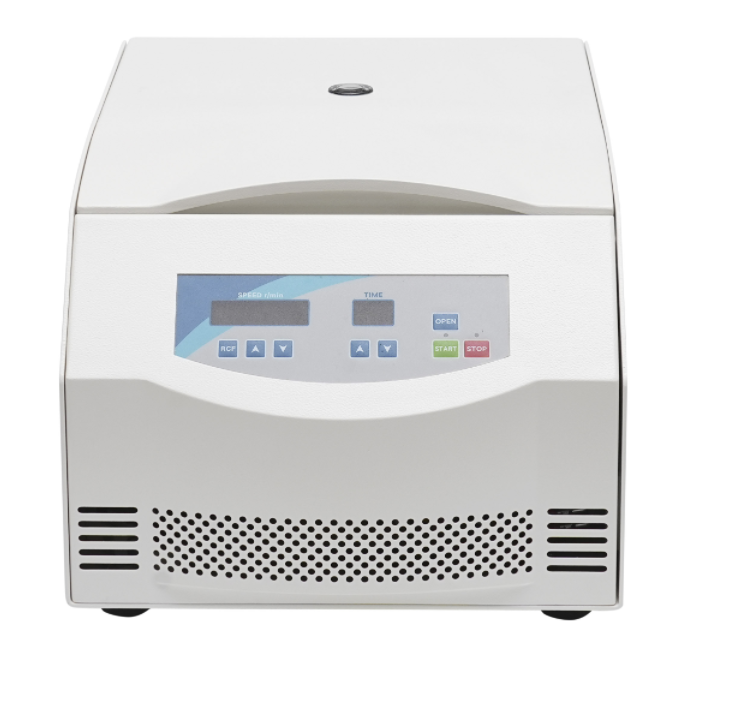

TD6 Low Speed Centrifuge
Features:
1. Microprocessor control, digital display, touch panel, parameters in running can be edited and change to display other running parameter and RCF.
2. Brushless frequency motor with simpler construction, more reliable performance, longer life and quietly running.
3. Automatic lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
4. Adapters are available by experiment requirements.
5. 3 tiers protection steel cover, safe and reliable.
TD6 Technical Parameter：
Max. Speed | 6000rpm |
Max. RCF | 4730×g |
Max. Capacity | 4×180ml |
Time Range | 0~99min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 55 |
Temperature | Normal |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | / |
Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
Size (W x D x Hmm) | 540×370×280mm |
Net Weight(Kg) | 28KG |
Certificates | CE,ISO & Calibration report are available |

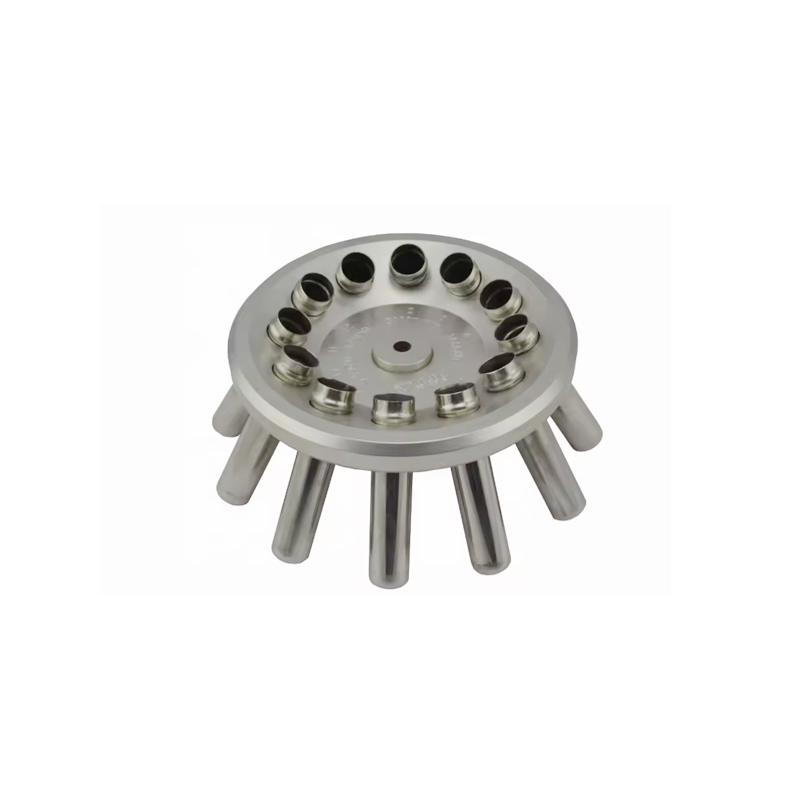

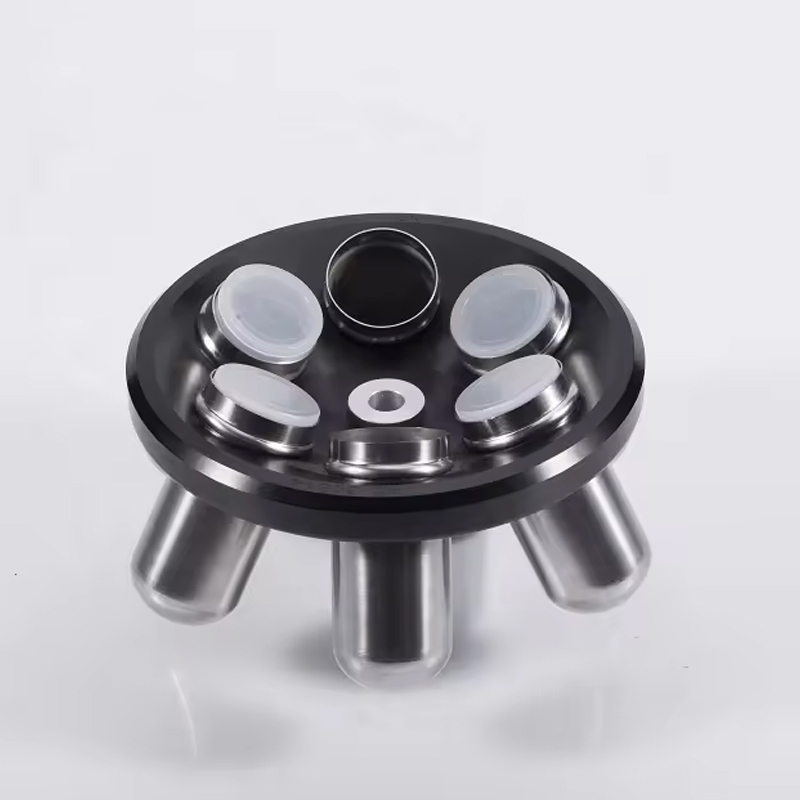

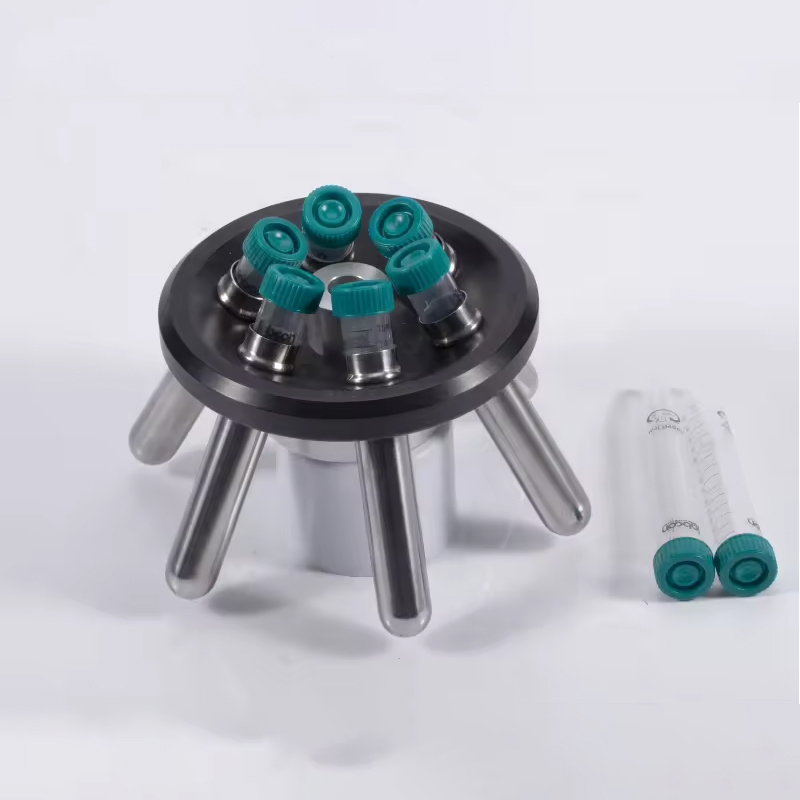

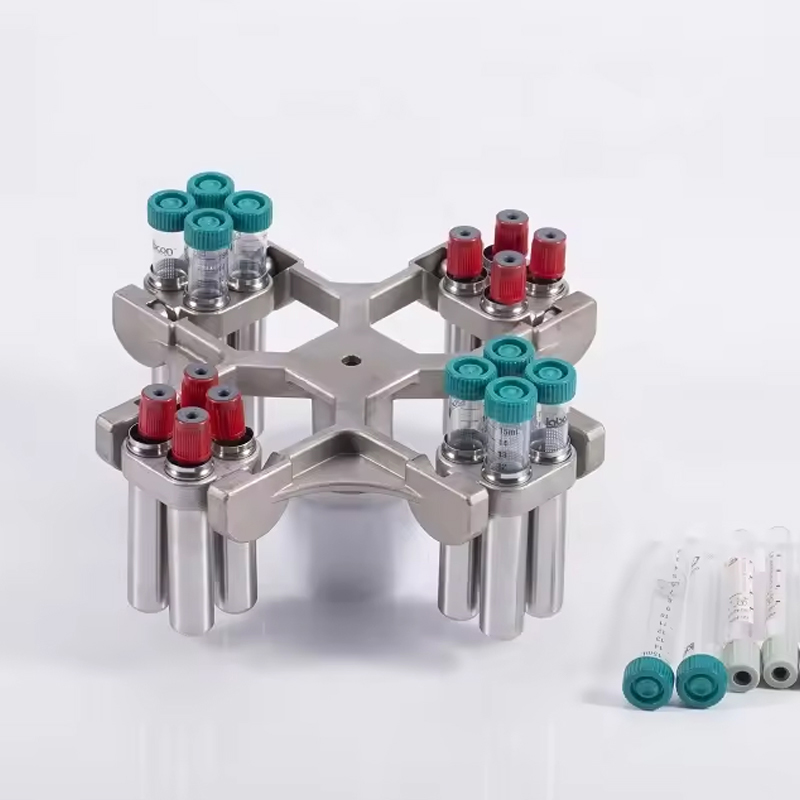

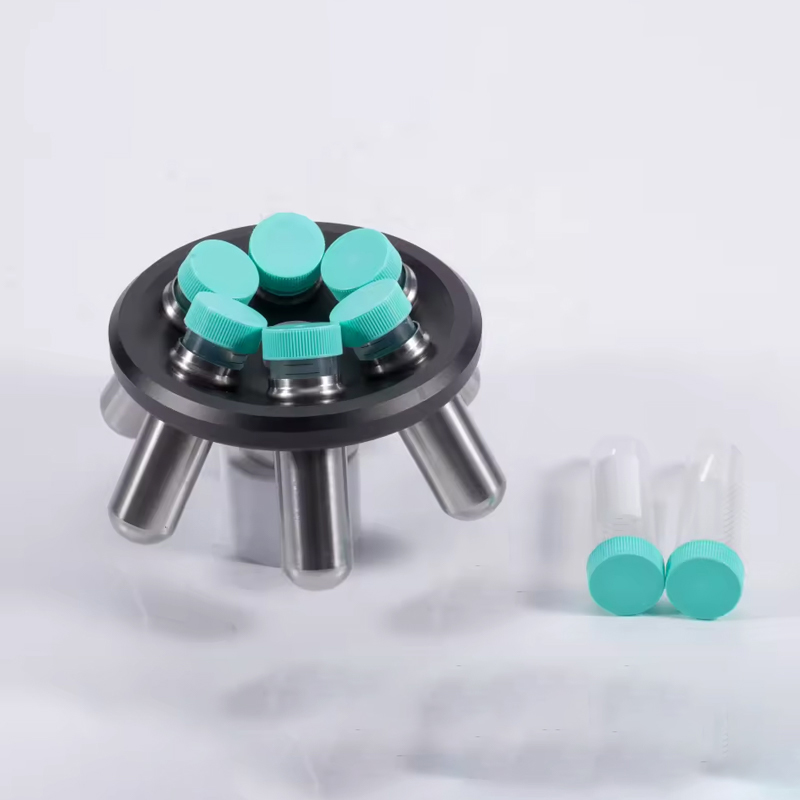

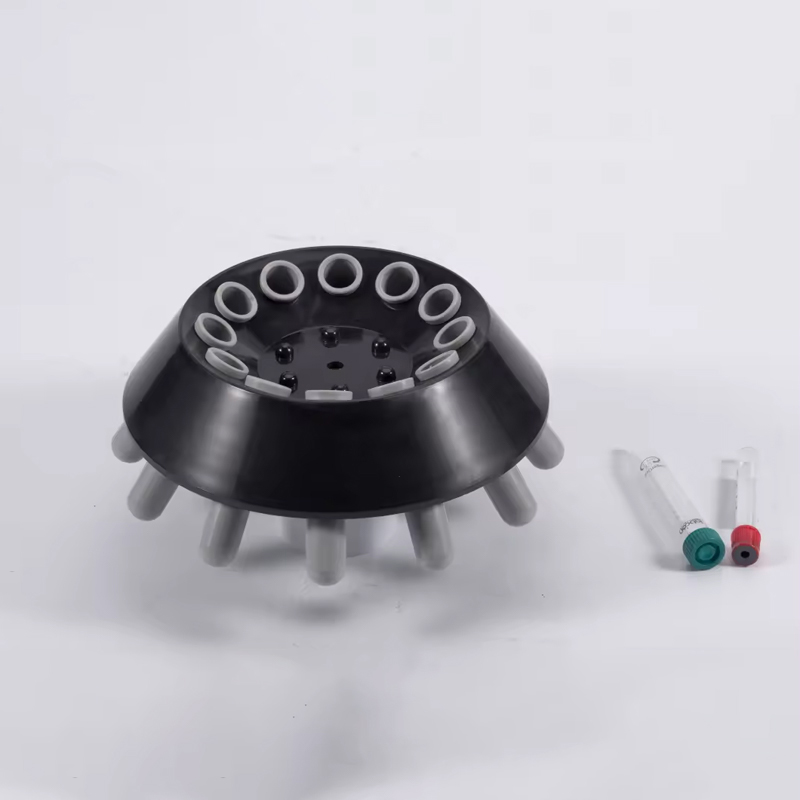

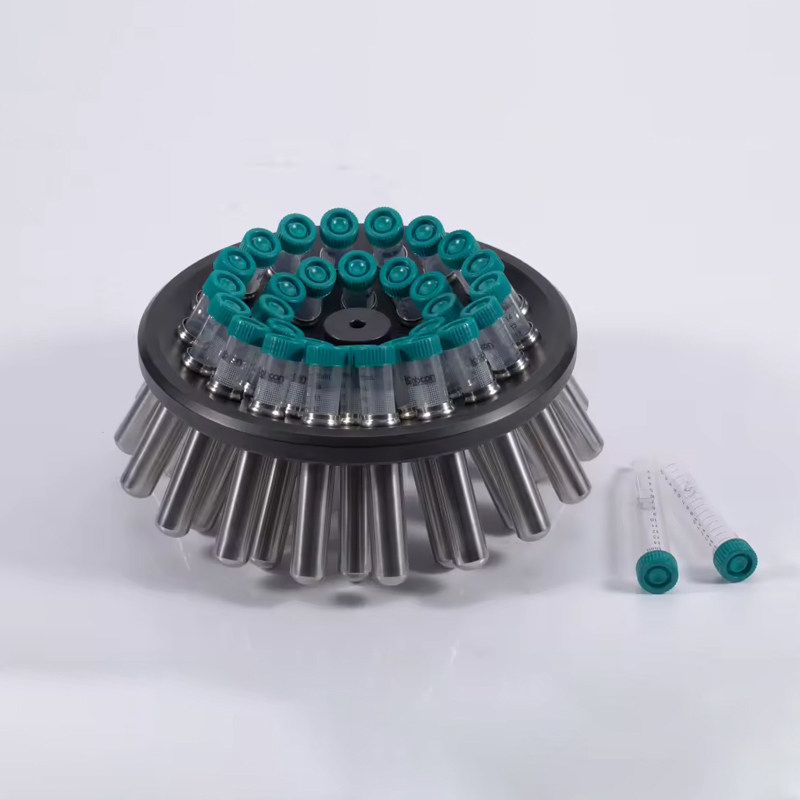

Matched Rotors for TD6
Order No. | Rotor | Max Speed (rpm) | Max Volume (ml) | Max. RCF（×g） |
NO30638 | Angle Rotor | 6000 | 6×15ml | 3660 |
NO30607 | Angle Rotor | 6000 | 12×15ml | 4430 |
NO30611 | Angle Rotor | 6000 | 6×50ml | 4110 |
NO30640 | Angle Rotor | 5000 | 4×50ml | 3620 |
NO30613 | Angle Rotor | 6000 | 4×100ml | 3790 |
NO30639 | Angle Rotor | 5000 | 24×15ml | 3500 |
NO30641 | Angle Rotor | 5000 | 12×50ml | 3860 |
NO30614 | Angle Rotor | 5000 | 6×100ml | 3130 |
