TD5E Table Top Low Speed Centrifuge

TD5E Table Top Low Speed Centrifuge

TD5E Table Top Low Speed Centrifuge

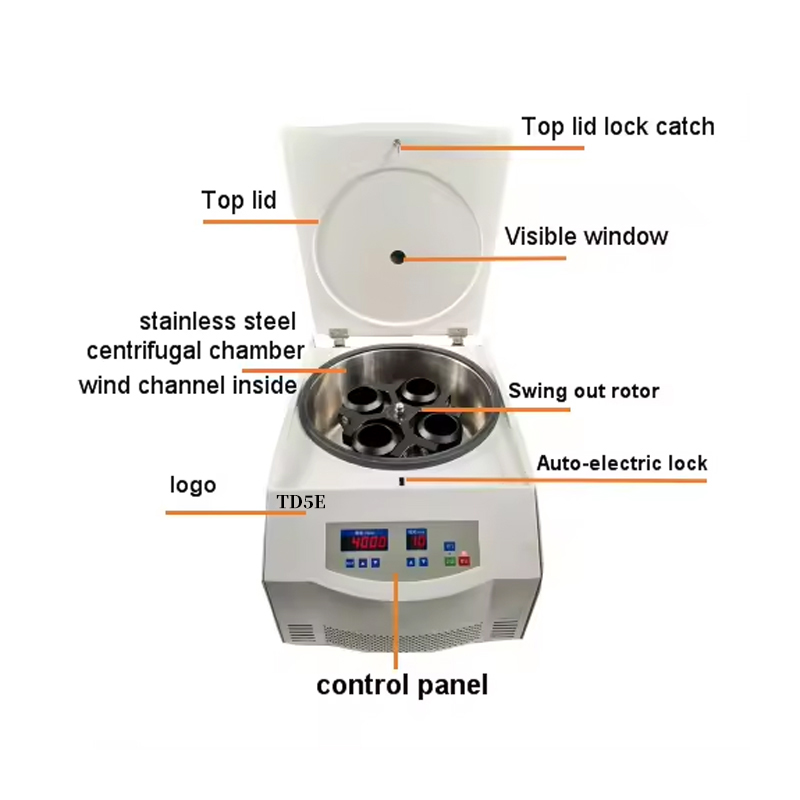

Features:

1. Microprocessor control, digital display, touch panel, parameters in running can be edited and change to display other running parameter and RCF.

2. Brushless frequency motor with simpler construction, more reliable performance, longer life and quietly running.

3. Automatic lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.

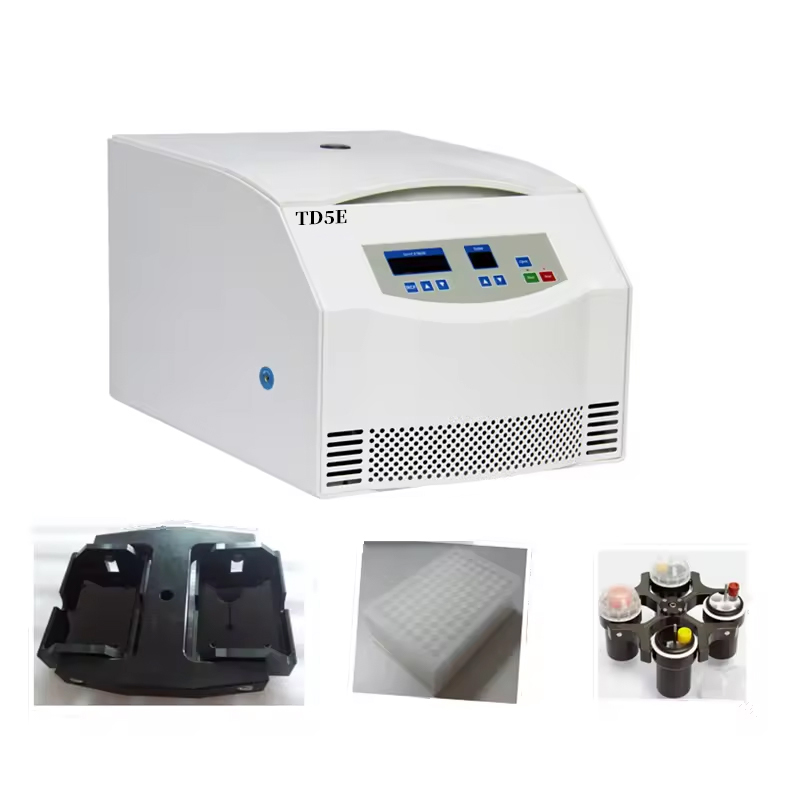

4. Adapters are available by experiment requirements.

5. 3 tiers protection steel cover, safe and reliable.

6. TUV CE EMC certificate.



TD5E Technical Parameter

Max. Speed

5000rpm

Max. RCF

4420×g

Max. Capacity

4×180ml

Time Range

0~99min

RPM/RCF Convert

Yes

Noise (dB)

58

Temperature

Normal

Acc/Dec

10 Kinds

Speed Accuracy

±20r/min

Temperature Accuracy

/

Voltage(V/Hz)

AC 220V/110V  50HZ/60HZ

Size (W x D x Hmm)

540×370×280mm

Net Weight(Kg)

28KG

Certificates

CE,ISO & Calibration report are available

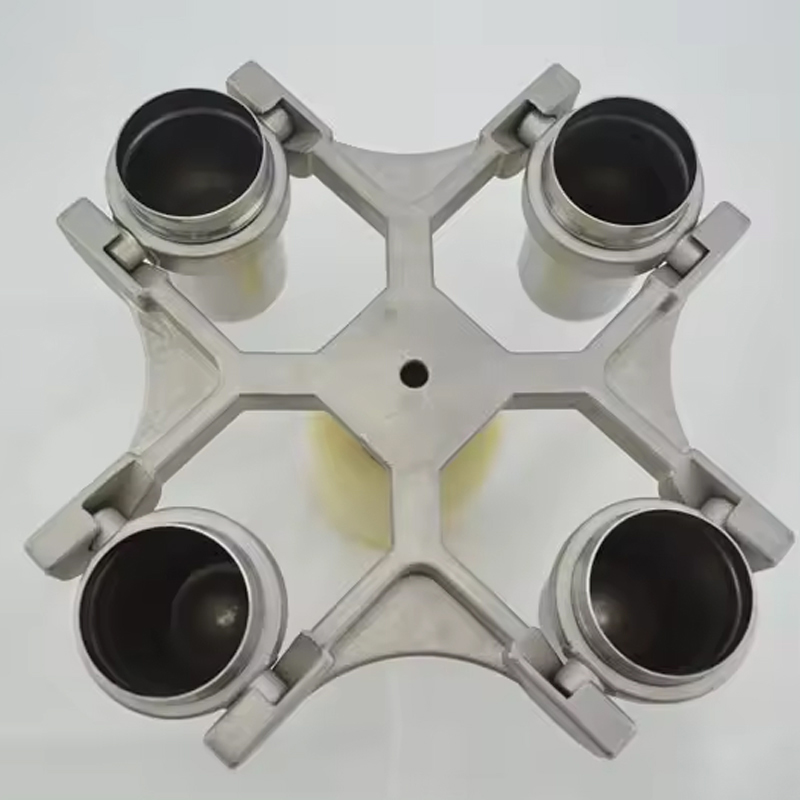

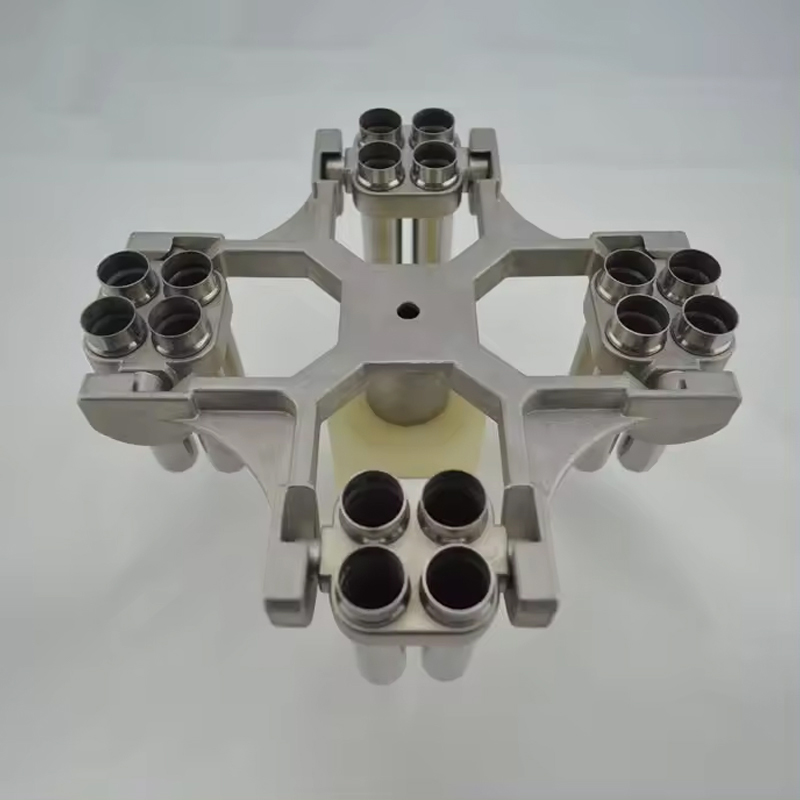

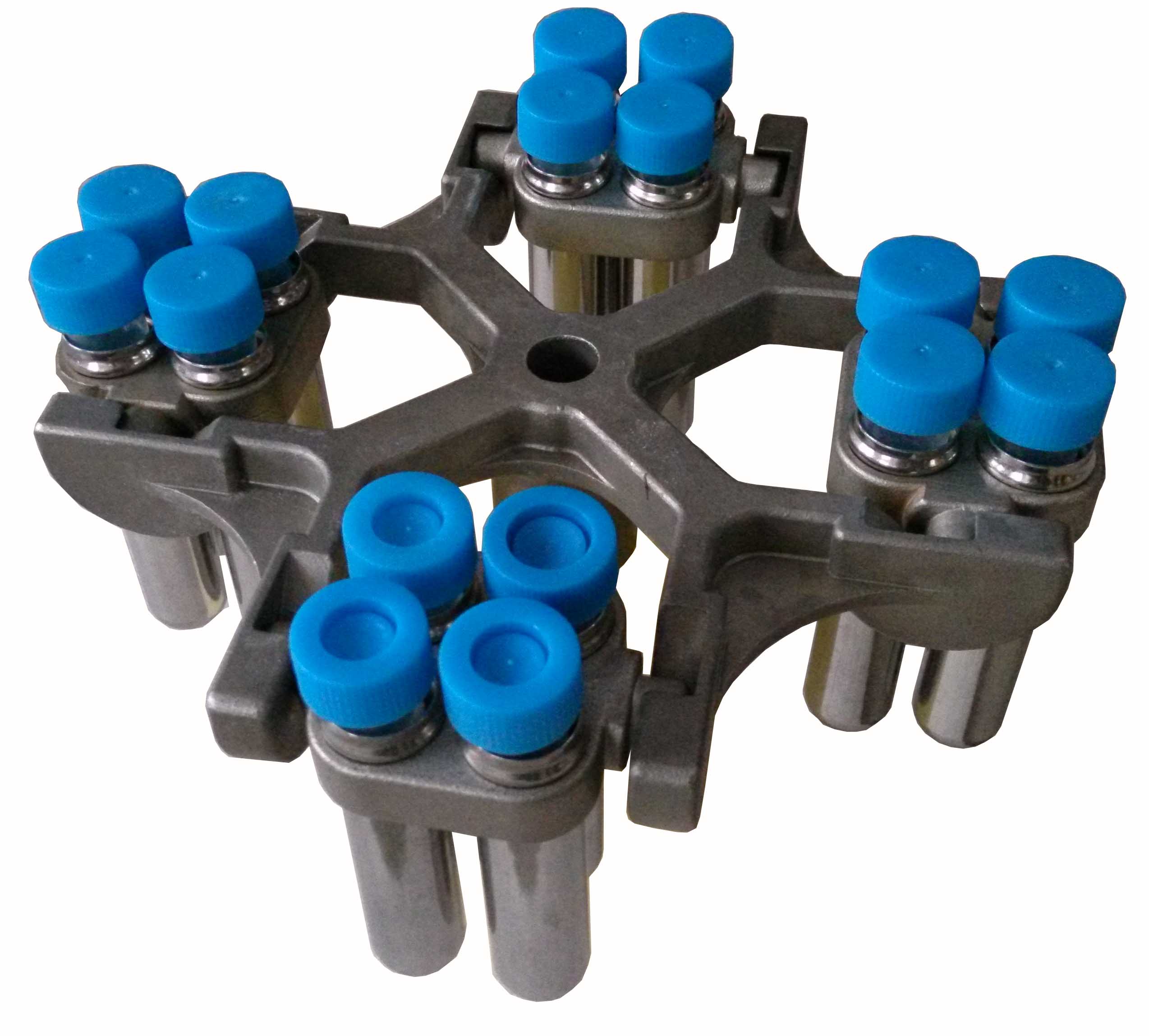

Matched Rotors for TD5E

No.

Rotor

Max speed (rpm)

Max volume (ml)

RCF

5E-1

Swing Rotor

4000

4×180ml

2580

5E-2

Microplate rotor

4000

2×3×96 well

2020

5E-4

Swing Rotor

5000

4×1×50ml

4420

5E-5

Swing Rotor

5000

4×1×100ml

4420

5E-6

Swing Rotor

4000

4×2×50ml

2820

5E-7

Swing Rotor

4000

4×4×15ml

2820

5E-8

Swing Rotor

4000

4×6×10/7ml vacuum tube

2580

5E-9

Swing Rotor

4000

4×6×5ml vacuum tube adapter

2170

5E-10

Swing Rotor

4000

4×4/10/7ml

2580

5E-11

Swing Rotor

4000

4×4×5ml vacuum tube adapter

2170

5E-12

Fixed Rotor

5000

6×15ml

2540

5E-13

Fixed Rotor

5000

12×15ml

3080

5E-14

Fixed Rotor

5000

24×15ml

3500

5E-15

Fixed Rotor

5000

30×15ml

3830

5E-16

Fixed Rotor

5000

4×50ml

2520

5E-17

Fixed Rotor

5000

6×50ml

2850

5E-18

Fixed Rotor

5000

12×50ml

3860

5E-19

Fixed Rotor

5000

4×100ml

2630

5E-20

Fixed Rotor

5000

6×100ml

3130
