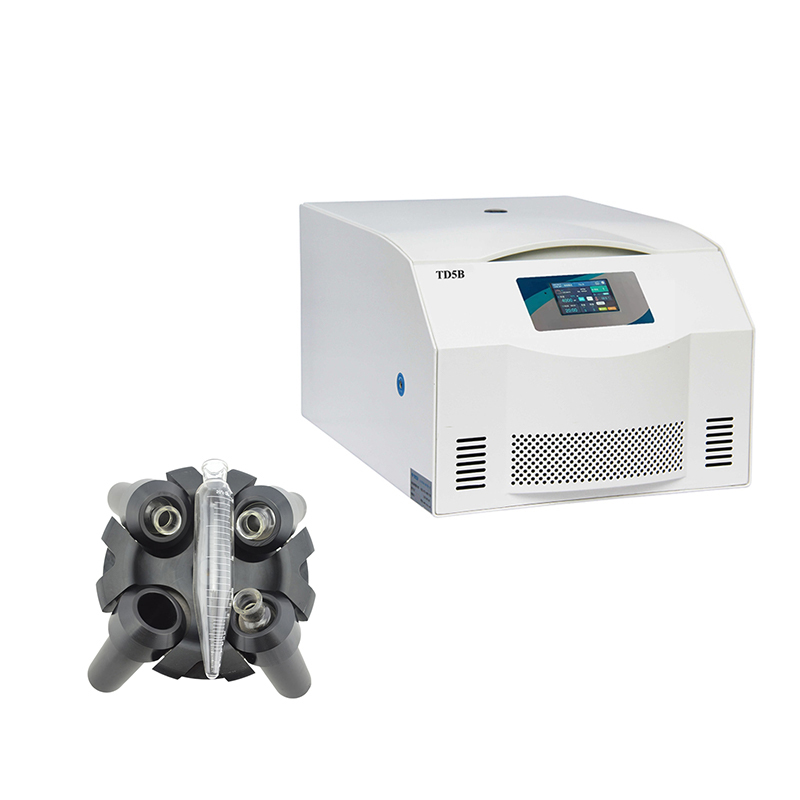

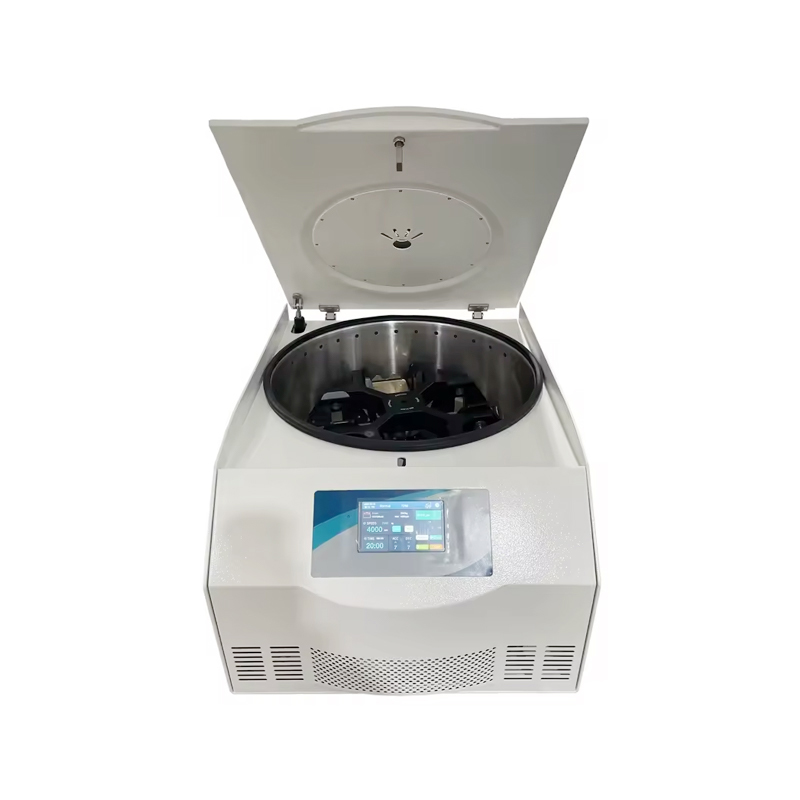

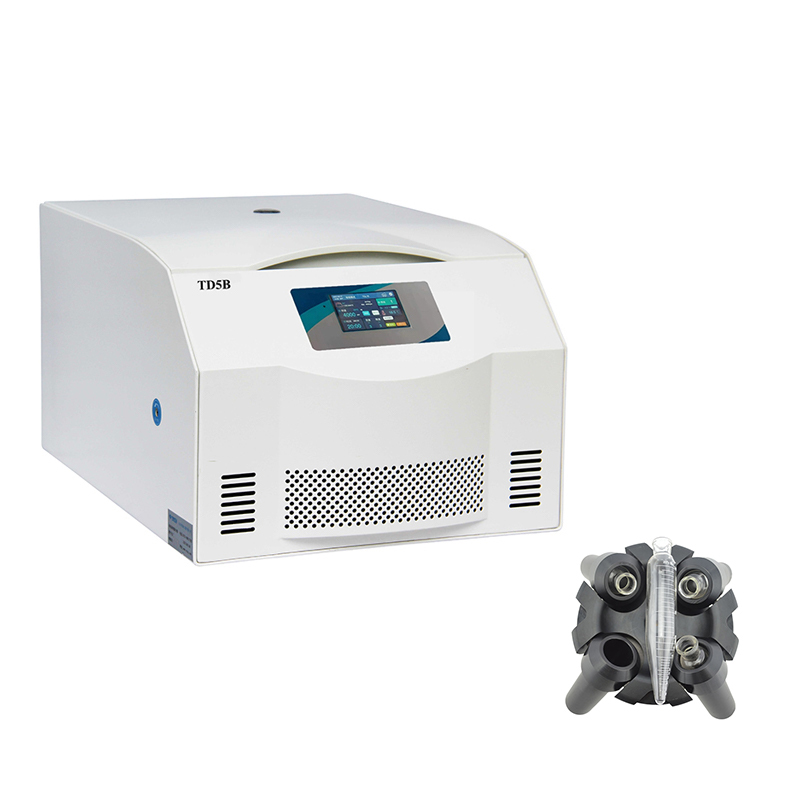

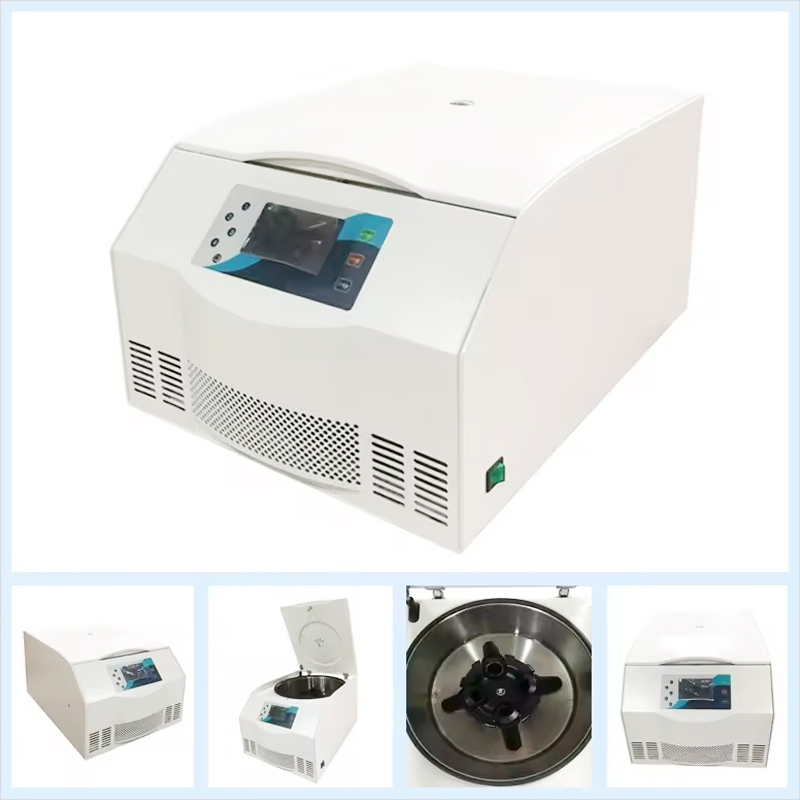

TD5B Crude Oil Test Centrifuge TD5B Petroleum Centrifuge

TD5B Crude Oil Test Centrifuge TD5B Petroleum Centrifuge

Crude Oil Moisture Determination Centrifuge

The centrifuge for crude oil moisture determination is designed for the determination of water and sediment in crude oil (centrifugal method). It meets the requirements of GB/T6533-86 standard and determines the water and sediment in crude oil by centrifugal separation method. It is an ideal equipment for measuring the water content of the produced fluid (water-bearing crude oil) in the process of oil production in the petroleum exploitation industry and petroleum scientific research units.

Features:

1. Microcomputer control, you can press the key to set the time, speed, centrifugal force, temperature, rotor number, etc.

2. Parameters, simple and fast operation; And that operation parameter are modified in the operation proces, Used by the user.

3. Large screen liquid crystal display (LCD), full touch screen control system, can display at the same time.

4. Sub-number, speed, time, temperature, centrifugal force, acceleration and deceleration rate, fault information, etc.

5. Adopt high torque brushless frequency conversion motor, easy to operate; Maintenance-free, dust-free, lifting Fast, greatly improve work efficiency.

6. The annular heater is adopted, so that the heating is rapid, the temperature is uniform, the functions of temperature control and constant temperature are realized, Temperature Requirements of Centrifuge in Petroleum Industry

7. Automatic electric induction door lock, emergency door opening function; Automatic protection against overspeed and unbalance; The body is made of high-quality steel structure, with built-in steel explosion-proof protection sleeve, stainless steel centrifugal cavity and three layers. Protection, safe and reliable.

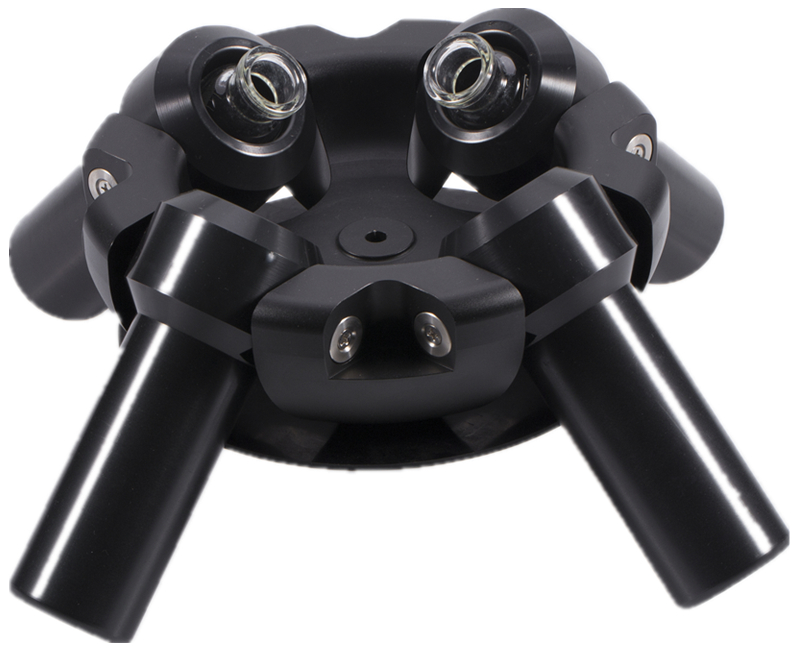

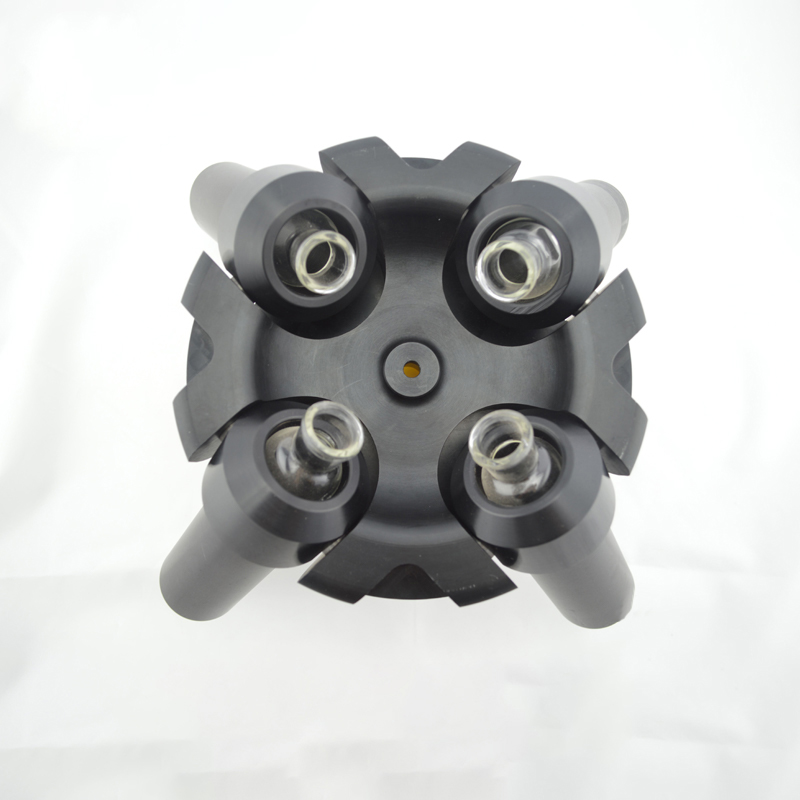

8. The spring taper sleeve is adopted to connect the rotating head and the main shaft, so that the rotating head is fast and simple to assemble and disassemble, has no direction, is safe and reliable, and is more convenient to use.

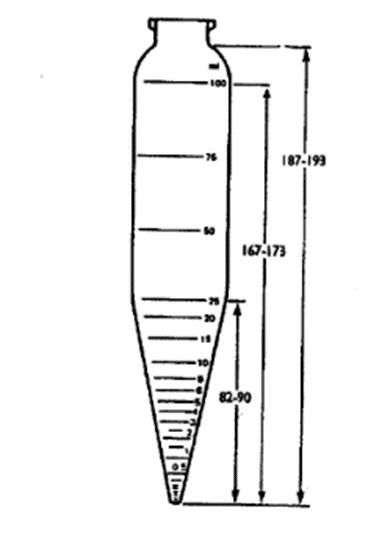

9. The centrifugal hanging cup is made by special technology, and the glass centrifuge tube will not break during operation. The centrifuge tube has been widely used in oil fields.

10. It is equipped with a fault self-diagnosis system, which can automatically detect various faults such as overspeed, overtemperature, imbalance, door cover self-locking, etc., and display fault information in the display window to improve the safety performance of the instrument.

TD5B Petroleum Centrifuge Technical Parameters
