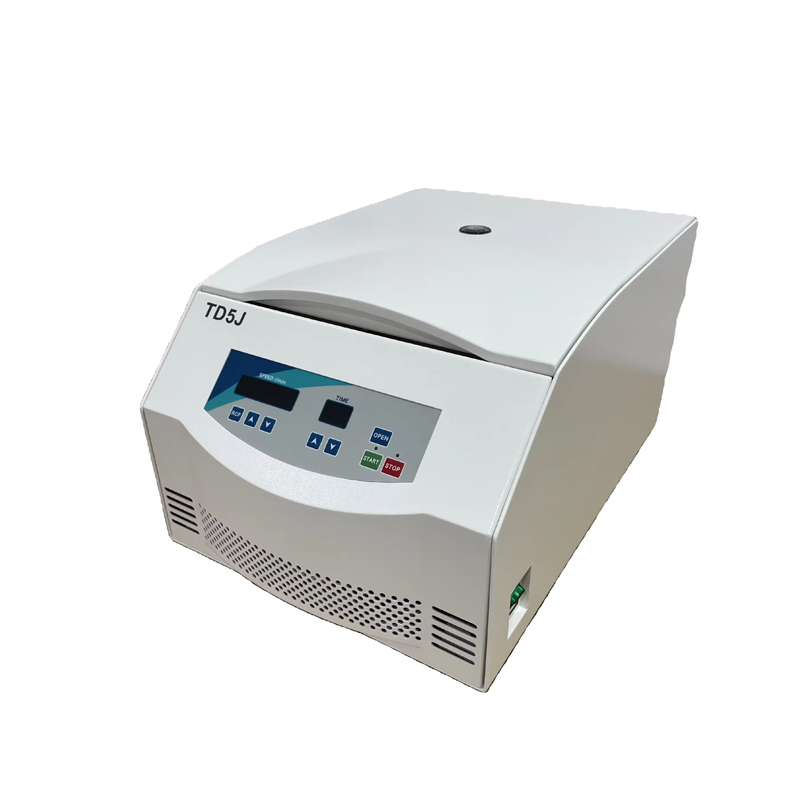

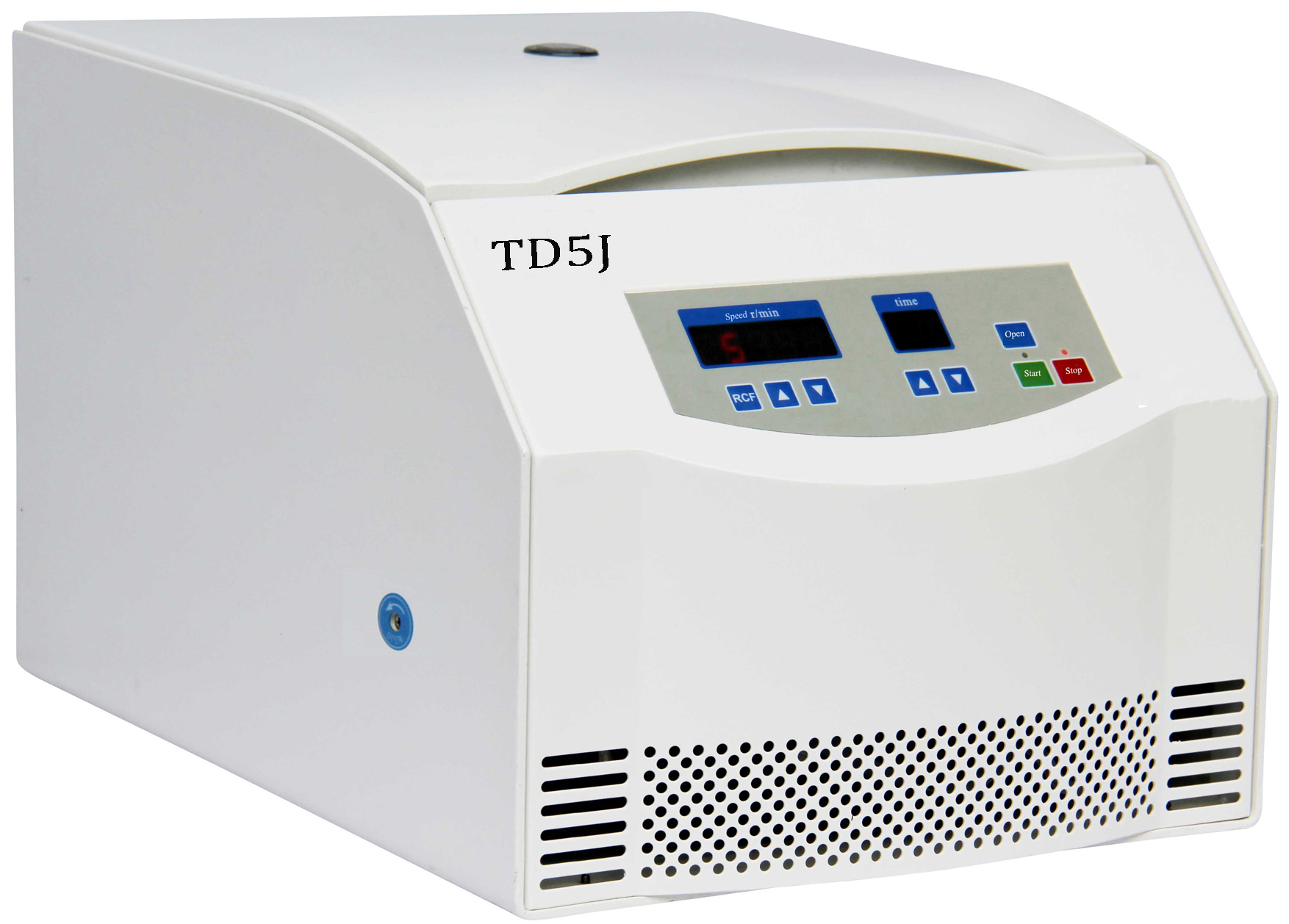

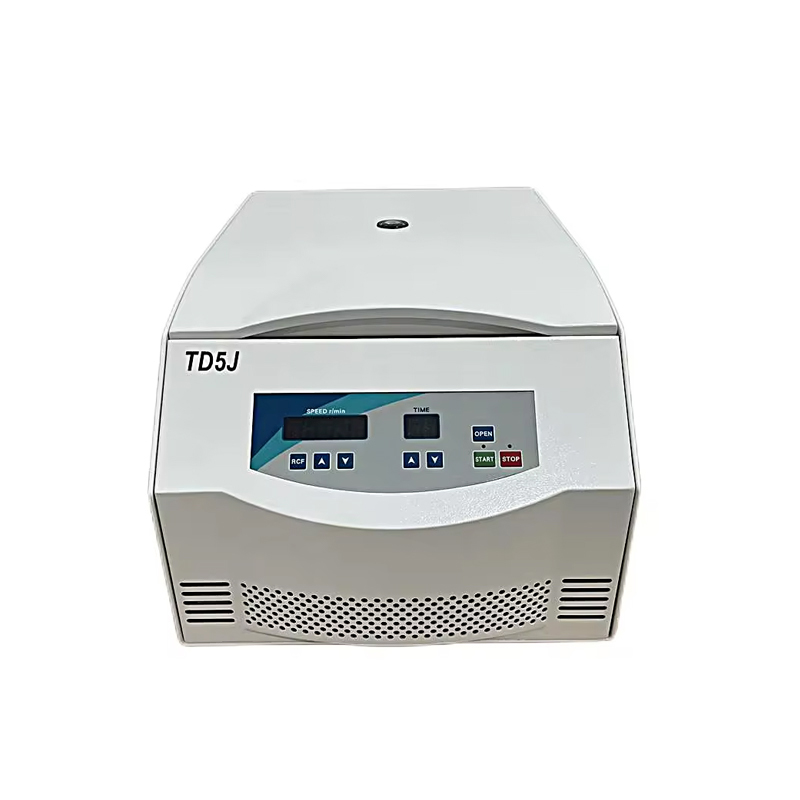

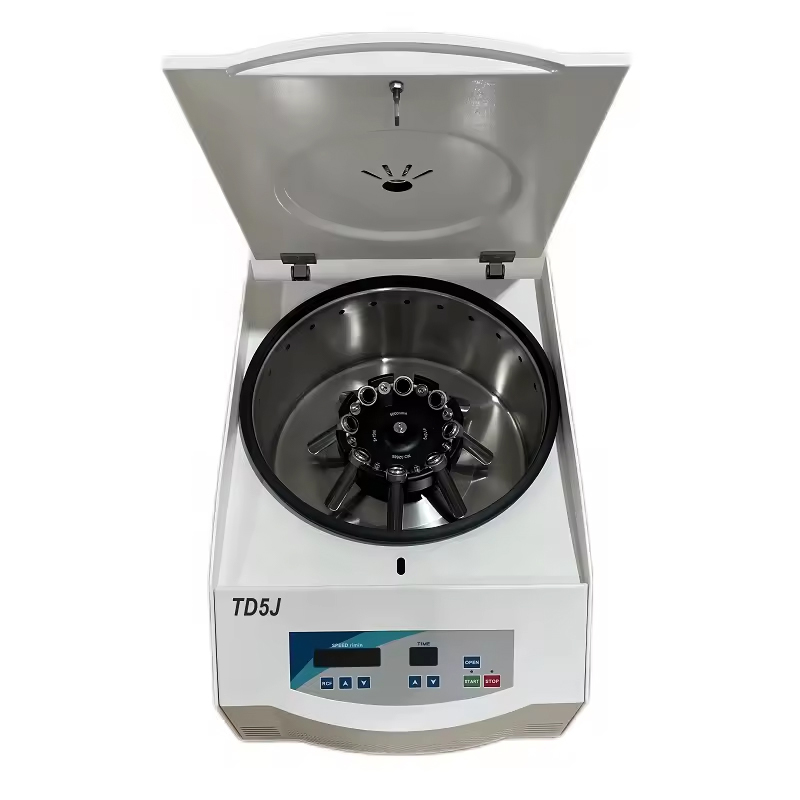

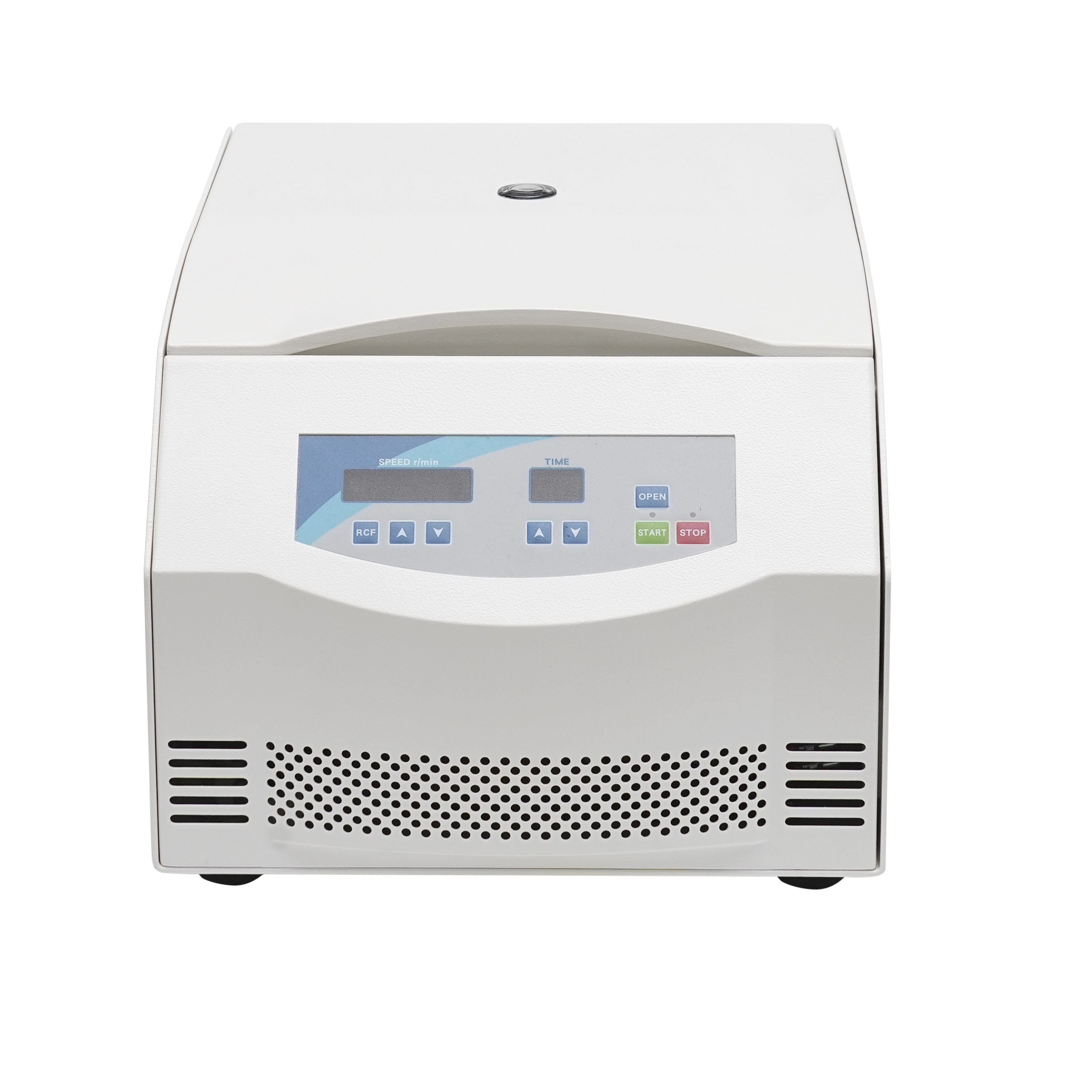

TD5J Low Speed Centrifuge
Features
1. Microprocessor control, less noisily, it is widely used to qualitative analysis of blood serum, plasma and urea in the fields of hospital, blood center, laboratory and biochemistry.
2. Brushless motor, free maintenance, no powder pollution, quick in speed up and down.
3. The flexible axle driven system which drive the rotor directly, smooth in operation and small vibration.
4. There are many rotors for your choice, suitable for different specifications meet customers’ different requirements of separation.
5. Micro computer control system, LCD display the RCF，time and speed.
6. Electric lid lock, compact design, super speed and imbalance protection.
TD5J Technical Parameter：
Max. Speed | 5000rpm |
Max. RCF | 4140×g |
Max. Capacity | 24×15ml |
Time Range | 0~99min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 55 |
Temperature | Normal |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | / |
Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
Size (W x D x Hmm) | 485×320×255mm |
Net Weight(Kg) | 28KG |
Certificates | CE,ISO & Calibration report are available |

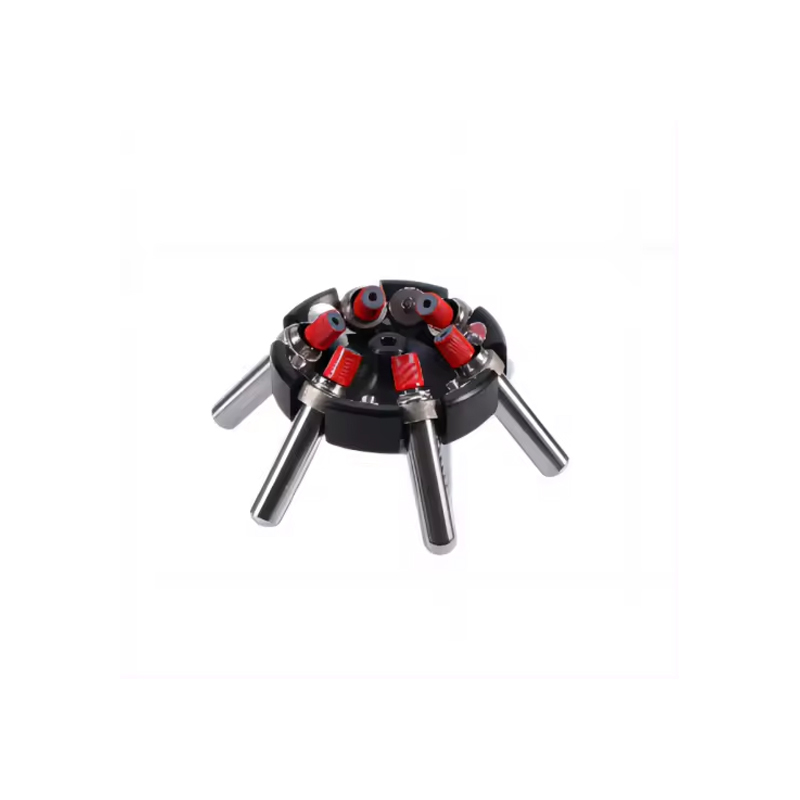

Matched Rotors for TD5J
Order No. | Rotor No. | Max Speed (rpm) | Max Volume (ml) | Max. RCF（×g） |
5J-1 | Swing rotor | 5000 | 12x10 | 4140 |
5J-2 | Swing rotor | 5000 | 8x15ml | 4110 |
5J-3 | Angle Rotor | 5000 | 24x15ml | 3500 |
