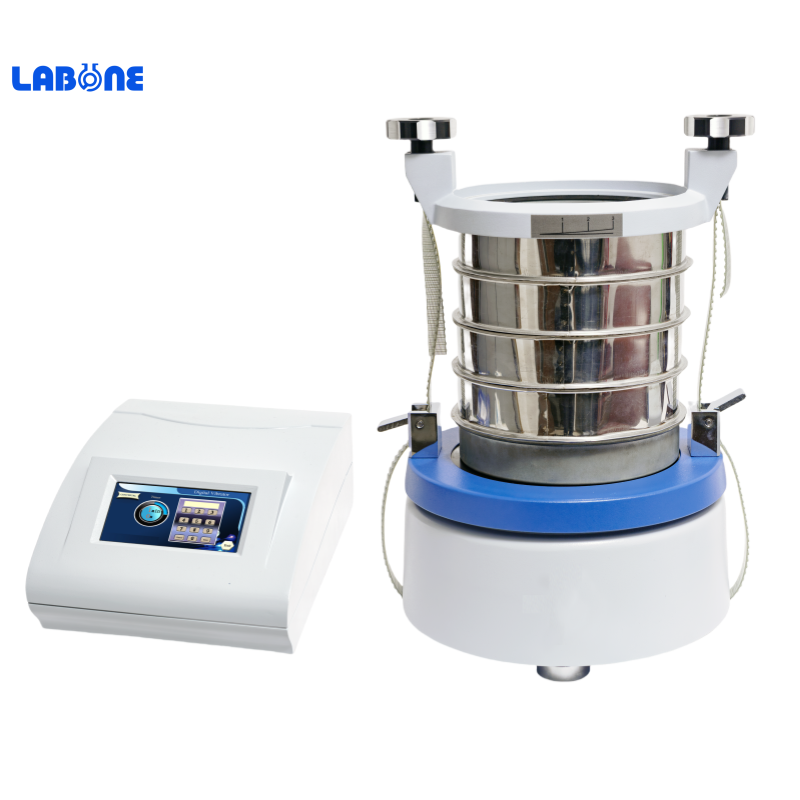

WQS-S Digital Vibrator
Widely used in pharmaceutical,metallurgy,food,cosmetics and other industries to perform particle analysis. It has following features, such as, simple operation, no moving parts, and electronic control of amplitude and frequency. The level of performan
Characteristics
lWidely used in pharmaceutical,metallurgy,food,cosmetics and other industries to perform particle analysis.
lIt has following features, such as, simple operation, no moving parts, and electronic control of amplitude and frequency.
lThe level of performance is equivalent to the vibrator manufactured by German FRITSCH.
lCompared with the traditional manual vibrator, it can greatly reduce the work intensity and improve efficiency.
Specifications
Parameters/Model | WQS-S |
Operation range | ≤325mesh |
Vibration frequency | 3000 times/min, 6000 times/ min |
Amplitude selection | 0 – 3mm continuous adjustment |
Vibration modes | 1、Subtle Vibration 2、Intermittent shaking, amplitude can be adjusted within the range of 1 -2 and 2 -3, with each step further about 0.2±0.1mm 3、Continuous, amplitude can be adjusted within the range of 1 -2 and 2 -3,with each step further about 0.2±0.1mm 4、Three modes can be precisely timed 5、Three modes can be memorized even when the equipment is shut off |
Power supply | AC 220V±22V, 50Hz±1Hz, 150w |
Dimensions | Shaking unit: Φ300×210mm Control unit: 280mm×200mm×140mm |
Weight(gross) | 25kg |
