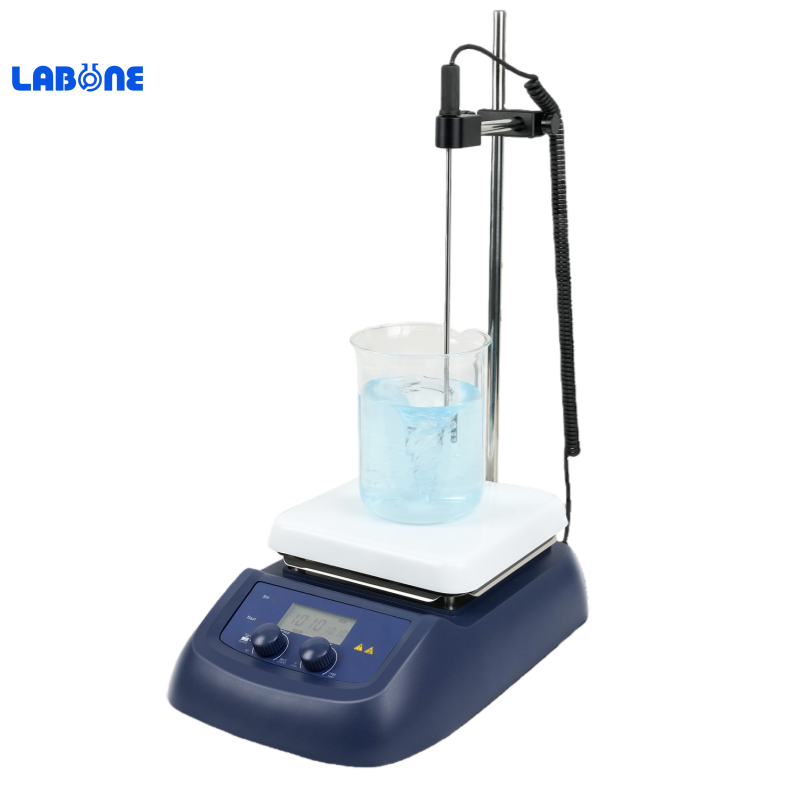

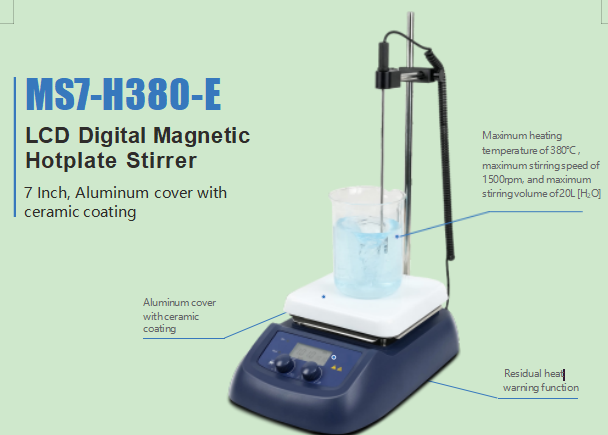

MS7-H380-E LCD Digital Magnetic Hotplate Stirrer 7 Inch Aluminum cover with ceramic coating
Features. Aluminum cover with ceramic coating, strong corrosion resistance, easy to clean.. E
Features
. Aluminum cover with ceramic coating, strong corrosion resistance, easy to clean.
. Efficient diversion platform and slope to prevent liquids from entering the machine and corroding electronic components.
. Maximum heating temperature of 380℃ , maximum stirring speed of 1500rpm, and maximum stirring volume of 20L [H2O].
. LCD displays speed, time, and temperature parameters clearly and intuitively.
Can be connected to an external temperature sensor PT1000 for precise control of sample temperature.
Protection features: dry burn protection, overcurrent protection, ground fault
protection, and overtemperature protection.
. Residual heat warning function: when the disc surface temperature exceeds 50℃ , heating will shut off, and the screen will flash“HOT”as a reminder of the high temperature, even if the power is turned off, the display will still flash“HOT.”
Specifications
Model | MS7-H380-E |
Work plate dimension | 184×184mm |
Work plate material | Aluminum cover with ceramic coating |
Motor type | DC brush motor |
Stirring positions | 1 |
Max. stirring quantity [H2O] | 20L |
Max. magnetic bar [length] | 80×10mm |
Speed range | 80-1500rpm |
Speed display | LCD |
Temperature display | LCD |
Display resolution | 1rpm |
Heating temperature range | Room Temp.- 380℃, increment 1℃ |
Temperature display resolution | ±0.1℃ |
Heating liquid temperature control accuracy | ±1℃(＜100℃)±1%(＞100℃) |
Overheating temperature protection | 410℃ |
External temperature sensor | PT1000 |
External temperature sensor | PT1000 (accuracy±0.2℃ ) |
Power | 900W |
Voltage, Frequency | 100-120V,60Hz; 200-240V,50Hz |
“Hot” warning | 50℃ |
Protection class | IP21 |
Dimension [WxDxH] | 366X240X126mm |
Weight | 3.5Kg |
Permissible ambient temperature and humidity | 5-40℃, 80%RH |
