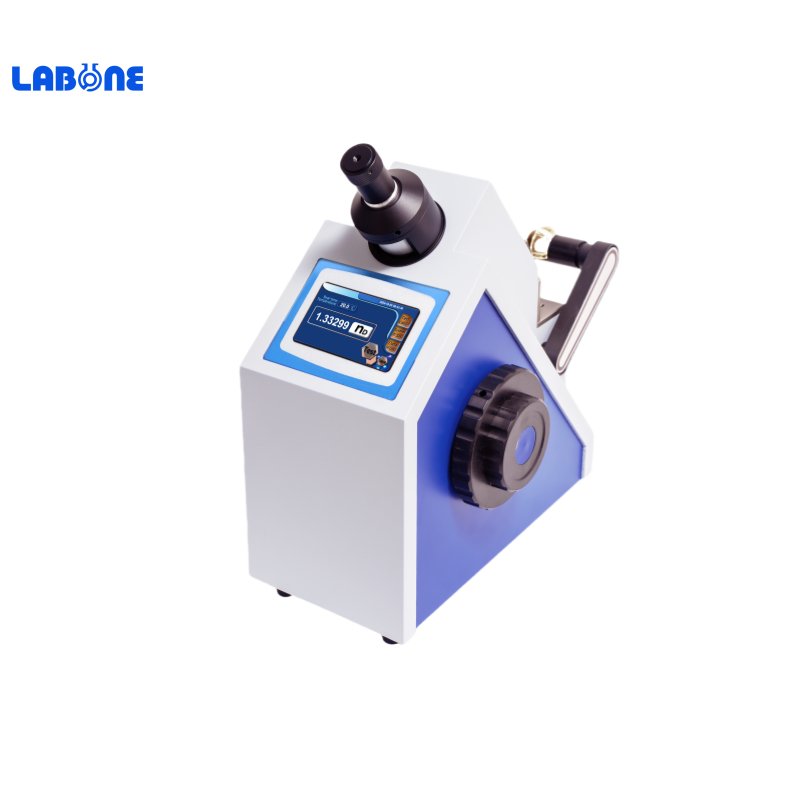

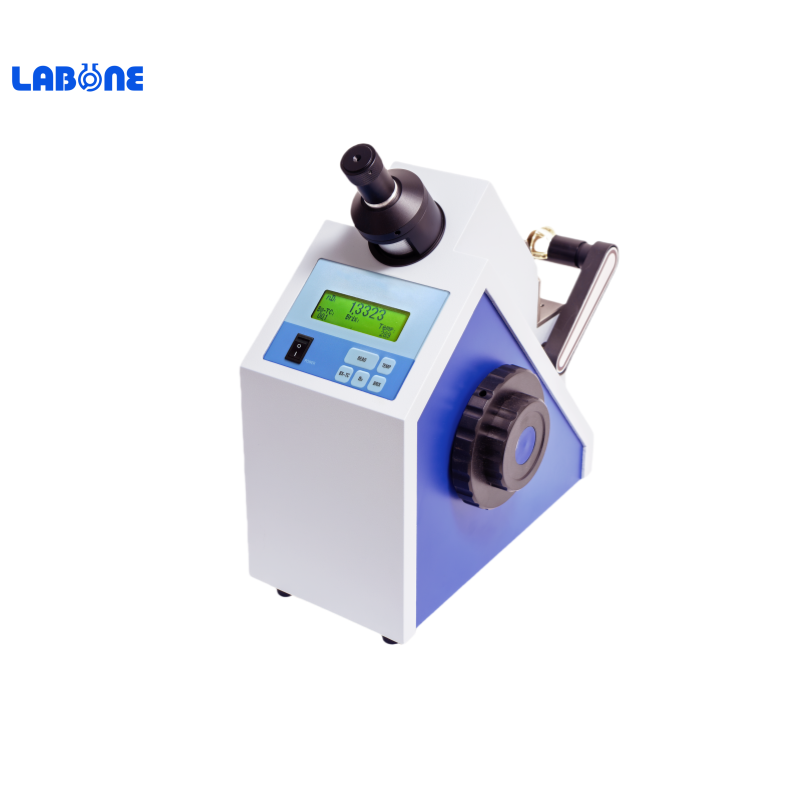

WYA-3S/WYA-2SABBE Digital Refractometer
Measurement of refractive index nD of transparent or translucent liquid and solid substances.Measurement of the Brix of sugar solution.Automatic correction of the effect of temperature on the Brix.Prism made of hard glass.It works with 589nm wavel
Characteristics
Measurement of refractive index nD of transparent or translucent liquid and solid substances.
Measurement of the Brix of sugar solution.
Automatic correction of the effect of temperature on the Brix.
Prism made of hard glass.
It works with 589nm wavelength and uses LED as light source.(WYA-3S)
Specifications
Parameters/Model | WYA-3S | WYA-2S |
Measuring range | Refractive index (nD):1.30000-1.70000 Brix:0-100% | Refractive index (nD):1.3000-1.7000 Brix: 0-100% |
Measuring accuracy | Refractive index (nD): ±0.0002 Brix:±0.1% | Refractive index (nD): ±0.0002 Brix:±0.1% |
Resolution | Refractive index (nD):±0.00001 Brix:+0.01% | Refractive index (nD):±0.0001 Brix:+0.1% |
Measuring methods | 8 types | / |
Temp. display range(Min. 0.1°C) | -20-120℃ | 0-50℃ |
Data storage | 500sets | / |
Display | color touch screen | LCD |
Interface | RS232,USB | RS232 |
Power supply | 220V±22V，50Hz±1Hz，30w | |
Overall dimensions | 370mmx240mmx470mm | |
Weight(Gross) | 10KG | |
