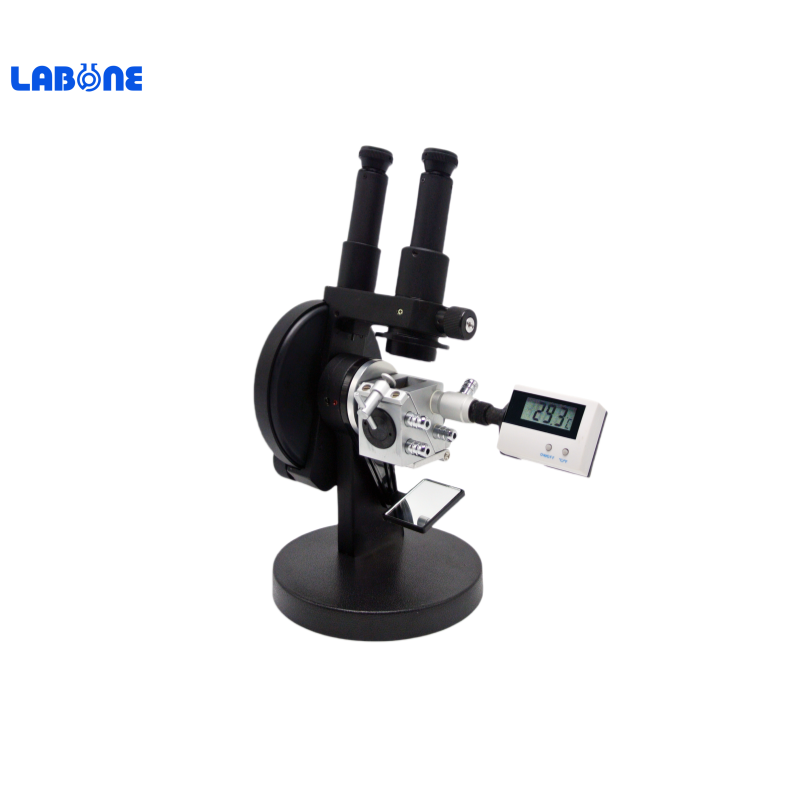

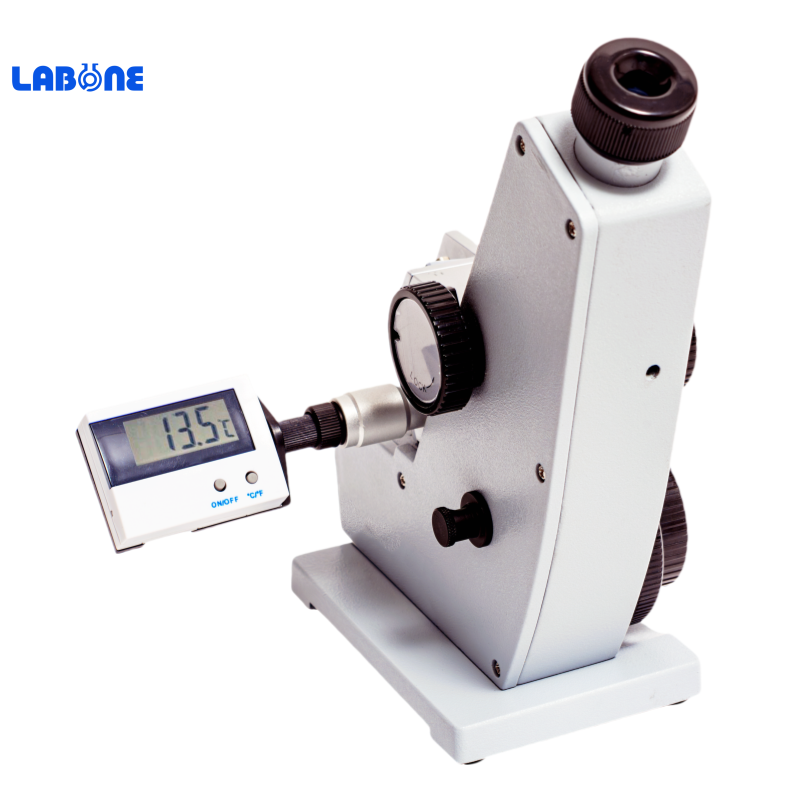

WYA-2W/WYA(2WAJ)ABBE Refractometer

Measurement of refractive index nD, average dispersion nF-nc of transparent or translucent liquid and solid substances, and mass fraction (Brix) of cane sugar solution.Widely used in the field of sugar, pharmaceutical, beverage, petroleum, food, chemica

Send request

Ask for price

Characteristics

Measurement of refractive index nD, average dispersion nF-nc of transparent or translucent liquid and solid substances, and mass fraction (Brix) of cane sugar solution.

Widely used in the field of sugar, pharmaceutical, beverage, petroleum, food, chemical industries as well as research institutes and educational department.

Prism is made of hard glass, abrasion resistance.

Visual aim, optical index-plate reading.

Easy and reliable.

Specifications

Parameters/Model	WYA(2WAJ)	WYA-2W
Measuring range	Refractive index (nD):1.3000-1.7000 Brix:0-95%
Accuracy（nD）	+0.0002(Estimate Reading)	+0.0003(Estimate Reading)
Average dispersion indication	±0.0005
Temperature display	Digital thermometer
Observation mode	Monocular	Binocular
Overall dimensions	270mmx180mmx370mm	240mmx200mmx390mm
Weight(Gross)	3KG	4KG
