BT100F-1 Intelligent Dispensing Peristaltic Pump

BT100F-1 Intelligent Dispensing Peristaltic Pump

BT100F-1 intelligent dispensing peristaltic pump provides flow range from 0.00011 to 1650 mL/min with variable pump heads and tubings. The color LCD touch screen provides intuitive and clear displaying interface. There are four operation modes available: volume dispensing mode for high accuracy dispensing; time dispensing mode for high productive efficiency; copy dispensing mode for separating fluid to number of equal parts; flow mode is the same as intelligent flow peristaltic pump. Large torque output to work with more pump head combinations. Intelligent temperature control technology reduces working noise. With standard MODBUS RS485 interface, the pump is easy to communicate with external device, such as PC, HMI or PLC. Stainless steel housing is easy to clean and corrosion resistant.

Flow: 0.00011～1650mL/min
Max: 24 Channels

Category: Dispensing Pumps

Tags: dispensing peristaltic pump, industrial hose pumps, industrial peristaltic pump, intelligent peristaltic pump, large flow peristaltic pump, LABONE Peristaltic Pump, peristaltic pump manufacturer

Functions and Features

• LF-Touch-OS software system. color LCD display, touch screen and button operation, more friendly human-computer interaction.
• Multiple working modes, each dispensing mode can store five groups of working parameters.
• Precision microstep control technology reduces the traditional time control. Dispensing mode due to factors such as slow start of the motor and other dispensing errors.
• Start/stop, reversible direction, full speed, adjust speed, state memory (power-down-memory).
• Large torque output, cascading multiple pump heads.
• Display and control flow rate, accumulate dispensing volume automatically.
• Wizard flow calibrating function.
• The operating expert system guides users setting parameters correctly.
• Intelligent temperature-control technology reduces working noise
• External control controls the start/stop, reversible direction and dispensing function, optically coupled isolator,external analog adjusts the rotate speed.
• RS485 communication interface, MODBUS protocol is available, easy to connect other equipments.
• Internal double-deck isolation structure, circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• 304 stainless steel shell, easy to clean, corrosion resistant.
• Can drive multi-channels and various types of pump heads.
• Connect foot switch control start-stop for dispensing fluid.

Specifications

Flow range: 0.00011～1650mL/min

Speed range: 0.1～150rpm

Speed resolution: 0.1rpm

Speed accuracy: ＜±0.2%

Dispensing volume: 0.001μl～9999l (It is recommended to have a minimum fill of 50μl.)

Dispensing time: 1～999，“0”Infinite cycle

Dispensing interval time: 0.1～999.9 S/Min/H, time unit adjustable

Power supply: AC100～240V, 50Hz/60Hz

Power consumption: ＜60W

External control: External control input level 5V, 12V (standard), 24V (optional), External control analog 0-5V(standard), 0-10V, 4-20mA (optional)

Communication interface: RS485communication interface, Modbus protocol is available

Working environment: Temperature 0 ～ 40℃, relative humidity＜80%

IP grade: IP31

Dimension（L×W×H）: 288×150×237mm

Weight: 5.2kg

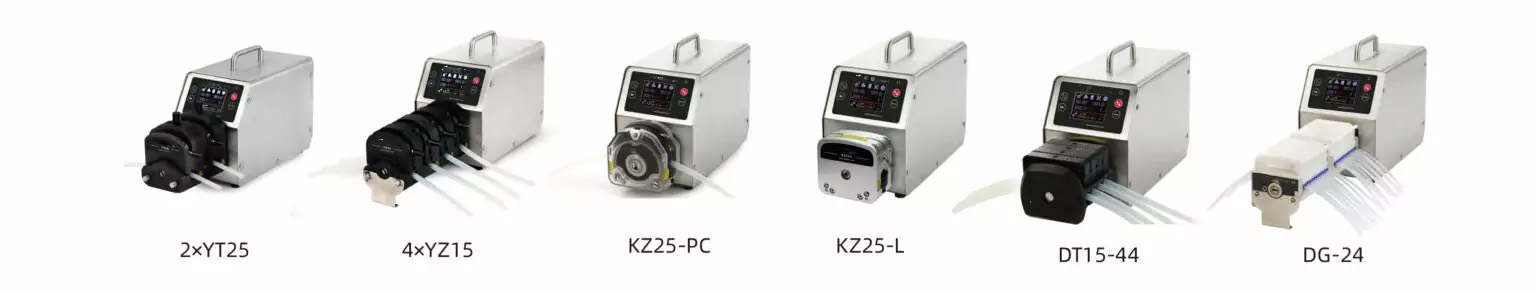

BT100F-1 Suitable Pump Heads and Tubing, Flow Parameters

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.

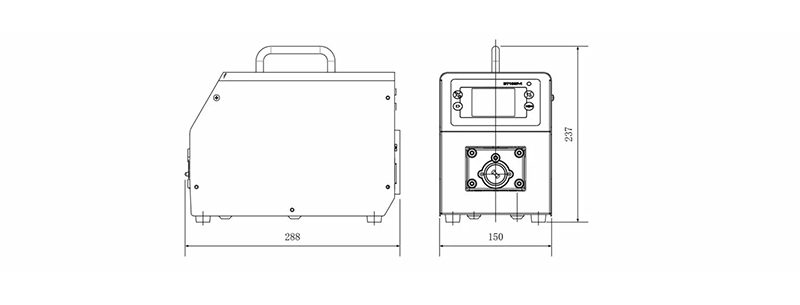

Dimension（mm）

Statement：The final explanation right of above information belongs to LABONE.
