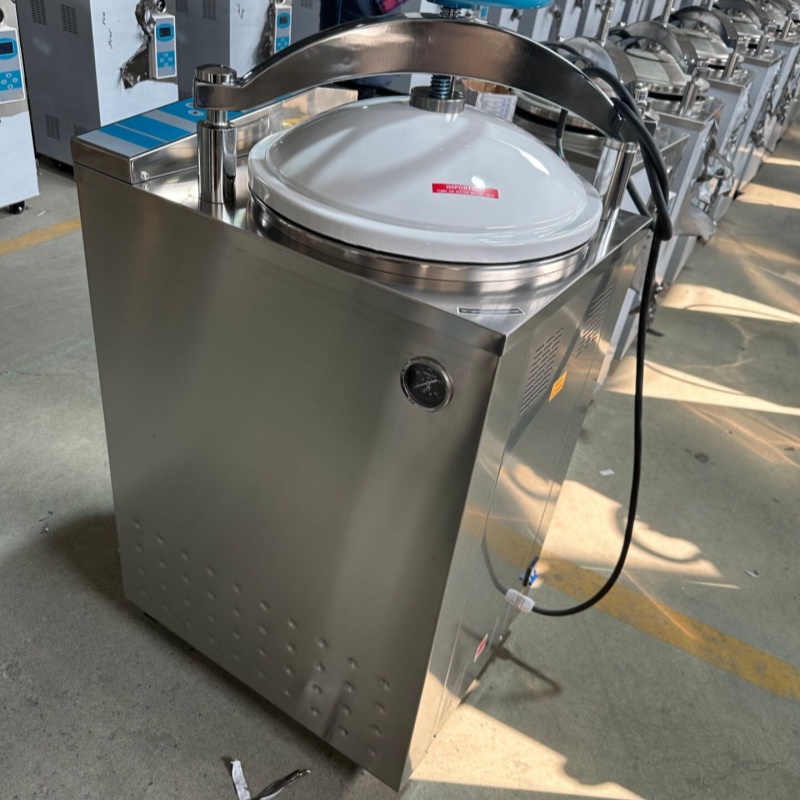

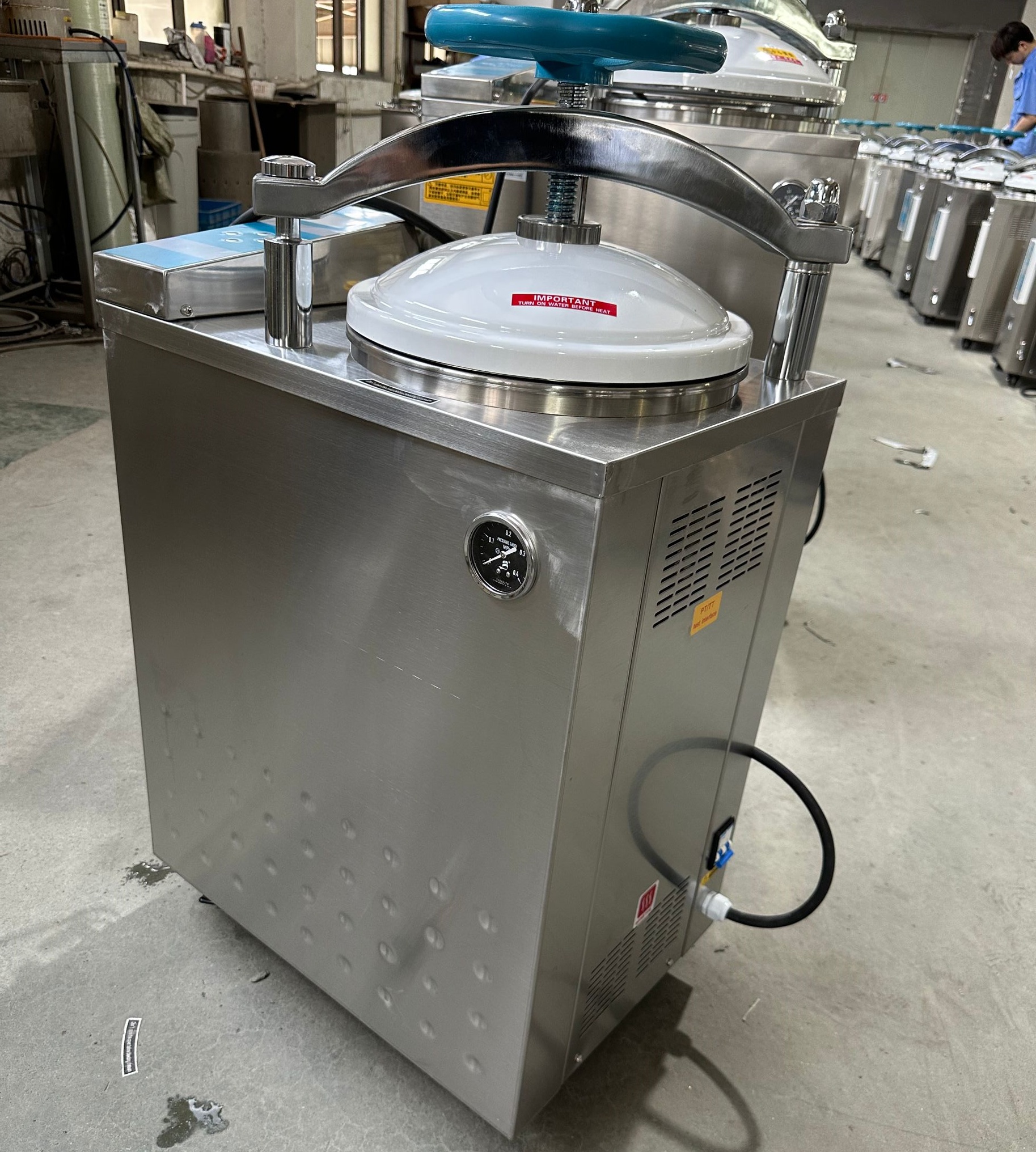

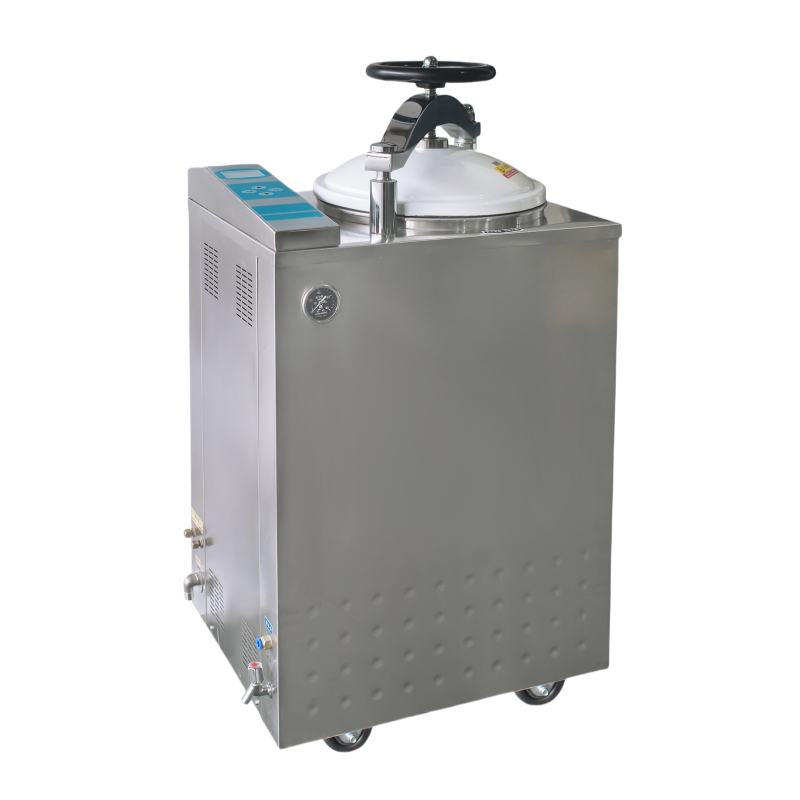

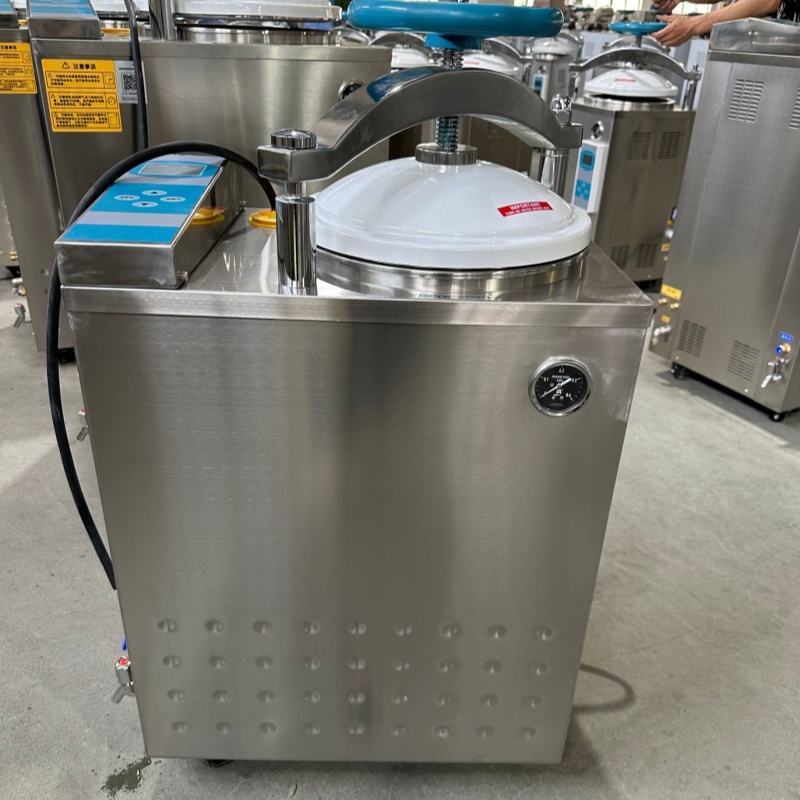

LS-35/50/75/100HG Hgelectric-heated vertical steam sterilizer

The internal steam/water circulation system is equipped with an exhaustcooling system, which avoids the generation of aerosols, and does not dischargesteam to the outside. Therefore, the working environment is clean and dry.

Send request

Ask for price

LS-35/50/75/100HG Hgelectric-heated vertical steam sterilizer
(Fully automatic microcomputer)

Characteristics:

◆Fully stainless steel structure.

◆Hand wheel type of quick-open door structure.

◆Door safety lock system.

◆Automatically controlled by computer.

◆LCD display of working status, touch type key.

◆Over temperature & over pressure auto-protection.

◆The internal steam/water circulation system is equipped with an exhaust

cooling system, which avoids the generation of aerosols, and does not dischargesteam to the outside. Therefore, the working environment is clean and dry.

◆Self-inflating type seal.

◆Safe protection of water lacking.

◆Automatically shut off with beep reminding after sterilization.

◆With two stainless steel sterilizing baskets.

◆A high-efficiency filter is added to the exhaust toensure the safety of the environment and operators.

◆Optional drying system.

Technical Data:

Technical Data MODEL MODE	LS-35HG	LS-50HG	LS-75HG	LS-100HG
Chamber volume	35L (φ318×450)mm	50L (φ340×550)mm	75L (φ400×600)mm	100L (φ440×650)mm
working pressure	0.22MPa
Working temperature	134℃
Max working pressure	0.23 Mpa
Heat average	≤±1℃
Timer range	0～99min or 0～99hour59 min
Temperature adjust range	0～134℃
Power	1×2.5KW/AC220V.50Hz	1×1.5KW /AC220V.50Hz	3×1.5KW /AC220V.50Hz
Overall dimension(mm)	470×450×1020	710×465×1150	750×510×1250	750×510×1250
Transport dimension(mm)	710×490×1130	740×550×1280	780×600×1380	780×600×1380
G.W/N.W	104Kg/ 85Kg	122Kg/ 99Kg	146Kg/120Kg	148/122Kg
