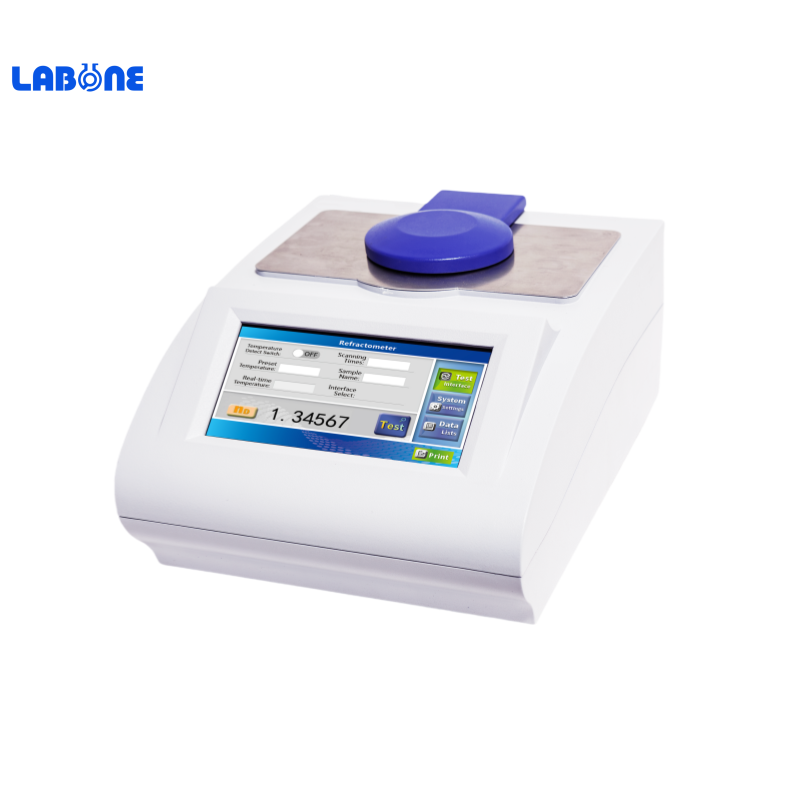

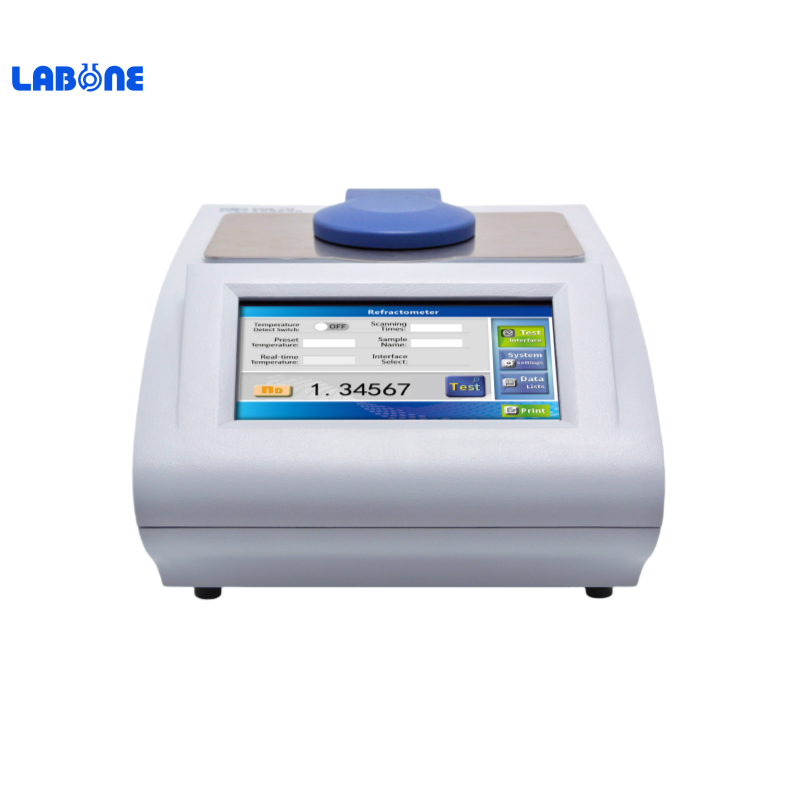

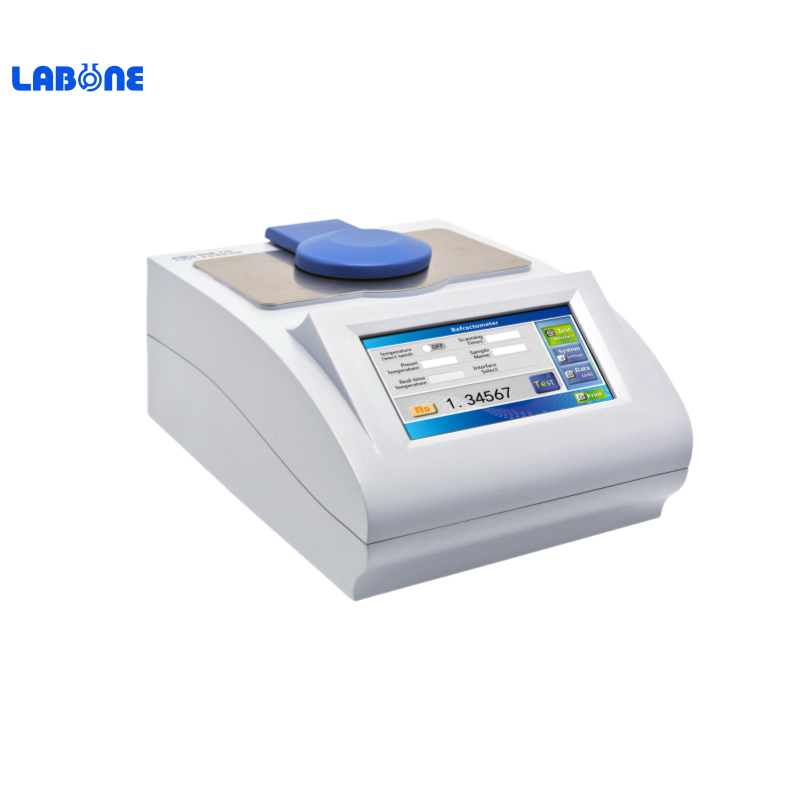

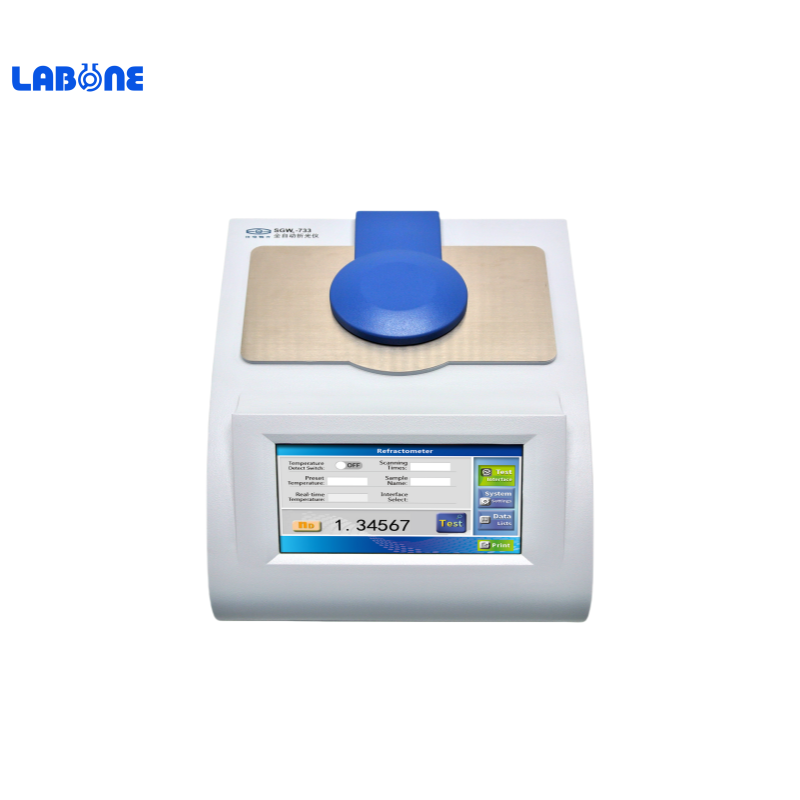

SGW-756/SGW -753Automatic Digital Refractometer
High resolution CCD detection system.Fast measuring speed, good repeatability, and wide temperature control range.Measuring the corrosion resistance, scratch resistance, easy cleaning, and durability of prism.Minimum sample amount is approximately 0
Characteristics
High resolution CCD detection system.
Fast measuring speed, good repeatability, and wide temperature control range.
Measuring the corrosion resistance, scratch resistance, easy cleaning, and durability of prism.
Minimum sample amount is approximately 0.5ml, and the sample can be recycled.
LED light source that lasts over 100000 hours.
Multiple measuring methods: Fragrance refractive index, Vegetable oil refractive index, F42 fructose corn syrup, F55 fructose corn syrup concentration, Glucose concentration, Sucrose concentration, Solid content (juice vegetables, canned products, soft drinks), Honey water content, nD20 and user-defined formula.
It meets graded management, provides scientific and user-friendly operation.
Specifications
Parameters/Model | SGW-756 | SGW -753 |
Measuring range | Refractive index (nD):1.30000-1.70000 Brix :0-100% | |
Measuring accuracy | Refractive index (nD): ±0.0002 Brix:±0.1% | |
Resolution | Refractive index (nD):±0.00001 Brix:+0.01% | |
Audit trail | Optional | / |
Temp. control mode | Peltier ( Built-in ) | |
Temp. Display range | 0-100℃ | |
Temp. control range | 5-85℃ | |
Temp. control accuracy | ±0.02℃ | |

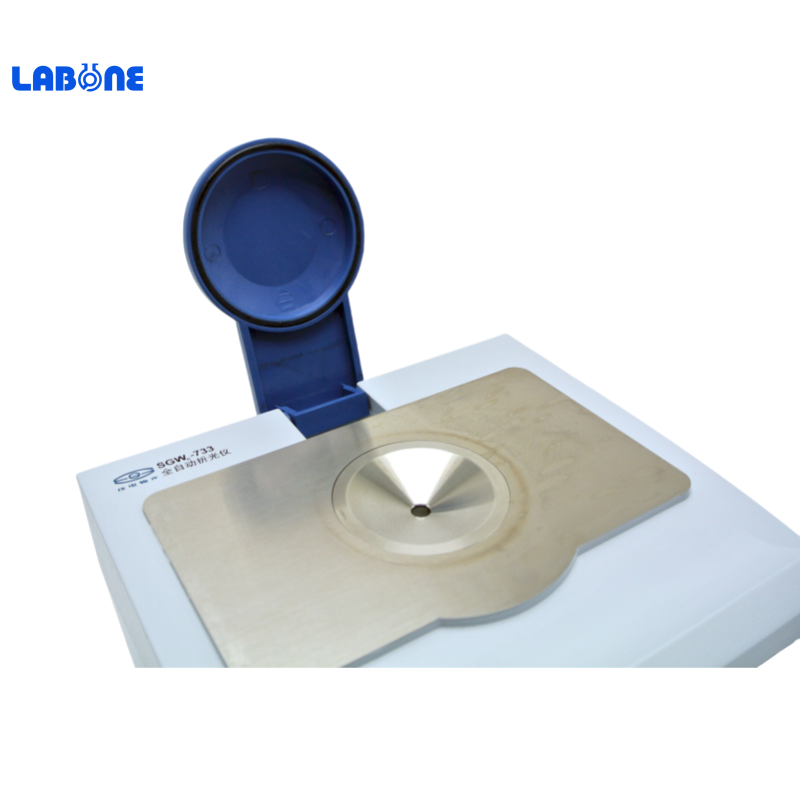

Prism | Artificial sapphire | |
Operating system | Windows | |
Data storage | 16G | 1000sets |
Display | 8 inch color touch screen | |

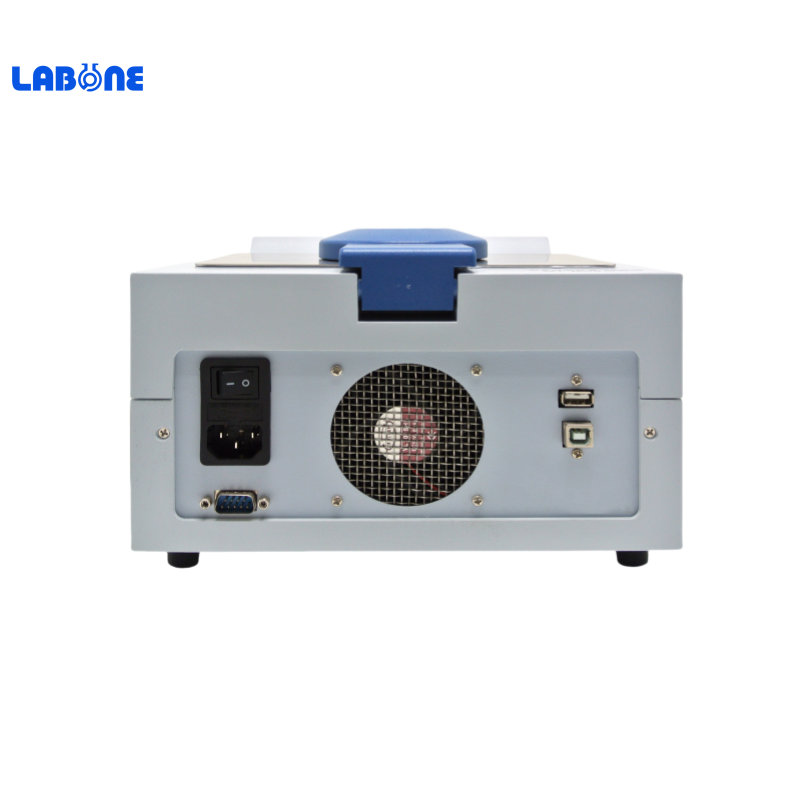

Interface | USB , Keyboard , Mouse , EthernetUniversal Printer , Optional: WLAN | USB , U Disk |
Power supply | 100V~240V 50/60Hz,150W | |
Overall dimensions | 570mmx460mmx300mm | |
Weight(Gross) | 5KG | |
