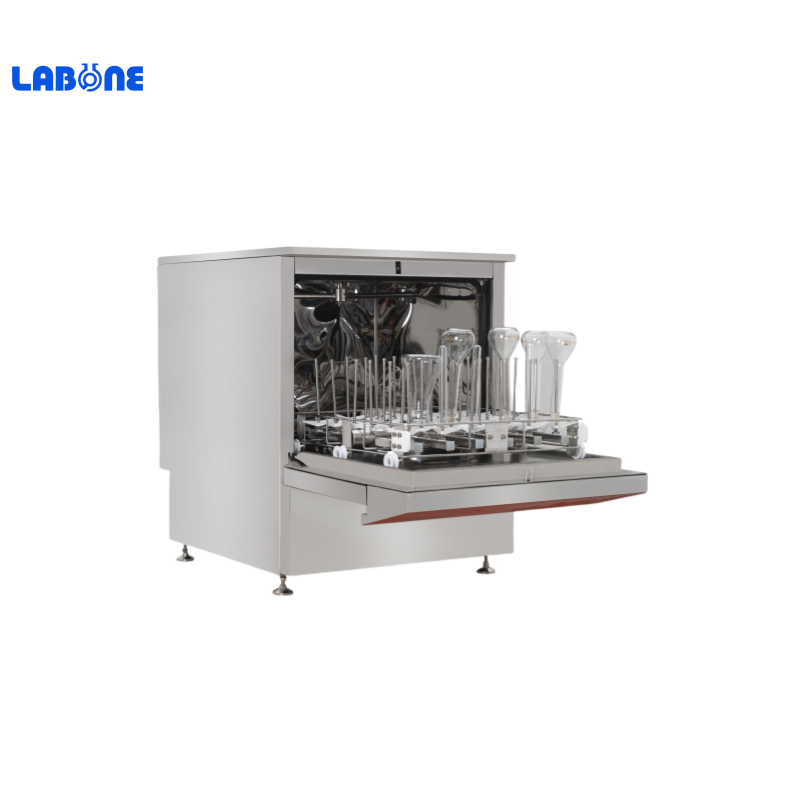

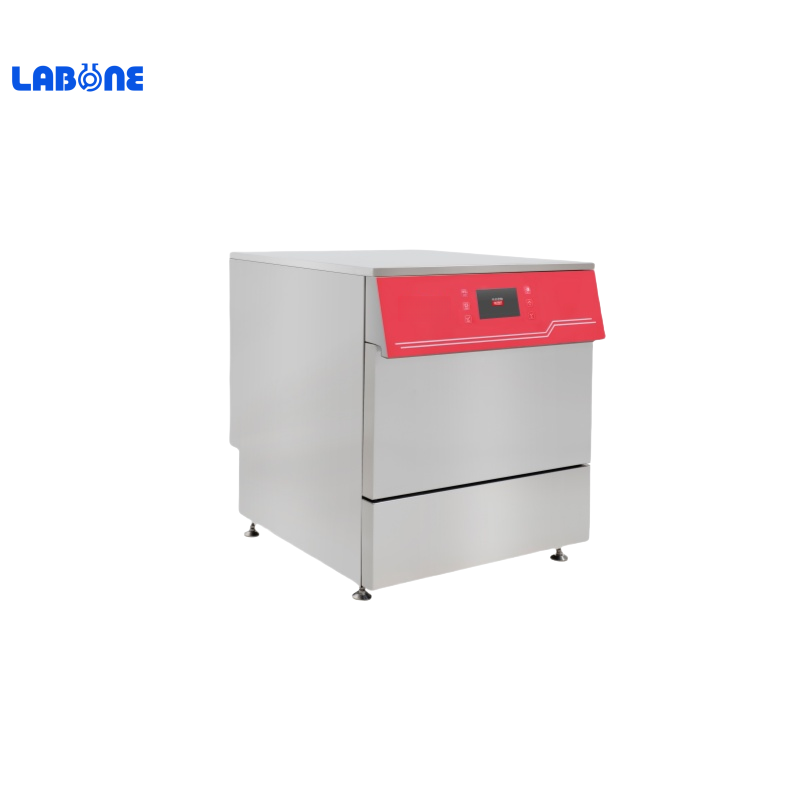

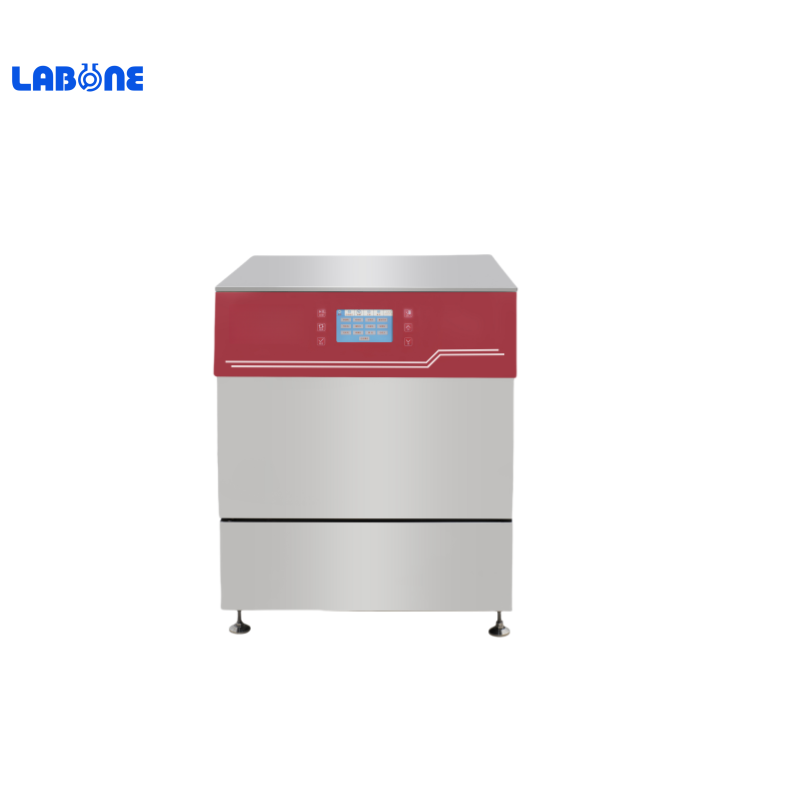

Cleaning washer CTLW-60
The compact and flexible Mini body can be placed on the experimental bench to improve the immediacy and convenience of cleaning; Professional cleaning design and material selection ensure the cleanliness and controllability of the cleaning results. This m
Main features:
1. Compact and flexible, it can be placed on or under the test bench, with low requirements for placement space, water inlet, and drainage matching.
2. Convenient and economical, with easy placement of utensils, convenient cleaning operation, less water and electricity used for cleaning, making it even more cost-effective.
3. Clean cleaning, European imported circulating water pump, professional design of circulating pipeline and cleaning basket frame to ensure clean cleaning.
4. Easy to clean, fully automatic, simple to operate, no need for manual labor, saving time, effort, and worry.
Function Introduction
1. Wide cleaning range, capable of cleaning various laboratory commonly used containers such as 1.5ml~100ml injection bottles, test tubes, centrifuge tubes, beakers, volumetric flasks, triangular flasks, etc;
2. Imported circulating water pumps from Europe, with large water flow, more powerful flushing, and more thorough washing;
3. Stainless steel outer surface, brushed treatment; Internal cavity made of 316L stainless steel and mirror inner liner; Specially designed for clean cleaning;
4. Professional design of cleaning structures and pipelines to safeguard high cleanliness cleaning;
5. The cleaning basket rack can be flexibly selected according to the cleaning items and is compatible with various commonly used laboratory utensils;
6. Fully automatic cleaning, easy to operate, one click start, fully automatic operation, no need for manual supervision;
7. Microcomputer control system, stable performance, reliable quality, high degree of automation;
8. Fully functional, including three modules: standard wash, enhanced wash, and quick wash, covering most routine cleaning scenarios;
9. Real time display of operational data, with freely adjustable cleaning water temperature, time, and cleaning solution measurement;
10. Compact size, low consumption of water, electricity, and cleaning agents, energy-saving and environmentally friendly.
Specifications:
Items | Model | Value |
Cleaning | Capacity (L) | 80 |
Washer Load Level | 1 | |
Water Wash Power (KW) | 0.25 | |
Water Heater Power KW) | 3 | |
MAX. Power (KW) | 3.5 | |
Water Consumption/Cycle (L) | 8 | |
Tank Internal Temperature (℃) | 0~99 | |
Water Supply Pressure (Mpa) | 0.3~1.0 | |
Peristaltic Pump for Cleaning Agent | 2 independent pumps control detergent agent and neutralizing agent | |
Cleaning Agent Level Sensor | YES | |
Washing Pump | Sweden 150L/min | |
Drying | Drying Function | NO |
Steam Condenser | NO | |
Dry Power (KW) | NO | |
Control System and Traceability | Control System | 4.3" color LCD touch screen display,microprocessor |
Cleaning Program | 3 pre-set programs (editable) | |
Password Protection | 3 levels password | |
Safety Emergency Button | NO | |
USB port | YES | |
Integrated printer | NO | |
Online Monitor Performance of Washing | NO | |
Dimensions & Weight | Chamber Dimension (W*D*H,mm) | 470*462*422 |
Exterior Dimension (W*D*H,mm) | 529*648*650 | |
Package Dimension (W*D*H,mm) | 650*780*850 | |
Net Weight (Host only, kg) | 65 | |
Gross Weight (Host with rack, kg) | 104 | |
Others | Door | Foam SS door |
Safety Door Lock | YES | |
Built-in RO Water | YES | |
Pump Noise (dBa) | <50 | |
Voltage (V/Hz) | 220V~240V/50~60Hz | |
Certificate | CE+ISO9001 |
Clean the basket rack:
Cleaning rack model | Cleaning rack name | Maximum number of layers that can be placed at a time |
CWIR36B
| 36 spray columns, single cleaning of 36 triangular bottles, volumetric flasks, etc | one |
CWIR52B | 52 spray columns, single cleaning of 52 small beakers, centrifuge tubes, etc | one |
CWIR126B | 126 spray columns, single cleaning of 126 test tubes, liquid phase bottles, etc | one |
CWIR6018B
| Hybrid cleaning basket holder, capable of cleaning 60 liquid phase bottles and 18 beakers and volumetric flasks
| one |
CWBR02B | Double layered integrated, 4 cleaning baskets, cleaning surgical instruments, knives, scissors, etc
| one |
CWBR04B | Single layer, equipped with 4 1/4 round cleaning baskets for cleaning test tubes
| one |
CWPDR9024B | Double layered integrated, one layer can clean 12 culture dishes, and two layers can clean 24 culture dishes | one |
