TXK4 Gel Card (ID Card) Centrifuge
OverviewTXK4 Blood Gel Card Lab Centrifuge for China machine to do Blood group serology, irregular-antibody-screening, blood-cross-matching test, immune-detection and other routine applications in hospitals and resarch laboratories.
TXK4 Gel Card (ID Card) Centrifuge
Overview
TXK4 Blood Gel Card Lab Centrifuge for China machine to do Blood group serology, irregular-antibody-screening, blood-cross-matching test, immune-detection and other routine applications in hospitals and resarch laboratories.
Application:
TXK4 blood group serological test multipurpose centrifuge is widely used in the test of blood group serology, blood type, microcolumn agglutination, immunodetection and etc.
Features:
1. Brushless motor to make sure free maintenance, no powder pollution, micro computer control and digital display the time, speed and RCF to let operation easily.
2. Special centrifugation technical to different reagent according to the requirement.
3. Regular centrifugation program, customers can press the button to choose the required one.
4. Electrical lid lock, over speed and imbalance protection.
TXK4 Technical Parameter：
Max. Speed | 4000rpm |
Max. RCF | 2120×g(24Cards), 1480×g(12Cards) |
Max. Capacity | 24 Cards/12Cards |
Time Range | 0~99min59sec |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 55 |
Temperature | Normal |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±20r/min |
Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
Size (W x D x Hmm) 12Cards | 485×320×250mm |
Net Weight(Kg) 12 Cards | 17KG |
Size (W x D x Hmm) 24 Cards | 500×360×250mm |
Net Weight(Kg) 24 Cards | 19KG |
Certificates | CE,ISO & Calibration report are available |

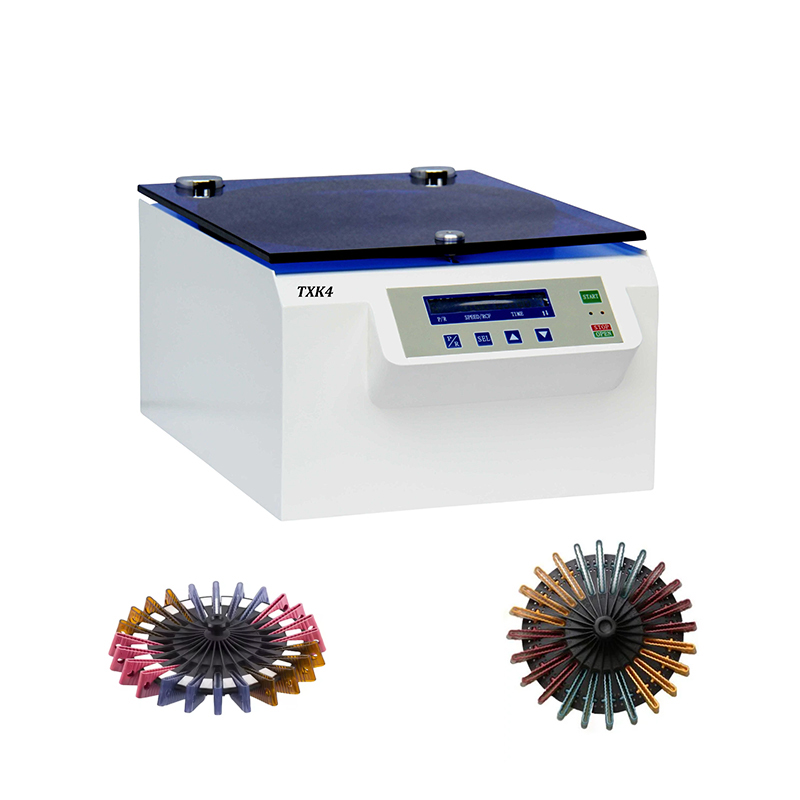

Matched Rotors for TXK4
Order No. | Rotor | Max Speed (rpm) | Max Volume (ml) | Max. RCF（×g） |
K4-1 | Swing Rotor | 4000 | 12 cards | 1480 |
K4-2 | Swing Rotor | 3000 | 24 cards | 1190 |
