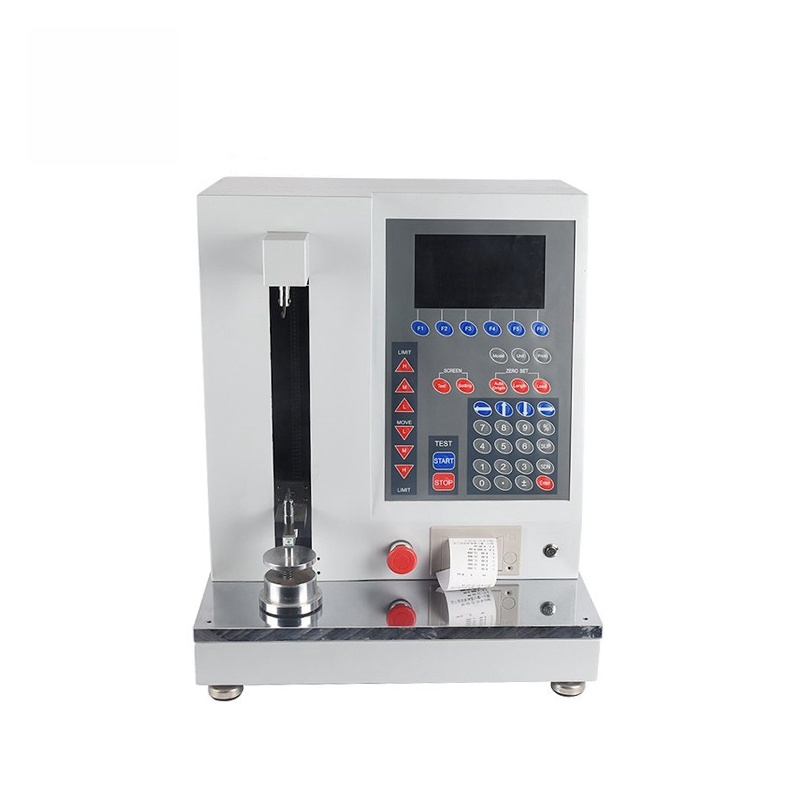

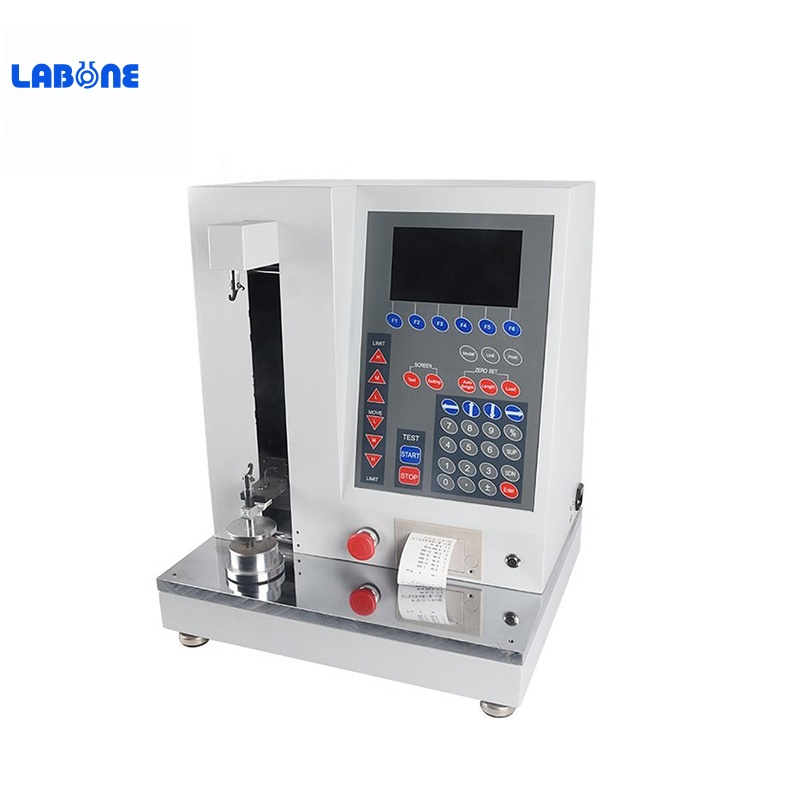

ATSM automatic spring testing machine

Overview

The automatic spring testing machine is a new type of spring testing machine that combines advanced electronic technology and high-efficiency precision mechanical transmission. This series of automatic spring tension and compression testing machine is based on the international JB/T7796-2005 "Technical Conditions for Spring Tension Testing Machine". Technical requirements are made. Configure high-precision sensors for precise loading and positioning. It is mainly used for testing the tensile force, compressive force, stiffness and fatigue of elastic components such as springs, rubbers and reeds under a certain working length. Widely used in spring manufacturing companies and users.

Product Features

1 It can measure the tension, pressure, stiffness, displacement and display date and number of the spring.

2 Three units display: N, Kg, Lb

3 Can specify 1, 2, 3, 4, 5 segments.

4 There are two modes of long-charge, charge-length

5 The sampling rate is adjustable, and various measurement methods can be selected.

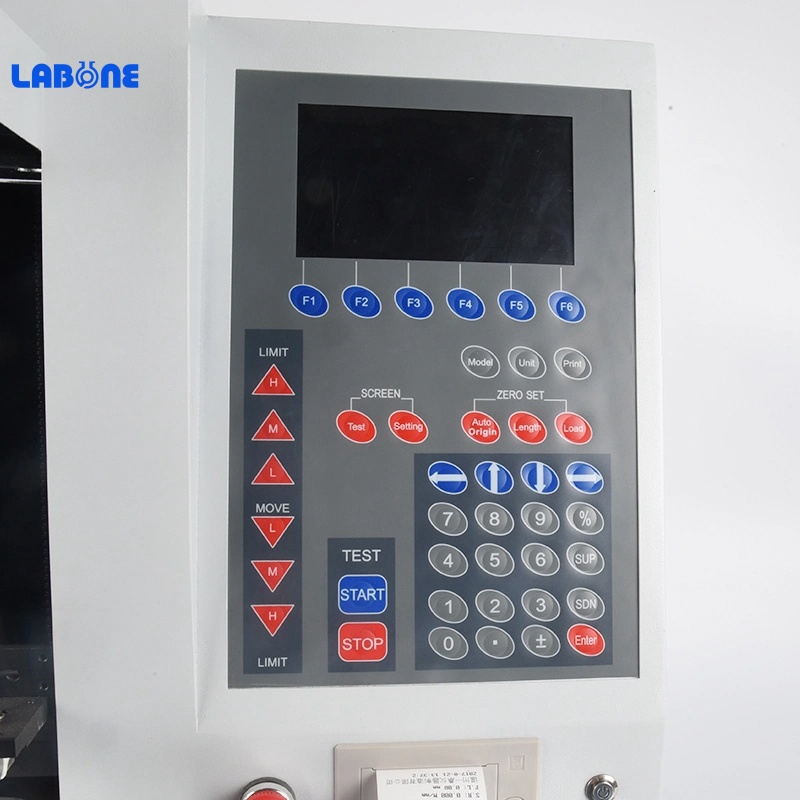

6 Using large-scale integrated circuits, the test accuracy is improved, and the human-machine Chinese dialogue is straightforward.

7 Special procedures for spring detection designed according to national standards, high efficiency, full function and convenient operation.

8 From the two aspects of the principle and program software, the precise measurement range of the range is improved.

9 It is suitable for batch inspection and sorting of springs on the production line, and it is also suitable for precision sampling of laboratories.

10 With programmable and mechanical two-stage limit protection, the pre-loading and deflection compensation correction ensures the accuracy of the measured value.

Specifications Table

model	ATSM-10	ATSM-20	ATSM-50	ATSM-100	ATSM-200	ATSM-500
Load capacity	10N	20N	50N	100N	200N	500N
Minimum division value	0.0001N	0.001N	0.001N	0.001N.	0.01N	0.01N
Unit selection	N, Kg, g, lb
Precision	±0.5%
Length (displacement) accuracy	0.01mm
Maximum stroke	200mm
Speed range	1-500mm/min

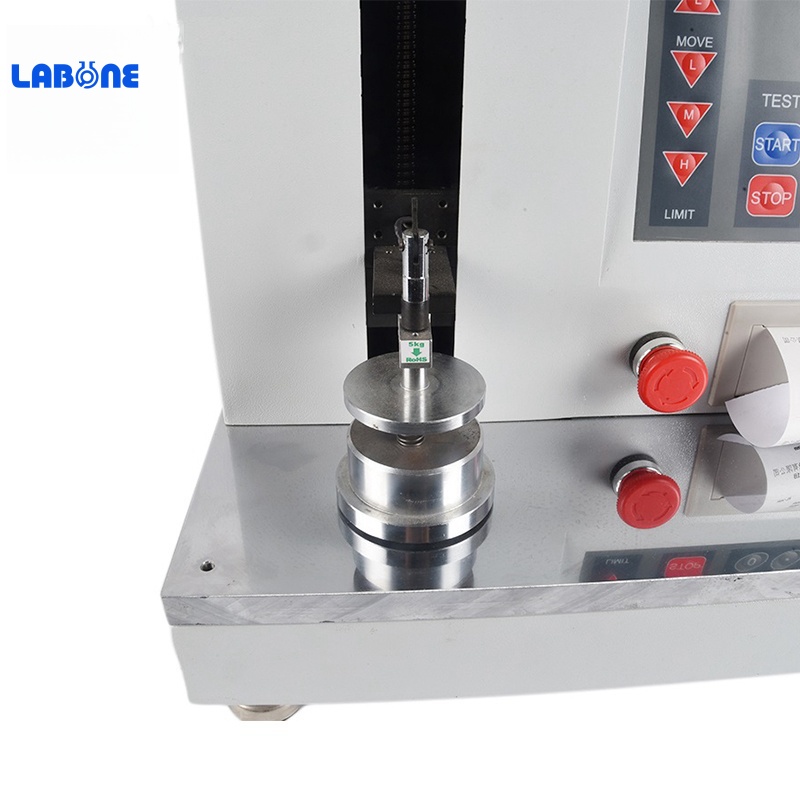

Standard platen diameter	Φ20mm		Φ60mm
Manual button to move at once	1mm, 0.1mm, 0.01mm
Test selection	Compression, stretching
Spring test selection	1. Set the length to measure the load 2. Set the load to measure the length 3. Set the deformation amount to measure the load 4. Set the load to measure the deformation
Dimensions	450mm380mm550mm
weight	About 60kg
power supply	220V 0.5A
Machine characteristics	1, can automatically test free length 2. Automatic compensation of load sensor and tension spring test hook deformation 3. Load sensor overload protection function and emergency stop function 4, can be connected to the micro printer

Random attachments

1	Machine	1 set
2	power cable	1
3	Instruction manual	1 serving
4	Certificate	1 serving
5	Warranty Card	1 serving
6	Standard hook	1
