Ultrapure water system---PRO-E-DI-UP-45
Ultrapure water system---PRO-E-DI-UP-45Product featureØ Full-automatic microcomputer control display monitors power supp

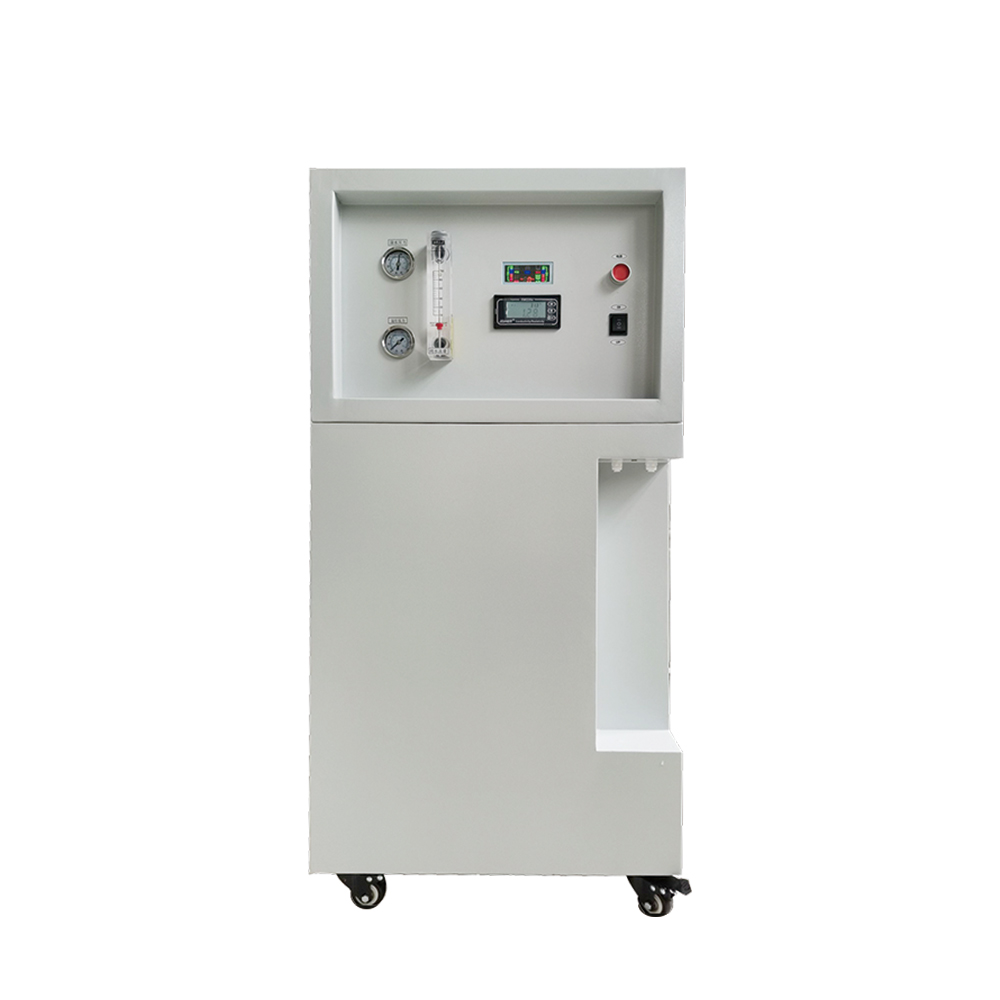

Ultrapure water system---PRO-E-DI-UP-45
Product feature
Ø Full-automatic microcomputer control display monitors power supply, water shortage, water production, water full, flush, and strong flush control in real time.
Ø Fully automatic RO membrane anti-fouling washing program and regular washing program to prolong the service life of RO membrane.
Ø Real-time online water flow monitoring, water pressure monitoring, water production monitoring, and water pressure monitoring.
Ø On-line resistivity monitoring of water quality, on-line detection of multiple working states, and real-time operation data.
Ø The main components are imported brands to ensure excellent water quality and a variety of different configurations to meet your experimental needs.

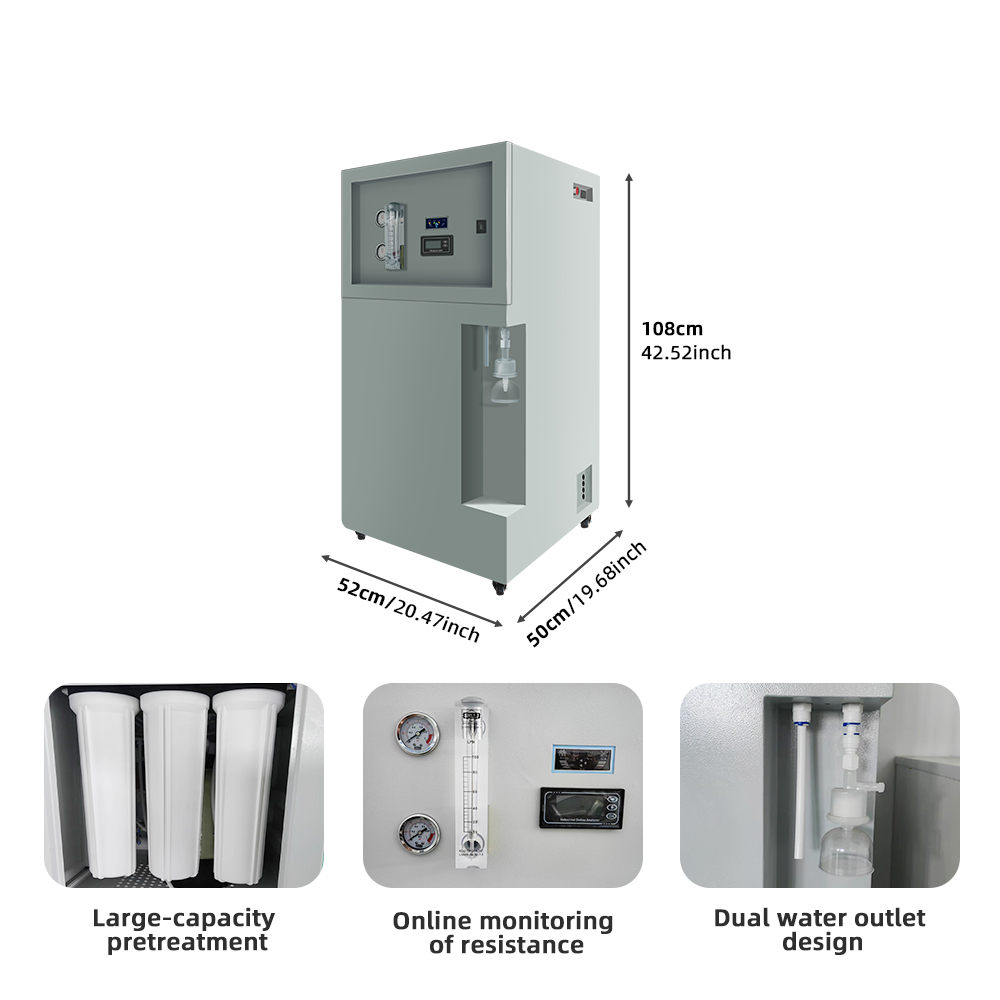

Ø Floor-standing design, with movable and fixed feet at the bottom, making installation and movement more convenient.
Ø The front of the machine is equipped with an independent water intake end, which is convenient and quick.
Ø Double electric water intake: RO water, ultra-pure water, two kinds of water outlets.
Ø Multiple safety protection, exquisite chassis and beautiful appearance.
Ø Free portable TDS water quality testing pen.
Ø Configure ultra-large capacity purification tank.

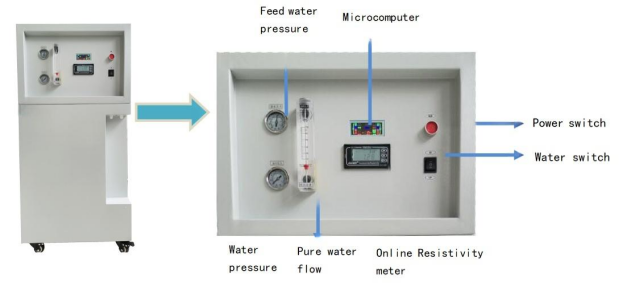

Control panel description
Parameter
Water rate | 45 liter per hour |
Production speed | 1.5-2 L/min（with pressure barrel） |
The water requirements | Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃,TDS<200ppm |
RO water Parameter | |
Ion rejection rate | 97%-99% (when using a new RO membrane) |
Organic matter rejection rate | >99% when MW>200 Dalton |
Particle and bacterial rejection | > 99% |
Application | Clean glassware |
DI water Parameter(ASTM TYPE II grade water) | |
Resistivity (25℃) | 10-16 M Ω. cm @ 25 ℃ |
Conductivity | <0.1 μS/cm |
Application | Preposition unit of ultra pure water system, supply water for biochemical analyzer, electroplating painting, battery charging, chips washing, microbial culture media, chemical&biochemical regent preparation, buffer making, photographic film processing, stability test chamber, meteorological test equipment, hydrogen generator, salt spray test chamber. |
Electrical requirements | 110-240V/50-60Hz, 48-72W |
The system configuration | Host machine (including 1 set of purification column)+40 L pressure water storage tank +TDS pen + accessory bag |
UP water Parameter(ASTM TYPE I grade water) | |
Resistivity (25℃) | 18.25 M Ω. csm @ 25 ℃ |
Heavy metal ion | < 0.01 ppb |
Total organic carbon (TOC) * | <10 ppb |
bacteria | < 1 cfu/ml (with terminal filter) |
Particulate matter (> 0.1 microns) | <1/ml |
Application | All kinds of physical and chemical testing, biochemical analysis, blood examination, microanalysis, flushing special, HPLC, IC, GC, analysis experiment |
Electrical requirements | 110-240V/50-60Hz, 48-72W |
The system configuration | Host machine (including 1 set of purification column)+40 L pressure water storage tank +TDS pen + accessory bag |

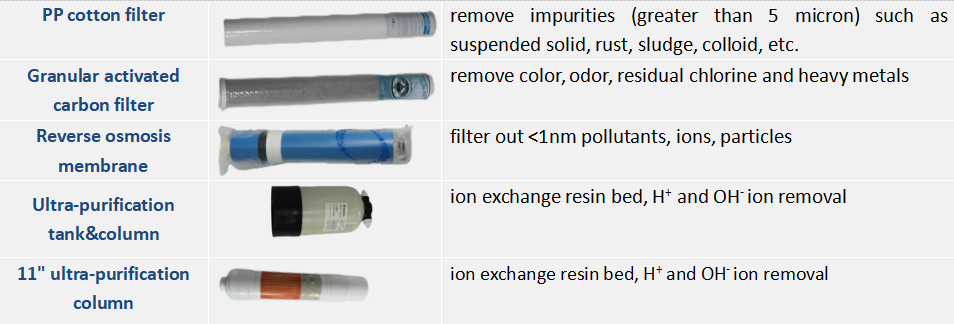

Filter function

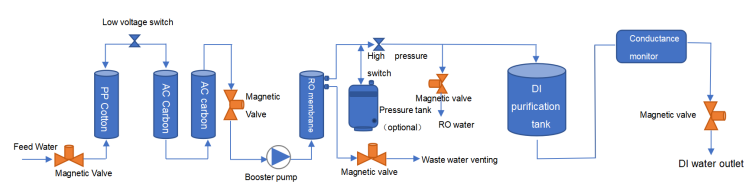

Process

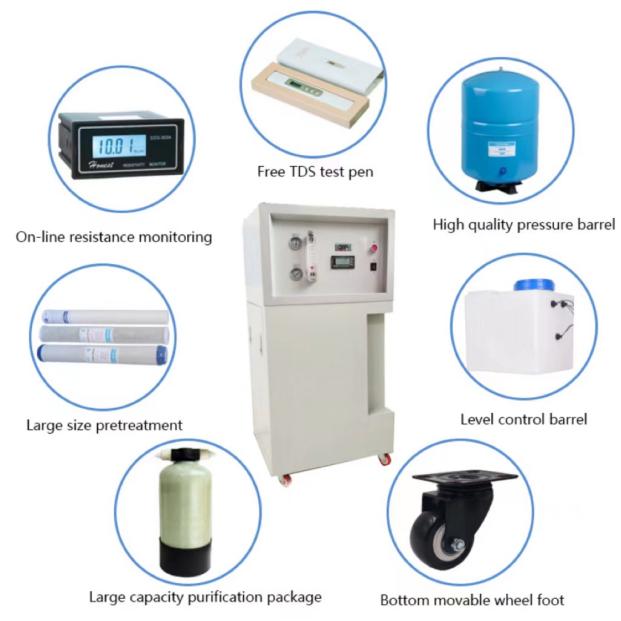

Accessories
Product consumables list
No | Filter element | Replace cycle | Quantity | Remark |
1 | 20’’ 5 μm PP cotton | About 4-6 month | 1 pc | |
2 | 20’’ Refined activated carbon | About 4-6 month | 2 pcs | |
3 | 400 GPD RO membrane | About 1-2 years | 1 pc | |
4 | 12L deionization purification tank | About 25 tons | 1 pc | |
5 | 11" ultra-purification column | About 25 tons | 2 pcs |
Note: The filter replacement cycle in the table is estimated based on previous customer experience. It is only a suggestion. The specific period is determined by the water quality.
