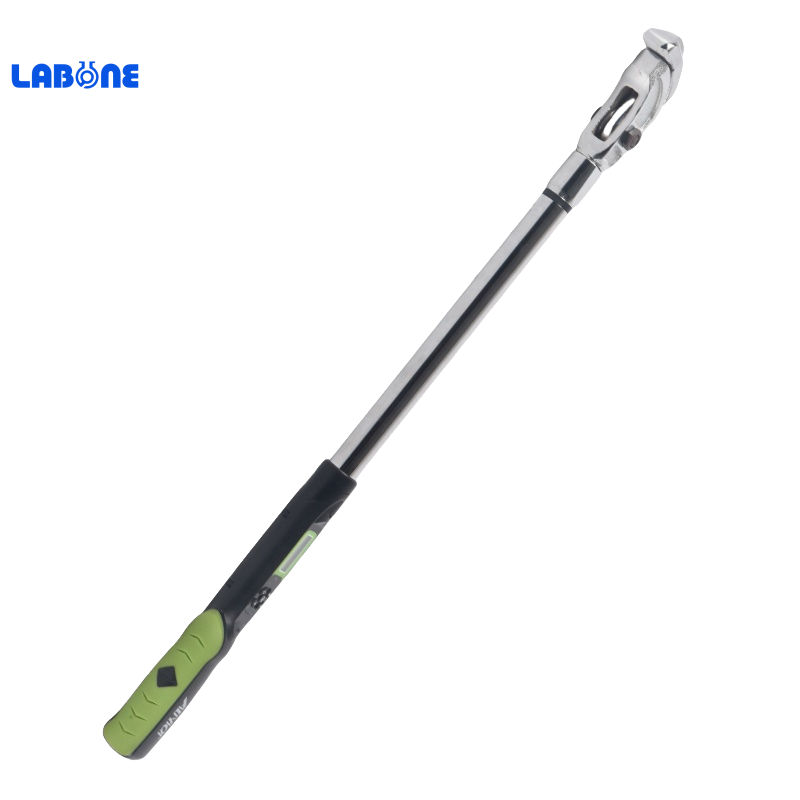

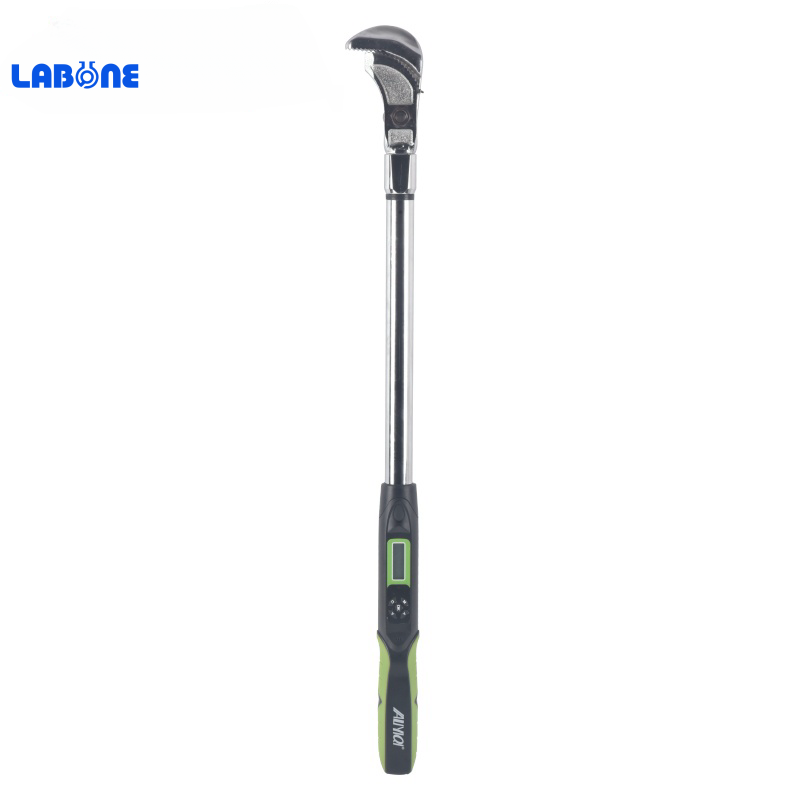

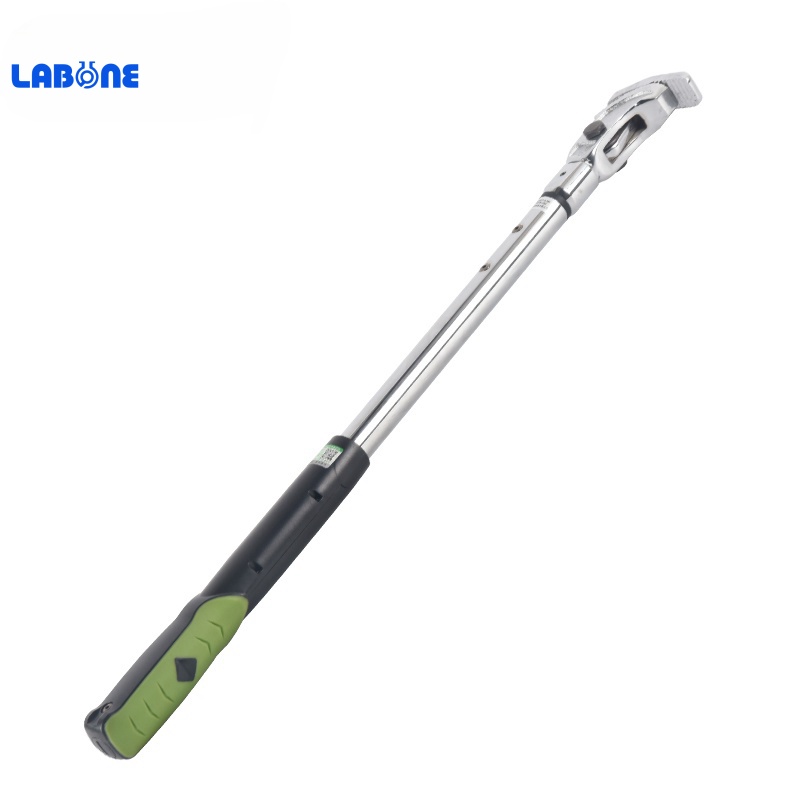

AWG2-S Rebar head digital display torque wrench
Main purpose and scope of application
Reinforced head digital torque wrench is different from general torque wrench. It has powerful operation functions, including torque setting; unit setting; mode setting; value storage; value clearing; value output and user correction function. Easy to operate, by installing digital displayScreen downRequirements for the operator. It is suitable for the fastening and control of reinforced bolts in construction industry, aerospace, repair industry, inspection structure, etc.
Features

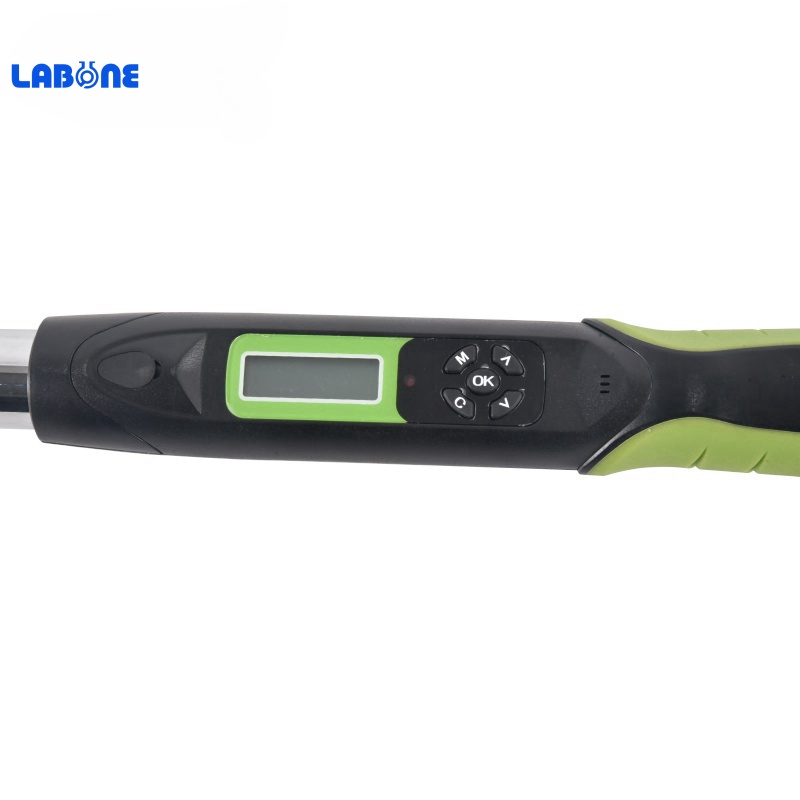

1.Digital display torque reading
2.Clockwise ±3%, Counterclockwise ±3.5%Accuracy (of the MAX operating range20 ~ 100%）
3.Can operate clockwise and counterclockwise
4.Peak hold and real-time mode
5.Buzzer andLCDIndication (when the predetermined torque value is reached)
6.Four engineering units (ft.lb、in.lb、N.m、kgf.cm）
7.100Pen can store recorded values
8.Communication function
9.5Automatic shutdown in minutes
Product Technical Specifications
model | AWG2-S-340R | AWG2-S-410R |
MIN index value | 0.1 | |
MAX operating range （N.m） | 340N.m / 250ft.lb / 3009in.lb / 3467.03kgf.cm | 410N.m / 302.58ft.lb / 3628.5in.lb / 4180.85kgf.cm |
Connector(inches） | 1/29（14 * 18） | |
Buzzer setting range (N.m） | 17 ~ 340 | 20.5 ~ 410 |
length | 715 | |
Accuracy*1 | Clockwise: ±3% Counterclockwise: ±3.5% | |
Data storage capacity | 100 | |
Operating mode | Peak hold P）/Real-time mode (T） | |
unit | N.m、in.lb、ft.lb、kgf.cm | |

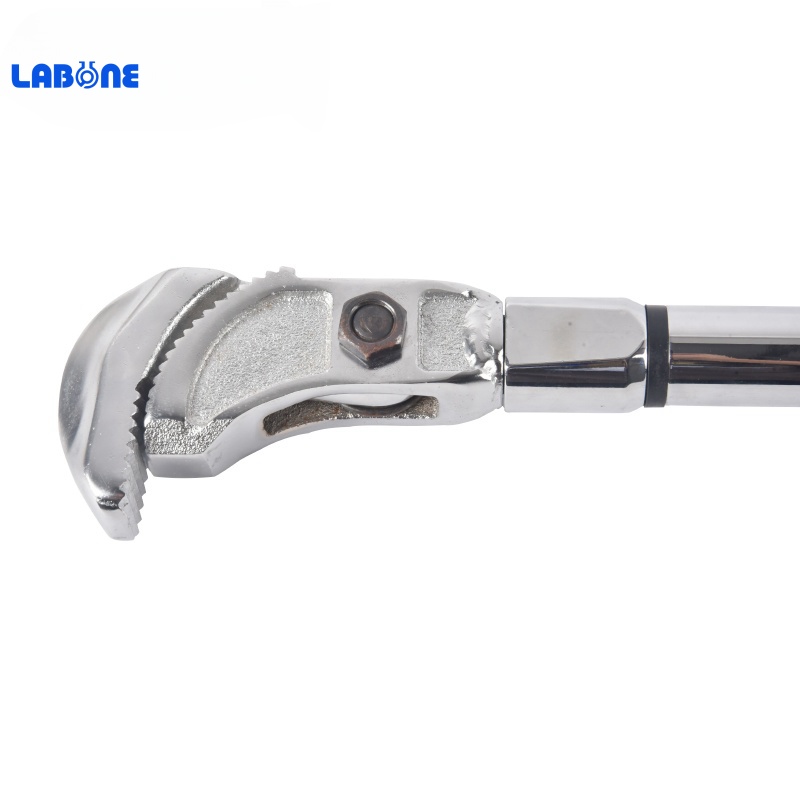

Ratchet Head form | Rebar head | |
Number of keys | 5 | |
battery | 2 sections 1.5V 5Size battery | |
Operating temperature | -10℃~ 60℃ | |
storage temperature | -20℃~ 70℃ | |
humidity | No condensation90% | |
Drop test height | 1m | |
Vibration test conditions*2 | 10G | |
life span test* 3 | 10000times | |
*: Please see the comments at the back of the table
note:
*1.The accuracy guarantee range is within the MAX operating value20%到100%. Torque accuracy is the normal value. The correction accuracy is based on the middle groove of the five grooves on the grip as the correction point. To ensure accuracy, it is recommended to calibrate once a year.
*2. Life test includes horizontal test and vertical test.
*3. \"Once \" means to remove the wrench from0N.mApply force to the MAX operation setting value of the wrench, and then return to0N.m。
