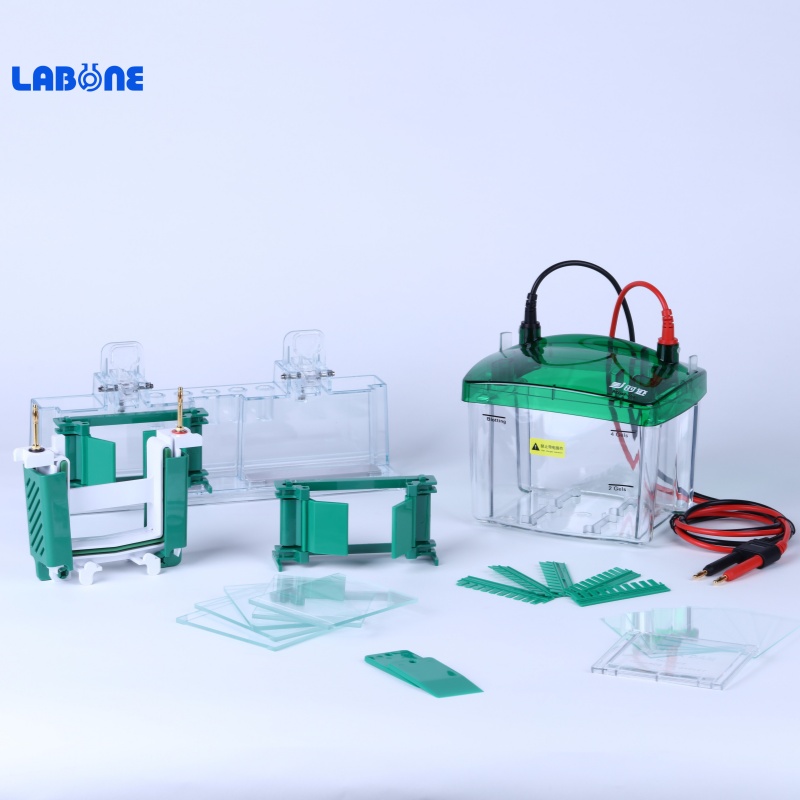

Mini-P2 Small Vertical Electrophoresis Tank
Product application: widely used in various protein gel electrophoresisProduct features:Electrophoretic Tank Body: Imported PC material injection molded, high transparency, able to clearly display the electrophoresis operation status;Electrode cor
Product application: widely used in various protein gel electrophoresis
Product features:
Electrophoretic Tank Body: Imported PC material injection molded, high transparency, able to clearly display the electrophoresis operation status;

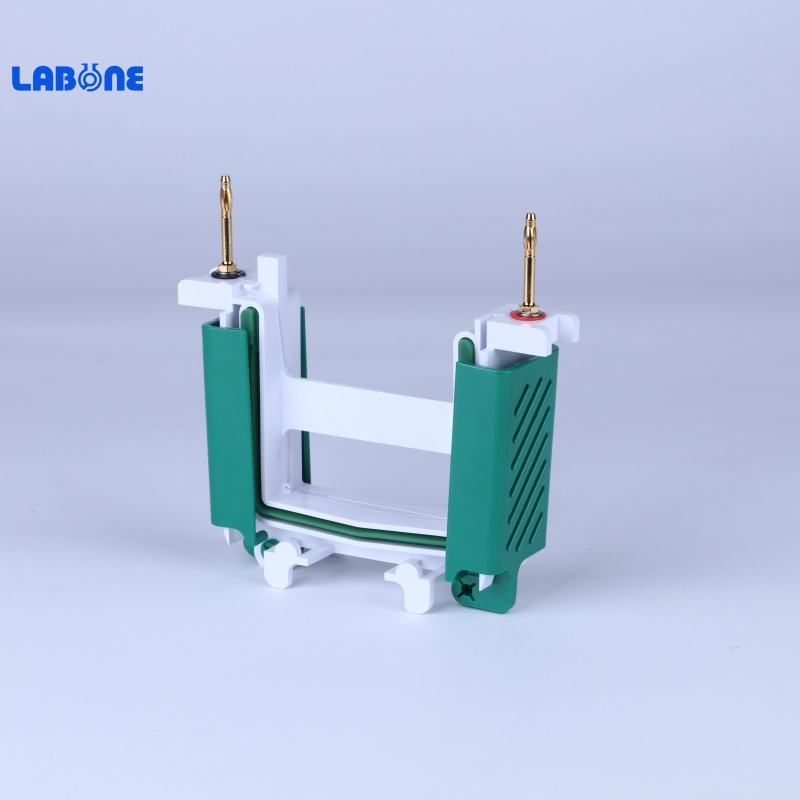

Electrode core: one electrode core can be used to run 1-2 gel at the same time;
Sample comb: it can effectively avoid the contact between gel and air, and the gel is uniform;
Glue stripping shovel: specially designed for separating gel after electrophoresis, not damaging glass plate and protecting gel.
Quantity of gel | 1-2 |
Gel size | hand glue 83 x 73 mm |
Gel type | suitable for hand glue and preformed glue |
Glue filling method | using a glue making bracket, no need for sealing |
Platinum electrode | Platinum wire with a diameter of 0.3mm and a purity of 99.95% |
Glass plate size | thick glass plate 101x82mm; Short glass board 101x73mm |
Sample comb | 10, 15 teeth, 1.0mm thickness; 10. 15 teeth, 1.5mm thickness (optional); 10. 15 teeth, 0.75mm thick (optional) |
Buffer volume | 2 pieces of glue: 700 ml; 4 pieces of glue: 1000 ml |
Operation time | standard SDS-PAGE gel 35-45 minutes (constant pressure 200V) |
Instrument weight | 1.5Kg |
Dimensions | 120 x 160 x 180 mm |
