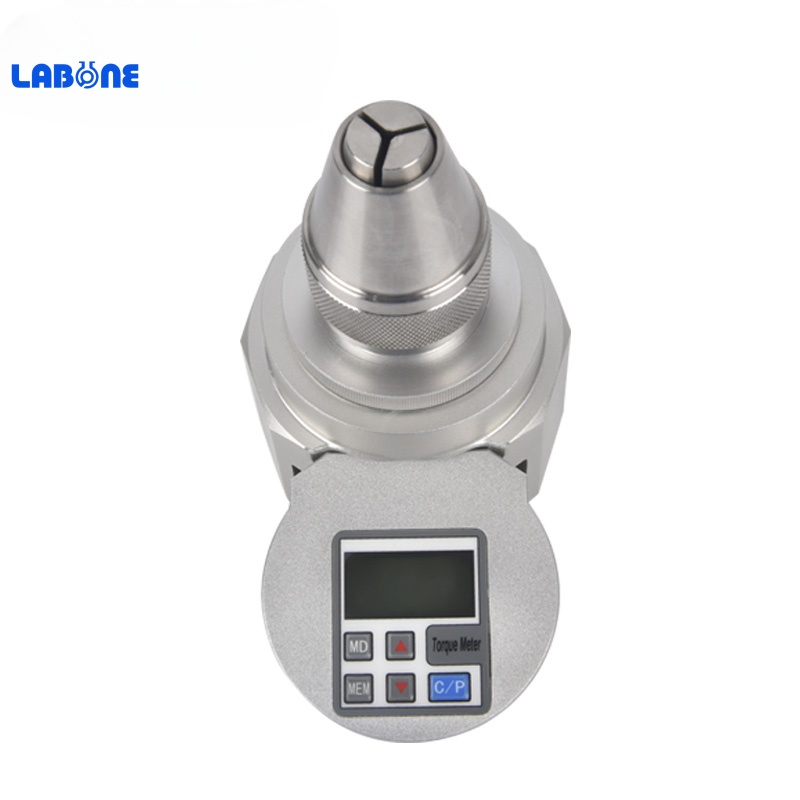

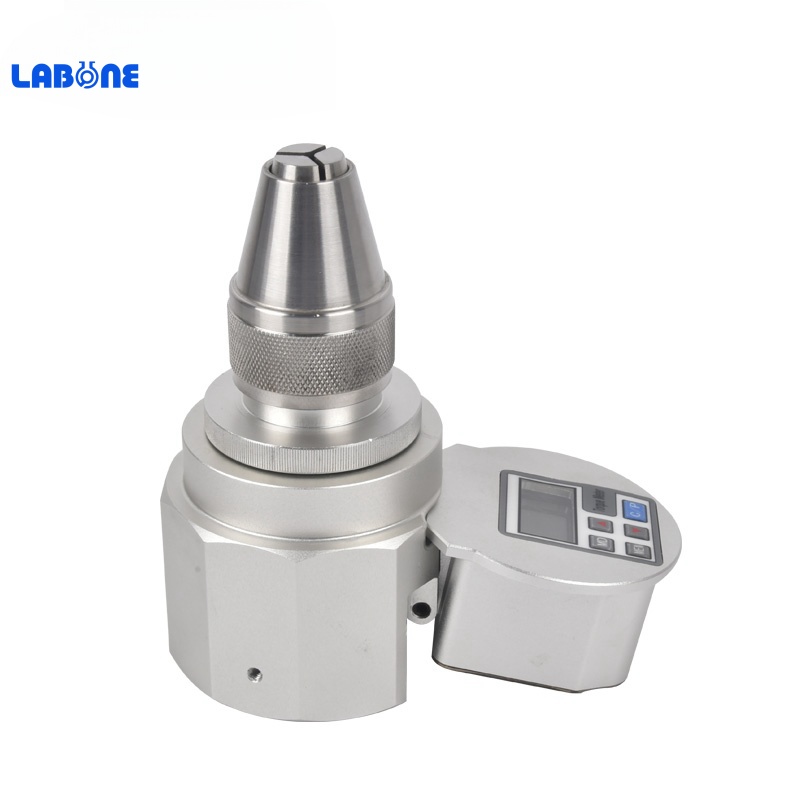

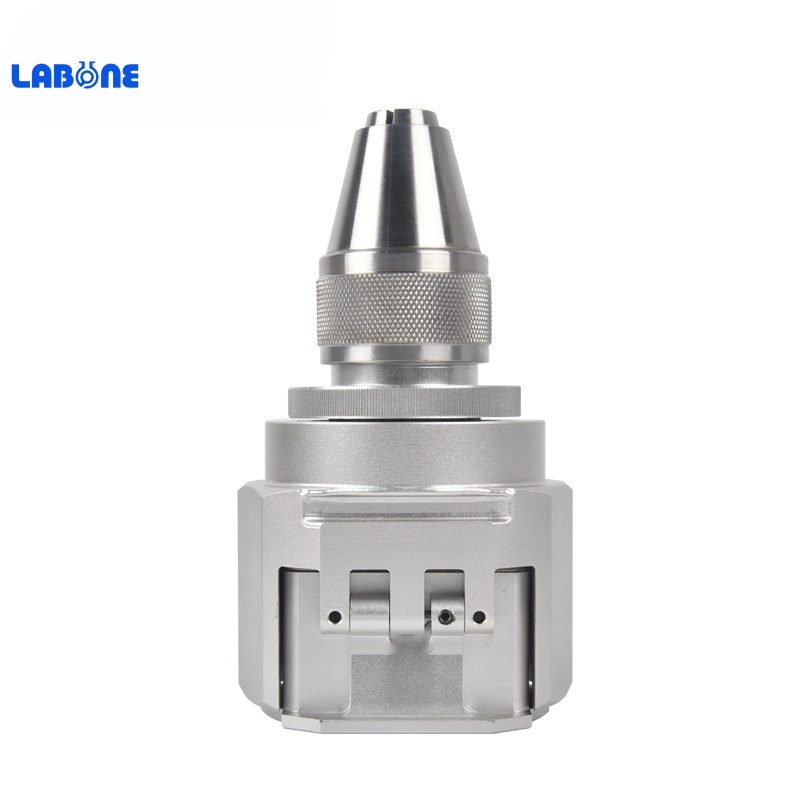

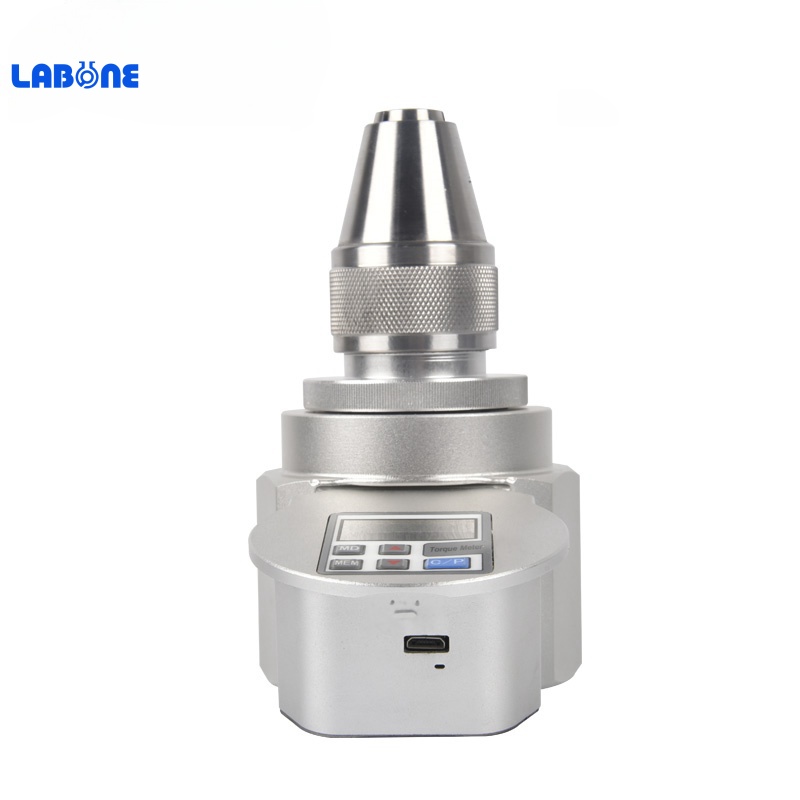

AQBH Digital Torque Meter

AQBH Digital Torque Meter

Overview

AQBH digital torque meter is used for measurement, observation and tightening in a small range. The direct digital reading is easy to adjust to the appropriate torque value. The three-jaw key less assembly is more suitable for clamping the tested product.In peak working mode, with automatic and manual storage100Group torque peak function,The time for automatically storing the torque peak value can be selected and set within the time range of (0.0 ~ 4) seconds；It can be directly connected to the computer through the USB data line for communication, and the stored data can be downloaded, viewed, analyzed, backed up, deleted, and printed out through the host computer software.

Features

Features include: mode settings、Numerical storage(automatic/Manual)、Data cleanup、data communication.

1.Torque reading

2.Accuracy:±2%

3.Can operate clockwise and counterclockwise

4.Real-time measurement mode (track), peak mode (peak), save peak calculation mode (pre)

5.Unit: N.m，lbf.ft，lbf.in，kgf.cm four engineering unitsAvailable for selection and conversion.

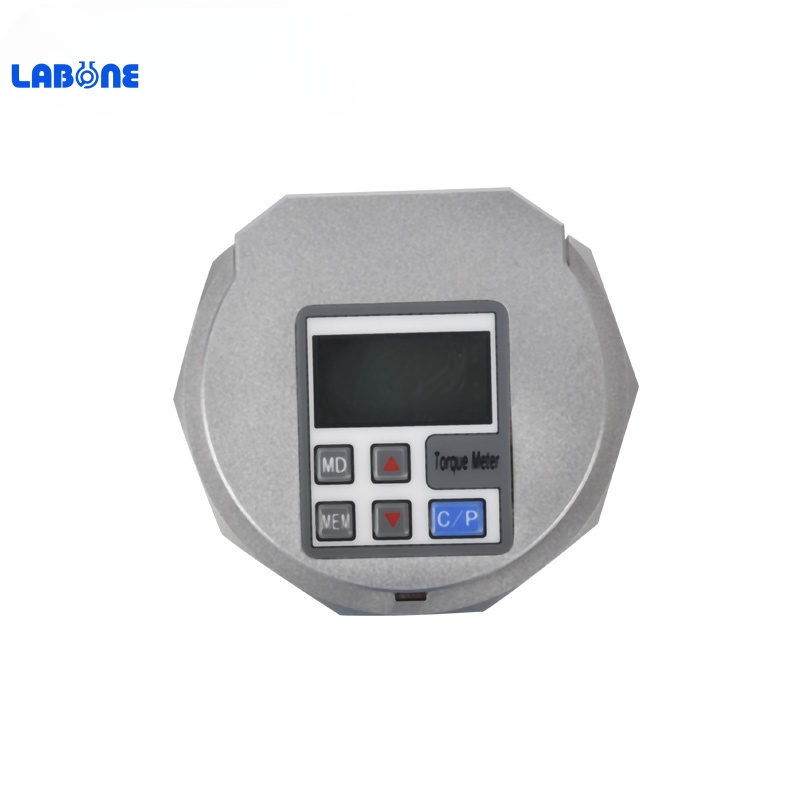

6.Data storage function, can store 100 test values, The 3 digital tubes in the upper left corner show the amount of data currently saved.

7.Communication function

8.You can set the automatic shutdown to the required automatic shutdown time. When the automatic shutdown is set to 0, the automatic shutdown will not be performed.

9.With charging function

Technical Parameters

1. Power supply: Lithium battery, equipped with charger, which can be charged through USB communication interface;

2. The battery has low power consumption and has the function of automatic detection of battery power;

3.Can operate clockwise and counterclockwise;

4.Can be stored in peak mode100Group torque value;

5. Operating environment: temperature (0 ~ 40) ℃, humidity ≤85%;

6. Storage environment: (-10 ~ 60) ℃.
