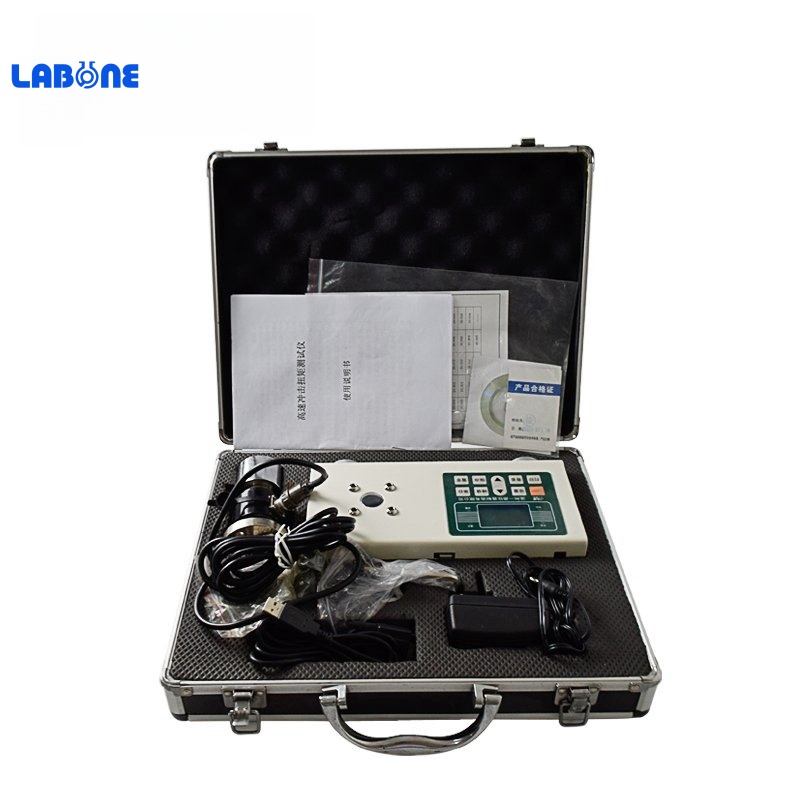

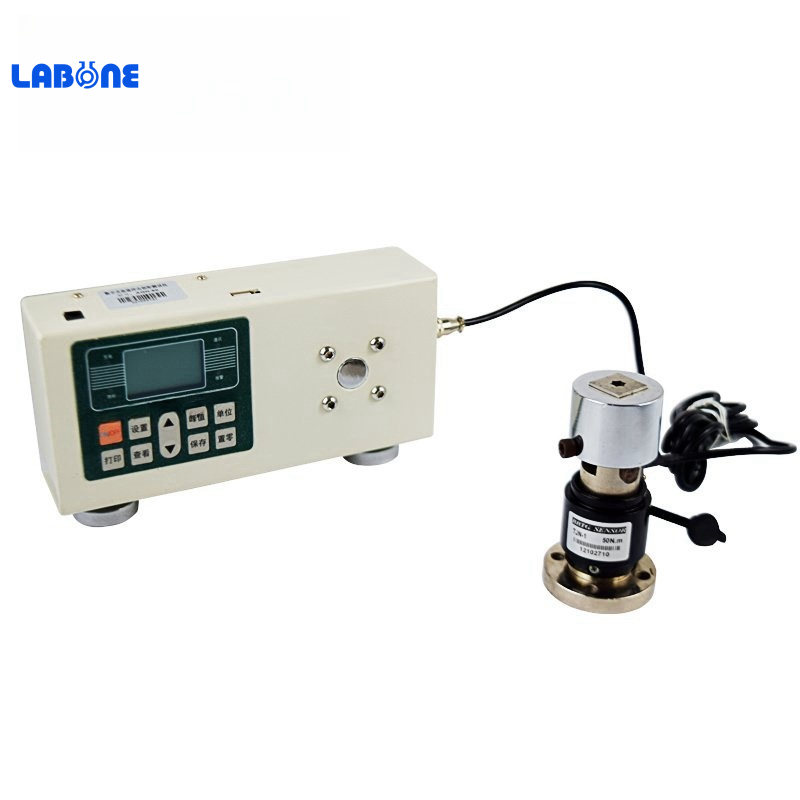

AGN (large) high-speed impact torque tester

AGN (large) high-speed impact torque tester

Function

High-speed impact torque tester is an intelligent multifunctional measuring instrument designed and manufactured for testing and detecting various torques. It is mainly used to detect and correct the torque of various electric pneumatic screwdrivers and torque wrenches. Various products involve the test of tightening force and the torsional destructive test of parts. It has the characteristics of simple operation, high precision, full function and convenient portability. It is widely used in various industries such as electrical, light industry, machinery manufacturing, scientific research institutions and so on.

Main features

1. High precision, high resolution, fast sampling speed, full screen display.

2. Adopt high-precision torque sensor with torque direction display.

3. The setting of upper and lower limits, red and green indicator lights and sound and light alarm of the buzzer.

4. The three units can be converted to each other for selection (N · m, kgf · cm, Ib · in).

5. The three modes of real-time, peak and auto-peak can be switched at will.

6. The USB interface is used to communicate with the PC, and the synchronous test function can be connected to the computer for testing. The test force curve and the detailed test force record during the test are displayed on the computer, and can be saved, printed, and analyzed.

7. Peak hold, automatic release function, free setting of release time.

8. Large storage capacity, can save 99 sets of test data.

9. Automatic shutdown function without operation, time can be set freely.

Specifications
