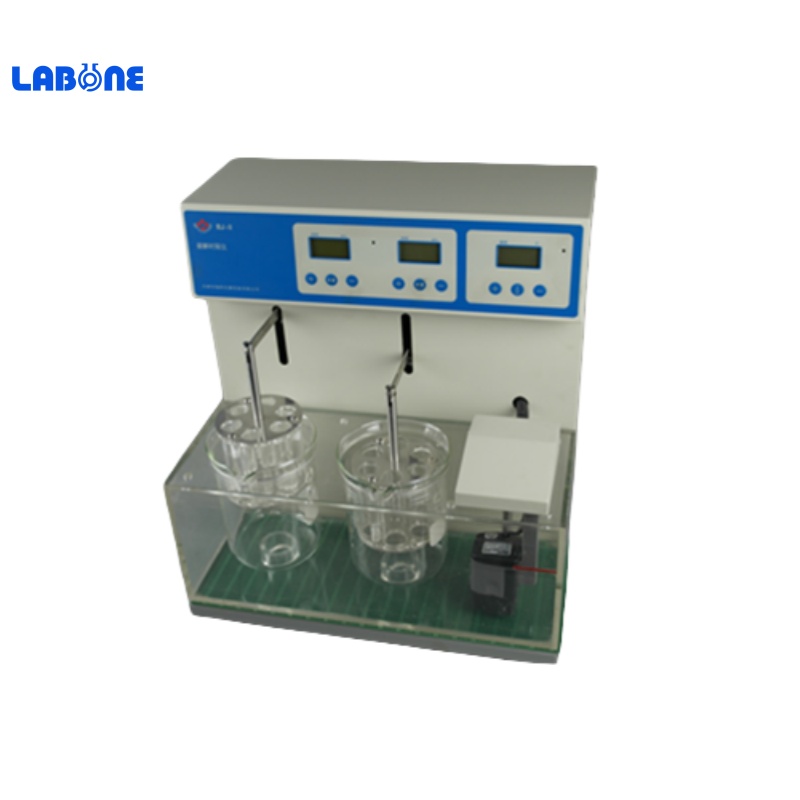

BJ-Ⅱ Disintegration Time Limit Tester
Disintegration time limit tester is a drug test instrument to test the disintegration time limit of tablets, capsules and pills in accordance with Chinese Pharmacopoeia.
BJ-Ⅱ Disintegration Time Limit Tester
Disintegration time limit tester is a drug test instrument to test the disintegration time limit of tablets, capsules and pills in accordance with Chinese Pharmacopoeia.
Technical indexes:
Temperature prefabrication range: room temperature | ～50℃, display resolution:0.1℃ |
Temperature control accuracy | ±0.3℃ |
Timing prefabrication range | 1min～900min |
Time control accuracy | ±0.5min |
Work noise | ＜60db |
Number of lifting baskets | 2 sets |
Lifting frequency of basket | (30～31) times/min |
Lifting distance of basket | (55±1) mm |
Minimum spacing from screen to beaker bottom | 25mm±2mm |
Mesh size | standard configuration 2mm, (optional for 0.425mm and 1mm bore diameters) |
Power supply | 220V50Hz |
Total power | 600W |
Overall dimensions | L*W*H 400mm*320mm*440mm |
Main features:
◎ Double-basket working position system measures disintegration time limit.
◎ 2 sets of baskets, which can conduct independent disintegration experiment respectively.
◎ Electronic temperature sensor can display and monitor various points in water bath case and the temperature in the beaker. High-precision digital electronic sensor is adopted to ensure the high precision and high accuracy of water bath temperature without the need for calibration.
◎ The instrument controls the bath temperature at 37.0℃ automatically (prescribed by Pharmacopeia). It can also reset the preset temperature again at any time.
◎ The instrument sets the lifting time of baskets to be 15min automatically, which can also be reset at any time.
◎ It adopts the computer control technology which is centered on SCM to control two performance parameters including bath temperature and working time intelligently.
◎ The instrument can monitor bath temperature, give over-temperature alarm and protect itself automatically.
