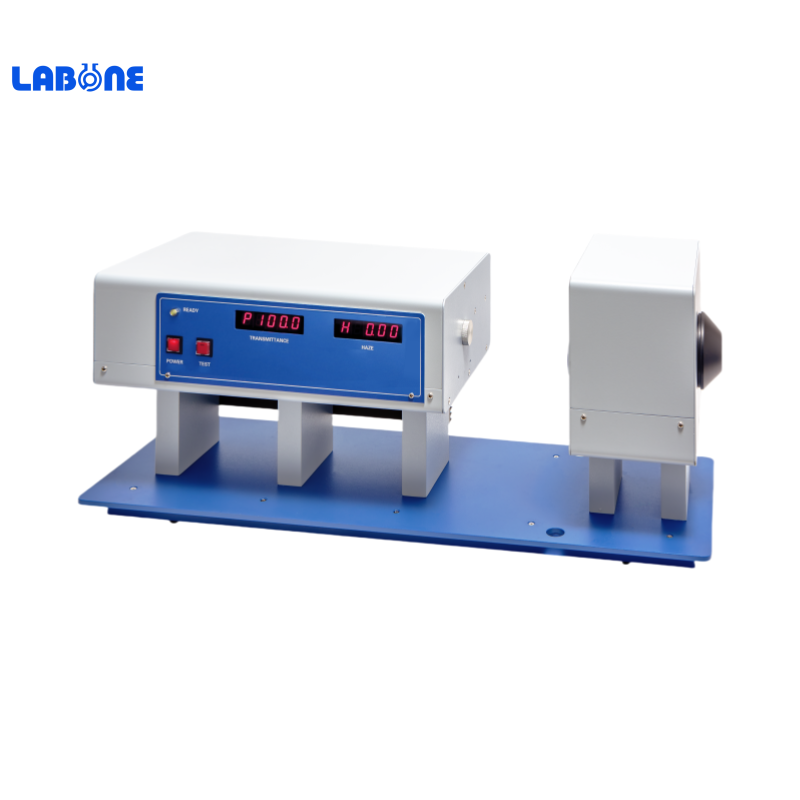

WGT-S Hazemeter
Measurement of transmittance and haze of the parallel plane sample of all transparent and translucent (plastic board or sheet).Suitable for turbidity of liquid sample measurement (water and beverage).In conformity with the standard of GB/T 2410-80, AS
Characteristics
Measurement of transmittance and haze of the parallel plane sample of all transparent and translucent (plastic board or sheet).
Suitable for turbidity of liquid sample measurement (water and beverage).
In conformity with the standard of GB/T 2410-80, ASTM D 1033-61(1977),JISK7105-81.
Microcomputer control and easy to operate.
Display of transmittance and haze at the same time.
Specifications
Parameters/Model | WGT-S |
Illuminant | C light（6774k） |
Light Source | Tungsten lamp |
Measurement range | Transmittance: 0-100 % Haze: 0-30% (absolute), 30.1-99% (relative) |
Minimum reading | 0.1%(transmittance); 0.01%(haze) |
Accuracy | Transmittance: ≤±1 %(Standard neutral density filter); ≤±2 %(Standard Haze slice) Haze: ≤±5 % |
Repeatability | Transmittance: ≤0.5% Haze: ≤0.2 |
Sample window size | 25mm(incident window) 21mm(exit window) |
Display | Nixie tube |
Interface | USB |
Power supply | 220V±22V，50Hz±1Hz，100w |
Overall dimensions | 910mm×410mm ×480mm |
Weight (Gross) | 23kg |
