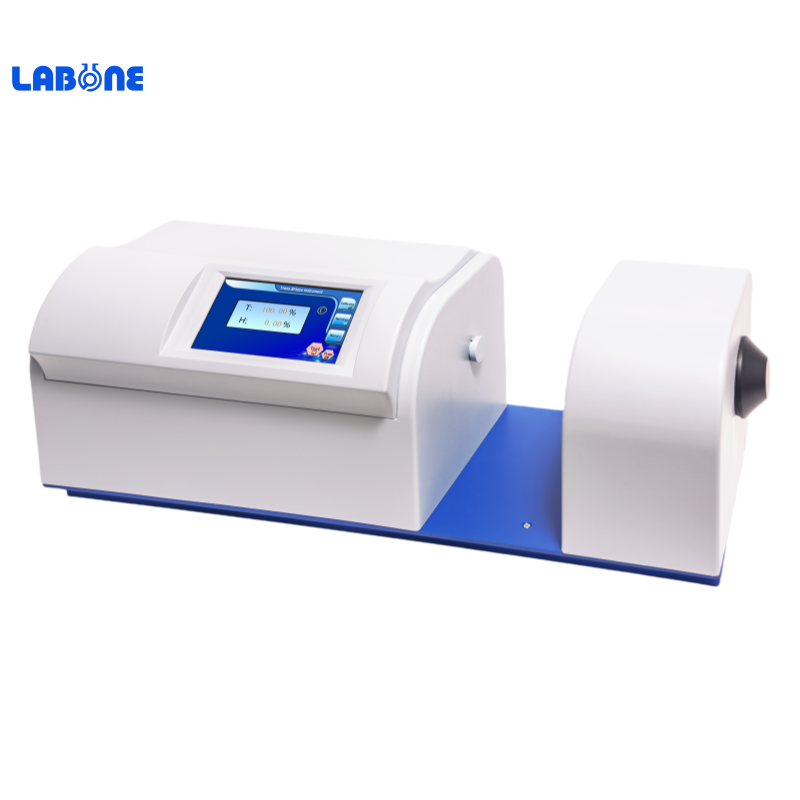

SGW-820/SGW-810/SGW-810L Hazemeter
CharacteristicsParallel illumination, scattering hemisphere andintegrating sphere optical receiving mode.Use silic
Characteristics
Parallel illumination, scattering hemisphere and integrating sphere optical receiving mode.
Use silicon photovoltaic cells as signal receiver.
Computer operating system, automatic data processing system, no- knob operation and very easy to use.
Equipped with a standard USB interface and has the capability of USB storage.
The accuracy of transmittance is 0.01% and that of haze is 0.01%.
With the adoption of the modulator, the instrument is free of the ambient light effects.
Attach a haze film for easy inspection of instrument operation function. (Note: the haze film should be cleaned with a camera blower.)
Specifications
Parameters/Model | SGW-820 | SGW-810 | SGW-810L |
Illuminant | C light（6774k） A light（2856k） | C light（6774k） | C light（6774k） |
Light source | Tungsten lamp | LED | |
Minimum reading | 0.01%(transmittance); 0.01%(haze) | ||
Range | Transmittance: 0 – 100.00% Haze: 0 – 100.00% | ||
Accuracy | Transmittance:≤±1%(Standard neutral density filter); ≤±2%(Standard Haze slice) Haze: ≤±0.5% | ||
Repeatability | Transmittance: ≤0.5% Haze: ≤0.2 | ||
Sample window size | 25mm(entrance window) 21mm(exit window) | ||
Sample size | Solid standard sample size: 50mm×50mm Tank dimensions: 50mm×50mm×10mm Film sample size: 50mm×50mm | ||
Display | 7 inch LCD touch screen | ||
Interface | USB、U disk | ||
Data storage | 2000 sets | ||
Power supply | 220V±22V，50Hz±1 Hz，100w | ||
Overall Dimensions | 800mm×380mm×490mm | ||
Weight(gross) | 27kg | ||
