SGWX-4B/SGWX-4A/SGWX-4Melting-point Apparatus with Microscope
To be used in pharmaceutical industry, chemical industry, textile industry, dyestuff.Use capillary or hot table (slide and cover glass) for sample loading.Observe with microscope.SGW X-4B and SGW X-4A are equipped with windscreen to reduce the impac
Characteristics
lTo be used in pharmaceutical industry, chemical industry, textile industry, dyestuff.
lUse capillary or hot table (slide and cover glass) for sample loading.
lObserve with microscope.
lSGW X-4B and SGW X-4A are equipped with windscreen to reduce the impact of the environment on test results.
Specifications
Parameters/Model | SGW X-4B | SGW X-4A | SGW X-4 |
Measuring range | Room temperature-320°C | ||
Measuring mode | Visual | ||
Resolution | 0.1℃ | ||
Sample loading | Capillary / Hot table | ||
Repeatability | ≤ 200℃±1℃;>200℃±2℃ | ||
Resolution | 0.1℃ | 0.1℃ | 1℃ |
Linear heating rate error | ±10% | ||

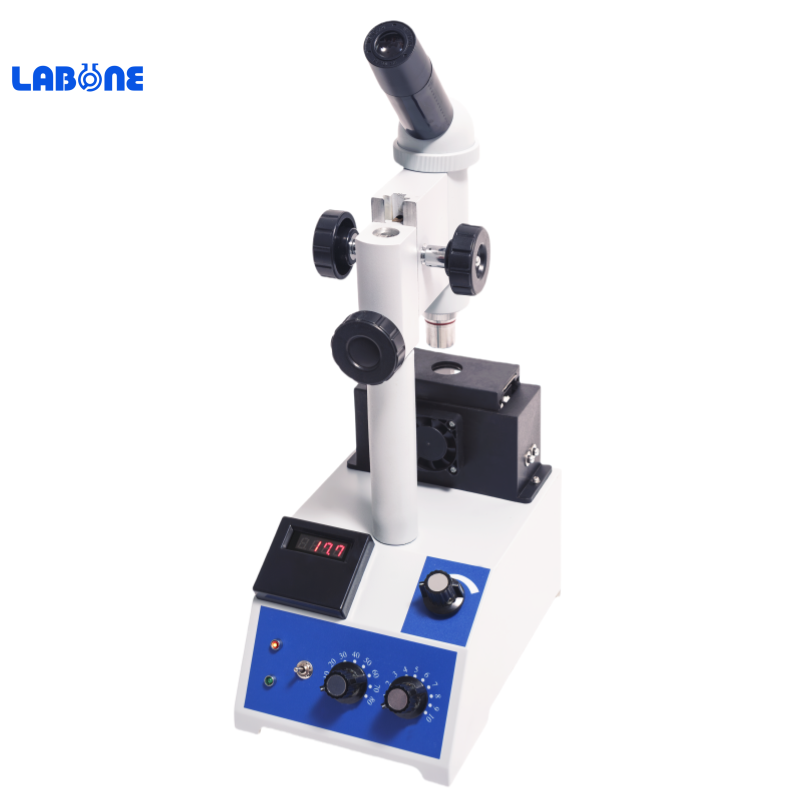

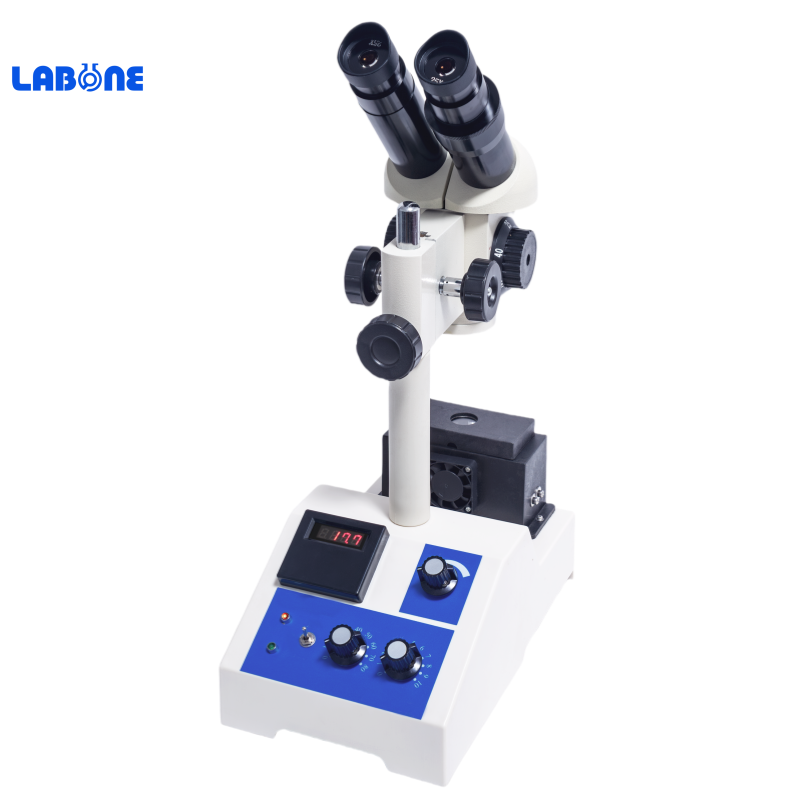

Observation mode | Binocular Stereoscopic microscope | Monocular microscope | |
Optic magnification | 40X-100 X Continuous zoom | 10 X (Eye lens)4 X (Objective lens) | |
Power supply | 220V±22V，50Hz±1Hz，80w | ||
Package Dimension | 300mm x220mmx440mm | ||
Weight(Gross) | 4KG | 3.5KG | |
