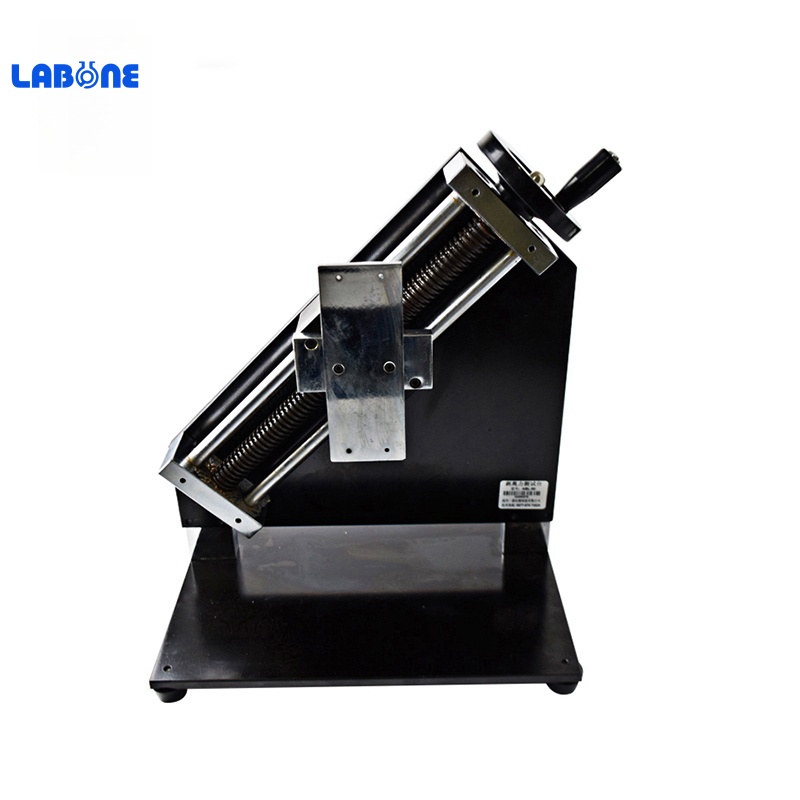

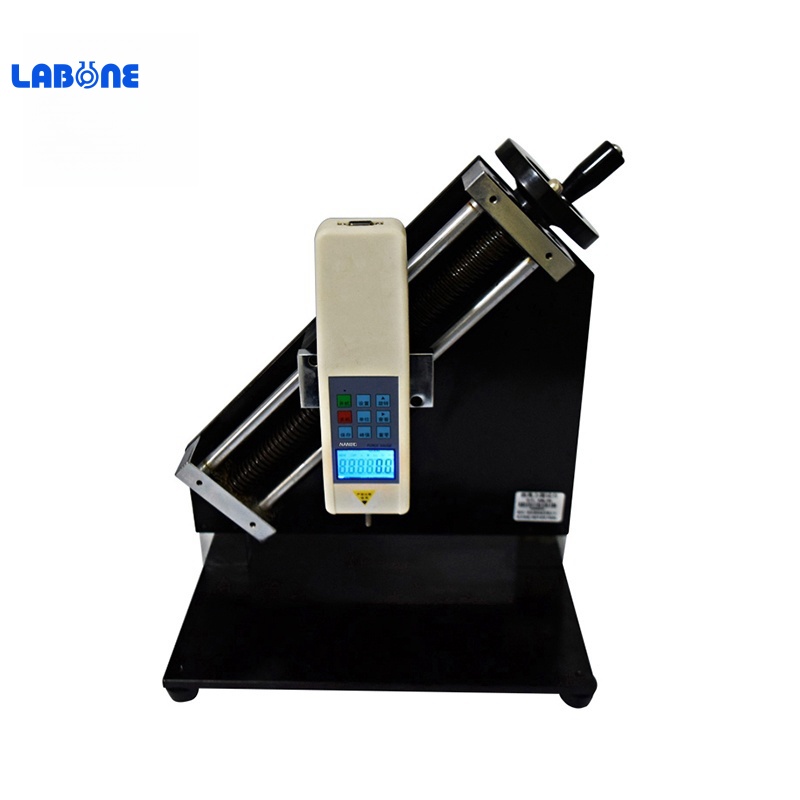

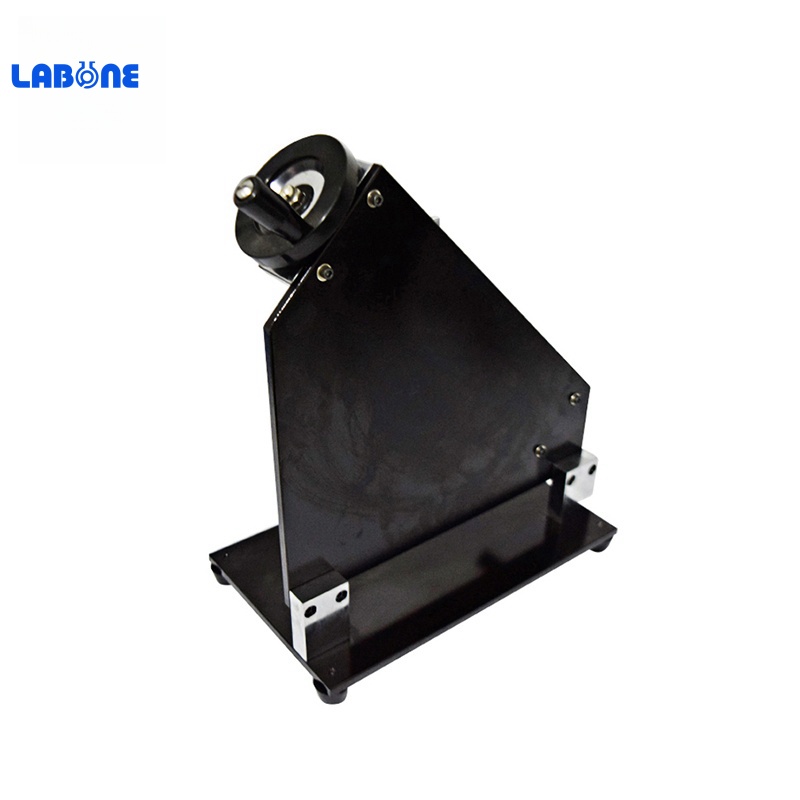

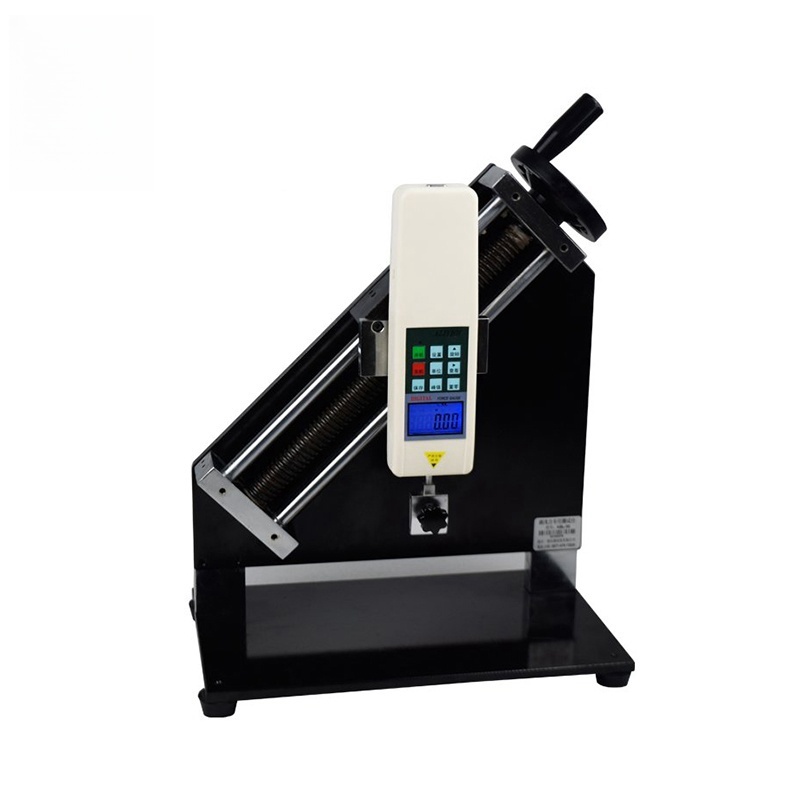

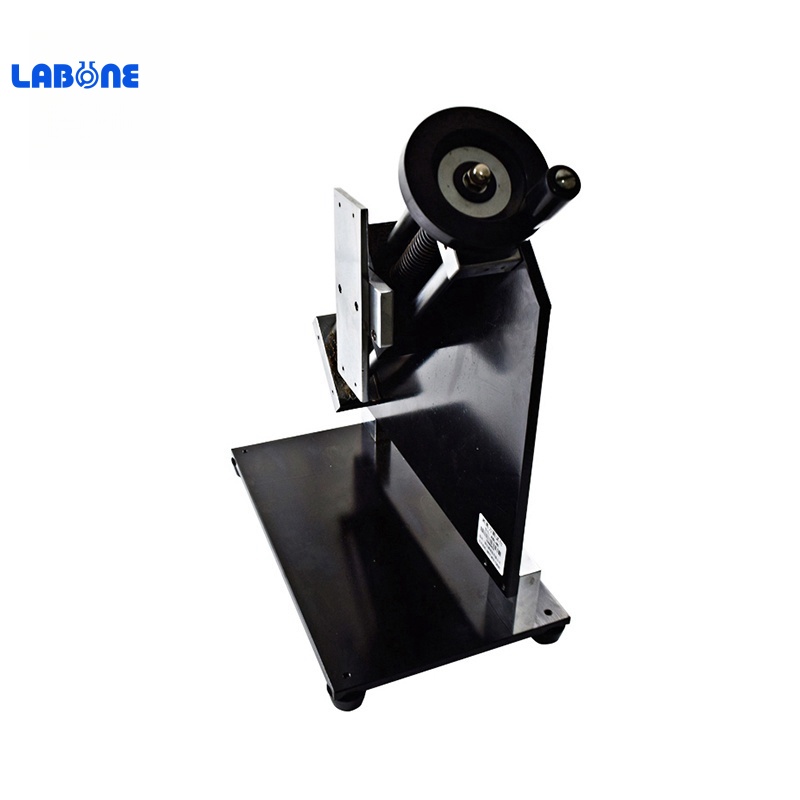

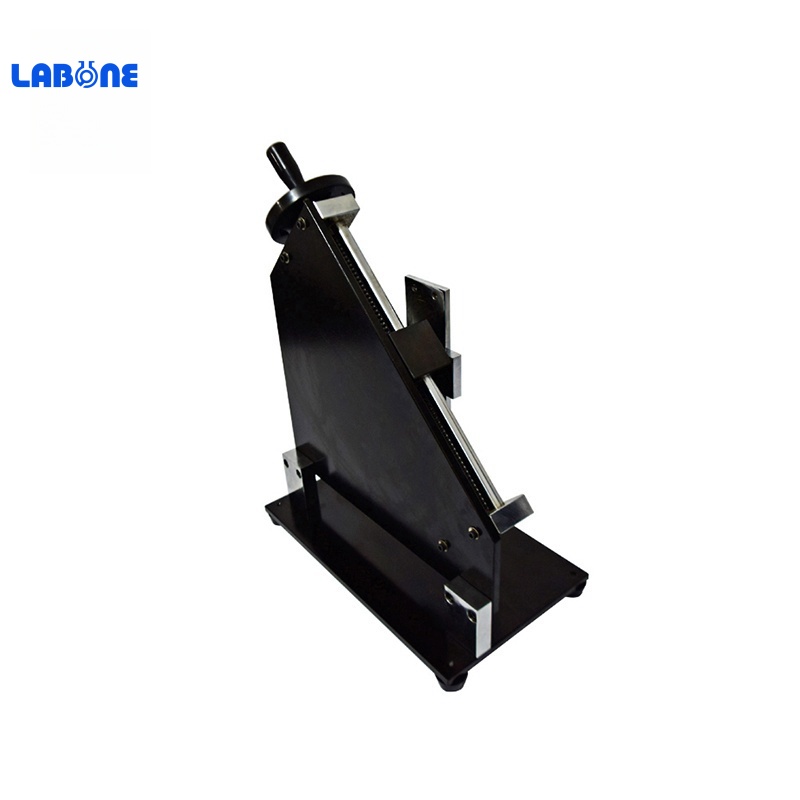

ABL Special Test Bench for Peeling Force
Features:
ABL-90° Detachment force test bench, specially designed for NK, HF series force gauges, can be combined into test benches for different purposes, specially used to test copper foil circuit adhesion on PC boards or tin foil, aluminum foil, tapes, etc..Adhesion to the surface of the object.The specimen was peeled at a vertical angle during the test.To measure the actual strength.
Manual operation, ladder screw drive, simple and stable operation.
The rack can be mounted on a table (table) surface to make the rack more stable.
Specifications:
Effective stroke | 150mm |
Maximum load | 500N |
Size | 350*210*450 mm |
Net weight | 19kg |
Effective area oftest area | 105*100 mm, up to 105*152mm |
