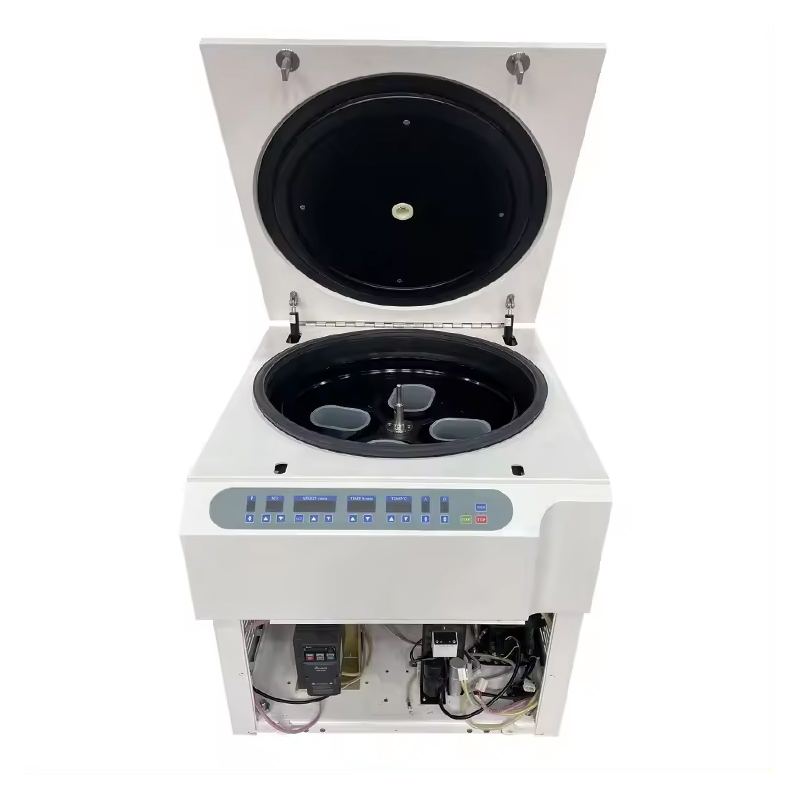

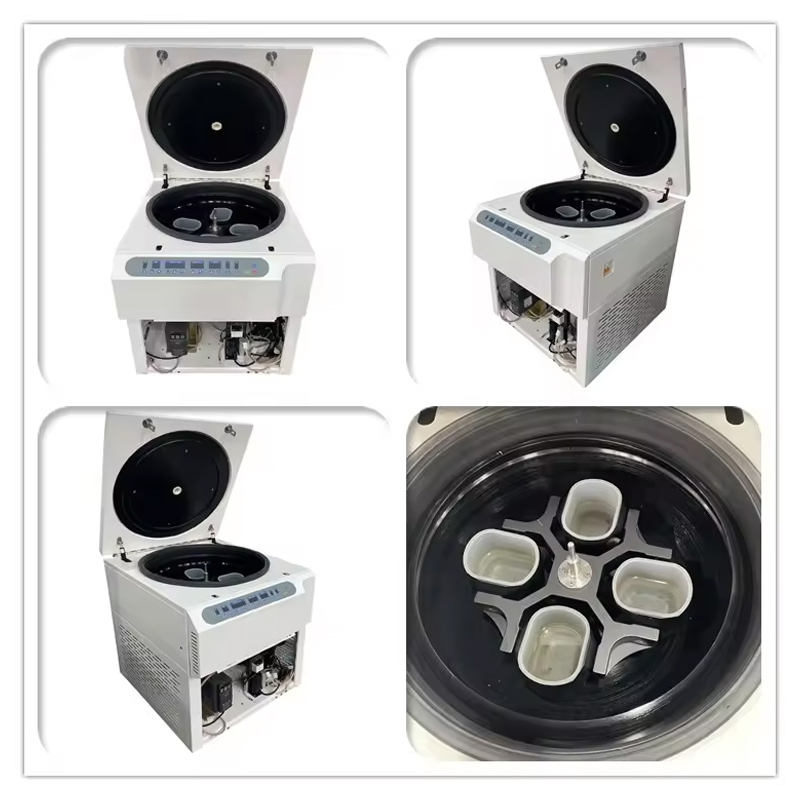

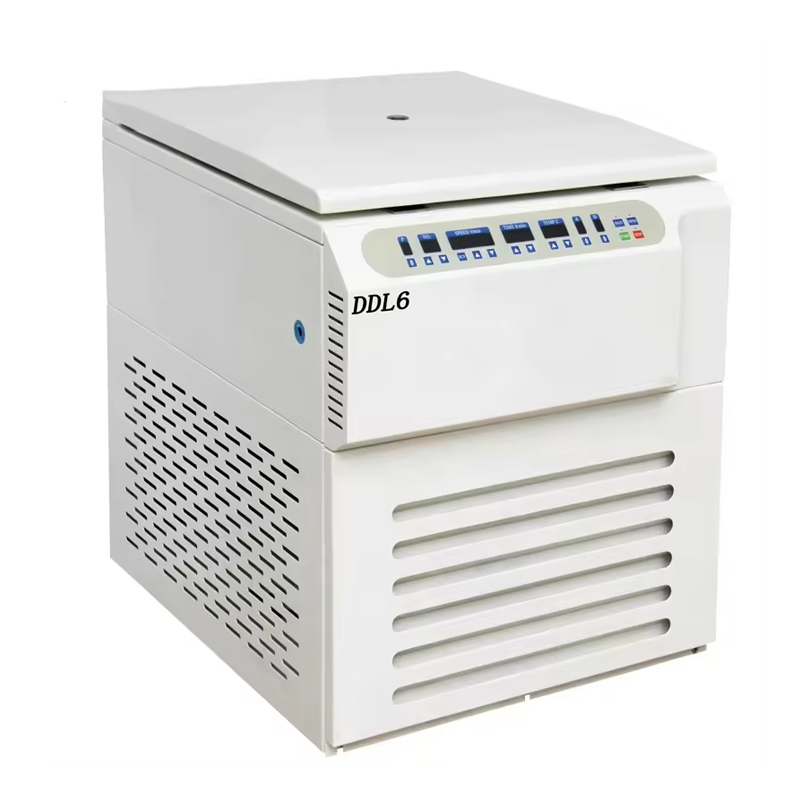

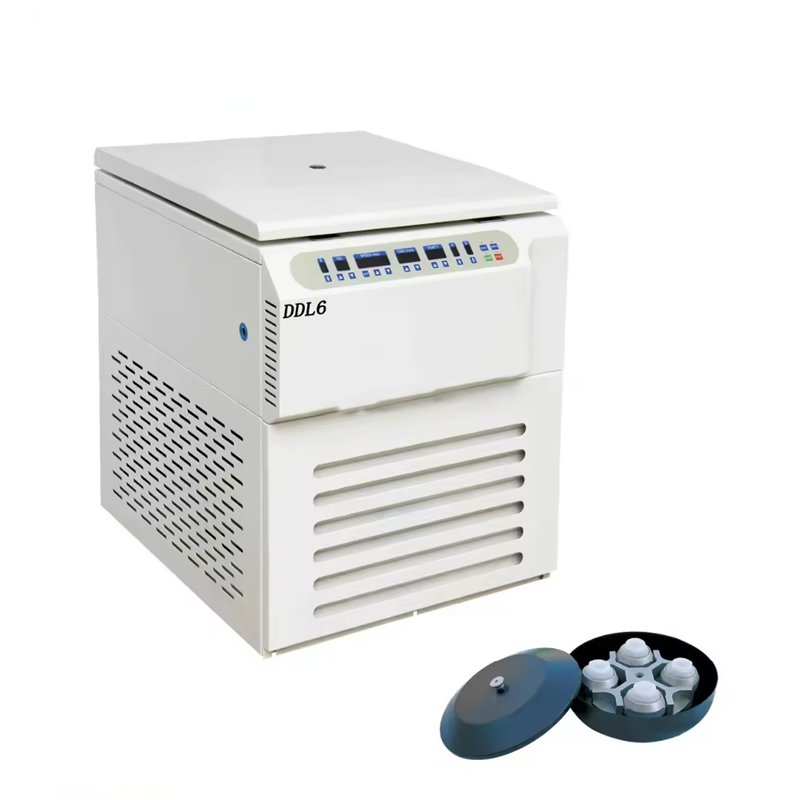

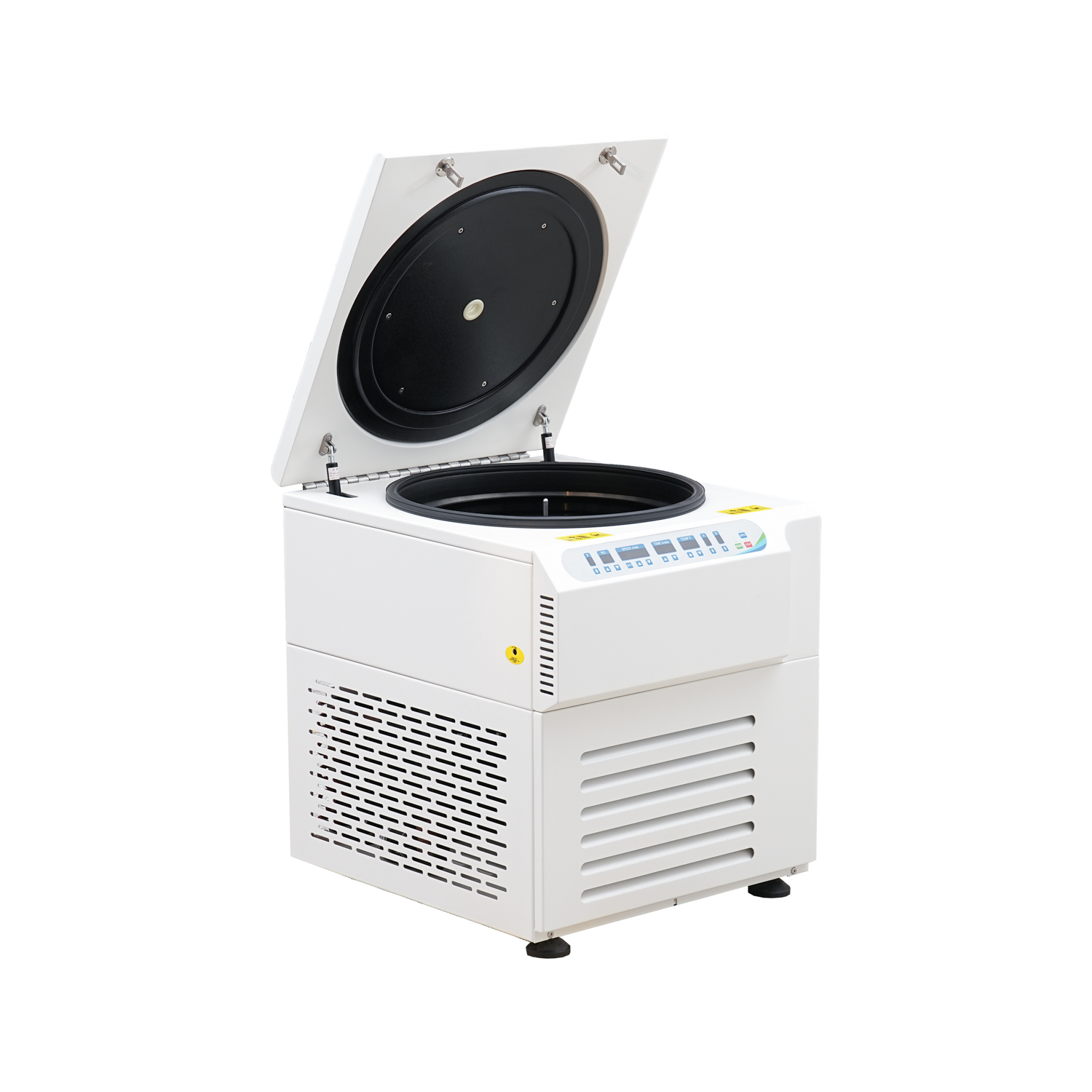

DDL6 Floor Standing Large Capacity Refrigerated Centrifuge
Application:DDL6 refrigerated centrifuge widely used in the field of blood bank station, pharmaceutical factory and laboratory, can hold 500ml triple, 400ml triple and 250ml triple blood bags.
DDL6 Floor Standing Large Capacity Refrigerated Centrifuge
Application:
DDL6 refrigerated centrifuge widely used in the field of blood bank station, pharmaceutical factory and laboratory, can hold 500ml triple, 400ml triple and 250ml triple blood bags.
Features
1. Widely used in the field of blood bank, pharmaceutical factory and laboratory.
2. Brushless frequency motor, in great torque, free maintenance, no powder pollution, quick in speed up and down.

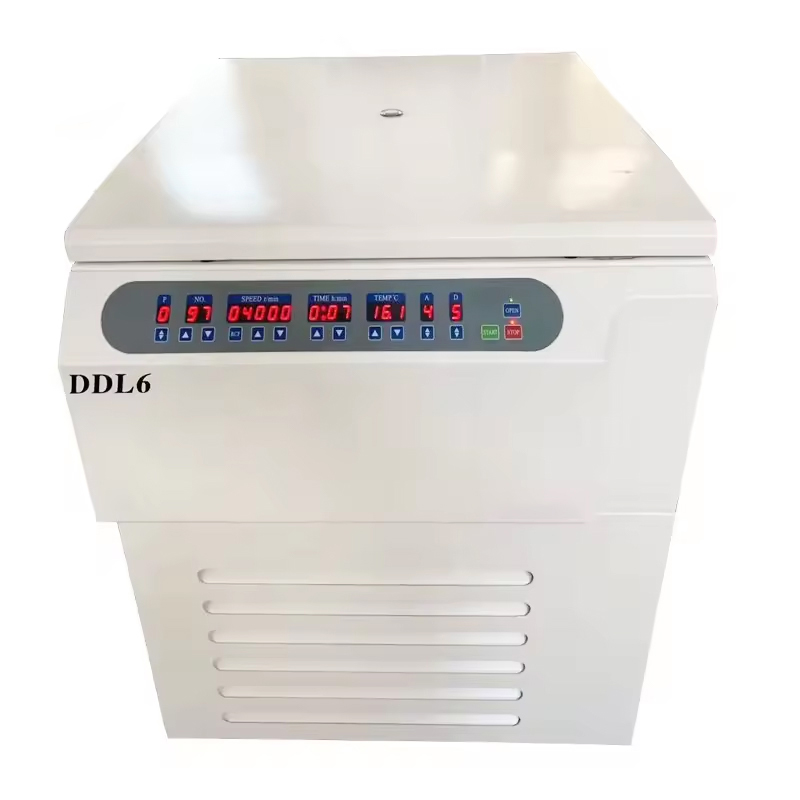

3. Digital display which indicates the program, speed, time,RCF, temperature.
4. Micro computer control, there are 10 kinds of program and 10 kinds of acceleration and deceleration for your choice.
5. Electric lid lock, compact design, super speed and imbalance protection.
6. The centrifuge body is made of high-quality steel, safe and reliable.
DDL6 Technical Parameter：
Max. Speed | 6000rpm |
Max. RCF | 6600×g |
Max. Capacity | 4×1000ml(4*500ml blood bag） |
Timer | 1~9h59min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 65 |
Temperature Range | -20~40℃ |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | ±1℃ |
Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
Size (L x W x Hmm) | 800×675×830mm |
Net Weight(Kg) | 260KG |
Certificates | CE,ISO & Calibration report are available |
Matched Rotors for DDL6
Order No. | Rotor | Max Speed (rpm) | Max Volume (ml) | Max.RCF（×g） |

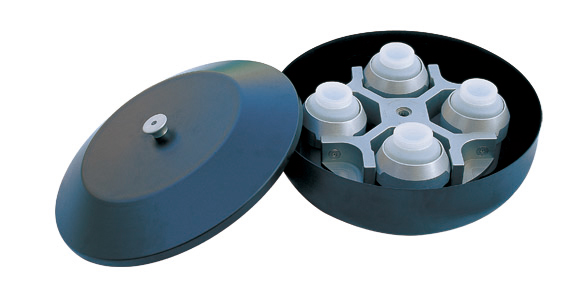

D6-1 | Swing Rotor | 4000 | 4×1000ml | 4060 |

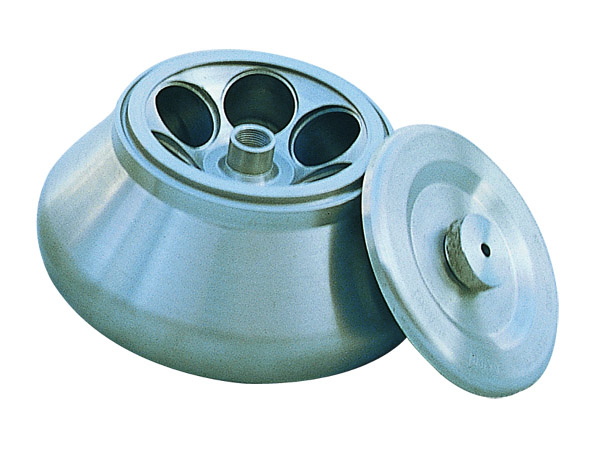

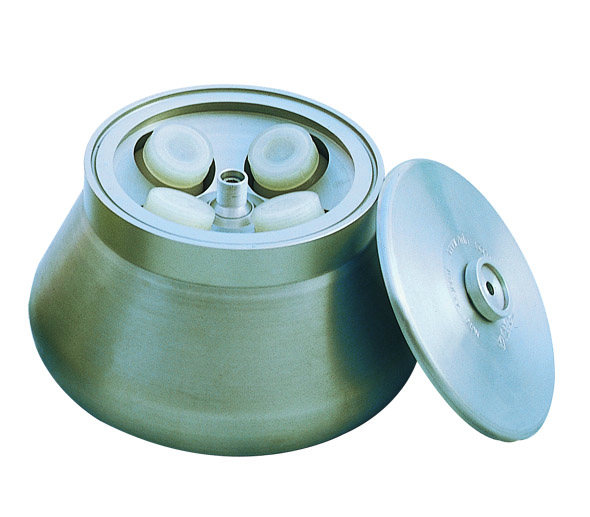

D6-2 | Angle Rotor | 6000 | 4×300ml | 5390 |
D6-3 | Angle Rotor | 6000 | 6×300ml | 5660 |
D6-4 | Angle Rotor | 6000 | 6×500ml | 6600 |
