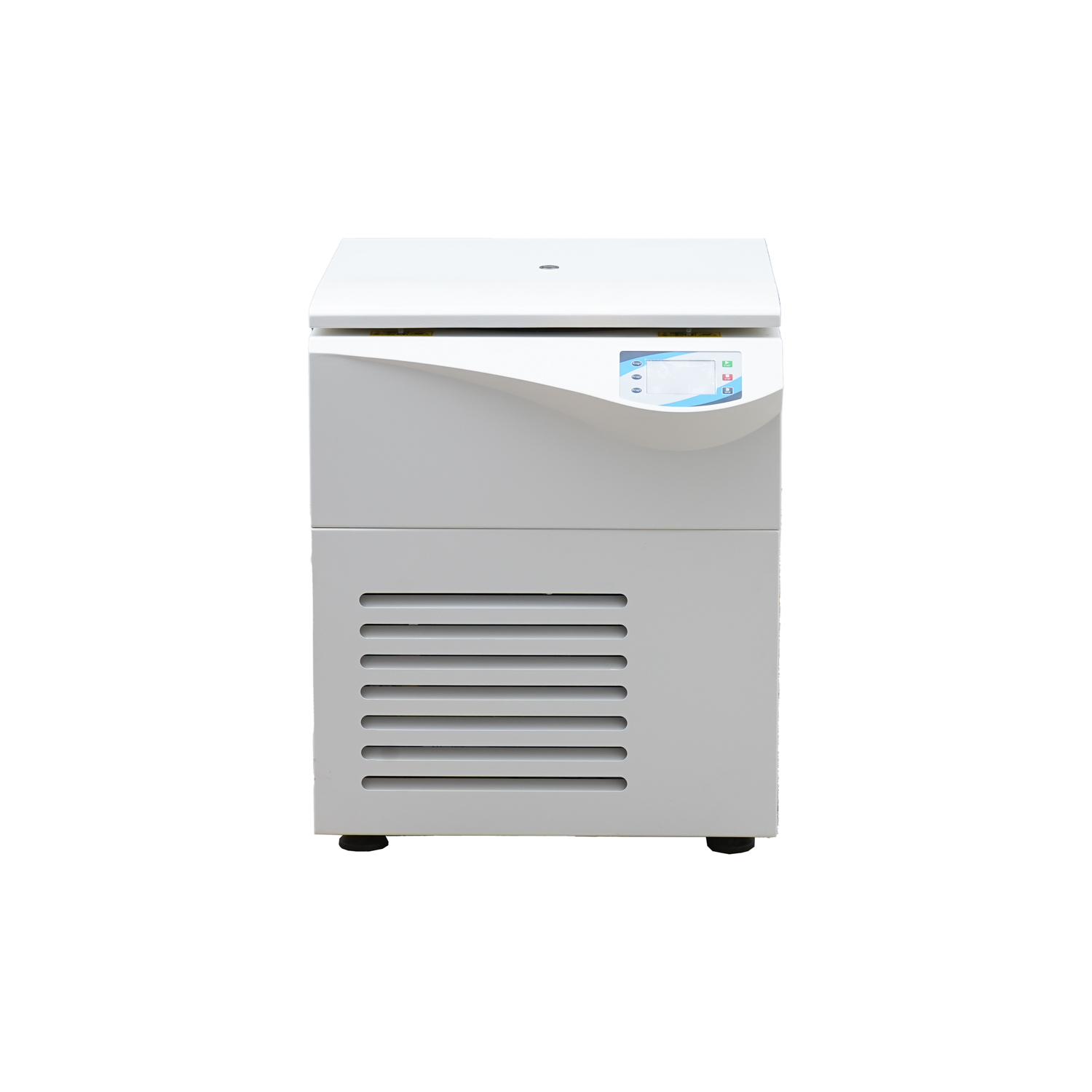

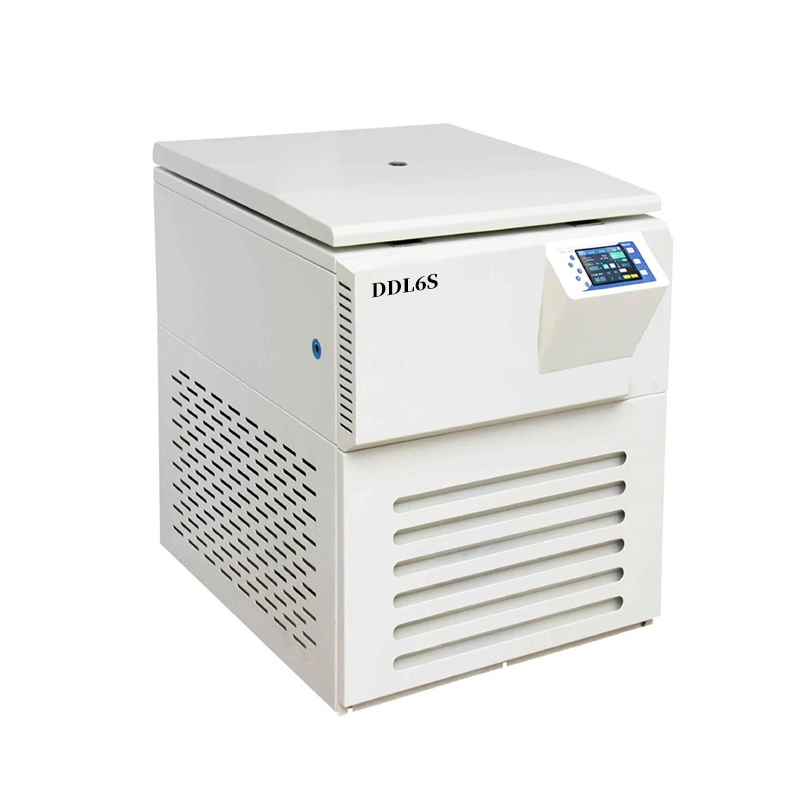

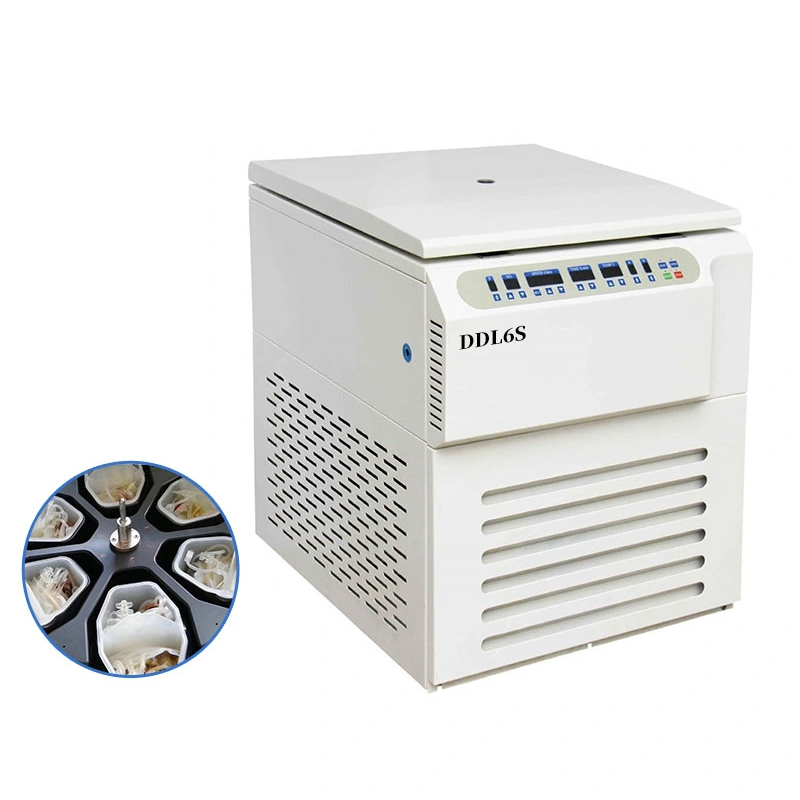

DDL6S Floor-Mounted High-Capacity Refrigerated Centrifuge

DDL6S Floor-Mounted High-Capacity Refrigerated Centrifuge

DDL Series Low Speed Large Capacity Refrigerated Centrifuge

DDL series low-speed large-capacity refrigerated centrifuge is suitable for blood stations, biochemical, biological products and other production and scientific research units. It is an ideal instrument for blood separation, protein precipitation, cell separation and collection.

Instrument features:

1. Adopt high torque brushless frequency conversion motor, maintenance-free, no dust, fast rise and fall.

2. Flexible shaft drive system is used to directly drive the rotor to protect the motor, with accurate speed control, stable operation, small vibration and low noise.

3. Use automatic induction electric door lock with emergency door opening device; Door lock, overspeed, with heating function, overtemperature, imbalance and other self-check and protection, safe and reliable.

4. The imported fluorine-free compressor unit is adopted, which has no environmental pollution. The temperature is controlled by the double-circulation pipeline, and the condensation group absorbs cold air to dissipate heat. The refrigeration is very fast, and the temperature can reach 4 ℃ in 5 minutes. The temperature control is accurate, which improves the experimental efficiency.

5. Precise control of microcomputer processor is adopted, and DDL6S is a 5-inch color large screen display; Simple and quick key programming, real-time display of speed, time, temperature and other parameters; Can be modified during operation.

6. It can store and recall 10 sets of common programs, 10 acceleration rates and 10 deceleration rates for users to choose flexibly in order to achieve the best centrifugal effect.

7. Full steel structure, 304 stainless steel centrifugal cavity, multi-layer protection design, safe and reliable; Three-stage vibration reduction, automatic balance function.

8. The door cover of the instrument is equipped with double hydraulic levers to reduce the operation load. The front operation panel and the door cover open backward conform to ergonomics and are comfortable to operate.

9. It has CFDA record and CFDA production qualification, and has passed ISO9001, ISO13485, CE, TUV certification.

DDL6S Technical Parameters

Note: The rotor picture is for reference only, and the specific object shall prevail.

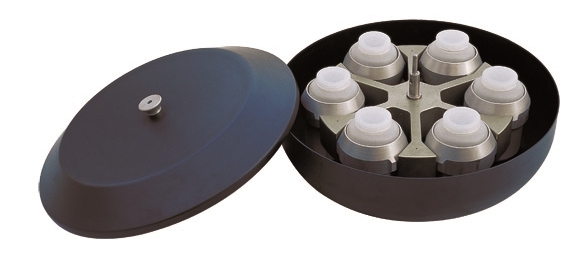

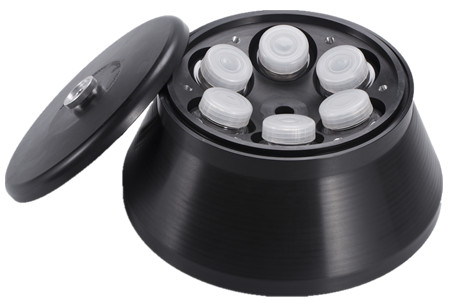

DDL6S Matched Rotors
