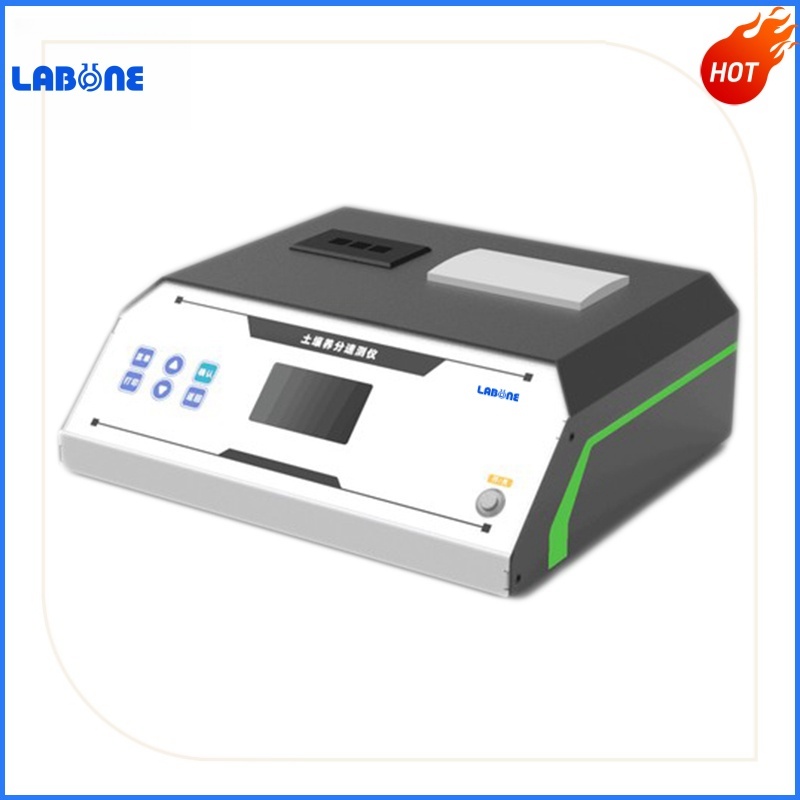

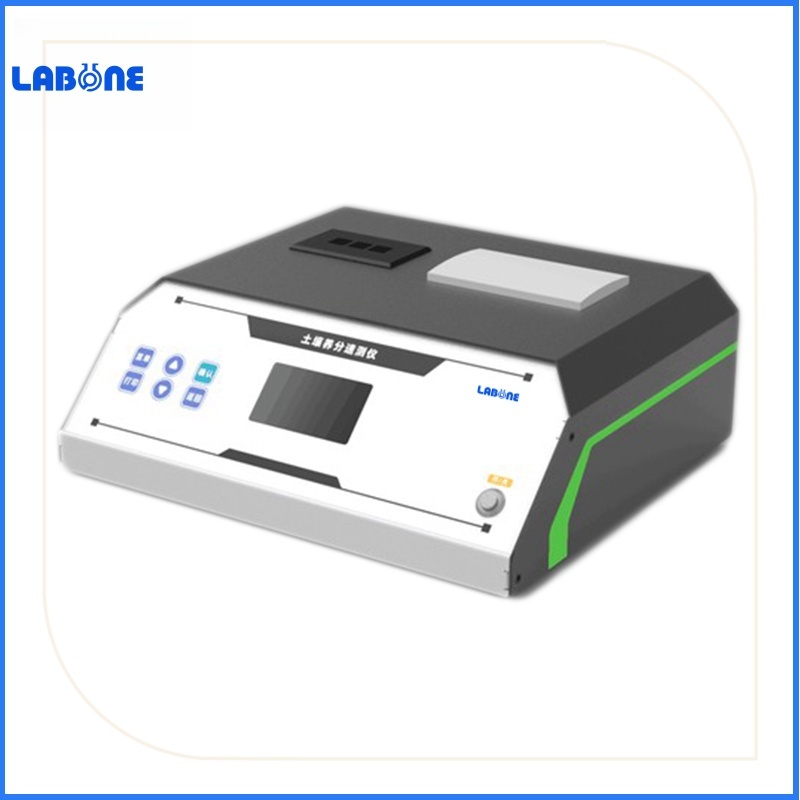

TPY-6A Soil(fertilizer) nutrient tester

TPY-6A

In addition to testing N, P, K, acidity, alkalinity, organic matter, salt content function, but also can output fertilization guidance formula, for the guidance of agricultural production to bring convenience, with host storage function, printing function, AC and DC dual-use, can be in the field directly out of the results, directly to the land site soil testing and according to the needs of the formula.

TPY-6PC

With all the functions of TPY-6A, it can be connected to a computer to distribute fertilizers and print out the formulated fertilizer table.

TPY-7PC

In addition to all the functions of TPY-6A, a soil moisture sensor can be added, seven parameters can be detected at the same time, and can be connected to a computer through the computer to allocate fertilizer and print out the formula of fertilizer table, an instrument with multiple functions.

Stability

Absorbency of light drift ＜ 0.003

Repeatability

Absorbency of light ＜ 0.005

Linearity errors

Red light for Copper sulfate, and blue light forpotassium bichromate ＜ 3.0%

Sensitivity

Red light ≥ 4.5x10-5; Blue light ≥ 3.17×10-3

Wavelength range

Red light 620±5nm; Blue light440±5nm, Green light520±5nm

Anti-Knocking

performance

Qualified

pH technical parameter

Testing range

45305

Error

±0.1

Salinity technical parameter

Testing range

0-23 ms/cm

Error

±5%

Soil Moisture Technical Parameter

Moisture Unit

% (m³/m³)

Accuracy

±2%

Moisture Content Rate

0-100%

Technical parameters for moisture measurement(Only 7PC has)

Soil moisture range

0-*

Accuracy

Error ≤ 2%

Resolution

0.10%
