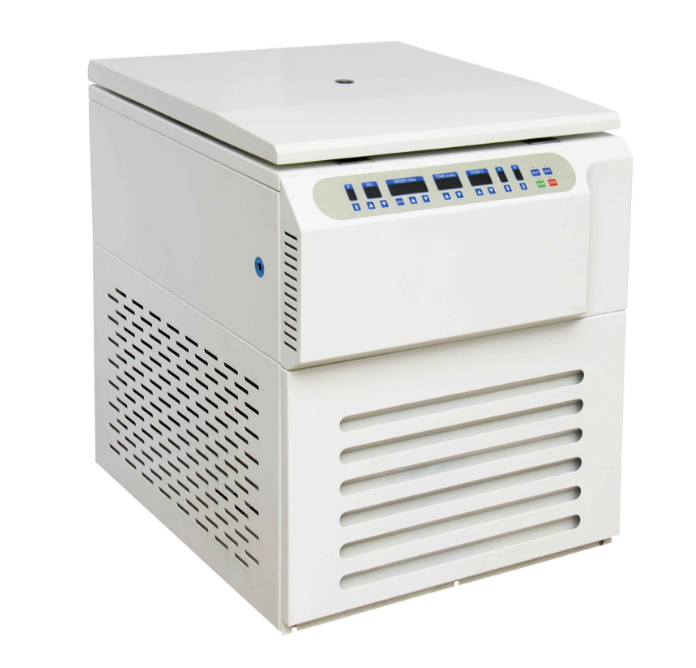

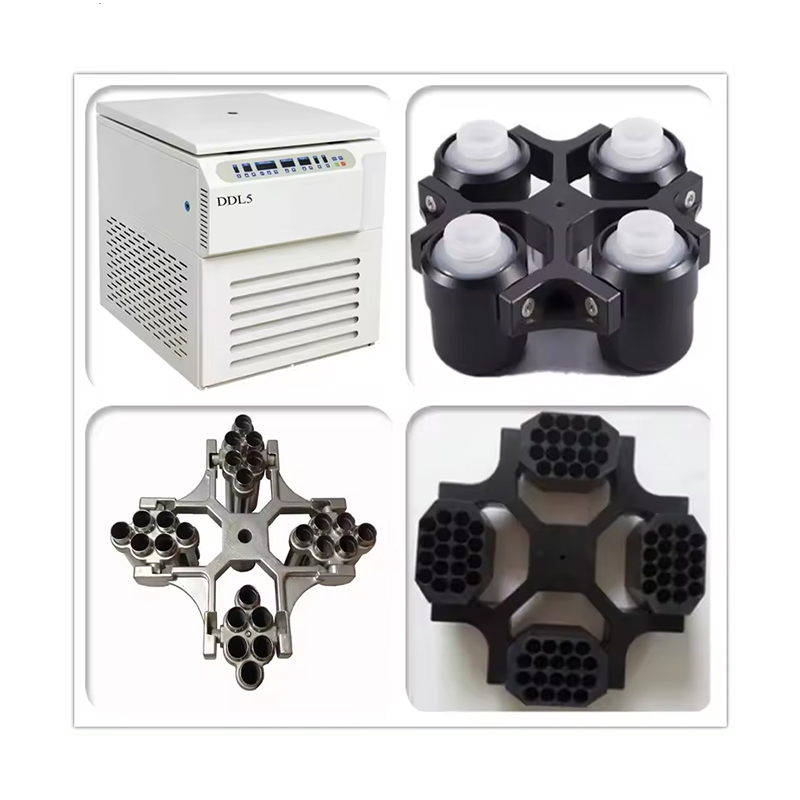

DDL5 Floor Standing Large Capacity Refrigerated Centrifuge
Usage:DDL5 Floor Standing Large Capacity Refrigerated Centrifuge are mainly used in blood stations, biochemistry, bio-pharmaceutical and other production and scientific research units. They are ideal instruments for blood separation, protein precipitati
DDL5 Floor Standing Large Capacity Refrigerated Centrifuge
Usage:
DDL5 Floor Standing Large Capacity Refrigerated Centrifuge are mainly used in blood stations, biochemistry, bio-pharmaceutical and other production and scientific research units. They are ideal instruments for blood separation, protein precipitation, and cell separation and collection.
Features
1. Widely used in the field of blood bank, pharmaceutical factory and laboratory.
2. Brushless frequency motor, in great torque, free maintenance, no powder pollution, quick in speed up and down.
3. Digital display which indicates the program, speed, time,RCF, temperature.
4. Micro computer control, there are 10 kinds of program and 10 kinds of acceleration and deceleration for your choice.
5. Electric lid lock, compact design, super speed and imbalance protection.
6. The centrifuge body is made of high-quality steel, safe and reliable.
DDL5 Technical Parameter：
Max. Speed | 5000rpm |
Max. RCF | 4730×g |
Max. Capacity | 4×800ml(4*500ml blood bag） |
Timer | 1~9h59min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 58 |
Temperature Range | -20~40℃ |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | ±1℃ |
Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
Size (L x W x Hmm) | 720×540×830mm |
Net Weight(Kg) | 180KG |
Certificates | CE,ISO & Calibration report are available |

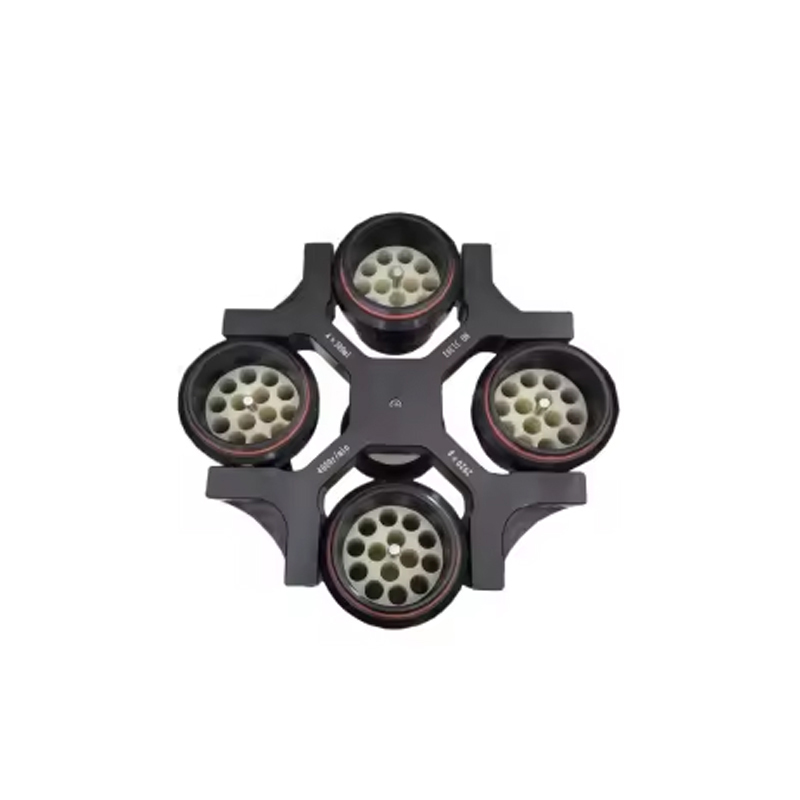

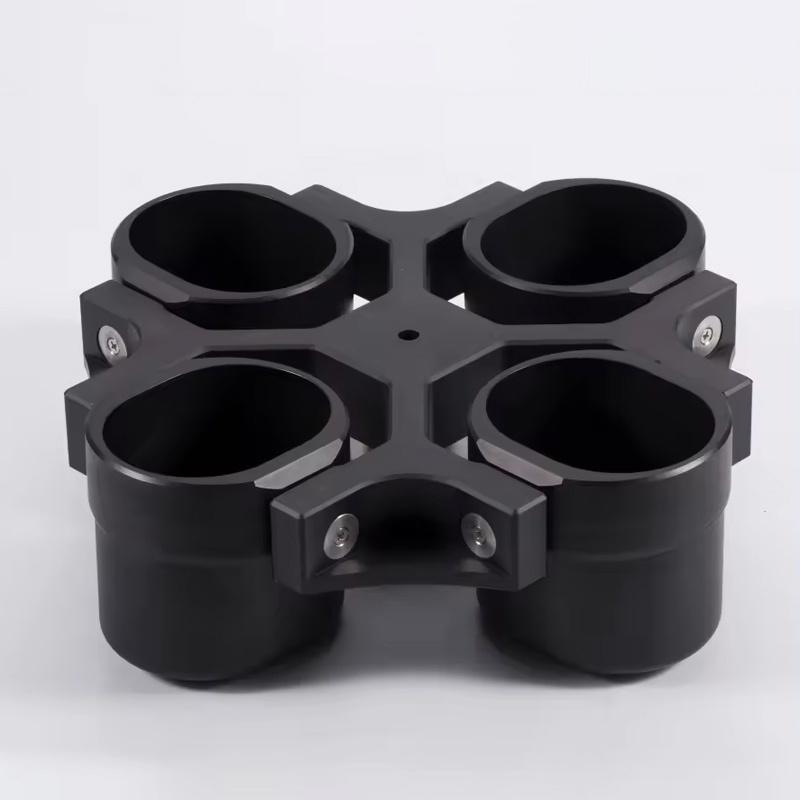

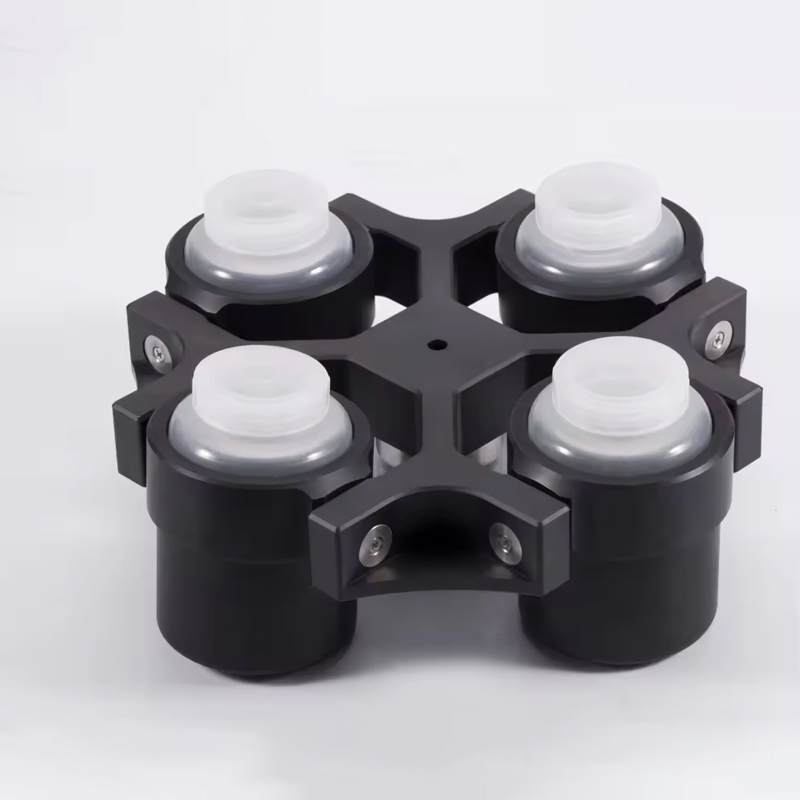

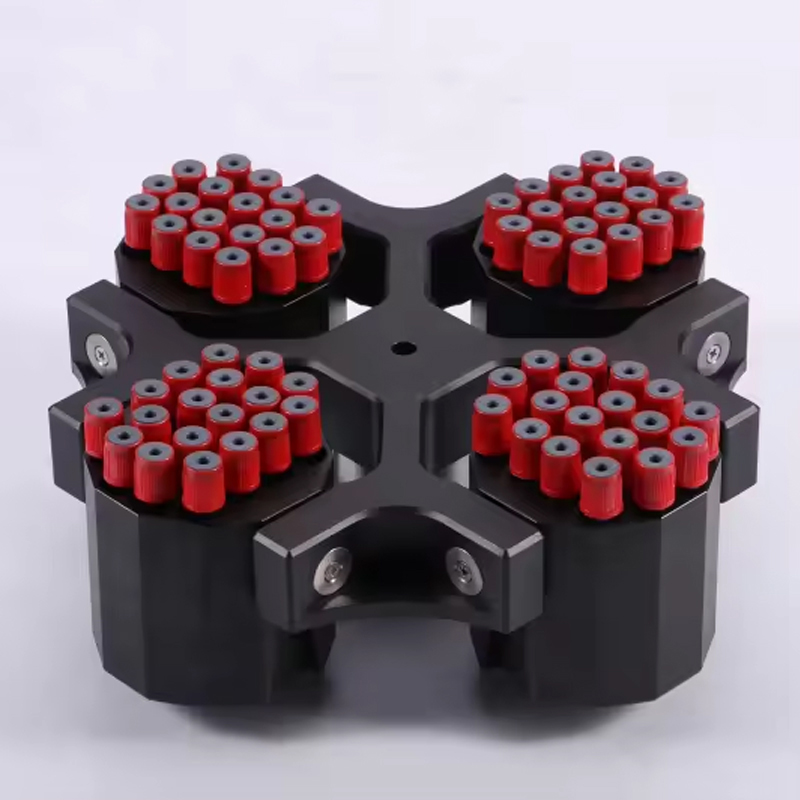

Matched Rotors for DDL5
Order No | Rotor | Max Speed(r/min) | Volume(ml) | Max RCF(×g) |
D5-1 | Swing Rotor | 4000 | 4×800ml | 3450 |
D5-2 | Swing Rotor | 4000 | 4×750ml | 3530 |
D5-3 | Swing Rotor | 4000 | 4×500ml | 3380 |
D5-4 | Swing Rotor | 4000 | 4×4×96(well) | 2940 |

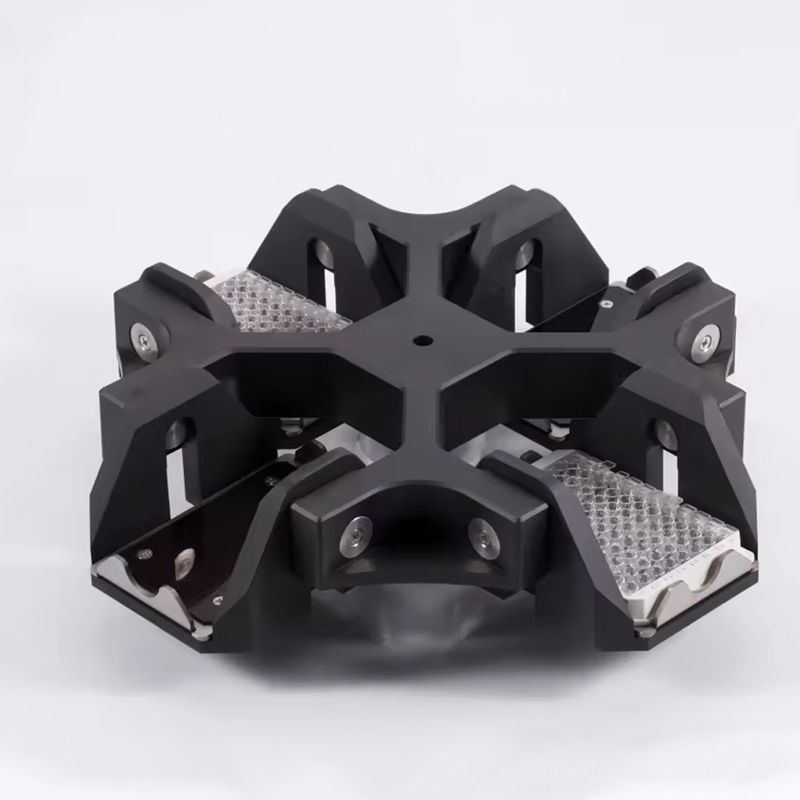

D5-5 | Microplate rotor | 4000 | 2×4×96(well) | 3210 |
D5-6 | 2×3×48(well) | 2300 | ||
D5-7 | Swing rotor | 5000 | 4×1×50ml | 4730 |
4×1×100ml | 4730 | |||
4000 | 4×2×100ml | 3020 | ||
4000 | 4×2×50ml | 3200 | ||
4000 | 4×4×15ml | 3200 | ||
4000 | 4×6×15ml | 3200 | ||
D5-8 | Swing rotor | 4000 | 4×8×15ml | 3200 |
4000 | 4×12×5ml vacuum tube | 2480 | ||
4000 | 4×12×7ml vacuum tube | 2760 | ||
4000 | 4×12×10ml vacuum tube | 2880 | ||
4000 | 4×8×10/7/5ml vacuum tube | 2790 | ||
4000 | 4×6×10/7/5ml vacuum tube | 2790 | ||
4000 | 4×4×10/7/5ml vacuum tube | 2790 | ||
D5-9 | Swing rotor | 4000 | 4×24×5ml vacuum tube | 2480 |
4000 | 4×31×5ml Khan tubes | 2480 | ||
D5-10 | Swing rotor | 4000 | 4×24×7ml vacuum tube | 3140 |
4000 | 4×31×7ml Khan tubes | 3140 | ||
4000 | 4×30×7ml vacuum tube | 3140 | ||
4000 | 4×30×5ml vacuum tube | 3140 | ||
4000 | 4×40×7ml vacuum tube | 3270 | ||
4000 | 4×18×10ml vacuum tube | 3140 | ||
D5-11 | Swing rotor | 4000 | Dairy bottle | 3830 |

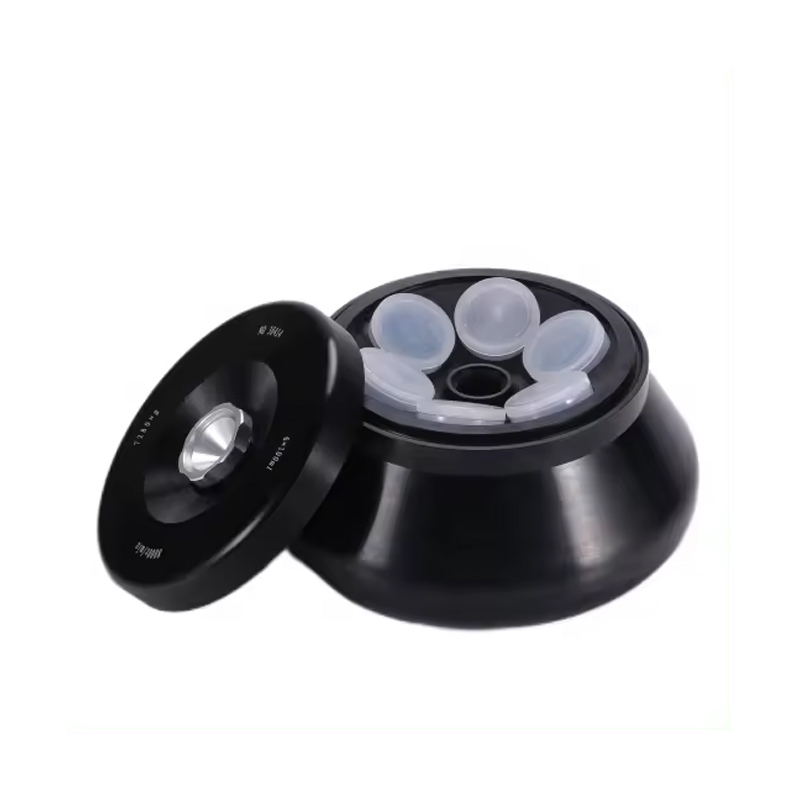

D5-12 | Fixed rotor | 5000 | 6×15ml | 2540 |
D5-13 | 5000 | 12×15ml | 3080 | |
D5-14 | 5000 | 24×15ml | 3500 | |
D5-15 | 5000 | 30×15ml | 3830 | |
D5-16 | 5000 | 4×50ml | 2520 | |
D5-17 | 5000 | 6×50ml | 2850 | |
D5-18 | 5000 | 12×50ml | 3860 | |
D5-19 | 4000 | 24×50ml | 2970 | |
D5-20 | 5000 | 4×100ml | 2630 | |
D5-21 | 5000 | 6×100ml | 3130 | |
D5-22 | 4000 | 12×100ml | 2970 |
