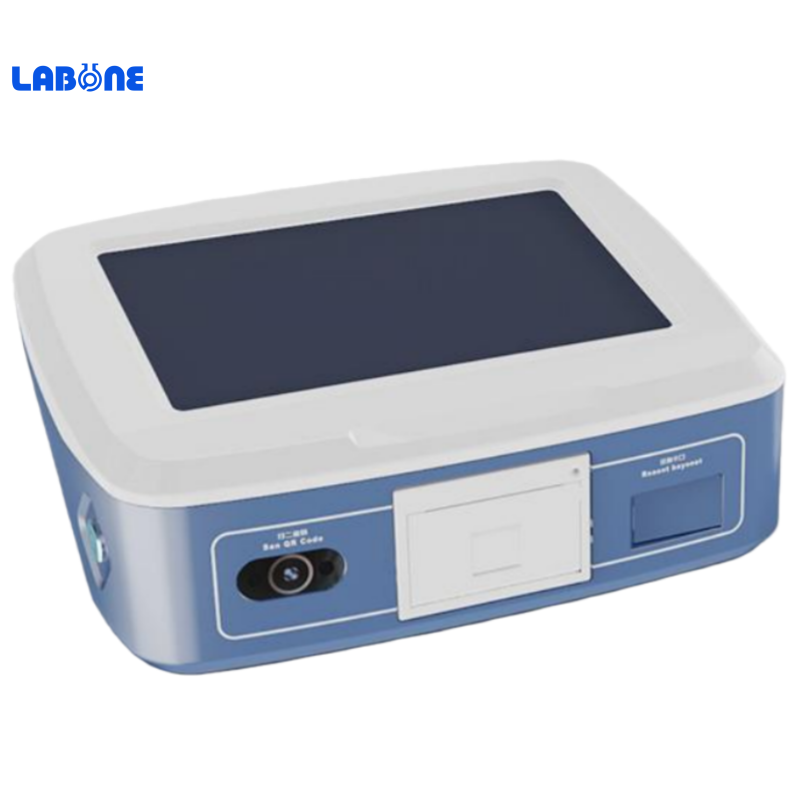

Quantitative Fungal toxin detector-HM-CCJ1

I. Product Introduction: The Fluorescent Quantitative Mycotoxin Rapid Detector adopts the principle of rapid fluorescence quantitative detection, mainly detecting the content of mycotoxins in grains, oils, and feeds, including aflatoxin B1, aflatoxin M1, zearalenone, vomitoxin, fumonisin, etc. The test samples cover grains (rice, corn, wheat, barley, sorghum, etc.) and their products, feed and its raw materials, edible oils, milk and its products, etc. Sample pretreatment is simple, and the entire detection process takes 12 minutes. The product is suitable for local grain depots, grain production enterprises, feed mills, various livestock breeding enterprises, flour mills, food processing plants, third-party testing institutions, and government regulatory departments at all levels.

II. Product Features:

1. Intelligent Operation: Android intelligent operating system, 10.1-inch high-definition color touch screen, making operation and display more intuitive and smooth;

2. Extremely high stability: Utilizing imported fluorescent microspheres with uniform particle size, ensuring excellent product stability from the source, and good reproducibility within and between batches; equipped with an 8-well constant temperature incubator, one well per line, automatic timing, buzzer reminder, unaffected by external temperature and humidity, and suitable for a wider range of environments;

3. Rapid and accurate quantification: It combines the advantages of rapid colloidal gold detection, enzyme-linked immunosorbent assay (ELISA) quantification, and accurate chromatographic detection to achieve rapid and accurate quantitative detection;

4. Built-in quantitative standard curve: The instrument has a built-in standard curve, eliminating the need for standard products and standard curve preparation during testing. This saves costs and avoids operator contact with vomitoxin, protecting operator safety.

5. Low requirements:** Minimal requirements for pretreatment equipment and personnel. Operators only need simple training or can learn by watching the in-instrument's operating videos.

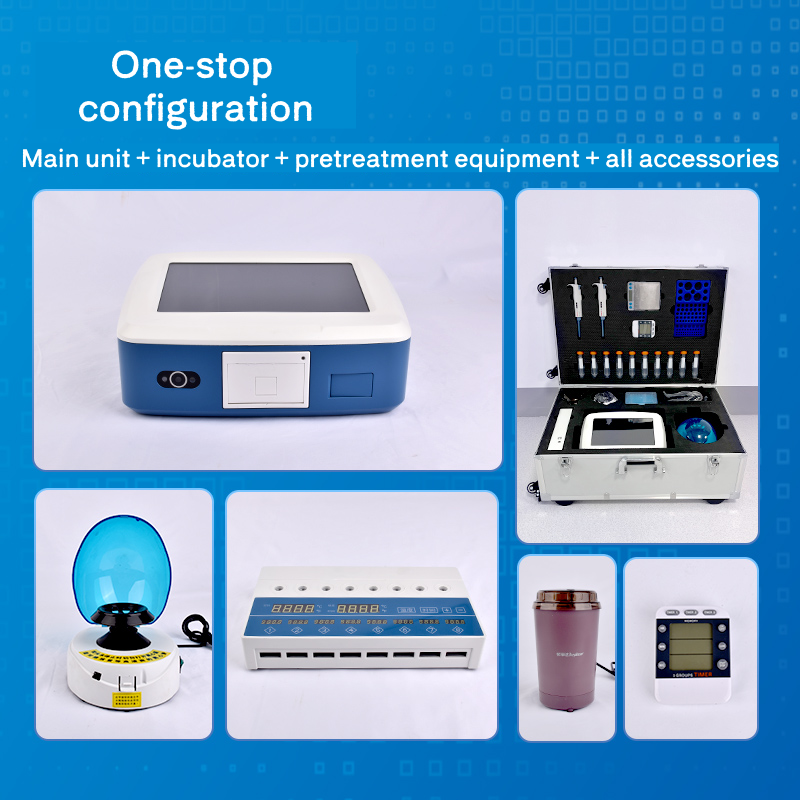

6. Portable:Lightweight and compact, the instrument comes with a complete set of pretreatment equipment and a carrying case, suitable for both on-site and laboratory testing.

7.Built-in thermal printer:** Enables timely printing of test information and allows data upload to a monitoring platform.

8.Large Storage: 8GB of large storage memory, capable of storing over 1,000,000 test data entries. Expandable with MicroSD (TF) cards for easy data retrieval and traceability.

9.Judgment: Upper limits can be set for each item. After testing, the instrument automatically determines whether the limits are exceeded and saves the results.

10. Cost Savings: Compared to chromatography, consumable costs are extremely low, saving manpower and resources, and significantly reducing testing costs;

11. Card Insertion Judgment: Detection channel cannot be used if the test card is not inserted.

12. Built-in Quality Control Function: Supports equipment submission for testing, equipment self-testing, and reagent card self-testing.

13. Detection Curve: Allows verification of reagent card detection to prevent misjudgments.

14. Project Management: Supports expanded testing project functions.

15. Interface Settings: Title and footer information can be modified for flexible display of instrument information.

16. Printer: Thermal printer (thermal paper: 57*30mm)

17. Data Transmission: WiFi, Bluetooth, USB, RFID card reader, barcode scanning module

18. Data Processing: Data can be aggregated and uploaded to the monitoring platform via the communication port.

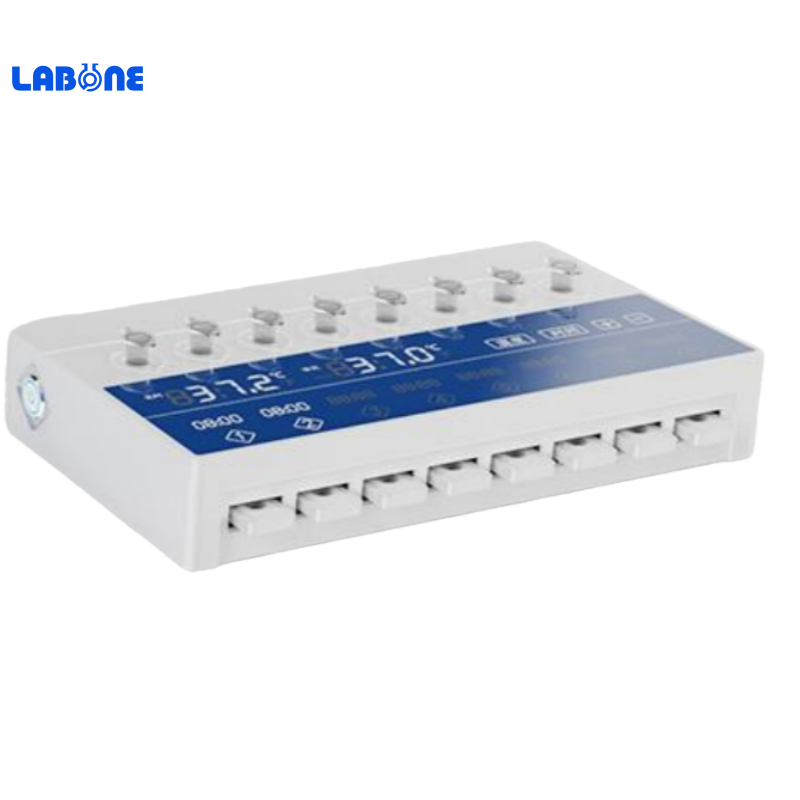

19. Constant Temperature Incubator: 8 independently controlled channels, automatic insertion timing, and can incubate 1.5ml sample tubes.

III. Technical Parameters

1. Screen Size: 10.1 inches 1. High-definition display; Resolution: 1280*800; Memory: 1+8G

2. Operating System: Android 7.1.1;

3. Detection Method: Reflective photoelectric;

4. Detection Principle: Fluorescence immunochromatography;

4. Adaptor Card: 70mm*20mm

5. Unlock Method: Password

6. Language: Chinese/English

7. Storage Capacity: 100,000+

8. Detection Channel: Single channel;

9. Detector/Light Source: Photovoltaic cell, 365nm light source;

10. Detection Speed: Single detection time < 5 seconds; capable of quantitative fluorescence analysis of samples.

11. Detection Method: Automatic scanning;

12. Accuracy: Error value ≤ 5%

13. Stability: SW (variance coefficient) ≤ 5%

14. Repeatability: CV (coefficient of variation) ≤ 3%

15. Resolution: 0.001

16. Interfaces: USB interface: 2; USB-B interface: 1; LAN interface: 1; DC power interface: 5.5/2.1mm

17. Power Supply: Input: AC100V-240V/1.3A 50Hz; Output: DC12V/5A

17. Operating Environment: Temperature: 0~50℃; Humidity: 0~90%

18. Instrument Dimensions: 300*235*125mm;

19. Main Unit Net Weight: 2.2kg;

20. Accessory Case: 740mm*490mm*310mm Precision Instrument Trolley Case, Military-Grade Shockproof/IP54 Waterproof, Silent Universal Wheels + Aviation Aluminum Material, Lightweight Design for Enhanced Portability

IV. Testing Items
