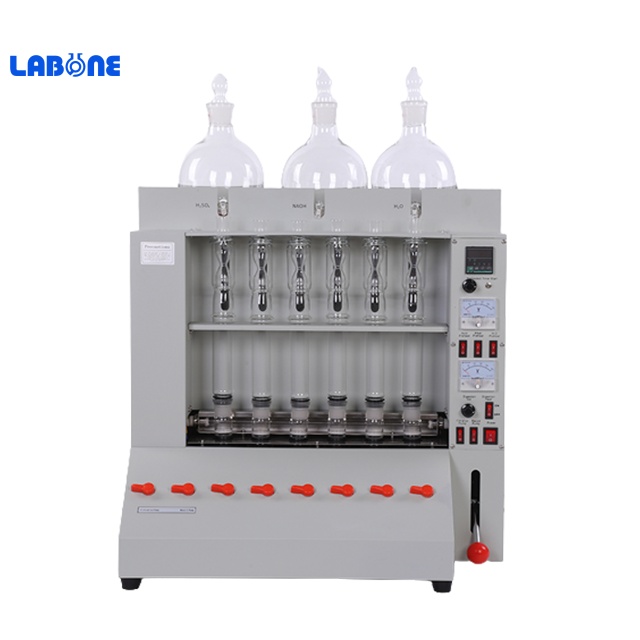

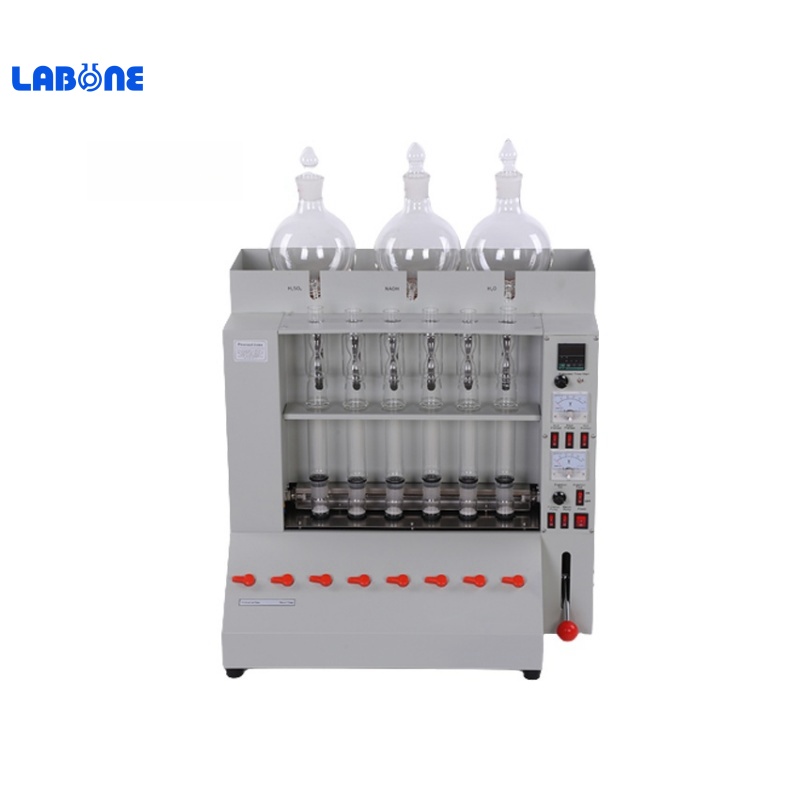

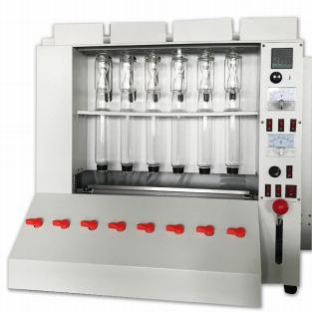

CXC-06 Raw Fiber Analyzer / Coarse Fiber Analyzer
Raw /Coarse Fiber Analyzer tests raw fiber content according to acid and alkali boiling method.It adopts accurate concentration acid and alkali to boil samples in particular condition, then remove soluble substances by ether, deduct the amount of minera
CXC-06 Raw Fiber Analyzer / Coarse Fiber Analyzer
Product description
Raw /Coarse Fiber Analyzer tests raw fiber content according to acid and alkali boiling method.
It adopts accurate concentration acid and alkali to boil samples in particular condition, then remove soluble substances by ether, deduct the amount of minerals by high temperature burning.
Technical parameter
Measuring object | Raw / Coarse fiber content in various kinds of grain, feed, food and other agriculture and sideline products |
Measuring sample quantity | 6/times |
Reproducibility error | Raw fiber level < 10% absolute value error≤0.4% |
Raw fiber level > 10% absolute value error≤4% | |
Measuring time | about 100min (including acid 40min, alkali 40min, filter and wash 20 min) |
Power | AC220V/50HZ, 2800W |
Water supply | water pressure >1.5MPa |
Water temperature <20°C | |
Size | 670×450×670mm |
Weight | 30kg |
Related Products
Automatic Kjeldahl Distillation System/Digestive Furnace/Fat Analyzer/NMR Oil Content Analyzer
