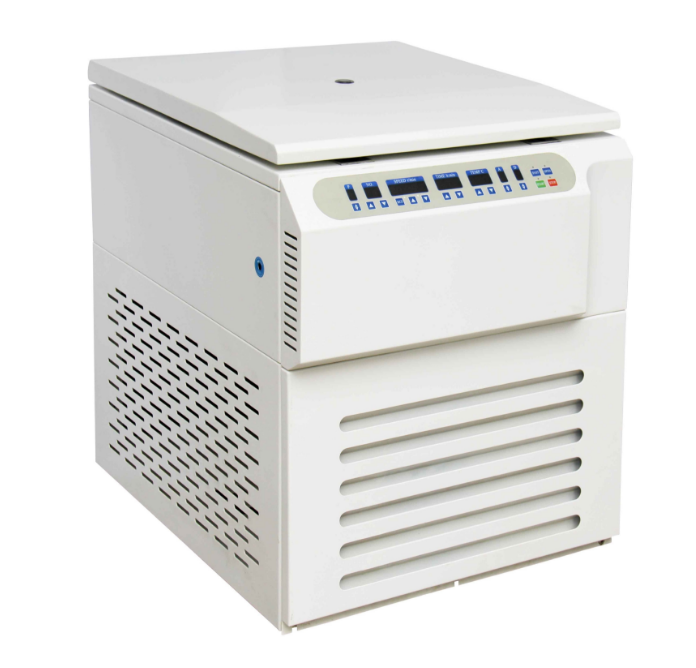

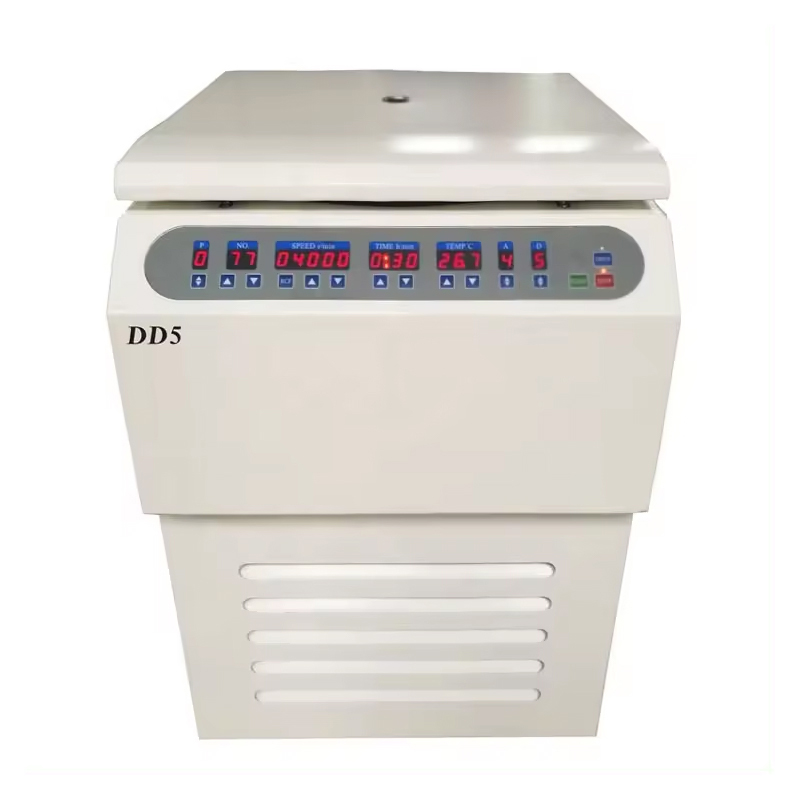

DD5 Floor Standing Large Capacity Centrifuge
Application:DD5 lab centrifuge widely used in the fields of pharmaceutical factory and laboratory, can hold swing out rotors and angle rotors both.
DD5 Floor Standing Large Capacity Centrifuge
Application:
DD5 lab centrifuge widely used in the fields of pharmaceutical factory and laboratory, can hold swing out rotors and angle rotors both.
Features
1. Widely used in the field of blood bank, pharmaceutical factory and laboratory.
2. Brushless frequency motor, in great torque, free maintenance, no powder pollution, quick in speed up and down.
3. Digital display which indicates the program, speed, time,RCF, temperature.
4. Micro computer control, there are 10 kinds of program and 10 kinds of acceleration and deceleration for your choice.
5. Electric lid lock, compact design, super speed and imbalance protection.
6. The centrifuge body is made of high-quality steel, safe and reliable.
DD5 Technical Parameter：
Max. Speed | 5000rpm |
Max. RCF | 4730×g |
Max. Capacity | 4×800ml(4*500ml blood bag） |
Timer | 1~9h59min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 58 |
Temperature Range | / |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | / |
Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
Size (L x W x Hmm) | 720×540×830mm |
Net Weight(Kg) | 108KG |
Certificates | CE,ISO & Calibration report are available |

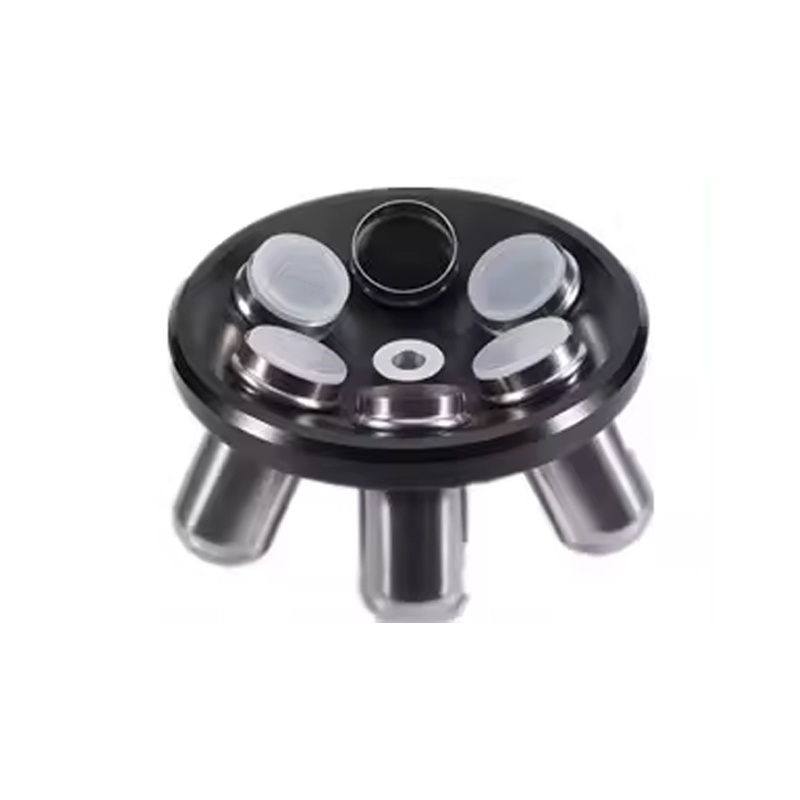

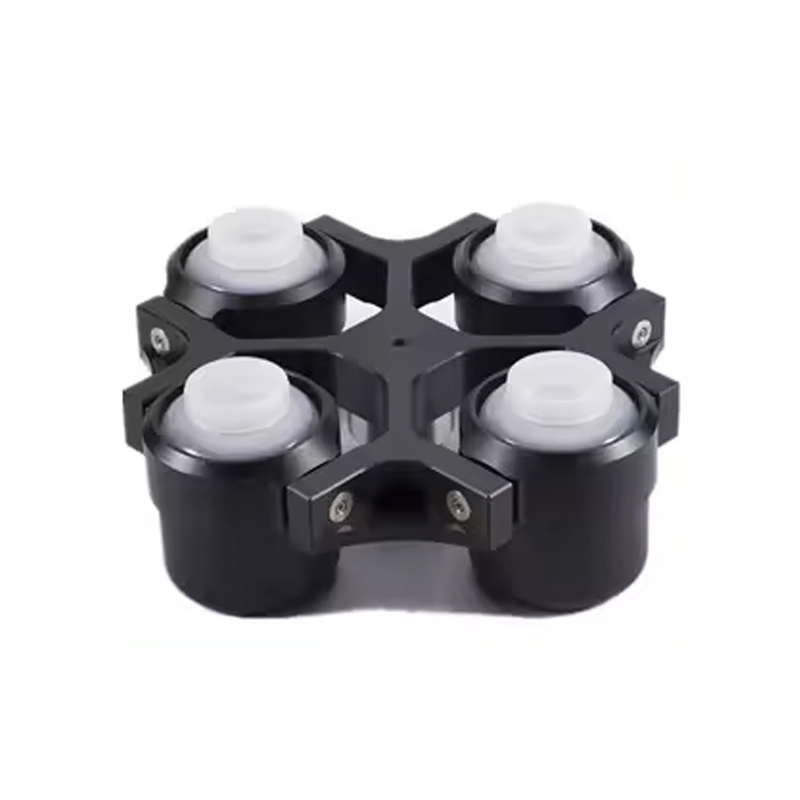

Matched Rotors for DD5
Order No | Rotor | Max Speed(r/min) | Volume(ml) | Max RCF(×g) |
D5-1 | Swing Rotor | 4000 | 4×800ml | 3450 |
D5-2 | Swing Rotor | 4000 | 4×750ml | 3530 |
D5-3 | Swing Rotor | 4000 | 4×500ml | 3380 |
D5-4 | Swing Rotor | 4000 | 4×4×96(well) | 2940 |
D5-5 | Microplate rotor | 4000 | 2×4×96(well) | 3210 |
D5-6 | 2×3×48(well) | 2300 | ||
D5-7 | Swing rotor | 5000 | 4×1×50ml | 4730 |
4×1×100ml | 4730 | |||
4000 | 4×2×100ml | 3020 | ||
4000 | 4×2×50ml | 3200 | ||
4000 | 4×4×15ml | 3200 | ||
4000 | 4×6×15ml | 3200 | ||
D5-8 | Swing rotor | 4000 | 4×8×15ml | 3200 |
4000 | 4×12×5ml vacuum tube | 2480 | ||
4000 | 4×12×7ml vacuum tube | 2760 | ||
4000 | 4×12×10ml vacuum tube | 2880 | ||
4000 | 4×8×10/7/5ml vacuum tube | 2790 | ||
4000 | 4×6×10/7/5ml vacuum tube | 2790 | ||
4000 | 4×4×10/7/5ml vacuum tube | 2790 | ||
D5-9 | Swing rotor | 4000 | 4×24×5ml vacuum tube | 2480 |
4000 | 4×31×5ml Khan tubes | 2480 | ||
D5-10 | Swing rotor | 4000 | 4×24×7ml vacuum tube | 3140 |
4000 | 4×31×7ml Khan tubes | 3140 | ||
4000 | 4×30×7ml vacuum tube | 3140 | ||
4000 | 4×30×5ml vacuum tube | 3140 | ||
4000 | 4×40×7ml vacuum tube | 3270 | ||
4000 | 4×18×10ml vacuum tube | 3140 | ||
D5-11 | Swing rotor | 4000 | Dairy bottle | 3830 |
D5-12 | Fixed rotor | 5000 | 6×15ml | 2540 |
D5-13 | 5000 | 12×15ml | 3080 | |
D5-14 | 5000 | 24×15ml | 3500 | |
D5-15 | 5000 | 30×15ml | 3830 | |
D5-16 | 5000 | 4×50ml | 2520 | |
D5-17 | 5000 | 6×50ml | 2850 | |
D5-18 | 5000 | 12×50ml | 3860 | |
D5-19 | 4000 | 24×50ml | 2970 | |
D5-20 | 5000 | 4×100ml | 2630 | |
D5-21 | 5000 | 6×100ml | 3130 | |
D5-22 | 4000 | 12×100ml | 2970 |
