200g~1000g Lab Analytical Balance 0.001g Analytical Balance Lab Digital Precision Balance Class II Electronic Weighing Scale
JD-3 Series Electronic Balance (1/1000 External Calibration)Product Features1. Bottom-mounted electromagnetic force sens

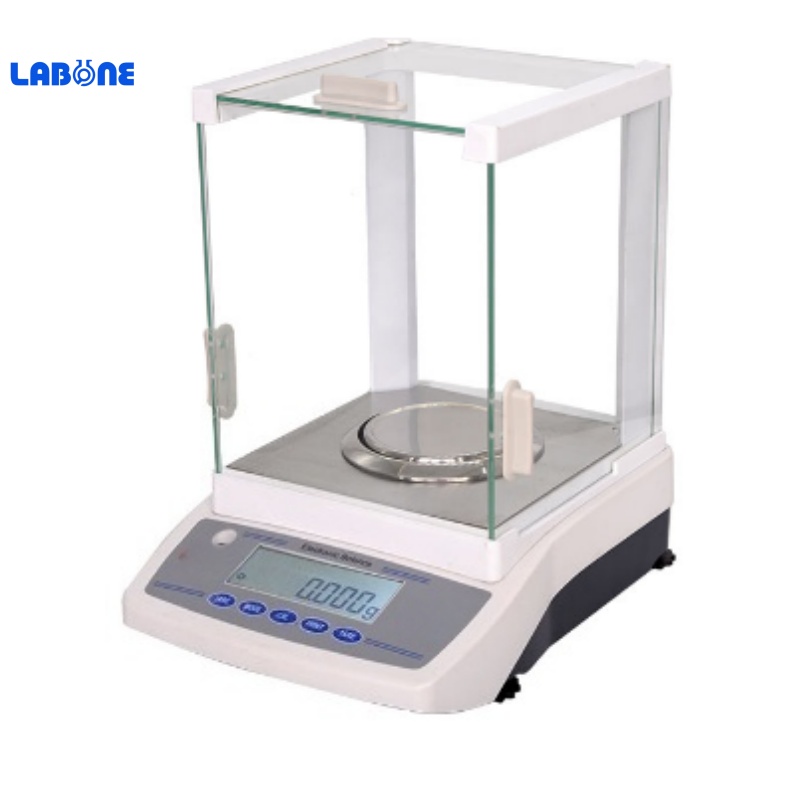

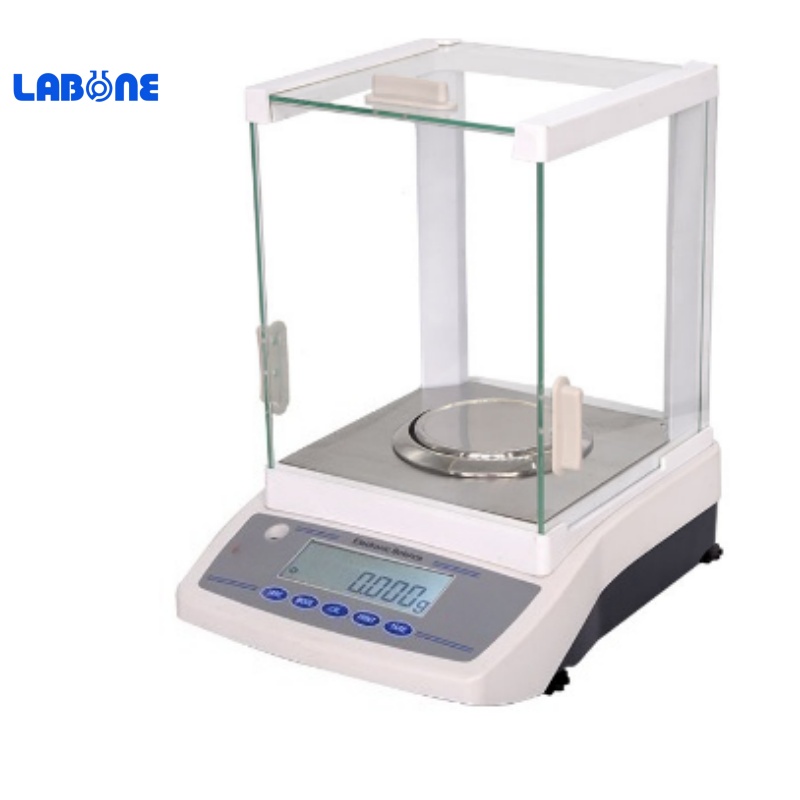

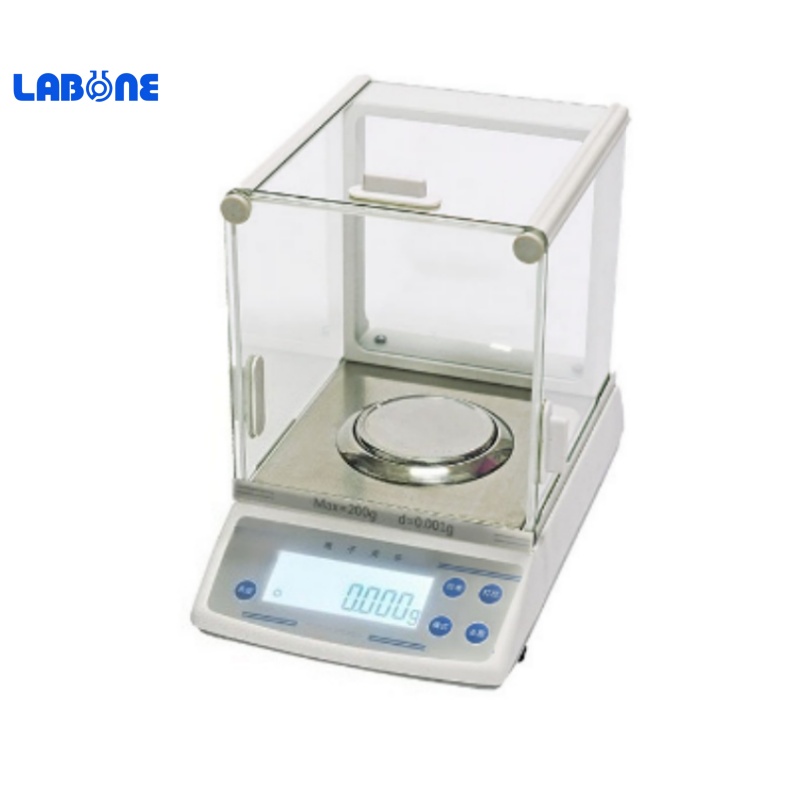

JD-3 Series Electronic Balance (1/1000 External Calibration)

Product Features
1. Bottom-mounted electromagnetic force sensor, employing high-sensitivity and high-stability electromagnetic force sensor technology for superior product performance.
2. Ultra-thin metal casing, offering enhanced resistance to electromagnetic interference and heat radiation.
3. Three-door design with a fully transparent windproof cover, providing a spacious and aesthetically pleasing weighing chamber while occupying less space.
4. Large 90mm stainless steel weighing pan, allowing for the placement of larger containers and convenient use.
5. Equipped with standard stainless steel weights for on-demand calibration.
6. Backlit LCD display. Clear readings; easily switchable display modes for bright and dim environments, protecting eyesight.
7. High precision, fast weighing, accurate and reliable, simple operation, and comprehensive functions, meeting the needs of various laboratory quality analyses.
Product Functions
1. Overload/underload alarm, temperature compensation, full-range tare, accumulation/subtraction.
2. Temperature compensation and drift compensation technology ensure more accurate and reliable weighing in all weather conditions. 3. Multiple weighing unit conversions and data output methods: grams, carats, ounces, etc.
4. Weighing methods: counting, percentage, etc., suitable for different weighing quantities.
5. Equipped with an RS232 output interface for connection to computers, printers, and other peripherals.
6. Density measurement (optional density device accessory including software).
7. Weighing with a lower hook (optional).
Model | JD1000-3 | JD500-3 | JD300-3 | JD200-3 | JD100-3 |
Max.(Capacity) | 1000 g | 500 g | 300 g | 200 g | 100 g |
Readability(d) | 0.001g ( 1 mg) | ||||
Minimum Weight (U= 1%, k=2), typical | 0.01g | ||||
Repeatability(±) | 0.001 g | ||||
Linearity(±) | 0.002 g | ||||
Sensitivity Drift | ±2 ppm/℃ | ||||
Min.(Capacity) | 0.01 g | ||||
Make | LT | ||||
Calibration | Motorized External Calibration | ||||
Class | Class Ⅱ | ||||
Display | LCD | ||||
Response Time | 3-5 Sec | ||||
Pan Size(mm) | φ90 mm | ||||
Tare Range | Full | ||||
Operating Temperature | +10℃ to +40℃ | ||||
Density | Function Available | ||||
Weighing Chamber Size | 175× 175 × 185 mm | ||||
Unit | g,mg,oz,ct,lb,ozt,dwt | ||||
Application Mode | PCS/Percent Weighing,Animal Weighing,Density,Totalizing,(Add)Weighing | ||||
Baud Rate Options | 1200,2400,4800,9600 | ||||
Interface | RS232C | ||||
Power Supply | DC15V 1A PC≤20W/50-60 Hz | ||||
Dimension (LxWxH) | 335×205×293 mm | ||||
Gross Weight | 8 kg | ||||
MOQ | 1 Set | ||||
Customs Tariff Number | 9016001000 | ||||
