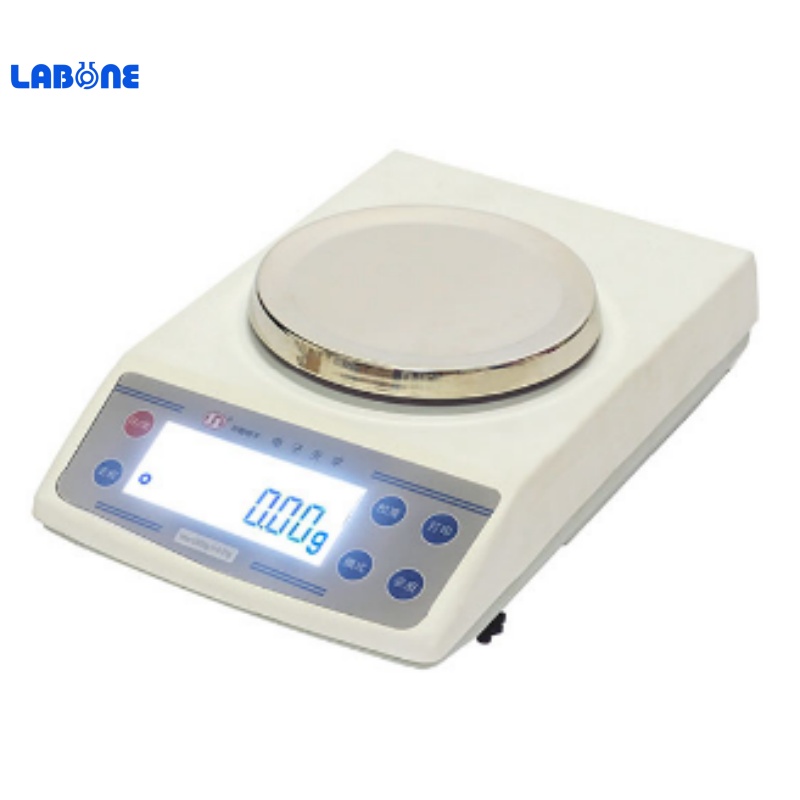

JD-2 Series Percision Electronic Balance

JD-2 Series Percision Electronic BalanceFeature:1.Underneath-electromagnetic force transducer,less occupation of area, u

JD-2 Series Percision Electronic Balance


Feature:

1.Underneath-electromagnetic force transducer,less occupation of area, ultra-thin shape, easy  operation.

2.Adopt the internationally-accepted highly sensitive,highly stable  electromagnetic force transducer technology to obtain the higher performance of the products.

3.Φ 160mm large stainless steel pan, weigh more objects.

4.LCD backlighting display,clear reading, switch optionally the display method in the light and dark environment to protect the eyesight.

5.High precision, quick response, accurate and

reliable, easy operation, multiple functions satisfying the needs of the quality analysis of all kinds of the laboratories.



Functions:

1.One percent (0.01g), automatic external calibration

2.Overloading/underloading alarm, the temperature compensation,tare of full weighing range, accumulative/regressive features.

3.Multiple weighing units conversion and data output, g, ct, oz etc..

4.Measuring way: counting, percentage, etc. for the different weighing.

5.Standard RS232 output interface connected with the computer and printer etc..

6.Density measurement (Optional parts of the density devices).

7.Optional under hook device

8.Optional calibration weight


MODEL

CAPACITY

READ ABILITY

REPE ATABILITY

LINEARITY

PAN SIZE

WEIGHT

EXT DIME SION

JD6000-2

6000g









0.01g









±0.01g









±0.02g









Φ160mm









5kg









335×205×100mm

JD5000-2

5000g

JD4000-2

4000g

JD3000-2

3000g

JD2000-2

2000g

JD1000-2

1000g

JD500-2

500g


Model

JD500-2

Maximum Weighing Capacity

500g

Minimum reading (d)

0.01g

Repeatability erro

≤±0.01g

Linearity error

≤±0.02g

Off-center loading error (corners)

≤±0.02g

Discrimination power

1.4d

Sensitivity drift

±2ppm/

Time drift

±0.10g

Settling time

5s

Operating temperature

10~45

Operating humidity

20%RH~85%RH

Power supply

DC15V 1A, power consumption 20W

Calibration method

Automatic calibration (manual weight addition)

Display interface (method)

LCD/VFD fluorescent display

Weighing pan size

 Φ160mm

Balance dimensions

335×205×100mm

Net weight

 5kg

Gross weight

6.1kg

Packaging dimensions

445×350×235

Output Interface

RS232C

Unit

g (gram)
