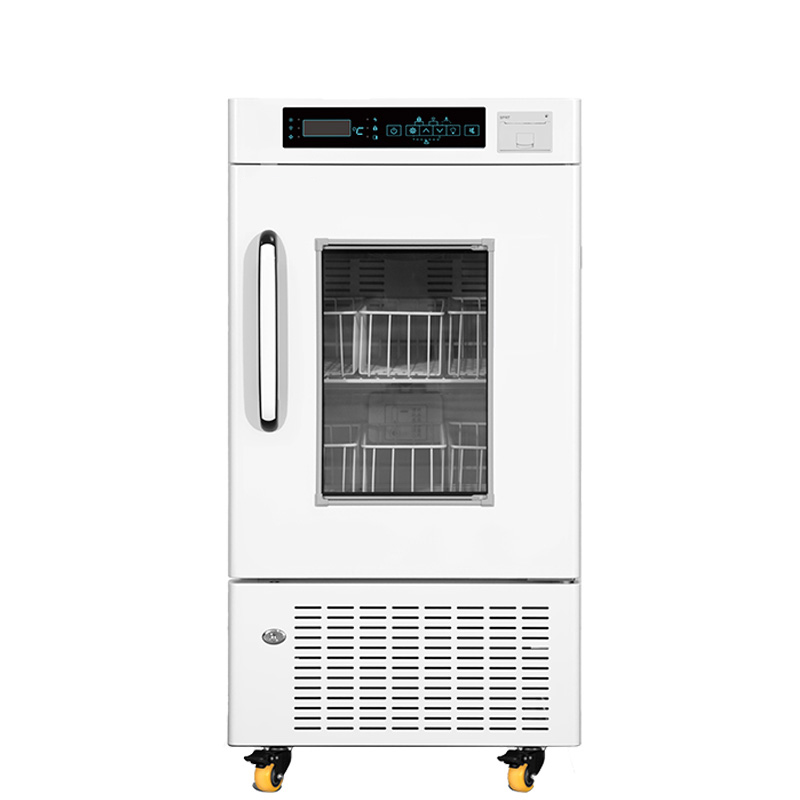

MBC-4V108 4℃ Blood Bank Refrigerator
MBC-4V108 Blood bank refrigerator (108 liter) is an essential piece of equipment in the immunohematology department and provides safe and convenient storage of whole blood, blood components (e.g.,blood cells, plasma), and reagents. It ensures freshness and integrity of blood and blood components. MBC-4V108 can store a total of 66 pcs of 450ml blood bags.

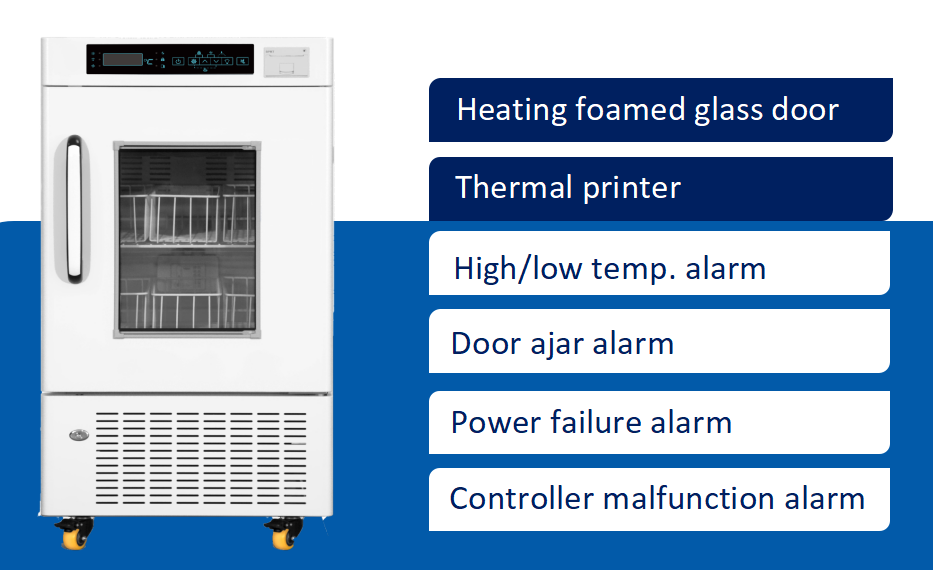

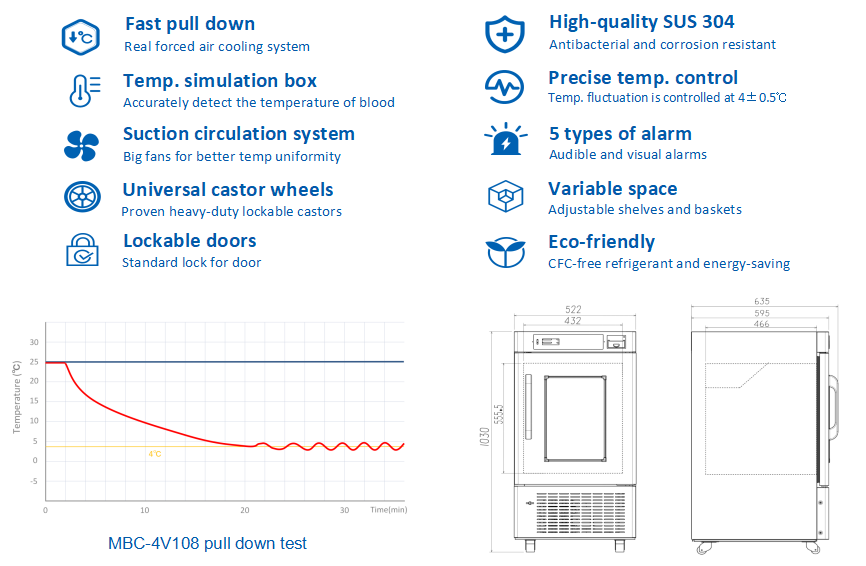

FEATURERS

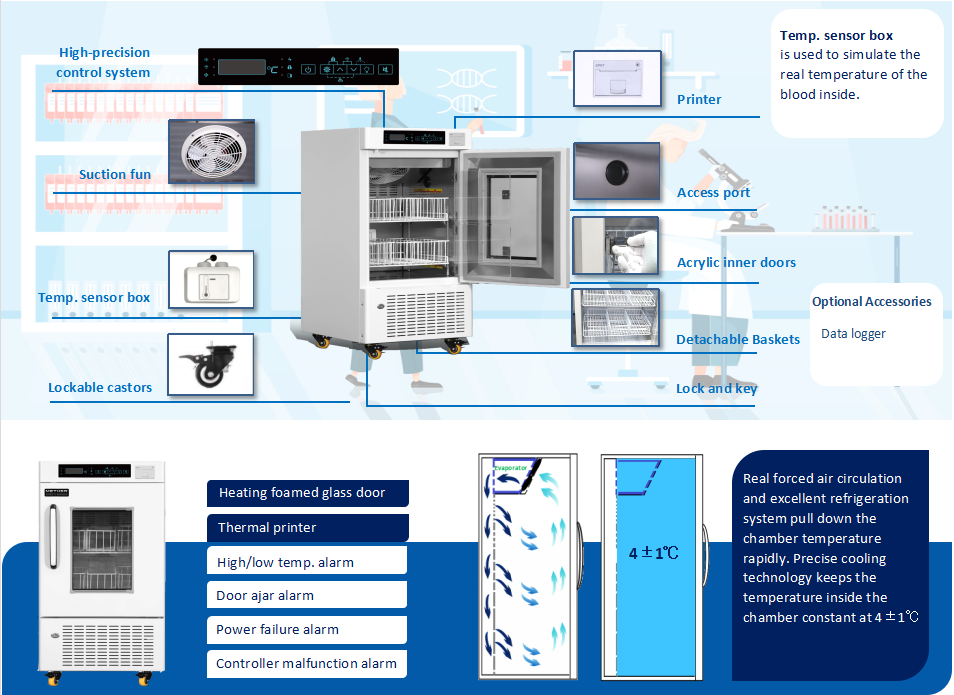

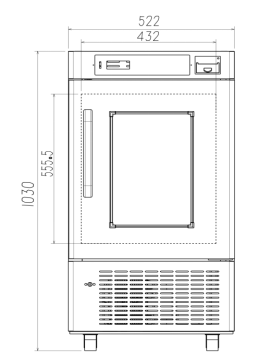

STRUCTURES
PARAMETERS
| Performance | Refrigeration System | Alarms | |||

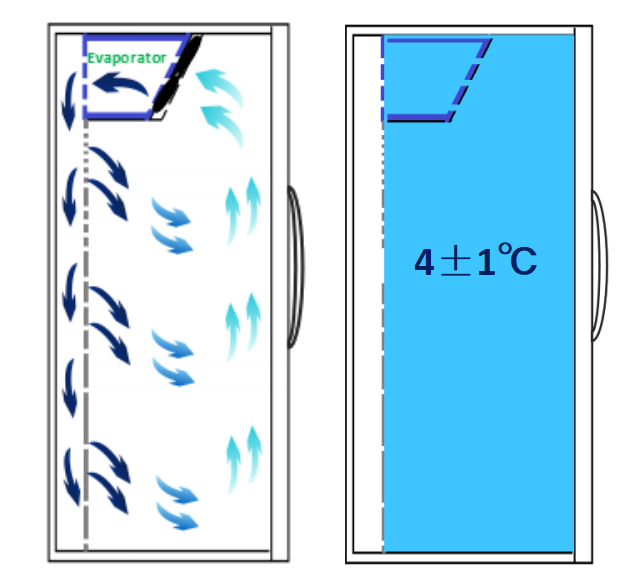

| Cooling method | Forced Air Cooling | Refrigerant | R134a | High/low temperature | Y |
| Defrost | Auto | Temp. controller | Microprocessor | Power failure | Y |
| Shelf/drawer | 2/6 | Sensor | NTC | Thermostat failure | Y |
| Temperature range | 4±1℃ | Display | Digital display | Controller malfunction | Y |
| Ambient temperature | 10~32℃ | External material | SPCC sprayed steel | Door ajar | Y |
| NT./GT.（kg) | 74/95 | Capacity（L/cu.ft) | 108/3.81 | Backup battery for alarms | 72 hrs |
| Electrical Data | Dimensions | Other | |||
| Voltage frequency( V/Hz) | 220V 50Hz/110V 60Hz | Package size(W*D*H)(mm) | 720*612*1070 | Door Type | Heating foamed glass door |

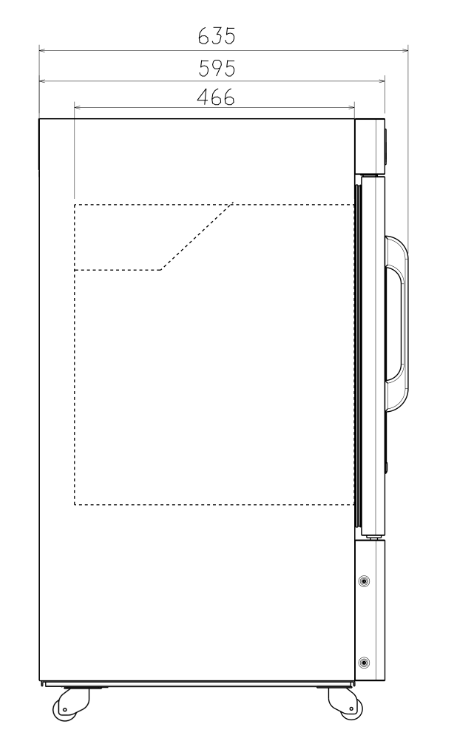

| Power（W) | 168W | Exterior size(W*D*H)(mm) | 522*635*1050 | Inside Door | 2 |
| Current（A) | 1.2 | Interior size(W*D*H)(mm) | 432*462*478 | USB/Remote alarm port | Optional |
| Power consumption | 2.11 kWh/24h | CBM | 0.5 | Access port QTY/Dia. | 1/25mm |
| Compressor QTY | 1 EMBRACO | 20GP/40GP/40HQ | 32/68/68 | Internal material | SUS 304 |
