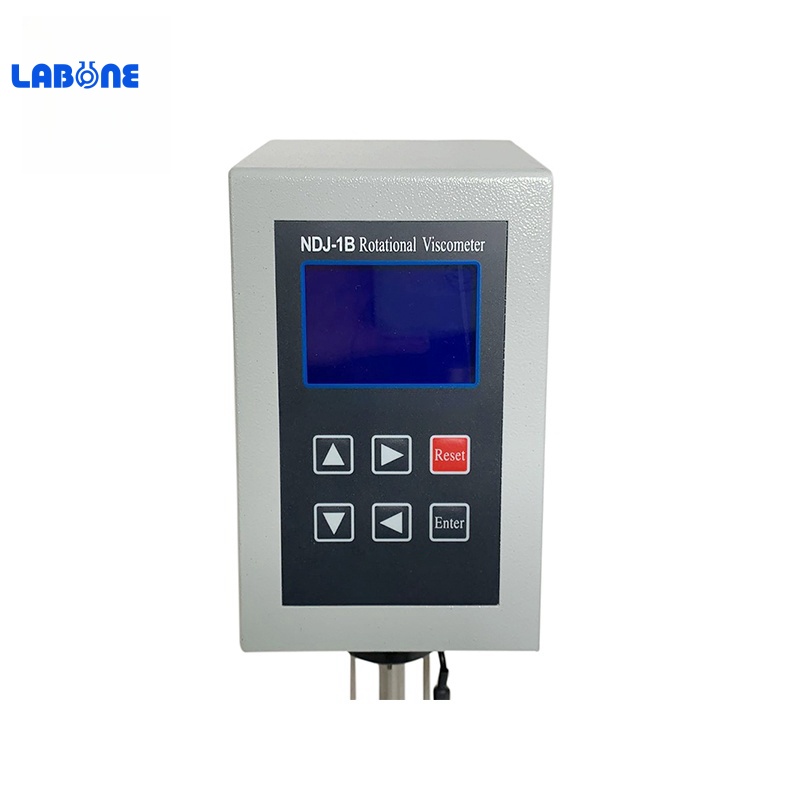

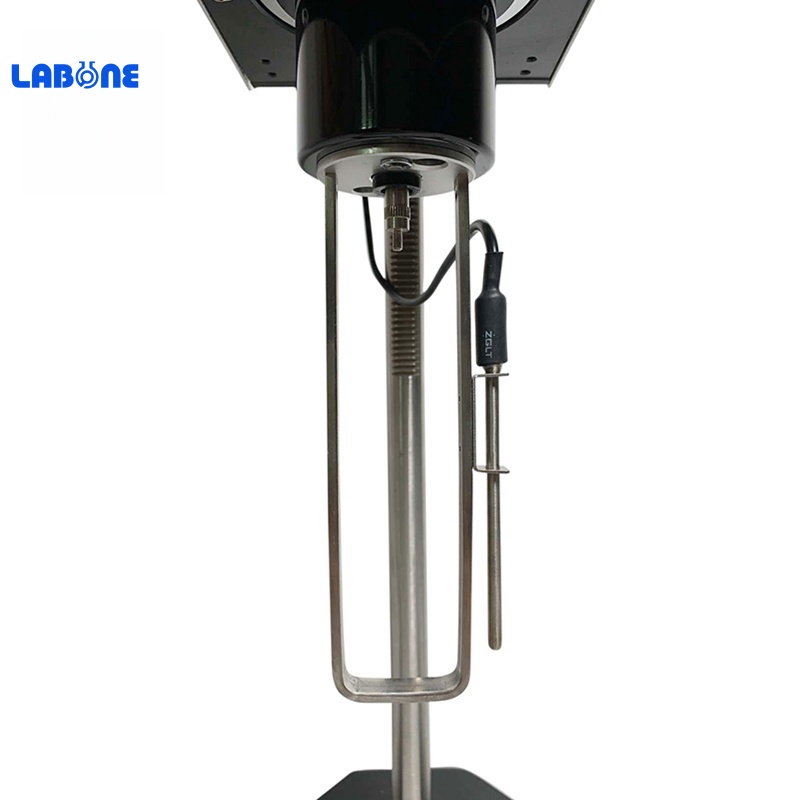

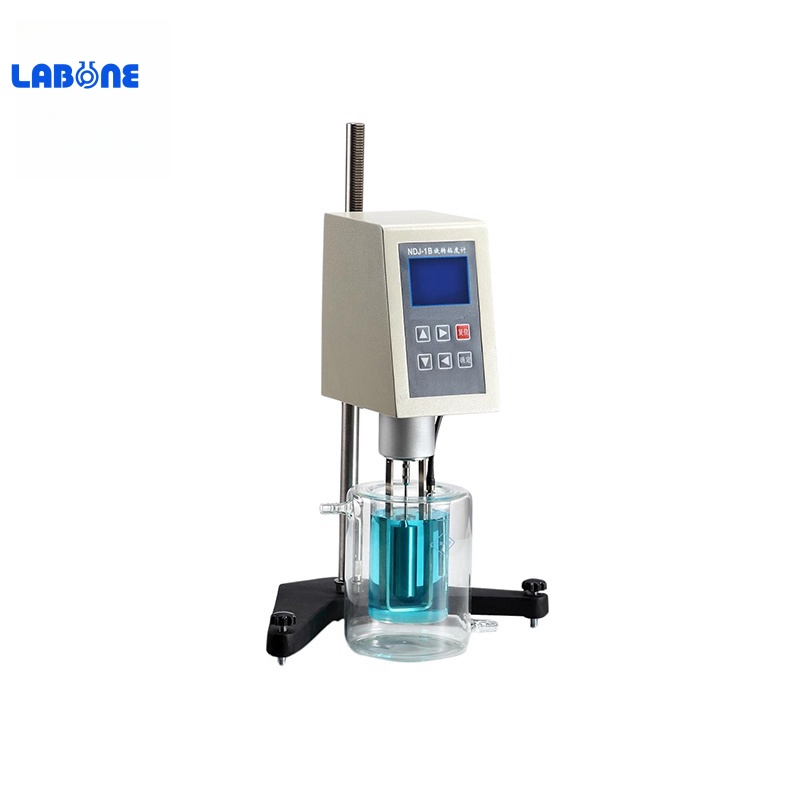

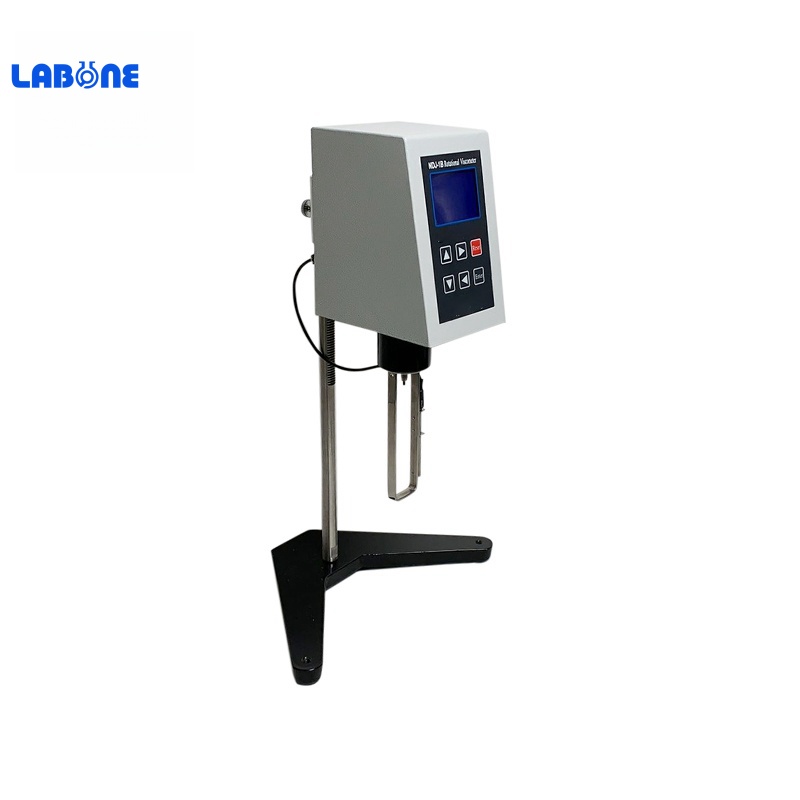

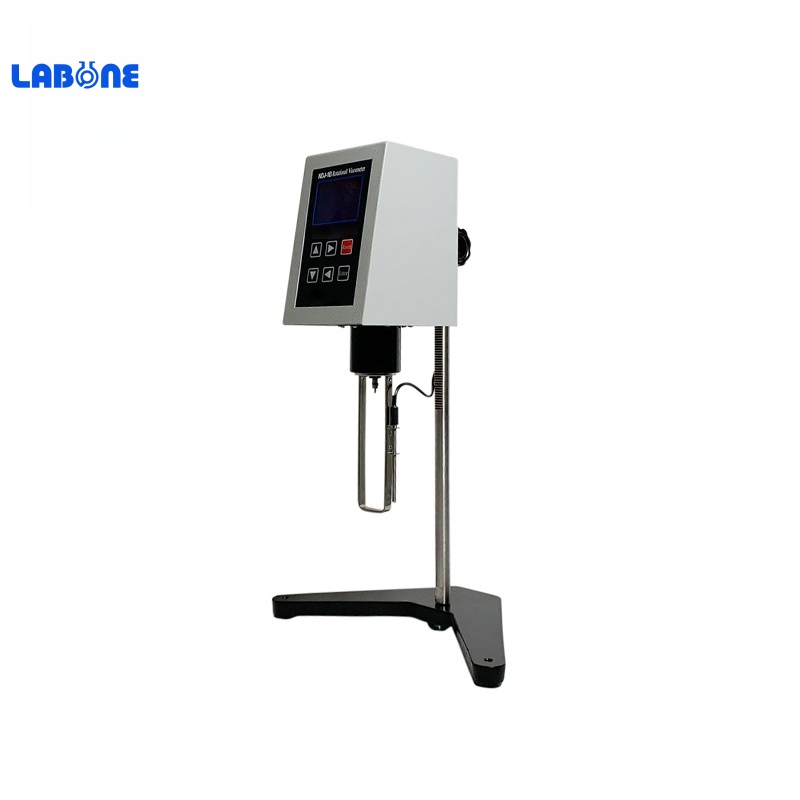

NDJ-1B Rotational Viscometer
Summary The instrument adopts advanced mechanical design technology, manufacture technique and microcomputer controlling technology.It can collect data accurately. Using white background light and ultra-bright LCD, it can show test data clearly. Equip
NDJ-1B Rotational Viscometer
Summary
The instrument adopts advanced mechanical design technology, manufacture technique and microcomputer controlling technology.It can collect data accurately. Using white background light and ultra-bright LCD, it can show test data clearly. Equipped with a special printer interface, it can print out measurement data through a printer.
The instrument has the characteristics of high sensitivity, reliability, convenience and good looking. It is used to determine absolute viscosity of Newtonian liquids and apparent viscosity of Non-Newton liquids. It is widely used to determine the viscosity of liquids such as greases, oil paints, plastics, pharmaceutics, coatings, adhesives, washing solvents, and other fluids.
II. Main technical specifications
Measurement range | 10 mPa•s～2000000 mPa•s |

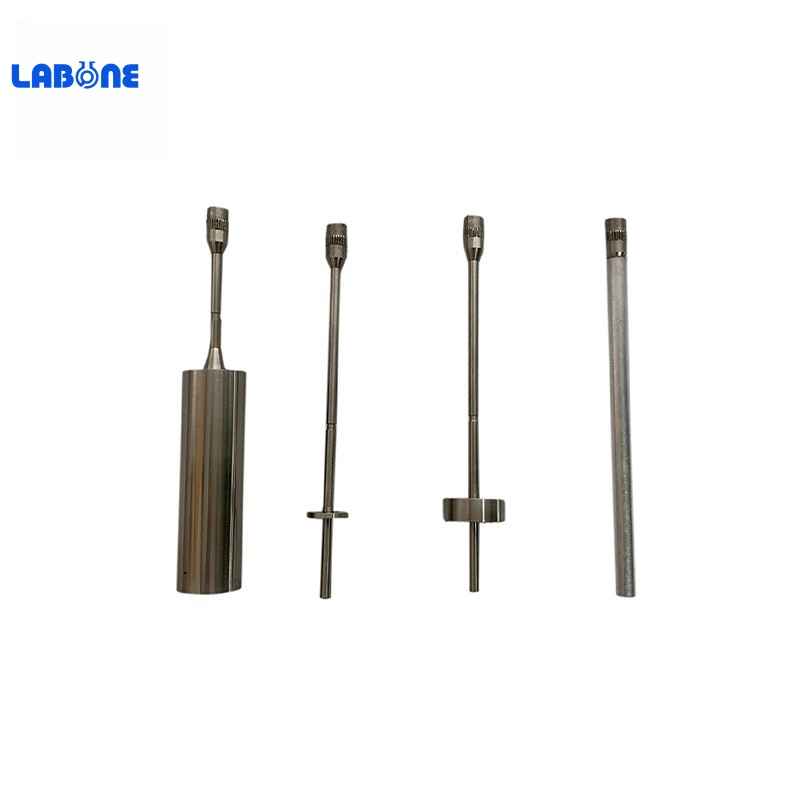

Spindle | No.1～No.4, four spindles |
Rotation speed | 0.3 RPM, 0.6 RPM, 1.5 RPM, 3 RPM, 6 RPM, 12 RPM, 30 RPM, and 60 RPM; 8 grades in total |
Measuring accuracy | ±1% (F•S) |
Power supply | AC 220 V±10%, 50 Hz±10% |
Ambient temperature | 5 ℃～35 ℃ |
Relative humidity | ≤80% |
Printing output | needle printer |
Comunication port | RS232 port |
III. Optional parts
1. HWY-10 Circulation water bath
2. Double-layer sample cup
3. No.0 spindle
4. Viscosity oil standards
5. Small sample adapter
