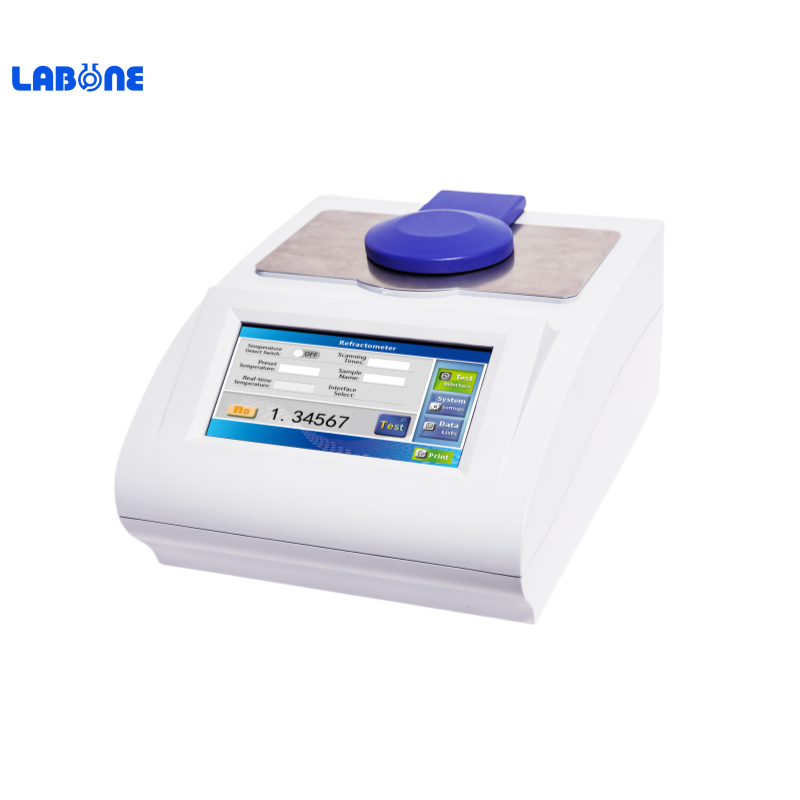

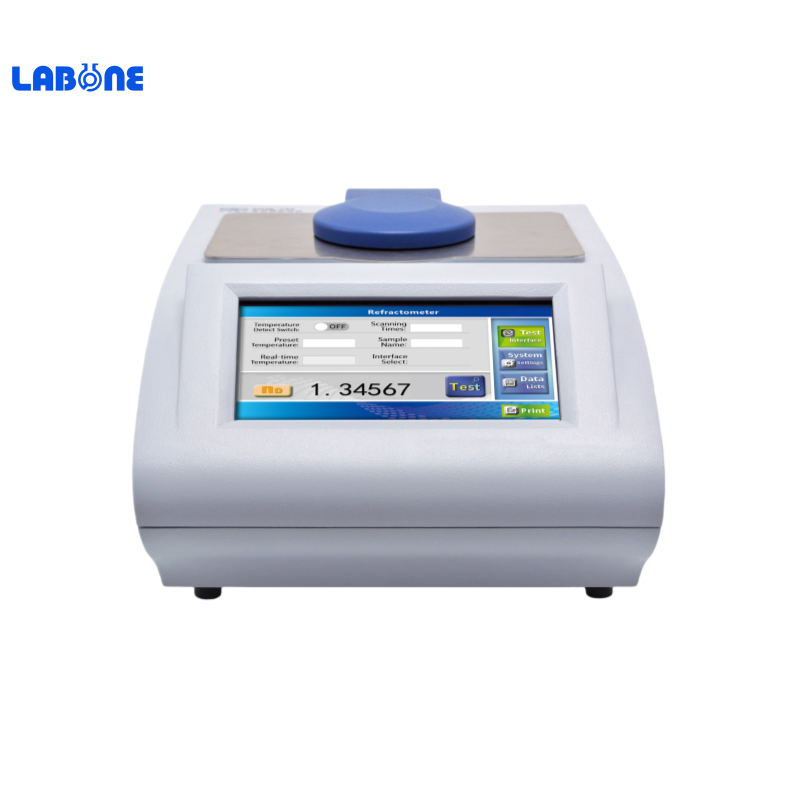

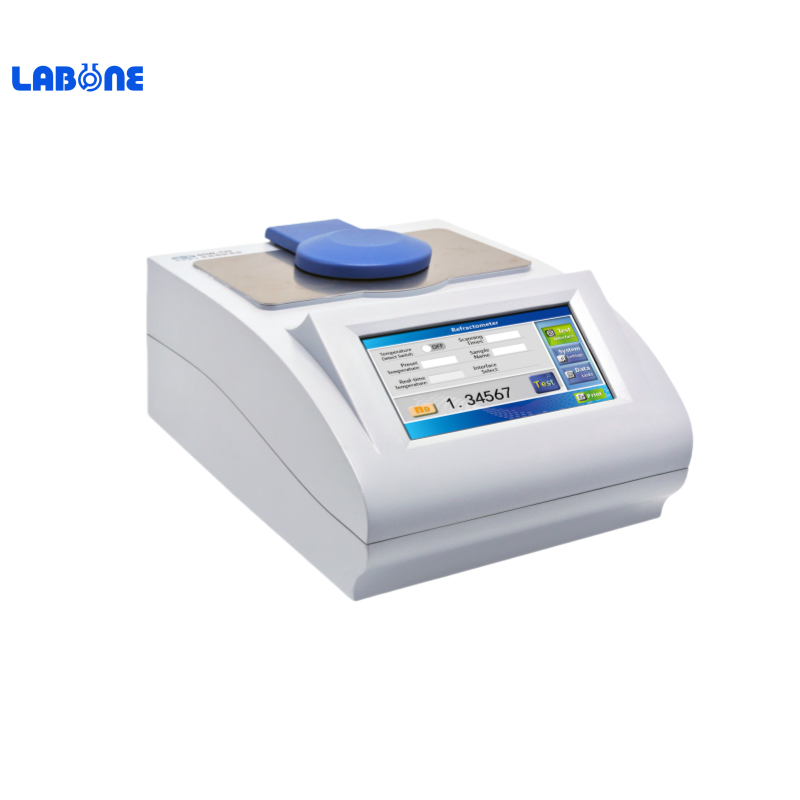

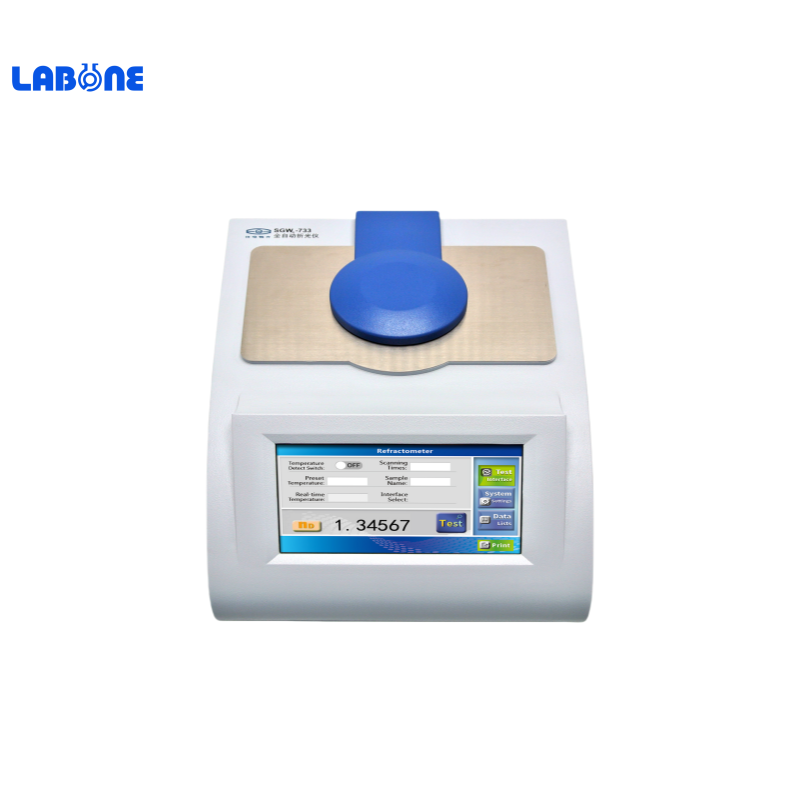

SGW-733/SGW-731Automatic Digital Refractometer
Full automatic measuring, high resolution CCD detection system.Temperature correction function to avoid human error.Have the function of temperature display, automatic correction and saving the date.LED light source that lasts over 100000 hours.Mu
Characteristics
Full automatic measuring, high resolution CCD detection system.
Temperature correction function to avoid human error.
Have the function of temperature display, automatic correction and saving the date.
LED light source that lasts over 100000 hours.
Multiple measuring methods: F42 fructose corn syrup, F55 fructose corn syrup concentration, Glucose concentration, Sucrose concentration, Solid content (juice vegetables, canned products, soft drinks)Honey water content, nD20 and user-defined formula.
Temperature control, temperature automatic correction and saving the data (SGW-733).
Touch Screen.
Specifications
Parameters/Model | SGW-733 | SGW -731 |
Measuring range | Refractive index (nD):1.30000-1.70000 Brix:0-100% | |
Measuring accuracy | Refractive index (nD): ±0.0002 Brix:±0.1% | |
Resolution | Refractive index (nD):±0.00001 Brix:+0.01% | |
Audit trail | Optional | / |
Temp. control mode | Peltier ( Built-in ) | / |
Temp. Display range | 0-90℃ | / |
Temp. control range | 10-60℃ | |
Temp. control accuracy | ±0.01℃ | / |

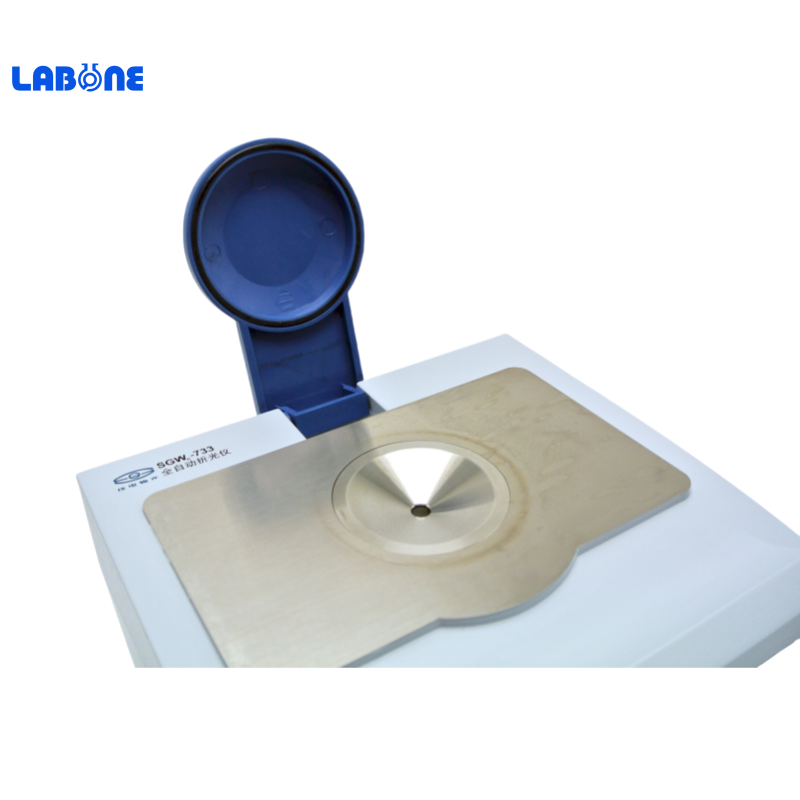

Prism | Hard glass | |
Operating system | Windows | |
Data storage | 1000sets | |
Display | 7 inch color touch screen | |

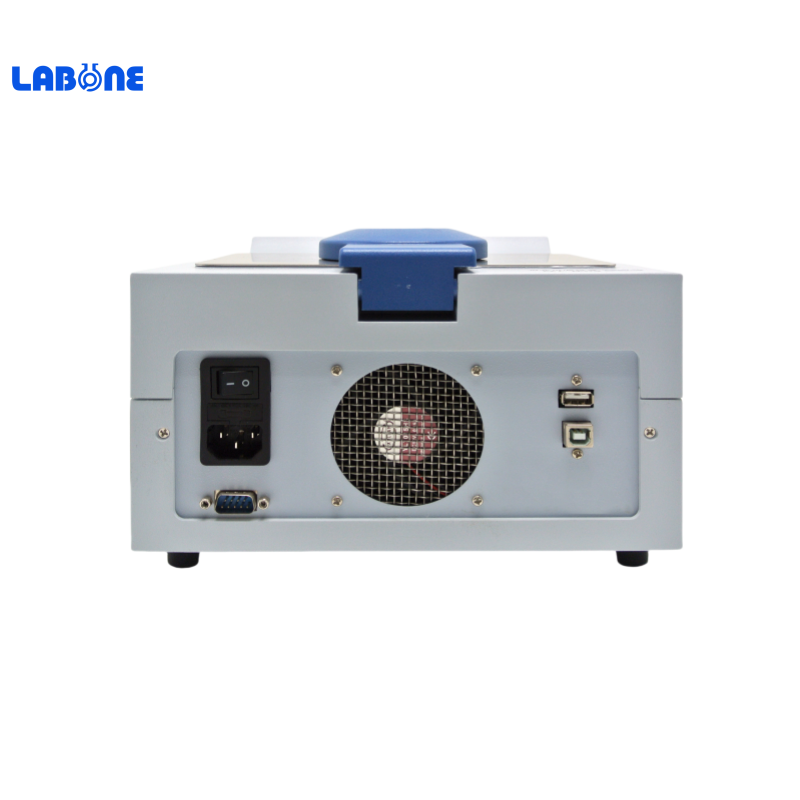

Interface | RS232,USB ,U Disk | |
Power supply | 220V±22V，50Hz±1Hz，50w | |
Overall dimensions | 500mmx330mmx220mm | |
Weight(Gross) | 9KG | |
Send Request
