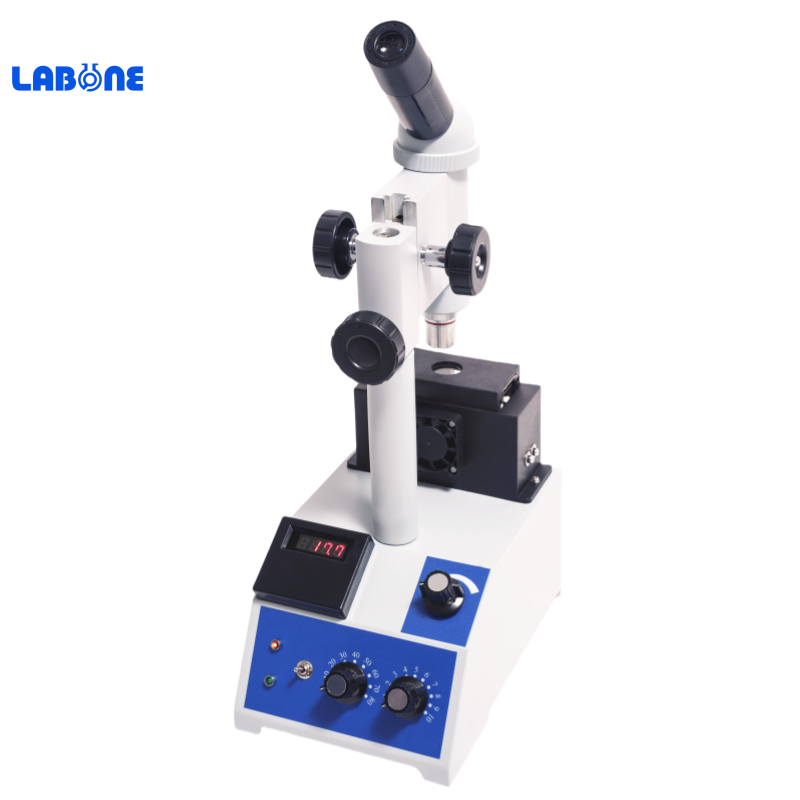

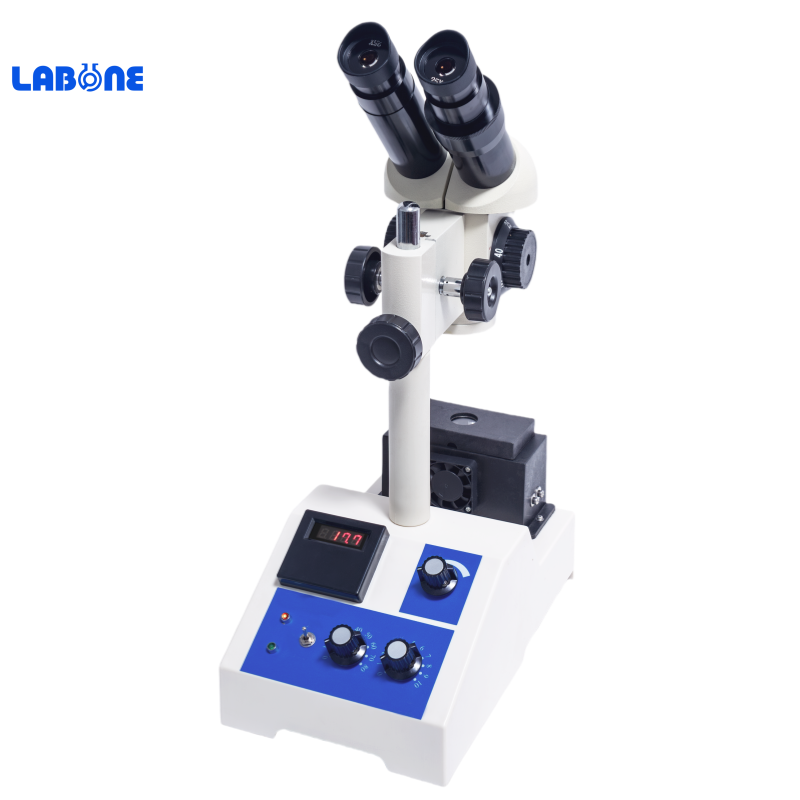

SGW-650A/SGW-630AAutomatic Image Melting Point Apparatus
Image processing and analysis, with video recording and playback.Android operating system with large touch screen.Equipped with multi-point calibration function, observing with automatic mode or visual mode.Improved accuracy and reliability of the m
Characteristics
lImage processing and analysis, with video recording and playback.
lAndroid operating system with large touch screen.
lEquipped with multi-point calibration function, observing with automatic mode or visual mode.
lImproved accuracy and reliability of the melting point.
lIt can measure special samples that appear dark or opaque after melting, as well as samples that decompose during heating.
lCompliant with the relevant requirements of the National Pharmacopoeia, GMP, GLP and FDA/21CFRPart 11.
Specifications
Parameters/Model | SGW-650A | SGW-630A | |
Measuring range | Room temperature - 400°C | ||
Measuring mode | Auto /Visua | ||
Measuring methods | 600 | 400 | |
Number of Users | 300 | 200 | |
Audit trail | Optional | Optional | |
Electronic Signature | Yes | Yes | |
Resolution | 0.01℃ | ||
Linear heating-up rate | 0.1°C/min~20°C/min | ||
Accuracy | ≤200℃ ±0.3℃; >200℃ ±0.5°℃ | ||
Repeatability | 0.3°C (heating rate: 1.0°C/min) | ||
Linear heating rate error | ±5% | ||
Number of capillary | 5 | 3 | |
Capillary dimensions | Outer diameter: φ1.4mm Inner diameter: φl.0mm Length: 90mm | ||
Height of sample | 3mm | ||
Operation System | Android | ||
Data storage | 128G | ||
Display | 10.1 inch touch screen | ||
Interface | 1xRS232,3xUSB,1xRJ-45,WIFI | ||
Overall Dimension | 495mmx493mmx350 mm | ||
Power supply | 100~240V，50/60 Hz，150 w | ||
Weight(Gross) | 5KG | ||
