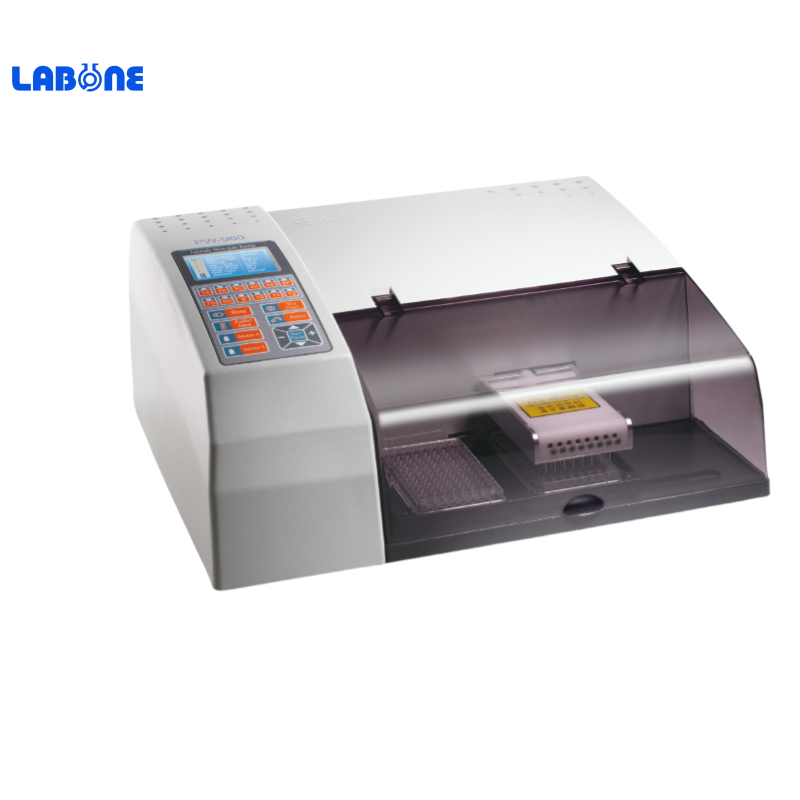

Microplate Washer-PW960
arious plates can be washed by PW-960,which is used in enzyme-linked immunology assay (ELISA) test fast, efficiently and automatically.It is controlled by microcomputer to wash 48 well and 96 wellMicro-plate in experiments of Enzyme Li
Product Highlights：
Bottom holder is slope,in order that all waste water
can be pumped out,which can prevent micro-plates from contaminating；
Product Features：
Uniform dispensing,low residual volume：
Professional design of washer manifold's interior double tanks can keep water pressure uniform.
Dispense precision CV<1.5%.
Aspirating in multi-position can guarantee low residual volume<0.7ul.

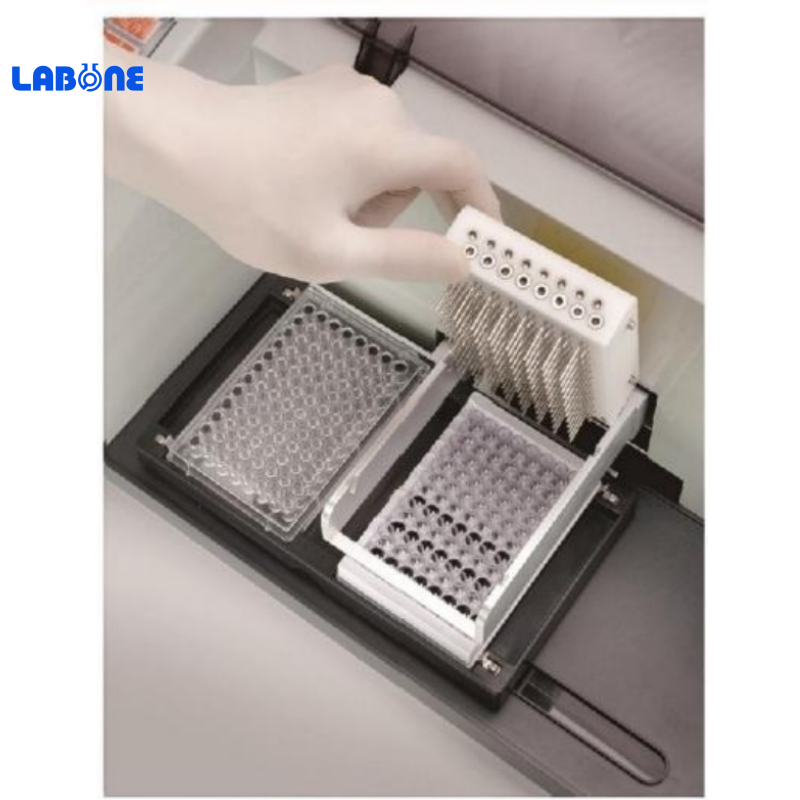

Two alternative micro-plate holders make speed double,which can make use of soaking time.
Washer manifolds work continuously,save time.
Professional anti-clogging technology：
The control technology of pump pressure can avoid needle's clogging.

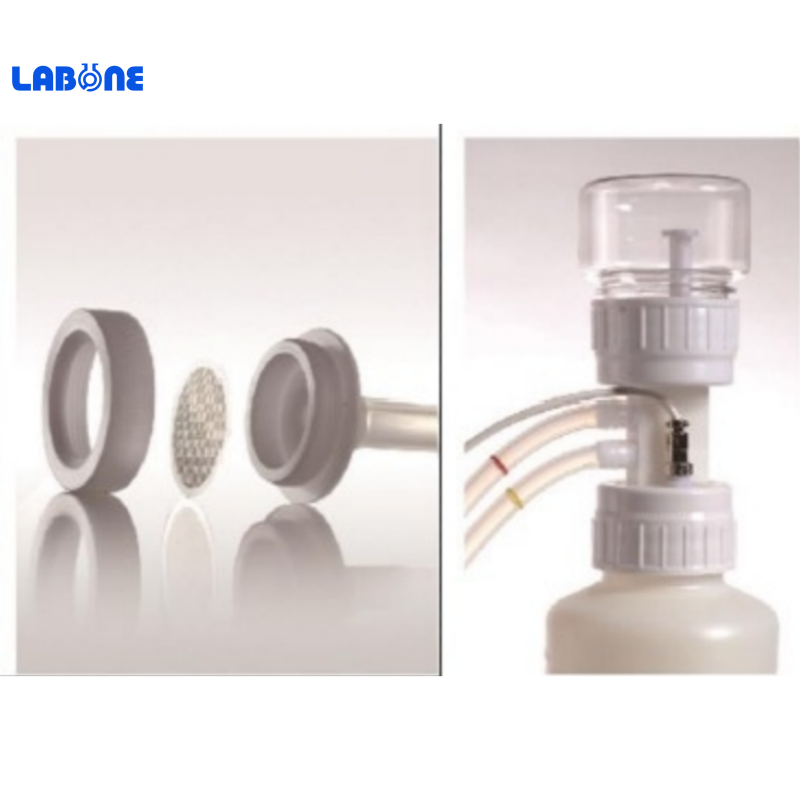

Wash bottle filter can keep sediments in the solution away the pipes.
Predefined rinse procedure can avoid crystallizing in the pipes.
Detachable manifolds makes easy to clear particles in the manifolds.
Special cleaning fluid or predefined rinse procedure when turn on or turn off can make easy to maintain the device.
Avoid cross-contamination：

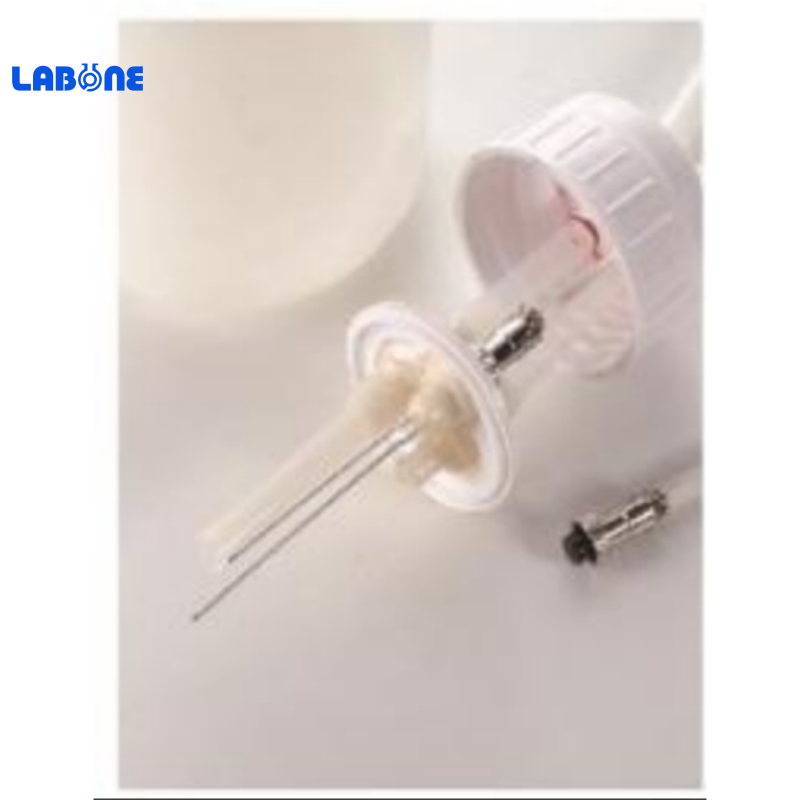

Long needle for aspirating and short needle for dispensing make waste water and solution minimally contacted.
Soaking and shaking can avoid fluid's adsorption.
Bottom holder is slope,in order that all waste water can flow along the surface and be pumped out,which can prevent micro-plates from
contaminating.
Suitable to different sample's quantity：
Do not need to complement the whole plate or strip when any strip or hole is empty.
Do not need to stop working when change plates,which enhances productivity.
8-way or 12-way manifolds is available according to your conditions.

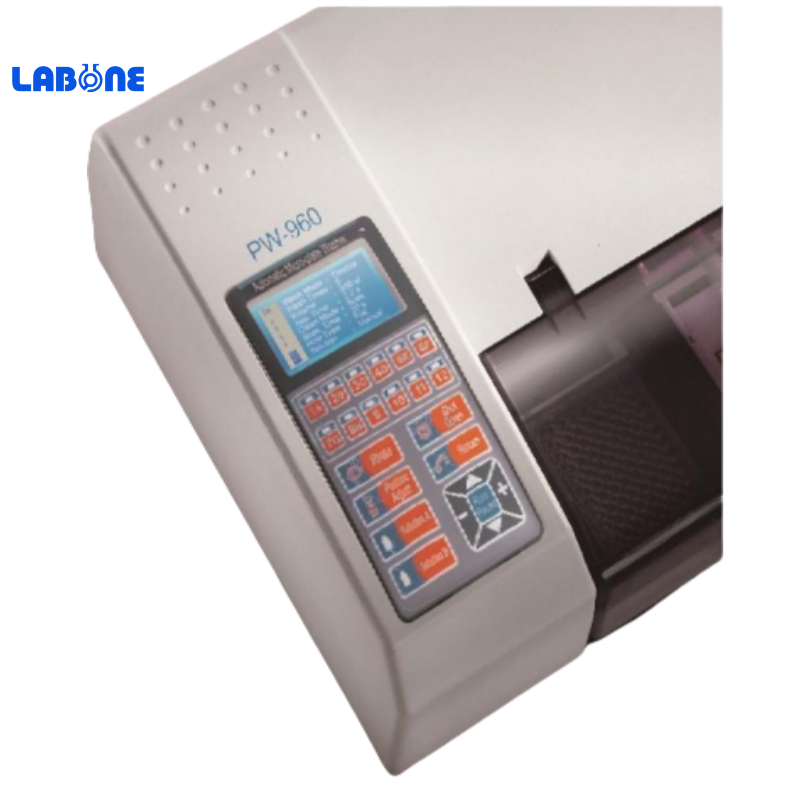

Easy to operate：
Easy to name,edit and save different wash programs.
Motor speed is adjustable.
Stop or Pause key in the board can be chosen to stop or pause during working.
Multi-plate can be selected by default settings or manual operation.
Detachable micro-plate holder makes easy to disinfect and maintain it
Air pressure can be adjusted to keep safe via special air-pressure valve. Operating noise can be less than 54 dB because of silencer design.
Advanced function,better expansibility：
100 kinds of programs can be saved.
The positions of dispense and aspirate manifolds are adjustable.
Suitable for flat,U and V-bottom micro-plates.
Coating function,1000 micro-plates/hour.
Specifications：
Wash head types | Micro-plate 12 line×8 well and 8 line×12 well are available |
Dispense uniformity | CV<1.5% |
Wash times | 1 to 99 times adjustable |
Wash lines | Whole plate or 1-12 lines random combination |
Wash mode | Single plate,double plates or multi-plates |
Dispensing volume | 50-950μl,interval 50μl adjustable |
Wash speed | 5 seconds/plate,140 plates /hour |
Soaking time | 0 to 999 seconds adjustable |
Shaking time | 0 to 999 seconds adjustable |
Aspirating time | 0.1-99.9 seconds adjustable,interval 0.1 second |
Micro-plate positions | Plate A and plate B |
Residual volume | <0.7μl /well |
Wash head positions adjustable | horizontal,left,right,middle,bottom,interval of plates |
Bottle volume
| 300ml and 4000 ml for solution bottle,4000 ml for waste water bottle |
Power | Power Supply 220V AC±30%,50Hz±3Hz
|
External Dimensions | 53.8cm (21.2 inch)×42.6cm(16.8 inch)×23.0cm(9.1 inch） |
(Height/width/depth) Net Weight | 21kg |
